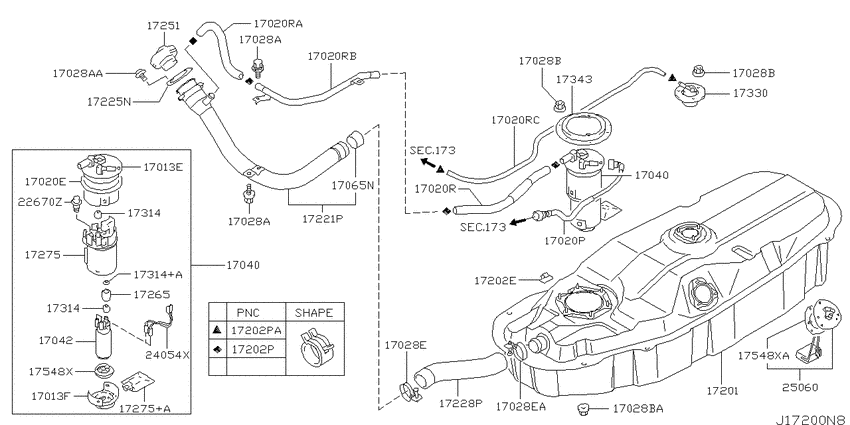

Fuel tank (2004-09-01 ~ 2004-10-01; V.3G83) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 3AT
- grade
- DX
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17013E
|
17013E
17013-6A0A0 Bracket-Fuel Pump0310--01 ~ ; V.3G83 +3G83.(E+E/FOUR) |
17013-6A0A0 |
US $72.86 |
||
|
17013F
|
17013F
17012-6A0A0 Bracket-Fuel Pump0310--01 ~ ; 3G83 |
17012-6A0A0 |
US $6.91 |
||
|
17020E
|
17020E
013526A0A0 Gasket0310--01 ~ ; 3G83 |
013526A0A0 |
US $5.18 |
||
|
17020P
|
17020P
02173-6A00A Tube-Vinyl, Flexible0410--01 ~ ; (V+W).3G83 |
02173-6A00A |
US $44.35 |
||
|
17020P
|
17020P
02173-6A0A0 Tube-Vinyl, Flexible0310--01 ~ 0410--01; HV.SR.3G83 +V.3G83.GL +HR.3G83.(SD+DX+SD/2S).5MT +HR.3G83.3AT +HR/RV.3G83 |
02173-6A0A0 |
US $48.82 |
||
|
17020R
|
17020R
08740-6A0A0 Hose-Fuel0310--01 ~ ; (V+W).3G83 |
08740-6A0A0 |
US $11.38 |
||
|
17020R
|
17020R
08740-6A0A1 Hose-Fuel0310--01 ~ ; (V+W).3G83 |
08740-6A0A1 |
US $7.20 |
||
|
17020R
|
17020R
08740-6A0A2 Hose-Fuel0310--01 ~ ; (V+W).3G83 |
08740-6A0A2 |
US $28.51 |
||
|
17020R
|
17020R
08740-6A0A6 Hose-Fuel0310--01 ~ ; (V+W).3G83; 6X740 |
08740-6A0A6 |
US $9.36 |
||
|
17020RA
|
17020RA
08740-6A0A1 Hose-Fuel0310--01 ~ ; (V+W).3G83 |
08740-6A0A1 |
US $7.20 |
||
|
17020RB
|
17020RB
08740-6A0A2 Hose-Fuel0310--01 ~ ; (V+W).3G83 |
08740-6A0A2 |
US $28.51 |
||
|
17020RC
|
17020RC
08740-6A0A6 Hose-Fuel0310--01 ~ ; (V+W).3G83; 6X740 |
08740-6A0A6 |
US $9.36 |
||
|
17028A
|
17028A
01125-6A0C8 Bolt0310--01 ~ 0410--01; HV.SR.3G83 +V.3G83.GL +HR.3G83.(SD+DX+SD/2S).5MT +HR.3G83.3AT +HR/RV.3G83; ﾜｯｼｬ ﾂｷ,6X16 |
01125-6A0C8 |
US $1.44 |
||
|
17028A
|
17028A
011256A0D9 Bolt0310--01 ~ ; V.3G83; ﾜｯｼｬ ﾂｷ,6X16 |
011256A0D9 |
US $2.16 |
||
|
17028A
|
17028A
851366A0A0 Bolt0410--01 ~ ; (V+W).3G83; ﾜｯｼｬ ﾂｷ,6X16 ﾕｳｼｮｸ |
851366A0A0 |
US $2.59 |
||
|
17028A
|
17028A
01125-6A0C8 Bolt0310--01 ~ 0410--01; HV.SR.3G83 +V.3G83.GL +HR.3G83.(SD+DX+SD/2S).5MT +HR.3G83.3AT +HR/RV.3G83; ﾜｯｼｬ ﾂｷ,6X16 |
01125-6A0C8 |
US $1.44 |
||
|
17028A
|
17028A
011256A0D9 Bolt0310--01 ~ ; V.3G83; ﾜｯｼｬ ﾂｷ,6X16 |
011256A0D9 |
US $2.16 |
||
|
17028A
|
17028A
851366A0A0 Bolt0410--01 ~ ; (V+W).3G83; ﾜｯｼｬ ﾂｷ,6X16 ﾕｳｼｮｸ |
851366A0A0 |
US $2.59 |
||
|
17028AA
|
17028AA
011256A0D9 Bolt0310--01 ~ ; V.3G83; ﾜｯｼｬ ﾂｷ,6X16 |
011256A0D9 |
US $2.16 |
||
|
17028B
|
17028B
012256A0B2 Nut0310--01 ~ ; 3G83; ﾜｯｼｬ ﾂｷ,5 |
012256A0B2 |
US $2.02 |
||
|
17028B
|
17028B
012256A0B4 Nut0310--01 ~ 0410--01; HV.SR.3G83 +V.3G83.GL +HR.3G83.(SD+DX+SD/2S).5MT +HR.3G83.3AT +HR/RV.3G83; ﾜｯｼｬ- ｱｯｾﾝﾌﾞﾘ､8 |
012256A0B4 |
US $2.02 |
||
|
17028B
|
17028B
012256A0B2 Nut0310--01 ~ ; 3G83; ﾜｯｼｬ ﾂｷ,5 |
012256A0B2 |
US $2.02 |
||
|
17028B
|
17028B
012256A0B4 Nut0310--01 ~ 0410--01; HV.SR.3G83 +V.3G83.GL +HR.3G83.(SD+DX+SD/2S).5MT +HR.3G83.3AT +HR/RV.3G83; ﾜｯｼｬ- ｱｯｾﾝﾌﾞﾘ､8 |
012256A0B4 |
US $2.02 |
||
|
17028BA
|
17028BA
012256A0B4 Nut0310--01 ~ 0410--01; HV.SR.3G83 +V.3G83.GL +HR.3G83.(SD+DX+SD/2S).5MT +HR.3G83.3AT +HR/RV.3G83; ﾜｯｼｬ- ｱｯｾﾝﾌﾞﾘ､8 |
012256A0B4 |
US $2.02 |
||
|
17028E
|
17028E
01558-6A0A2 Clamp0310--01 ~ ; (V+W).3G83; D=48 |
01558-6A0A2 |
US $2.88 |
||
|
17028E
|
17028E
01558-6A0A1 Clamp0310--01 ~ ; (V+W).3G83; D=46 |
01558-6A0A1 |
US $2.88 |
||
|
17028EA
|
17028EA
01558-6A0A1 Clamp0310--01 ~ ; (V+W).3G83; D=46 |
01558-6A0A1 |
US $2.88 |
||
|
17040
|
17040
17042-6A0A1 Pump Compl-Fuel0310--01 ~ ; V.3G83 +3G83.(E+E/FOUR) |
17042-6A0A1 |
US $649.94 |
||
|
17040
|
17040
17042-6A0A1 Pump Compl-Fuel0310--01 ~ ; V.3G83 +3G83.(E+E/FOUR) |
17042-6A0A1 |
US $649.94 |
||
|
17042
|
17042
170426A00A Pump Assy-Fuel0710--01 ~ ; 3G83 |
170426A00A |
US $426.22 |
||
|
17042
|
17042
17042-6A0A2 Pump Assy-Fuel0310--01 ~ 0409--01; zHR.3G83.SD/2S.5MT +HR/RV.3G83.5MT +3G83.(SD+DX+SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+DUMP+PA/VAN).5MT +3G83.(GL+SP/FL/P) +3G83.3AT |
17042-6A0A2 |
US $567.82 |
||
|
17042
|
17042
17042-6A0A3 Pump Assy-Fuel0409--01 ~ 0710--01; 3G83 |
17042-6A0A3 |
US $515.42 |
||
|
17065N
|
17065N
17065-6A0A0 Valve Assy-Fuel0310--01 ~ ; (V+W).3G83 |
17065-6A0A0 |
US $6.05 |
||
|
17201
|
17201
17201-6A0A2 Tank Assy-Fuel0310--01 ~ 0405--01; 'V.4WD.3G83.GL.4AT +V.4WD.3G83.(5MT+3AT) |
17201-6A0A2 |
US $429.05 |
||
|
17201
|
17201
17201-6A0A4 Tank Assy-Fuel0405--01 ~ ; V.4WD.3G83 +3G83.E/FOUR |
17201-6A0A4 |
US $321.43 |
||
|
17202E
|
17202E
01551-6A0A3 Clip0310--01 ~ ; (V+W).3G83; 10 ﾌﾞﾗｯｸ |
01551-6A0A3 |
US $2.45 |
||
|
17202E
|
17202E
01551-6A0A4 Clip0310--01 ~ ; (V+W).3G83; 8 ｸﾞﾚｰ |
01551-6A0A4 |
US $2.16 |
||
|
17202E
|
17202E
015516A0A6 Clip0310--01 ~ ; (V+W).3G83; ﾊｰﾈｽ ｸﾘｯﾌﾟ |
015516A0A6 |
US $2.16 |
||
|
17202P
|
17202P
16439-6A00A Clamp0310--01 ~ ; (V+W).3G83; D=17.8 |
16439-6A00A |
US $1.73 |
||
|
17202P
|
17202P
16439-6A0A1 Clamp0310--01 ~ ; 3G83; D=10 |
16439-6A0A1 |
US $2.45 |
||
|
17202PA
|
17202PA
16439-6A0A1 Clamp0310--01 ~ ; 3G83; D=10 |
16439-6A0A1 |
US $2.45 |
||
|
17221P
|
17221P
17221-6A0A0 Tube Assy-Filler0310--01 ~ 0410--01; HV.SR.3G83 +V.3G83.GL +HR.3G83.(SD+DX+SD/2S).5MT +HR.3G83.3AT +HR/RV.3G83 |
17221-6A0A0 |
US $102.24 |
||
|
17221P
|
17221P
17221-6A0A2 Tube Assy-Filler0410--01 ~ ; (V+W).3G83 |
17221-6A0A2 |
US $75.89 |
||
|
17225N
|
17225N
17225-6A0A0 Grommet-Filler Neck0310--01 ~ ; (V+W).3G83 |
17225-6A0A0 |
US $4.46 |
||
|
17228P
|
17228P
17228-6A0A0 Hose-Filler0310--01 ~ ; (V+W).3G83 |
17228-6A0A0 |
US $36.86 |
||
|
17251
|
17251
172516A0A0 Cap Assy-Filler0310--01 ~ ; (V+W).3G83 |
172516A0A0 |
US $25.63 |
||
|
17265
|
17265
17265-6A0A0 Connector0310--01 ~ ; 3G83 |
17265-6A0A0 |
US $3.89 |
||
|
17275
|
17275
17275-6A0A0 Filter-Fuel Tank0310--01 ~ ; 菱R.3G83.SD/2S.5MT +HR/RV.3G83.5MT +3G83.(SD+DX+SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+DUMP+PA/VAN).5MT +3G83.DX.4AT +3G83.(GL+SP/FL/P+DX/M+E+E/FOUR) +3G83.3AT |
17275-6A0A0 |
US $106.67 |
||
|
17275
|
17275
17275-6A0A1 Filter-Fuel Tank0310--01 ~ ; 3G83 |
17275-6A0A1 |
US $18 |
||
|
17275+A
|
17275+A
17275-6A0A1 Filter-Fuel Tank0310--01 ~ ; 3G83 |
17275-6A0A1 |
US $18 |
||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
17314
|
17314
17553-6A0A0 Grommet0310--01 ~ ; (V+W).3G83 |
17553-6A0A0 |
US $3.46 |
||
|
17314
|
17314
17553-6A0A1 Grommet0310--01 ~ ; 3G83 |
17553-6A0A1 |
US $3.46 |
||
|
17314
|
17314
17553-6A0A0 Grommet0310--01 ~ ; (V+W).3G83 |
17553-6A0A0 |
US $3.46 |
||
|
17314
|
17314
17553-6A0A1 Grommet0310--01 ~ ; 3G83 |
17553-6A0A1 |
US $3.46 |
||
|
17314+A
|
17314+A
17553-6A0A1 Grommet0310--01 ~ ; 3G83 |
17553-6A0A1 |
US $3.46 |
||
|
17330
|
17330
173306A0A0 Valve Assy-Fuel Check0310--01 ~ ; 3G83 |
173306A0A0 |
US $42.05 |
||
|
17343
|
17343
17343-6A0A0 Plate-Lock, Fuel Gauge0310--01 ~ ; 3G83 |
17343-6A0A0 |
US $9.94 |
||
|
17548X
|
17548X
17548-6A0A1 Seat-Insulation0310--01 ~ ; 3G83 |
17548-6A0A1 |
US $7.63 |
||
|
17548X
|
17548X
175486A0A0 Seat-Insulation0310--01 ~ ; 3G83 |
175486A0A0 |
US $5.90 |
||
|
17548XA
|
17548XA
175486A0A0 Seat-Insulation0310--01 ~ ; 3G83 |
175486A0A0 |
US $5.90 |
||
|
22670Z
|
22670Z
226706A0A0 Regulator Assy-Pressure0310--01 ~ ; 菱R.3G83.SD/2S.5MT +HR/RV.3G83.5MT +3G83.(SD+DX+SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+DUMP+PA/VAN).5MT +3G83.DX.4AT +3G83.(GL+SP/FL/P+DX/M+E+E/FOUR) +3G83.3AT |
226706A0A0 |
US $80.50 |
||
|
24054X
|
24054X
240546A0A0 Harness-Fuel Pump Sub0409--01 ~ ; V.3G83 +3G83.(E+E/FOUR) |
240546A0A0 |
US $16.56 |
||
|
25060
|
25060
250606A00D Gauge Assy-Unit, Fuel Tank0610--01 ~ ; (V+W).3G83 |
250606A00D |
US $30.82 |
||
|
25060
|
25060
25060-6A0A0 Gauge Assy-Unit, Fuel Tank0310--01 ~ 0610--01; V.3G83 |
25060-6A0A0 |
US $50.40 |
||
