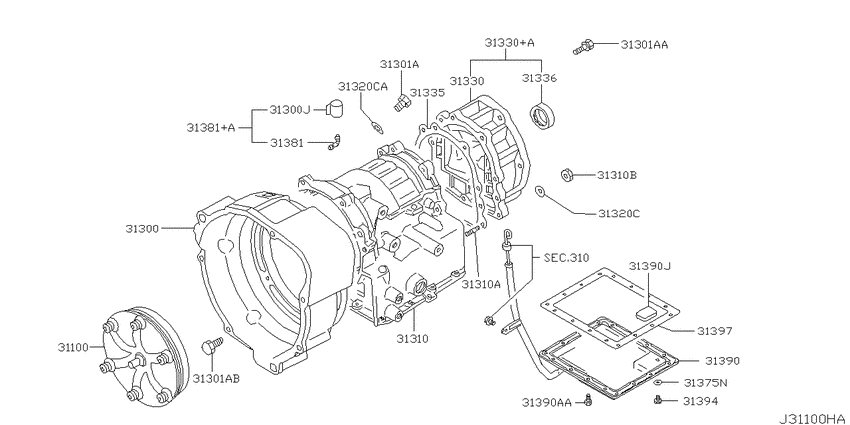

Torque converter,housing & case (2003-10-01 ~ ; 4WD.3AT) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 3AT
- grade
- DX
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
31100
|
31100
311006A00D Converter Assy-Torque0704--01 ~ ; 3AT |
311006A00D |
US $1,005.36 |
||
|
31100
|
31100
31100-6A0A0 Converter Assy-Torque0310--01 ~ 0704--01; 3AT |
31100-6A0A0 |
US $1,216.34 |
||
|
31300
|
31300
31300-6A0A0 Housing Assy-Converter0310--01 ~ ; 3AT |
31300-6A0A0 |
US $529.58 |
||
|
31300
|
31300
32886-6A0A1 Plug-Filler0310--01 ~ ; 3AT |
32886-6A0A1 |
US $8.93 |
||
|
31300J
|
31300J
32886-6A0A1 Plug-Filler0310--01 ~ ; 3AT |
32886-6A0A1 |
US $8.93 |
||
|
31301A
|
31301A
31309-6A0A0 Bolt0310--01 ~ ; 3AT |
31309-6A0A0 |
US $3.02 |
||
|
31301A
|
31301A
31309-6A0A2 Bolt0310--01 ~ ; (V+T).4AT +3AT |
31309-6A0A2 |
US $2.02 |
||
|
31301A
|
31301A
31309-6A0A1 Bolt0310--01 ~ ; (V+T).4AT +3AT; ﾜｯｼｬ ﾂｷ,8X30 |
31309-6A0A1 |
US $4.03 |
||
|
31301AA
|
31301AA
31309-6A0A2 Bolt0310--01 ~ ; (V+T).4AT +3AT |
31309-6A0A2 |
US $2.02 |
||
|
31301AB
|
31301AB
31309-6A0A1 Bolt0310--01 ~ ; (V+T).4AT +3AT; ﾜｯｼｬ ﾂｷ,8X30 |
31309-6A0A1 |
US $4.03 |
||
|
31310
|
31310
31310-6A0A0 Case Assy-Automatic Transmission0310--01 ~ ; 3AT |
31310-6A0A0 |
US $665.52 |
||
|
31310
|
31310
01151-6A0A0 Stud-Fix Converter Housing0310--01 ~ ; (V+T).4AT +3AT |
01151-6A0A0 |
US $3.89 |
||
|
31310
|
31310
32133-6A0A0 Nut-Transmission Case0310--01 ~ ; (V+T).4AT +3AT |
32133-6A0A0 |
US $1.87 |
||
|
31310A
|
31310A
01151-6A0A0 Stud-Fix Converter Housing0310--01 ~ ; (V+T).4AT +3AT |
01151-6A0A0 |
US $3.89 |
||
|
31310B
|
31310B
32133-6A0A0 Nut-Transmission Case0310--01 ~ ; (V+T).4AT +3AT |
32133-6A0A0 |
US $1.87 |
||
|
31320C
|
31320C
31378-6A0A2 Washer0310--01 ~ ; (V+T).4AT +3AT |
31378-6A0A2 |
US $2.02 |
||
|
31320C
|
31320C
31378-6A0A3 Washer0310--01 ~ ; 3AT |
31378-6A0A3 |
US $2.59 |
||
|
31320CA
|
31320CA
31378-6A0A3 Washer0310--01 ~ ; 3AT |
31378-6A0A3 |
US $2.59 |
||
|
31330
|
31330
31330-6A0A3 Extension Assy-Rear0310--01 ~ ; 4WD.3AT |
31330-6A0A3 |
US $230.40 |
||
|
31330
|
31330
31330-6A0A2 Extension Assy-Rear0310--01 ~ ; 4WD.3AT |
31330-6A0A2 |
US $230.40 |
||
|
31330+A
|
31330+A
31330-6A0A2 Extension Assy-Rear0310--01 ~ ; 4WD.3AT |
31330-6A0A2 |
US $230.40 |
||
|
31335
|
31335
31335-6A0A0 Gasket-Extension0310--01 ~ ; 3AT |
31335-6A0A0 |
US $4.46 |
||
|
31336
|
31336
31336-6A0A0 Seal-Oil, Rear Extension0310--01 ~ ; 4WD.3AT |
31336-6A0A0 |
US $13.82 |
||
|
31375N
|
31375N
31375-6A0A0 Seal-Oil0310--01 ~ ; 3AT |
31375-6A0A0 |
US $1.87 |
||
|
31381
|
31381
31381-6A0A1 Breather-Air0310--01 ~ ; 3AT |
31381-6A0A1 |
US $6.77 |
||
|
31381
|
31381
31381-6A0A0 Breather-Air0310--01 ~ ; 3AT |
31381-6A0A0 |
US $14.26 |
||
|
31381+A
|
31381+A
31381-6A0A0 Breather-Air0310--01 ~ ; 3AT |
31381-6A0A0 |
US $14.26 |
||
|
31390
|
31390
31390-6A0A0 Pan Assy-Oil0310--01 ~ ; 3AT |
31390-6A0A0 |
US $144.76 |
||
|
31390
|
31390
011256A0B6 Bolt0310--01 ~ ; 3AT +4AT; ﾜｯｼｬ ﾂｷ,6X12 |
011256A0B6 |
US $2.16 |
||
|
31390
|
31390
01125-6A0A7 Bolt0310--01 ~ ; (V+T).4AT +3AT |
01125-6A0A7 |
US $3.74 |
||
|
31390
|
31390
31396-6A0A0 Magnet0310--01 ~ ; 3AT |
31396-6A0A0 |
US $2.59 |
||
|
31390AA
|
31390AA
01125-6A0A7 Bolt0310--01 ~ ; (V+T).4AT +3AT |
01125-6A0A7 |
US $3.74 |
||
|
31390J
|
31390J
31396-6A0A0 Magnet0310--01 ~ ; 3AT |
31396-6A0A0 |
US $2.59 |
||
|
31394
|
31394
313946A0A0 Plug-Drain0310--01 ~ ; 3AT |
313946A0A0 |
US $8.21 |
||
|
31397
|
31397
31397-6A0A0 Gasket-Oil Pan0310--01 ~ ; 3AT |
31397-6A0A0 |
US $17.85 |
||
