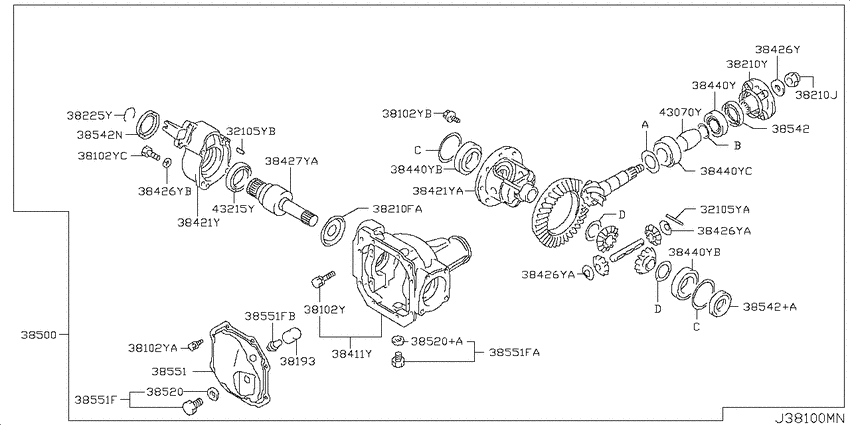

Front final drive (2007-05-01 ~ ; 構成部品; 3G83.G/FOUR) Diagram Nissan CLIPPER
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 5MT
- grade
- G/FOUR
- body
- W
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32105YA
|
32105YA
32105-6A0A3 Pin-Dowel0310--01 ~ ; 4WD.3G83; 4X32 |
32105-6A0A3 |
US $2.45 |
||
|
32105YB
|
32105YB
91021-6A0A0 Pin-Crankshaft0310--01 ~ ; 4WD.3G83; DOWEL,8X18 |
91021-6A0A0 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-6A0A2 Bolt-Drive Gear0310--01 ~ ; 4WD.3G83; ﾜｯｼｬ ﾂｷ,10X52.6 |
38102-6A0A2 |
US $4.46 |
||
|
38102Y
|
38102Y
38102-6A0A3 Bolt0310--01 ~ ; 4WD.3G83; W/WASHER,8X14 |
38102-6A0A3 |
US $2.16 |
||
|
38102Y
|
38102Y
38102-6A0A0 Bolt-Drive Gear0310--01 ~ ; 4WD.3G83; ﾌﾗﾝｼﾞ8X16 |
38102-6A0A0 |
US $2.59 |
||
|
38102Y
|
38102Y
38102-6A00A
ﾎﾞﾙﾄ,ﾄﾞﾗｲﾌﾞ ｷﾞﾔ
0603--01 ~ ; 4WD.3G83 |
38102-6A00A |
— | ||
|
38102YA
|
38102YA
38102-6A0A3 Bolt0310--01 ~ ; 4WD.3G83; W/WASHER,8X14 |
38102-6A0A3 |
US $2.16 |
||
|
38102YB
|
38102YB
38102-6A0A0 Bolt-Drive Gear0310--01 ~ ; 4WD.3G83; ﾌﾗﾝｼﾞ8X16 |
38102-6A0A0 |
US $2.59 |
||
|
38102YC
|
38102YC
38102-6A00A
ﾎﾞﾙﾄ,ﾄﾞﾗｲﾌﾞ ｷﾞﾔ
0603--01 ~ ; 4WD.3G83 |
38102-6A00A |
— | ||
|
38193
|
38193
38351-6A0A0 Cover-Case, Transfer0310--01 ~ ; 4WD.3G83 |
38351-6A0A0 |
US $5.33 |
||
|
38210FA
|
38210FA
12307-6A0A1
ﾌﾞﾂｼﾕ
0310--01 ~ ; 4WD.3G83 |
12307-6A0A1 |
— | ||
|
38210J
|
38210J
382166A0A0 Nut0310--01 ~ ; 4WD.3G83; ﾛｯｸ18 |
382166A0A0 |
US $6.34 |
||
|
38210Y
|
38210Y
38210-6A00C
ﾌﾗﾝｼﾞ ｱﾂｾﾝﾌﾞﾘ-,ｺﾝﾊﾟﾆｵﾝ
0705--01 ~ ; 3G83.G/FOUR |
38210-6A00C |
— | ||
|
38225Y
|
38225Y
38454-6A0A2 Clip0310--01 ~ ; 4WD.3G83 |
38454-6A0A2 |
US $2.16 |
||
|
38411Y
|
38411Y
38411-6A0A1
ｹ-ｽ ｺﾝﾌﾟﾘ-ﾄ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
0410--01 ~ ; wV.4WD.3G83 +T.4WD.3G83.(SD+DX) +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR+G/FOUR) |
38411-6A0A1 |
— | ||
|
38421Y
|
38421Y
38421-6A00D
ｹ-ｽ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
0705--01 ~ ; 3G83.G/FOUR |
38421-6A00D |
— | ||
|
38421Y
|
38421Y
38421-6A00C
ｹ-ｽ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
0705--01 ~ ; 3G83.G/FOUR |
38421-6A00C |
— | ||
|
38421YA
|
38421YA
38421-6A00C
ｹ-ｽ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
0705--01 ~ ; 3G83.G/FOUR |
38421-6A00C |
— | ||
|
38426Y
|
38426Y
384266A0A3 Washer-Output Shaft0310--01 ~ ; 4WD.3G83; ﾌﾟﾚｰﾝ,18.5 |
384266A0A3 |
US $4.61 |
||
|
38426Y
|
38426Y
38426-6A0A0 Washer-Thrust, Pinion Mate0310--01 ~ ; 4WD.3G83; ﾌﾟﾚｰﾝ,15 |
38426-6A0A0 |
US $3.74 |
||
|
38426Y
|
38426Y
38426-6A0A2 Washer0310--01 ~ ; 4WD.3G83; ｽﾌﾟﾘﾝｸﾞ,10 |
38426-6A0A2 |
US $1.87 |
||
|
38426YA
|
38426YA
38426-6A0A0 Washer-Thrust, Pinion Mate0310--01 ~ ; 4WD.3G83; ﾌﾟﾚｰﾝ,15 |
38426-6A0A0 |
US $3.74 |
||
|
38426YA
|
38426YA
38426-6A0A0 Washer-Thrust, Pinion Mate0310--01 ~ ; 4WD.3G83; ﾌﾟﾚｰﾝ,15 |
38426-6A0A0 |
US $3.74 |
||
|
38426YB
|
38426YB
38426-6A0A2 Washer0310--01 ~ ; 4WD.3G83; ｽﾌﾟﾘﾝｸﾞ,10 |
38426-6A0A2 |
US $1.87 |
||
|
38427YA
|
38427YA
38427-6A00B
ｼﾔﾌﾄ,ﾋﾟﾆｵﾝ ﾒ-ﾄ
0705--01 ~ ; 3G83.G/FOUR |
38427-6A00B |
— | ||
|
38440Y
|
38440Y
40210-6A0A1 Bearing-Differential Side0310--01 ~ ; 4WD.3G83; TAPER ROLLER,25 |
40210-6A0A1 |
US $24.91 |
||
|
38440Y
|
38440Y
40210-6A0A4 Bearing-Differential Side0410--01 ~ ; wV.4WD.3G83 +T.4WD.3G83.(SD+DX) +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR+G/FOUR); ﾎﾞｰﾙ,72 |
40210-6A0A4 |
US $33.84 |
||
|
38440Y
|
38440Y
40210-6A0A1 Bearing-Differential Side0310--01 ~ ; 4WD.3G83; TAPER ROLLER,25 |
40210-6A0A1 |
US $24.91 |
||
|
38440YB
|
38440YB
40210-6A0A4 Bearing-Differential Side0410--01 ~ ; wV.4WD.3G83 +T.4WD.3G83.(SD+DX) +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR+G/FOUR); ﾎﾞｰﾙ,72 |
40210-6A0A4 |
US $33.84 |
||
|
38440YB
|
38440YB
40210-6A0A4 Bearing-Differential Side0410--01 ~ ; wV.4WD.3G83 +T.4WD.3G83.(SD+DX) +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR+G/FOUR); ﾎﾞｰﾙ,72 |
40210-6A0A4 |
US $33.84 |
||
|
38440YC
|
38440YC
40210-6A0A1 Bearing-Differential Side0310--01 ~ ; 4WD.3G83; TAPER ROLLER,25 |
40210-6A0A1 |
US $24.91 |
||
|
38500
|
38500
38500-6A00A
ﾌｱｲﾅﾙ ﾄﾞﾗｲﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ
0705--01 ~ ; 3G83.G/FOUR |
38500-6A00A |
— | ||
|
38520
|
38520
383546A0A1 Gasket-Gear Carrier0310--01 ~ ; 4WD.3G83 |
383546A0A1 |
US $1.73 |
||
|
38520
|
38520
38354-6A0A0 Gasket-Gear Carrier0310--01 ~ ; 4WD.3G83 |
38354-6A0A0 |
US $2.16 |
||
|
38520+A
|
38520+A
38354-6A0A0 Gasket-Gear Carrier0310--01 ~ ; 4WD.3G83 |
38354-6A0A0 |
US $2.16 |
||
|
38542
|
38542
383426A00A Seal-Oil, Side Bearing Retainer0605--01 ~ ; 4WD.3G83 |
383426A00A |
US $14.54 |
||
|
38542
|
38542
38342-6A0A3 Seal-Oil, Side Bearing Retainer0410--01 ~ ; wV.4WD.3G83 +T.4WD.3G83.(SD+DX) +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR+G/FOUR) |
38342-6A0A3 |
US $5.47 |
||
|
38542
|
38542
38342-6A0A0 Seal-Dust0310--01 ~ ; 4WD.3G83 |
38342-6A0A0 |
US $9.22 |
||
|
38542+A
|
38542+A
38342-6A0A3 Seal-Oil, Side Bearing Retainer0410--01 ~ ; wV.4WD.3G83 +T.4WD.3G83.(SD+DX) +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR+G/FOUR) |
38342-6A0A3 |
US $5.47 |
||
|
38542N
|
38542N
38342-6A0A0 Seal-Dust0310--01 ~ ; 4WD.3G83 |
38342-6A0A0 |
US $9.22 |
||
|
38551
|
38551
43255-6A0A0
ｶﾊﾞ-,ﾌﾛﾝﾄ ﾌｱｲﾅﾙ ﾄﾞﾗｲﾌﾞ
0310--01 ~ ; 4WD.3G83 |
43255-6A0A0 |
— | ||
|
38551
|
38551
321036A0A0 Plug-Drain0310--01 ~ ; 4WD.3G83; ﾌｨﾗ |
321036A0A0 |
US $3.89 |
||
|
38551
|
38551
32139-6A0A0 Plug-Welch0310--01 ~ ; 4WD.3G83; ﾄﾞﾚｰﾝ |
32139-6A0A0 |
US $6.34 |
||
|
38551
|
38551
32103-6A0A1
ﾌﾟﾗｸﾞ,ﾄﾞﾚ-ﾝ
0310--01 ~ ; 4WD.3G83; VENT |
32103-6A0A1 |
— | ||
|
38551F
|
38551F
321036A0A0 Plug-Drain0310--01 ~ ; 4WD.3G83; ﾌｨﾗ |
321036A0A0 |
US $3.89 |
||
|
38551F
|
38551F
32139-6A0A0 Plug-Welch0310--01 ~ ; 4WD.3G83; ﾄﾞﾚｰﾝ |
32139-6A0A0 |
US $6.34 |
||
|
38551F
|
38551F
32103-6A0A1
ﾌﾟﾗｸﾞ,ﾄﾞﾚ-ﾝ
0310--01 ~ ; 4WD.3G83; VENT |
32103-6A0A1 |
— | ||
|
38551FA
|
38551FA
32139-6A0A0 Plug-Welch0310--01 ~ ; 4WD.3G83; ﾄﾞﾚｰﾝ |
32139-6A0A0 |
US $6.34 |
||
|
38551FB
|
38551FB
32103-6A0A1
ﾌﾟﾗｸﾞ,ﾄﾞﾚ-ﾝ
0310--01 ~ ; 4WD.3G83; VENT |
32103-6A0A1 |
— | ||
|
43070Y
|
43070Y
43070-6A0A0 Spacer-Bearing, Side Shaft0310--01 ~ ; 4WD.3G83; ｾﾝﾀｸ ｼﾖｳ 48.2 |
43070-6A0A0 |
US $7.20 |
||
|
43070Y
|
43070Y
43070-6A0A1 Spacer-Bearing, Side Shaft0310--01 ~ ; 4WD.3G83; ｾﾝﾀｸ ｼﾖｳ 48.8 |
43070-6A0A1 |
US $7.20 |
||
|
43215Y
|
43215Y
43215-6A0A0
ﾍﾞｱﾘﾝｸﾞ,ｻｲﾄﾞ ｼﾔﾌﾄ
0310--01 ~ ; 4WD.3G83; ﾎﾞｰﾙ,68X12-45 |
43215-6A0A0 |
— |
