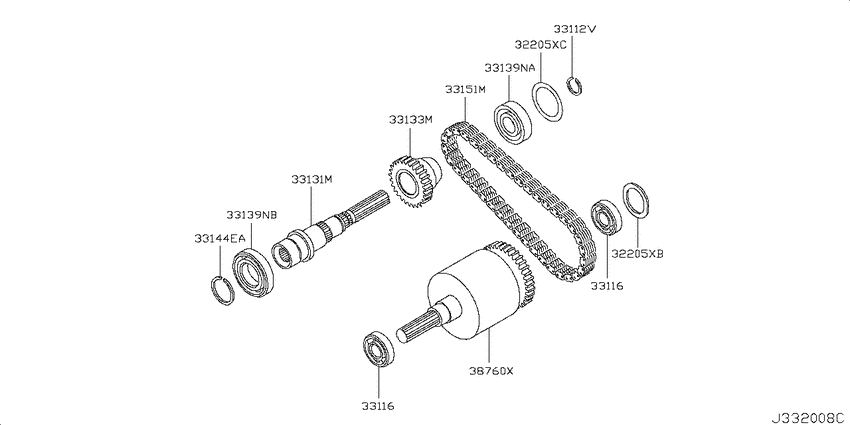

Transfer gear (2007-05-01 ~ ; 3G83.G/FOUR) Diagram Nissan CLIPPER
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 5MT
- grade
- G/FOUR
- body
- W
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32205XB
|
32205XB
32205-6A00A Spacer0705--01 ~ ; 3G83.G/FOUR |
32205-6A00A |
US $9.50 |
||
|
32205XC
|
32205XC
32205-6A00B Spacer0705--01 ~ ; 3G83.G/FOUR |
32205-6A00B |
US $11.09 |
||
|
33112V
|
33112V
32204-6A00J Ring-Snap0705--01 ~ ; 3G83.G/FOUR; ｾﾝﾀｸ ｼﾖｳ 1.52 |
32204-6A00J |
US $3.17 |
||
|
33112V
|
33112V
32204-6A00L Ring-Snap0705--01 ~ ; 3G83.G/FOUR; SELECT USE 1.62 |
32204-6A00L |
US $3.17 |
||
|
33112V
|
33112V
33112-6A00A Ring-Snap0705--01 ~ ; 3G83.G/FOUR; SELECT USE 1.72 |
33112-6A00A |
US $5.76 |
||
|
33112V
|
33112V
33112-6A00B Ring-Snap0705--01 ~ ; 3G83.G/FOUR; SELECT USE 1.82 |
33112-6A00B |
US $6.19 |
||
|
33116
|
33116
33116-6A00A Bearing-Main, Transfer Rear0705--01 ~ ; 3G83.G/FOUR; ﾎﾞｰﾙ,62 |
33116-6A00A |
US $29.38 |
||
|
33116
|
33116
33116-6A00A Bearing-Main, Transfer Rear0705--01 ~ ; 3G83.G/FOUR; ﾎﾞｰﾙ,62 |
33116-6A00A |
US $29.38 |
||
|
33131M
|
33131M
33131-6A00A Shaft-Main, Transfer0705--01 ~ ; 3G83.G/FOUR |
33131-6A00A |
US $285.12 |
||
|
33133M
|
33133M
33133-6A00A Sprocket-Front Drive0705--01 ~ ; 3G83.G/FOUR |
33133-6A00A |
US $94.75 |
||
|
33139NA
|
33139NA
33139-6A00B Bearing-Ball0705--01 ~ ; 3G83.G/FOUR; ﾎﾞｰﾙ,68 |
33139-6A00B |
US $29.38 |
||
|
33139NB
|
33139NB
33139-6A00A Bearing-Ball0705--01 ~ ; 3G83.G/FOUR; ﾎﾞｰﾙ,68 |
33139-6A00A |
US $33.84 |
||
|
33144EA
|
33144EA
33145-6A00A Ring-Snap0705--01 ~ ; 3G83.G/FOUR; 1.5 |
33145-6A00A |
US $3.17 |
||
|
33151M
|
33151M
33152-6A00A Chain-Front Drive, Transfer0705--01 ~ ; 3G83.G/FOUR |
33152-6A00A |
US $165.60 |
||
|
38760X
|
38760X
38760-6A00A
ｶﾂﾌﾟﾘﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾋﾞｽｶｳｽ ﾄﾗﾝｽﾌｱ-
0705--01 ~ ; 3G83.G/FOUR |
38760-6A00A |
— |
