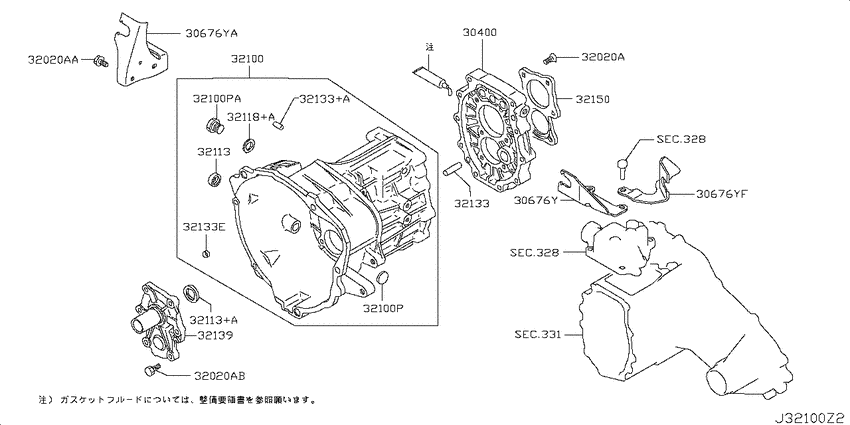

Transmission case & clutch release (2007-05-01 ~ ; T／Mケース; G/FOUR.5MT) Diagram Nissan CLIPPER
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 5MT
- grade
- G/FOUR
- body
- W
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-6A00A Housing Assy-Clutch0705--01 ~ ; (G+G/FOUR).5MT |
30400-6A00A |
US $109.73 |
||
|
30676Y
|
30676Y
30676-6A00A Bracket-Clutch Cable0705--01 ~ ; (G+G/FOUR).5MT |
30676-6A00A |
US $10.51 |
||
|
30676Y
|
30676Y
30676-6A0A3 Bracket-Clutch Cable0310--01 ~ ; 5MT |
30676-6A0A3 |
US $18.86 |
||
|
30676Y
|
30676Y
30676-6A0A6 Bracket-Clutch Cable0310--01 ~ ; 5MT |
30676-6A0A6 |
US $18.86 |
||
|
30676Y
|
30676Y
30676-6A0A1 Bracket-Clutch Cable0310--01 ~ ; kT.4WD.(SD+DX+GL).5MT +4WD.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +(SP/FL/P+DUMP+DX/M+E/FOUR+G/FOUR).5MT |
30676-6A0A1 |
US $12.24 |
||
|
30676YA
|
30676YA
30676-6A0A3 Bracket-Clutch Cable0310--01 ~ ; 5MT |
30676-6A0A3 |
US $18.86 |
||
|
30676YF
|
30676YF
30676-6A0A1 Bracket-Clutch Cable0310--01 ~ ; kT.4WD.(SD+DX+GL).5MT +4WD.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +(SP/FL/P+DUMP+DX/M+E/FOUR+G/FOUR).5MT |
30676-6A0A1 |
US $12.24 |
||
|
32020A
|
32020A
33201-6A00A Bolt0705--01 ~ ; (G+G/FOUR).5MT; 8X20 |
33201-6A00A |
US $3.46 |
||
|
32020A
|
32020A
21116-6A0A0 Bolt0310--01 ~ ; 5MT; 8X16 |
21116-6A0A0 |
US $1.30 |
||
|
32020A
|
32020A
011416A0A0 Bolt0705--01 ~ ; (G+G/FOUR).5MT; WASHER ASSEMBLE,8X28 |
011416A0A0 |
US $2.16 |
||
|
32020AA
|
32020AA
21116-6A0A0 Bolt0310--01 ~ ; 5MT; 8X16 |
21116-6A0A0 |
US $1.30 |
||
|
32020AB
|
32020AB
011416A0A0 Bolt0705--01 ~ ; (G+G/FOUR).5MT; WASHER ASSEMBLE,8X28 |
011416A0A0 |
US $2.16 |
||
|
32100
|
32100
32100-6A00A Case Assy-Transmission0705--01 ~ ; (G+G/FOUR).5MT |
32100-6A00A |
US $383.74 |
||
|
32100
|
32100
32135-6A0A2 Plug0310--01 ~ ; 5MT; 23 |
32135-6A0A2 |
US $2.16 |
||
|
32100
|
32100
32135-6A0A3 Plug0310--01 ~ ; 5MT; ｽｸﾘｭｳ､D=16 |
32135-6A0A3 |
US $6.62 |
||
|
32100P
|
32100P
32135-6A0A2 Plug0310--01 ~ ; 5MT; 23 |
32135-6A0A2 |
US $2.16 |
||
|
32100P
|
32100P
32135-6A0A3 Plug0310--01 ~ ; 5MT; ｽｸﾘｭｳ､D=16 |
32135-6A0A3 |
US $6.62 |
||
|
32100PA
|
32100PA
32135-6A0A3 Plug0310--01 ~ ; 5MT; ｽｸﾘｭｳ､D=16 |
32135-6A0A3 |
US $6.62 |
||
|
32113
|
32113
32113-6A0A1 Seal-Oil, Front Cover0310--01 ~ ; 5MT |
32113-6A0A1 |
US $3.74 |
||
|
32113
|
32113
321136A0A0 Seal-Oil, Front Cover0310--01 ~ ; 5MT |
321136A0A0 |
US $3.02 |
||
|
32113+A
|
32113+A
321136A0A0 Seal-Oil, Front Cover0310--01 ~ ; 5MT |
321136A0A0 |
US $3.02 |
||
|
32118+A
|
32118+A
321186A0A1 Gasket0310--01 ~ ; 5MT |
321186A0A1 |
US $2.02 |
||
|
32133
|
32133
32133-6A00A Pin-Dowel0705--01 ~ ; (G+G/FOUR).5MT; ﾀﾞｳｴﾙ,10X44 |
32133-6A00A |
US $6.19 |
||
|
32139
|
32139
32121-6A00A Retainer-Bearing0705--01 ~ ; (G+G/FOUR).5MT |
32121-6A00A |
US $48.82 |
||
|
32150
|
32150
32150-6A00A Retainer-Oil, Extension0705--01 ~ ; (G+G/FOUR).5MT |
32150-6A00A |
US $4.61 |
||
|
328
|
Transmission shift control
328
|
||||
|
328
|
Transmission shift control
328
|
||||
|
331
|
Transfer case
331
|
||||
