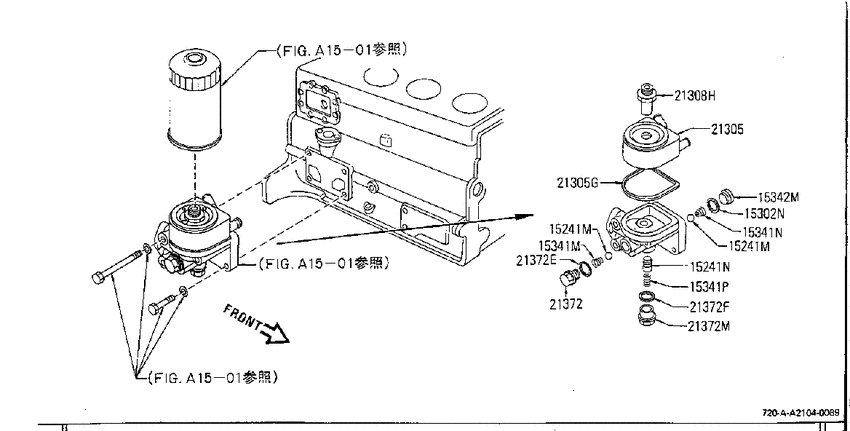

engine Oil cooler (1983-04-01 ~ ; その2; SD23) Diagram Nissan DATSUN
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- SD23
- drive
- 2WD
- transmission
- R5
- grade
- DX
- body
- TL
- body type
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15241M
|
15241M
15300-76200 Valve Assy-Relief, Oil Cooler8304--01 ~ ; SD23 |
15300-76200 |
US $2.03 |
||
|
15241M
|
15241M
15300-76200 Valve Assy-Relief, Oil Cooler8304--01 ~ ; SD23 |
15300-76200 |
US $2.03 |
||
|
15241N
|
15241N
15280-90001 Valve Assy-Relief, Oil Cooler8304--01 ~ ; SD23 |
15280-90001 |
US $26.47 |
||
|
15302N
|
15302N
15303-76201 Seal-O Ring8304--01 ~ ; SD23 |
15303-76201 |
US $4.46 |
||
|
15341M
|
15341M
15301-09W00
Spring-Valve, Oil Cooler
8304--01 ~ ; SD23 |
15301-09W00 |
— | ||
|
15341N
|
15341N
15301-76202 Spring-Valve8304--01 ~ ; SD23 |
15301-76202 |
US $5.76 |
||
|
15341P
|
15341P
15341-61500 Spring-Valve, Oil Cooler8304--01 ~ ; SD23 |
15341-61500 |
US $5.76 |
||
|
15342M
|
15342M
15302-76200 Ring-Snap8304--01 ~ ; SD23 |
15302-76200 |
US $2.16 |
||
|
21305
|
21305
15320-09W00 Cooler Assy-Oil8304--01 ~ 8511--01; SD23 |
15320-09W00 |
US $924.65 |
||
|
21305
|
21305
15320-64W00 Cooler Assy-Oil8511--01 ~ ; SD23 |
15320-64W00 |
US $337.01 |
||
|
21305
|
21305
21310-V0700
Packing
8304--01 ~ ; SD23 |
21310-V0700 |
— | ||
| replacement | |||||
|
21305
|
21305
21304-JK20A Ring-Rubber8304--01 ~ ; SD23 |
21304-JK20A |
from US $4.37 |
||
|
21305
|
21305
21302-09W00 Housing-Oil Cooler8304--01 ~ ; SD23 |
21302-09W00 |
US $101.23 |
||
|
21305
|
21305
21301-31W00
Element-Oil Cooler
8304--01 ~ ; SD23 |
21301-31W00 |
— | ||
|
21305G
|
21305G
21310-V0700
Packing
8304--01 ~ ; SD23 |
21310-V0700 |
— | ||
| replacement | |||||
|
21305G
|
21305G
21304-JK20A Ring-Rubber8304--01 ~ ; SD23 |
21304-JK20A |
from US $4.37 |
||
|
21308H
|
21308H
15217-09W00 Connector-Oil Cooler8304--01 ~ ; SD23 |
15217-09W00 |
US $24.34 |
||
|
21372
|
21372
15303-Y1400 Plug8304--01 ~ ; SD23 |
15303-Y1400 |
US $35.71 |
||
|
21372
|
21372
15305-09W00 Packing-Oil Cooler Plug8304--01 ~ ; SD23 |
15305-09W00 |
US $2.45 |
||
|
21372
|
21372
15304-09W00 Packing-Oil Cooler Plug8304--01 ~ ; SD23 |
15304-09W00 |
US $3.60 |
||
|
21372
|
21372
15303-61503 Plug-Oil Cooler8304--01 ~ ; SD23 |
15303-61503 |
US $12.10 |
||
| replacement | |||||
|
21372
|
21372
15134-6150A Plug-Oil Cooler8304--01 ~ ; SD23 |
15134-6150A |
US $12.10 |
||
|
21372E
|
21372E
15305-09W00 Packing-Oil Cooler Plug8304--01 ~ ; SD23 |
15305-09W00 |
US $2.45 |
||
|
21372F
|
21372F
15304-09W00 Packing-Oil Cooler Plug8304--01 ~ ; SD23 |
15304-09W00 |
US $3.60 |
||
|
21372M
|
21372M
15303-61503 Plug-Oil Cooler8304--01 ~ ; SD23 |
15303-61503 |
US $12.10 |
||
| replacement | |||||
|
21372M
|
21372M
15134-6150A Plug-Oil Cooler8304--01 ~ ; SD23 |
15134-6150A |
US $12.10 |
||
