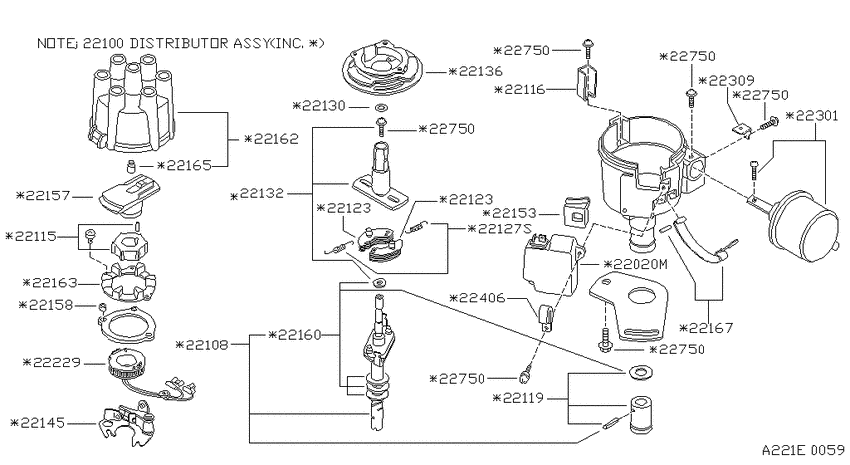

Distributor (1980-07-01 ~ 1982-06-01; L24E) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- L24E
- transmission
- AT
- body
- S
- trim lvl
- DX
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22020M
|
22020M
22020-P9700
Transistor-Power, Ignition Unit
1982-07-01 ~ ; L24E; HITACHI |
22020-P9700 |
— | ||
|
22020M
|
22020M
22020-S6701 Transistor Ignition Unit1980-07-01 ~ 1981-06-01; L24E; HITACHI |
22020-S6701 |
US $290.28 |
||
|
22020M
|
22020M
22020-W3100
Transistor-Power, Ignition Unit
1981-07-01 ~ ; L24E; HITACHI |
22020-W3100 |
— | ||
|
22100
|
22100
22100-W3001
Distributor Assy
1980-07-01 ~ 1981-06-01; L24E; HITACHI D6K9-01 |
22100-W3001 |
— | ||
|
22100
|
22100
22100-W3100
Distributor Assy
1981-07-01 ~ ; L24E; HITACHI D6K9-01 |
22100-W3100 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-W3101
Distributor assy
1981-07-01 ~ ; L24E; HITACHI D6K9-01 |
22100-W3101 |
— | ||
|
22100
|
22100
22100-W4800
Distributor Assy
1982-07-01 ~ ; L24E; HITACHI D6K82-02 |
22100-W4800 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-W4801
Distributor assy
1982-07-01 ~ ; L24E; HITACHI D6K82-02 |
22100-W4801 |
— | ||
|
22100
|
22100
01436-00211 SCREW1982-07-01 ~ ; L24E; , |
01436-00211 |
US $1.73 |
||
|
22100
|
22100
2218071200 Seal-O Ring1982-07-01 ~ ; L24E; , |
2218071200 |
from US $3.55 |
||
|
22108
|
22108
22108-N4200
Shaft Assy
1980-07-01 ~ ; L24E; WITH THRUST WASHER HITACHI |
22108-N4200 |
— | ||
|
22115
|
22115
22115-S8000
Signal Roto Assy
1980-07-01 ~ ; L24E; HITACHI |
22115-S8000 |
— | ||
|
22116
|
22116
22116-N4200 Holder-Cap1980-07-01 ~ ; L24E; HITACHI |
22116-N4200 |
US $4.16 |
||
|
22119
|
22119
22119-W0400
Coupling Set
1980-07-01 ~ ; L24E; HITACHI |
22119-W0400 |
— | ||
|
22123
|
22123
22109-A5500 Weight-Governor1980-07-01 ~ ; L24E; HITACHI |
22109-A5500 |
US $6.19 |
||
|
22123
|
22123
22109-A5500 Weight-Governor1980-07-01 ~ ; L24E; HITACHI |
22109-A5500 |
US $6.19 |
||
|
22127S
|
22127S
22110-W3000
Spring Set-Governor
1980-07-01 ~ ; L24E; HITACHI |
22110-W3000 |
— | ||
|
22130
|
22130
22130-A5500
Packing
1980-07-01 ~ ; L24E; HITACHI |
22130-A5500 |
— | ||
|
22132
|
22132
22132-W3100
Cam Set
1981-07-01 ~ ; L24E; HITACHI |
22132-W3100 |
— | ||
|
22132
|
22132
22132-W4800
Cam Set
1982-07-01 ~ ; L24E; HITACHI |
22132-W4800 |
— | ||
|
22132
|
22132
22132-Y8006
Cam Set
1980-07-01 ~ 1981-06-01; L24E; HITACHI |
22132-Y8006 |
— | ||
|
22136
|
22136
22136-H9501
Plate Assy-Breaker
1982-07-01 ~ ; L24E; HITACHI |
22136-H9501 |
— | ||
|
22136
|
22136
22136-Q1700
Plate Assy-Breaker
1980-07-01 ~ ; L24E; HITACHI |
22136-Q1700 |
— | ||
| replacement | |||||
|
22136
|
22136
22136-H9501
Plate Assy-Breaker
1980-07-01 ~ ; L24E; HITACHI |
22136-H9501 |
— | ||
|
22145
|
22145
22145-89994
Contact Set
1980-07-01 ~ ; L24E; HITACHI |
22145-89994 |
— | ||
| replacement | |||||
|
22145
|
22145
2214589901
Contact Set
1980-07-01 ~ ; L24E; HITACHI |
2214589901 |
— | ||
|
22153
|
22153
22153-S6701
Grommet
1980-07-01 ~ ; L24E; HITACHI |
22153-S6701 |
— | ||
|
22157
|
22157
22157-Q1700 Rotor-Head1980-07-01 ~ 1981-06-01; L24E; HITACHI |
22157-Q1700 |
US $15.55 |
||
|
22157
|
22157
22157-W3100
Rotor-Head
1981-07-01 ~ ; L24E; HITACHI |
22157-W3100 |
— | ||
|
22158
|
22158
22158-S6700
Magnet Assy
1980-07-01 ~ ; L24E; HITACHI |
22158-S6700 |
— | ||
|
22160
|
22160
22160-M5600 Washer Set-Thrust1980-07-01 ~ ; L24E; HITACHI |
22160-M5600 |
US $4.03 |
||
|
22162
|
22162
22162-51L01 Cap Assy-Distributor1984-11-01 ~ ; L24E; HITACHI |
22162-51L01 |
US $59.47 |
||
| replacement | |||||
|
22162
|
22162
22162-51L02 Cap Assy-Distributor1984-11-01 ~ ; L24E; HITACHI |
22162-51L02 |
US $126.68 |
||
|
22162
|
22162
22162-Q1700
Cap Assy-Distributor
1980-07-01 ~ 1984-11-01; L24E; HITACHI |
22162-Q1700 |
— | ||
|
22162
|
22162
22162-Q1794
Cap Assy-Distributor
1980-07-01 ~ ; L24E; HITACHI |
22162-Q1794 |
— | ||
|
22163
|
22163
22163-Q1700
Stator
1980-07-01 ~ ; L24E; HITACHI |
22163-Q1700 |
— | ||
|
22165
|
22165
22165-30101 Point Assy-Carbon1980-07-01 ~ 1984-11-01; L24E; HITACHI |
22165-30101 |
US $5.81 |
||
|
22165
|
22165
22165W0561 Point Assy-Carbon1984-11-01 ~ ; L24E; HITACHI |
22165W0561 |
US $2.49 |
||
|
22167
|
22167
22167-N6005
Clamp Set-Cap
1980-07-01 ~ ; L24E; HITACHI |
22167-N6005 |
— | ||
| replacement | |||||
|
22167
|
22167
22167-N8600
Clamp Set-Cap
1980-07-01 ~ ; L24E; HITACHI |
22167-N8600 |
— | ||
|
22229
|
22229
22229-Q1700
Pick Up Kit
1980-07-01 ~ ; L24E; HITACHI |
22229-Q1700 |
— | ||
|
22301
|
22301
22301-W3001
Controller Assy-Vacuum
1980-07-01 ~ ; L24E; HITACHI |
22301-W3001 |
— | ||
|
22309
|
22309
22309-M5600 Terminal-Earth1980-07-01 ~ ; L24E; HITACHI |
22309-M5600 |
US $4.90 |
||
|
22406
|
22406
22406-P6500 Clamp-Harness1980-07-01 ~ ; L24E; HITACHI |
22406-P6500 |
US $3.31 |
||
|
22750
|
22750
22750-Q1700
Screw Kit
1980-07-01 ~ ; L24E; HITACHI |
22750-Q1700 |
— | ||
|
22750
|
22750
22750-Q1700
Screw Kit
1980-07-01 ~ ; L24E; HITACHI |
22750-Q1700 |
— | ||
|
22750
|
22750
22750-Q1700
Screw Kit
1980-07-01 ~ ; L24E; HITACHI |
22750-Q1700 |
— | ||
|
22750
|
22750
22750-Q1700
Screw Kit
1980-07-01 ~ ; L24E; HITACHI |
22750-Q1700 |
— | ||
|
22750
|
22750
22750-Q1700
Screw Kit
1980-07-01 ~ ; L24E; HITACHI |
22750-Q1700 |
— | ||
|
22750
|
22750
22750-Q1700
Screw Kit
1980-07-01 ~ ; L24E; HITACHI |
22750-Q1700 |
— | ||
