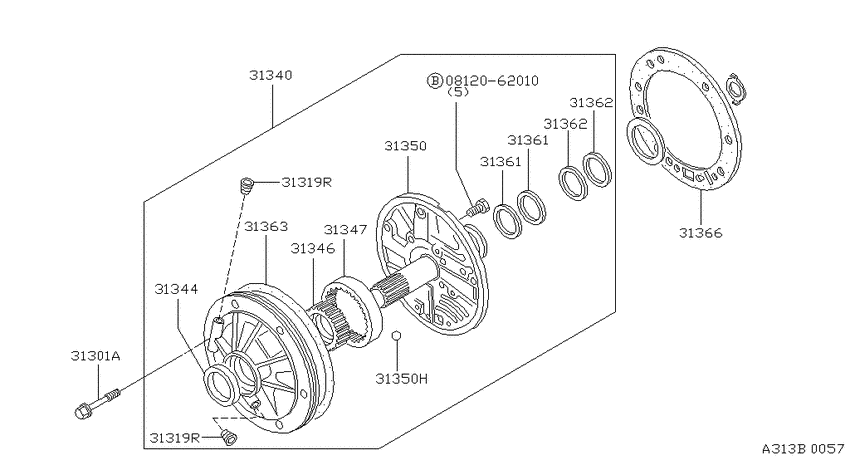

Oil pump (1982-07-01 ~ ; ATM) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- L24E
- transmission
- AT
- body
- S
- trim lvl
- DX
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812062010
|
0812062010
08120-62010
Bolt-hexagon
|
08120-62010 |
— | ||
|
31301A
|
31301A
01125-00041 BOLT1980-07-01 ~ 1982-06-01; AT; , |
01125-00041 |
US $3.46 |
||
|
31301A
|
31301A
31309-X8600 Bolt1982-07-01 ~ ; L24E.AT; , |
31309-X8600 |
US $4.18 |
||
|
31319R
|
31319R
31345-X6101 Plug1980-07-01 ~ 1982-06-01; AT; , |
31345-X6101 |
US $2.45 |
||
|
31319R
|
31319R
31345-X6101 Plug1980-07-01 ~ 1982-06-01; AT; , |
31345-X6101 |
US $2.45 |
||
|
31340
|
31340
31340-X0102 Pump Assy-Oil1980-07-01 ~ 1981-06-01; AT; , |
31340-X0102 |
US $335.59 |
||
|
31340
|
31340
31340-X6301 Pump Assy-Oil1981-07-01 ~ 1982-06-01; L24E.AT; , |
31340-X6301 |
US $328.51 |
||
|
31340
|
31340
31340-X7001
Oil Pump Assy
1982-08-01 ~ 1983-06-01; L24E.AT; , |
31340-X7001 |
— | ||
|
31340
|
31340
31340-X8602
Oil Pump Assy
1983-07-01 ~ ; L24E.AT; , |
31340-X8602 |
— | ||
|
31340
|
31340
31340-X8603
Oil Pump Assy
1982-07-01 ~ 1982-08-01; L24E.AT; , |
31340-X8603 |
— | ||
|
31344
|
31344
31344X0101 Seal-Oil Pump Housing1982-07-01 ~ ; AT; , |
31344X0101 |
US $5.62 |
||
|
31346
|
31346
31346-X0100 Gear-Inner, Oil Pump1982-07-01 ~ ; AT; T=16- 0.01 SELECT US |
31346-X0100 |
US $12.96 |
||
|
31346
|
31346
31346-X0101 Gear-Inner, Oil Pump1982-07-01 ~ ; AT; T=16- 0.02 SELECT US |
31346-X0101 |
US $12.96 |
||
|
31346
|
31346
31346-X0102 Gear-Inner, Oil Pump1982-07-01 ~ ; AT; T=16- 0.03 SELECT US |
31346-X0102 |
US $12.96 |
||
|
31347
|
31347
31347-X0100 Gear-Outer, Oil Pump1982-07-01 ~ ; AT; T=16- 0.01 SELECT US |
31347-X0100 |
US $18.58 |
||
|
31347
|
31347
31347-X0101 Gear-Outer, Oil Pump1982-07-01 ~ ; AT; T=16- 0.02 SELECT US |
31347-X0101 |
US $18.58 |
||
|
31347
|
31347
31347-X0102 Gear-Outer, Oil Pump1982-07-01 ~ ; AT; T=16- 0.03 SELECT US |
31347-X0102 |
US $18.58 |
||
|
31350
|
31350
31350-X0102 Cover Assy-Oil Pump1980-07-01 ~ 1981-06-01; AT; , |
31350-X0102 |
US $167.04 |
||
|
31350
|
31350
31350-X6301 Cover Assy-Oil Pump1981-07-01 ~ 1982-06-01; L24E.AT; , |
31350-X6301 |
US $164.16 |
||
|
31350
|
31350
31350-X7001
Cover Assy-Oil Pump
1982-08-01 ~ 1983-06-01; L24E.AT; , |
31350-X7001 |
— | ||
|
31350
|
31350
31350-X8602 Cover Assy-Oil Pump1983-07-01 ~ ; L24E.AT; , |
31350-X8602 |
US $181.44 |
||
| replacement | |||||
|
31350
|
31350
31350-X8608
Cover assy-oil pump
1983-07-01 ~ ; L24E.AT; , |
31350-X8608 |
— | ||
|
31350
|
31350
31350-X8603
Cover Assy-Oil Pump
1982-07-01 ~ 1982-08-01; L24E.AT; , |
31350-X8603 |
— | ||
|
31350
|
31350
32720-36900 Ball-Steel1982-07-01 ~ ; AT; , |
32720-36900 |
US $0.82 |
||
|
31350H
|
31350H
32720-36900 Ball-Steel1982-07-01 ~ ; AT; , |
32720-36900 |
US $0.82 |
||
|
31361
|
31361
31361-X0100 Ring-Seal1982-07-01 ~ ; AT; , |
31361-X0100 |
US $5.18 |
||
|
31361
|
31361
31361-X0100 Ring-Seal1982-07-01 ~ ; AT; , |
31361-X0100 |
US $5.18 |
||
|
31362
|
31362
31362-X0100 Ring-Seal1982-07-01 ~ ; AT; , |
31362-X0100 |
US $5.18 |
||
|
31362
|
31362
31362-X0100 Ring-Seal1982-07-01 ~ ; AT; , |
31362-X0100 |
US $5.18 |
||
|
31363
|
31363
31363-X0100 Seal-Lathe Cut Ring1982-07-01 ~ ; AT; , |
31363-X0100 |
US $4.75 |
||
|
31366
|
31366
31366-X0101
Gasket-Oil Pump
1980-07-01 ~ 1981-06-01; L24E.AT; , |
31366-X0101 |
— | ||
|
31366
|
31366
31366-X6100
Gasket-Oil Pump
1981-07-01 ~ 1982-06-01; L24E.AT; , |
31366-X6100 |
— | ||
|
31366
|
31366
31366-X8600 Gasket-Oil Pump1982-07-01 ~ ; AT; , |
31366-X8600 |
US $4.18 |
||
| replacement | |||||
|
31366
|
31366
31366-X8601 Gasket-Oil Pump1982-07-01 ~ ; AT; , |
31366-X8601 |
US $9.65 |
||
|
31366
|
31366
31387-X8600 Gasket-Oil Pump1980-07-01 ~ ; L24E.AT; , |
31387-X8600 |
US $4.18 |
||
| replacement | |||||
|
31366
|
31366
31387-X8601 Gasket-Oil Pump1980-07-01 ~ ; L24E.AT; , |
31387-X8601 |
US $4.18 |
||
