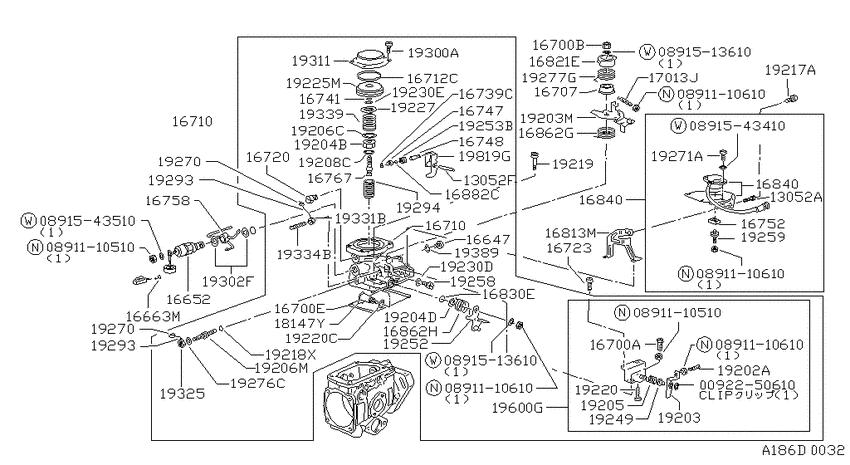

Fuel injection pump (1982-07-01 ~ ; COMPONENT PARTS (PART 1); LD28) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- LD28
- transmission
- AT
- body
- W
- trim lvl
- SL
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.61 |
||
|
0891110510
|
0891110510
0891110510 NUT |
0891110510 |
US $1.73 |
||
|
0891110510
|
0891110510
0891110510 NUT |
0891110510 |
US $1.73 |
||
|
0891110610
|
0891110610
0891110610 NUT |
0891110610 |
US $2.21 |
||
|
0891110610
|
0891110610
0891110610 NUT |
0891110610 |
US $2.21 |
||
|
0891110610
|
0891110610
0891110610 NUT |
0891110610 |
US $2.21 |
||
|
0891110610
|
0891110610
0891110610 NUT |
0891110610 |
US $2.21 |
||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
0891543410
|
0891543410
08915-43410
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43410 |
— | ||
|
0891543510
|
0891543510
08915-43510 SUPPORT ASSY-FILLER |
08915-43510 |
US $1.73 |
||
| replacement | |||||
|
0891543510
|
0891543510
089154351A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
089154351A |
— | ||
|
13052A
|
13052A
16849-W2500
Bolt
1981-07-01 ~ 1982-06-01; LD28; , |
16849-W2500 |
— | ||
|
13052F
|
13052F
19285-W3300
Pin
1981-07-01 ~ 1982-06-01; LD28; , |
19285-W3300 |
— | ||
|
16647
|
16647
19228-W3300
Plug
1981-07-01 ~ 1982-06-01; LD28; , |
19228-W3300 |
— | ||
|
16647
|
16647
16735-V0700
Washer
1981-07-01 ~ 1982-06-01; LD28; , |
16735-V0700 |
— | ||
|
16652
|
16652
16890-W2500
Valve-Check
1981-07-01 ~ 1982-06-01; LD28; , |
16890-W2500 |
— | ||
|
16652
|
16652
16890-W4900
Valve-Check
1982-07-01 ~ ; LD28; , |
16890-W4900 |
— | ||
|
16663M
|
16663M
16894-W3300
Wire Assy
1981-07-01 ~ 1982-06-01; LD28; , |
16894-W3300 |
— | ||
|
16700A
|
16700A
16782-W2506
Bolt
1982-07-01 ~ ; LD28; , |
16782-W2506 |
— | ||
|
16700B
|
16700B
16845W2500
Nut
1981-07-01 ~ 1982-06-01; LD28; , |
16845W2500 |
— | ||
|
16700E
|
16700E
19242-V0700
Ring-Rubber
1982-07-01 ~ ; LD28; , |
19242-V0700 |
— | ||
| replacement | |||||
|
16700E
|
16700E
1924269T00
Ring-Rubber
1982-07-01 ~ ; LD28; , |
1924269T00 |
— | ||
|
16707
|
16707
16707-V0700
Angle-Governor Lever
1981-07-01 ~ 1982-06-01; LD28; , |
16707-V0700 |
— | ||
|
16707
|
16707
16707-V2100
Angle-Governor Lever
1982-07-01 ~ ; LD28; , |
16707-V2100 |
— | ||
|
16710
|
16710
19240-W3300
Aneroid Compensator Assy
1981-07-01 ~ 1982-06-01; LD28; , |
19240-W3300 |
— | ||
|
16710
|
16710
19240-W4900
Aneroid Compensator Assy
1982-07-01 ~ ; LD28; , |
19240-W4900 |
— | ||
|
16710
|
16710
19240-W3300
Aneroid Compensator Assy
1981-07-01 ~ 1982-06-01; LD28; , |
19240-W3300 |
— | ||
|
16710
|
16710
19240-W4900
Aneroid Compensator Assy
1982-07-01 ~ ; LD28; , |
19240-W4900 |
— | ||
|
16712C
|
16712C
19289-W3300
Packing
1982-07-01 ~ ; LD28; , |
19289-W3300 |
— | ||
|
16720
|
16720
19288-W3300
Breather-Air
1982-07-01 ~ ; LD28; , |
19288-W3300 |
— | ||
|
16723
|
16723
16828-V0700
Screw-Cover
1982-07-01 ~ ; LD28; , |
16828-V0700 |
— | ||
| replacement | |||||
|
16723
|
16723
16815-43G00
Bolt
1982-07-01 ~ ; LD28; , |
16815-43G00 |
— | ||
|
16739C
|
16739C
19227-W3300
Gasket
1982-07-01 ~ ; LD28; , |
19227-W3300 |
— | ||
|
16741
|
16741
19275-W3300
Shim-Plate
1982-07-01 ~ ; LD28; T=0.2 |
19275-W3300 |
— | ||
|
16741
|
16741
19275-W3301
Shim-Plate
1982-07-01 ~ ; LD28; T=0.3 |
19275-W3301 |
— | ||
|
16741
|
16741
19275-W3302
Shim-Plate
1982-07-01 ~ ; LD28; T=0.4 |
19275-W3302 |
— | ||
|
16741
|
16741
19275-W3303
Shim-Plate
1982-07-01 ~ ; LD28; T=0.5 |
19275-W3303 |
— | ||
|
16741
|
16741
19275-W3304
Shim-Plate
1982-07-01 ~ ; LD28; T=0.6 |
19275-W3304 |
— | ||
|
16741
|
16741
19275-W3305
Shim-Plate
1982-07-01 ~ ; LD28; T=0.7 |
19275-W3305 |
— | ||
|
16741
|
16741
16880-V0700
Shim-Piston
1982-07-01 ~ ; LD28; T=0.6 |
16880-V0700 |
— | ||
|
16741
|
16741
16880-V0701
Shim
1982-07-01 ~ ; LD28; T=0.7 |
16880-V0701 |
— | ||
|
16741
|
16741
16880-V0702
Shim
1982-07-01 ~ ; LD28; T=0.9 |
16880-V0702 |
— | ||
|
16741
|
16741
16880-V0703
Shim
1982-07-01 ~ ; LD28; T=1.0 |
16880-V0703 |
— | ||
|
16741
|
16741
16880-V0704
Shim
1982-07-01 ~ ; LD28; T=1.2 |
16880-V0704 |
— | ||
|
16747
|
16747
19226-W3300
Bushing-Roller
1982-07-01 ~ ; LD28; , |
19226-W3300 |
— | ||
|
16748
|
16748
19276-W3300
Pin-Roller
1982-07-01 ~ ; LD28; L=24.6 |
19276-W3300 |
— | ||
|
16748
|
16748
19276-W3301
Pin-Roller
1982-07-01 ~ ; LD28; L=24.8 |
19276-W3301 |
— | ||
|
16748
|
16748
19276-W3302
Pin-Roller
1982-07-01 ~ ; LD28; L=25.0 |
19276-W3302 |
— | ||
|
16748
|
16748
19276-W3303
Pin-Roller
1982-07-01 ~ ; LD28; L=25.2 |
19276-W3303 |
— | ||
|
16748
|
16748
19276-W3304
Pin-Roller
1982-07-01 ~ ; LD28; L=25.4 |
19276-W3304 |
— | ||
|
16752
|
16752
16843-W2500
Adapter
1982-07-01 ~ ; LD28; , |
16843-W2500 |
— | ||
|
16758
|
16758
16792-W3310
Nipple
1981-07-01 ~ 1982-06-01; LD28; , |
16792-W3310 |
— | ||
|
16758
|
16758
16792-W4900
Nipple
1982-07-01 ~ ; LD28; , |
16792-W4900 |
— | ||
|
16767
|
16767
19280-W3300
Pinion-Control
1982-07-01 ~ ; LD28; , |
19280-W3300 |
— | ||
|
16767
|
16767
16782-V0700
Screw
1982-07-01 ~ ; LD28; , |
16782-V0700 |
— | ||
|
16813M
|
16813M
16846-W4900
Bracket-Injection Pump
1982-07-01 ~ ; LD28; , |
16846-W4900 |
— | ||
|
16821E
|
16821E
16706-V0700
Seat-Spring
1981-07-01 ~ 1982-06-01; LD28; , |
16706-V0700 |
— | ||
|
16821E
|
16821E
16706-V2100
Seat-Spring
1982-07-01 ~ ; LD28; , |
16706-V2100 |
— | ||
|
16830E
|
16830E
16781-W2500
Seal-O Ring
1982-07-01 ~ ; LD28; , |
16781-W2500 |
— | ||
| replacement | |||||
|
16830E
|
16830E
19272-35V00
Seal-O Ring
1982-07-01 ~ ; LD28; , |
19272-35V00 |
— | ||
|
16840
|
16840
16840-W2500
Meter Assy-Potentio
1980-07-01 ~ 1981-06-01; LD28; , |
16840-W2500 |
— | ||
|
16840
|
16840
16840-W3300
Meter Assy-Potentio
1981-07-01 ~ 1982-06-01; LD28; , |
16840-W3300 |
— | ||
|
16840
|
16840
16840-W4900
Meter Assy-Potentio
1982-07-01 ~ ; LD28; , |
16840-W4900 |
— | ||
|
16840
|
16840
16840-W2500
Meter Assy-Potentio
1980-07-01 ~ 1981-06-01; LD28; , |
16840-W2500 |
— | ||
|
16840
|
16840
16840-W3300
Meter Assy-Potentio
1981-07-01 ~ 1982-06-01; LD28; , |
16840-W3300 |
— | ||
|
16840
|
16840
16840-W4900
Meter Assy-Potentio
1982-07-01 ~ ; LD28; , |
16840-W4900 |
— | ||
|
16862G
|
16862G
16701-W2500
Spring
1981-07-01 ~ 1982-06-01; LD28; , |
16701-W2500 |
— | ||
|
16862G
|
16862G
16701-W4900
Spring
1982-07-01 ~ ; LD28; , |
16701-W4900 |
— | ||
|
16862H
|
16862H
16846-W2500
Spring
1981-07-01 ~ 1982-06-01; LD28; , |
16846-W2500 |
— | ||
|
16862H
|
16862H
16846-W4900
Bracket-Injection Pump
1982-07-01 ~ ; LD28; , |
16846-W4900 |
— | ||
|
16882C
|
16882C
19225-W3300
Gasket
1982-07-01 ~ ; LD28; , |
19225-W3300 |
— | ||
|
16882C
|
16882C
19253-V0700 Washer1980-07-01 ~ 1981-06-01; LD28; , |
19253-V0700 |
US $0.81 |
||
|
17013J
|
17013J
19244-R8100
Screw
1982-07-01 ~ ; LD28; , |
19244-R8100 |
— | ||
| replacement | |||||
|
17013J
|
17013J
19244-16A00
Screw
1982-07-01 ~ ; LD28; , |
19244-16A00 |
— | ||
|
17013J
|
17013J
19244-V0702
Screw
1982-07-01 ~ ; LD28; , |
19244-V0702 |
— | ||
| replacement | |||||
|
17013J
|
17013J
19244-16A00
Screw
1982-07-01 ~ ; LD28; , |
19244-16A00 |
— | ||
|
18147Y
|
18147Y
16719-W2500
Shaft-Lever
1982-07-01 ~ ; LD28; , |
16719-W2500 |
— | ||
|
19202A
|
19202A
16782-W2502
Screw
1982-07-01 ~ ; LD28; , |
16782-W2502 |
— | ||
|
19203
|
19203
16717-W2500
Lever-Stop
1982-07-01 ~ ; LD28; , |
16717-W2500 |
— | ||
|
19203
|
19203
16705-W3300
Lever
1981-07-01 ~ 1982-06-01; LD28; , |
16705-W3300 |
— | ||
|
19203
|
19203
16705-W4900
Lever
1982-07-01 ~ ; LD28; , |
16705-W4900 |
— | ||
|
19203
|
19203
16834-W2500
Fork
1981-07-01 ~ 1982-06-01; LD28; , |
16834-W2500 |
— | ||
|
19203M
|
19203M
16705-W3300
Lever
1981-07-01 ~ 1982-06-01; LD28; , |
16705-W3300 |
— | ||
|
19203M
|
19203M
16705-W4900
Lever
1982-07-01 ~ ; LD28; , |
16705-W4900 |
— | ||
|
19204B
|
19204B
19223-W3300
Nut
1982-07-01 ~ ; LD28; , |
19223-W3300 |
— | ||
|
19204D
|
19204D
19209-W2500
Washer
1982-07-01 ~ ; LD28; , |
19209-W2500 |
— | ||
| replacement | |||||
|
19204D
|
19204D
19273-35V00
Washer
1982-07-01 ~ ; LD28; , |
19273-35V00 |
— | ||
|
19205
|
19205
16715-W2500
Spring
1982-07-01 ~ ; LD28; , |
16715-W2500 |
— | ||
|
19206C
|
19206C
19229-W3300
Washer
1982-07-01 ~ ; LD28; , |
19229-W3300 |
— | ||
|
19206M
|
19206M
19290-V0710
Screw
1982-07-01 ~ ; LD28; L=53 |
19290-V0710 |
— | ||
| replacement | |||||
|
19206M
|
19206M
19290-06J00
Screw
1982-07-01 ~ ; LD28; L=53 |
19290-06J00 |
— | ||
|
19206M
|
19206M
19290-V0711
Screw
1982-07-01 ~ ; LD28; L=55 |
19290-V0711 |
— | ||
| replacement | |||||
|
19206M
|
19206M
19208-R8101
Seal-Oil
1982-07-01 ~ ; LD28; L=55 |
19208-R8101 |
— | ||
|
19206M
|
19206M
19290-V0712
Screw
1982-07-01 ~ ; LD28; L=57 |
19290-V0712 |
— | ||
| replacement | |||||
|
19206M
|
19206M
19208-R8102
Seal-Oil
1982-07-01 ~ ; LD28; L=57 |
19208-R8102 |
— | ||
|
19208C
|
19208C
19222-W3300
Washer
1982-07-01 ~ ; LD28; , |
19222-W3300 |
— | ||
|
19217A
|
19217A
16849-W2500
Bolt
1981-07-01 ~ 1982-06-01; LD28; , |
16849-W2500 |
— | ||
|
19217A
|
19217A
16849-W2501
Bolt
1980-07-01 ~ 1981-06-01; LD28; , |
16849-W2501 |
— | ||
|
19218X
|
19218X
19295-V0700
Seal-O Ring
1982-07-01 ~ ; LD28; , |
19295-V0700 |
— | ||
|
19219
|
19219
19247-W3300
Screw
1982-07-01 ~ ; LD28; , |
19247-W3300 |
— | ||
|
19220
|
19220
16895-W2500
Bolt
1982-07-01 ~ ; LD28; , |
16895-W2500 |
— | ||
|
19220
|
19220
19236-V0700
Washer
1982-07-01 ~ ; LD28; , |
19236-V0700 |
— | ||
|
19220
|
19220
19253-V0700 Washer1982-07-01 ~ ; LD28; , |
19253-V0700 |
US $0.81 |
||
|
19220C
|
19220C
19236-V0700
Washer
1982-07-01 ~ ; LD28; , |
19236-V0700 |
— | ||
|
19225M
|
19225M
19220-W3300
Bellows-Injection Pump
1982-07-01 ~ ; LD28; , |
19220-W3300 |
— | ||
|
19227
|
19227
19278-W3300
Seat-Spring
1982-07-01 ~ ; LD28; , |
19278-W3300 |
— | ||
|
19227
|
19227
16768-V0700
Seat-Spring
1982-07-01 ~ ; LD28; , |
16768-V0700 |
— | ||
|
19230D
|
19230D
16758-W4900
Gasket
1982-07-01 ~ ; LD28; , |
16758-W4900 |
— | ||
| replacement | |||||
|
19230D
|
19230D
16758-R8100 Gasket1982-07-01 ~ ; LD28; , |
16758-R8100 |
US $1.58 |
||
|
19230E
|
19230E
19279-W3300
Ring-Snap
1982-07-01 ~ ; LD28; , |
19279-W3300 |
— | ||
|
19249
|
19249
16714-V0700
Bush
1981-07-01 ~ 1982-06-01; LD28; , |
16714-V0700 |
— | ||
|
19252
|
19252
16718-W2500
Lever
1981-07-01 ~ 1982-06-01; LD28; , |
16718-W2500 |
— | ||
|
19252
|
19252
16718-W4900
Lever
1982-07-01 ~ ; LD28; , |
16718-W4900 |
— | ||
|
19253B
|
19253B
19224-W3300
Nut
1981-07-01 ~ 1982-06-01; LD28; , |
19224-W3300 |
— | ||
|
19253B
|
19253B
19243-V0700
Nut
1980-07-01 ~ 1981-06-01; LD28; MAX SPEED ADJ |
19243-V0700 |
— | ||
|
19258
|
19258
19286-W3300
Plug
1981-07-01 ~ 1982-06-01; LD28; , |
19286-W3300 |
— | ||
|
19259
|
19259
16782-W2503
Screw
1982-07-01 ~ ; LD28; , |
16782-W2503 |
— | ||
|
19259
|
19259
19244-V0700
Screw
1980-07-01 ~ 1981-06-01; LD28; , |
19244-V0700 |
— | ||
|
19270
|
19270
19245-V0700
Seal-Lead
1981-07-01 ~ 1982-06-01; LD28; , |
19245-V0700 |
— | ||
|
19270
|
19270
19245-V0700
Seal-Lead
1981-07-01 ~ 1982-06-01; LD28; , |
19245-V0700 |
— | ||
|
19271A
|
19271A
19247-V0700
Screw
1981-07-01 ~ 1982-06-01; LD28; , |
19247-V0700 |
— | ||
|
19271A
|
19271A
19247-W2500
Screw
1982-07-01 ~ ; LD28; , |
19247-W2500 |
— | ||
|
19276C
|
19276C
19296-V0700
Washer
1981-07-01 ~ 1982-06-01; LD28; , |
19296-V0700 |
— | ||
|
19277G
|
19277G
16702-W1700
Spring-Return
1981-07-01 ~ 1982-06-01; LD28; , |
16702-W1700 |
— | ||
|
19293
|
19293
19246-V0700
Wire-Lead Seal
1981-07-01 ~ 1982-06-01; LD28; , |
19246-V0700 |
— | ||
| replacement | |||||
|
19293
|
19293
19293-90006
Wire-lead seal
1981-07-01 ~ 1982-06-01; LD28; , |
19293-90006 |
— | ||
|
19293
|
19293
19246-V0700
Wire-Lead Seal
1981-07-01 ~ 1982-06-01; LD28; , |
19246-V0700 |
— | ||
| replacement | |||||
|
19293
|
19293
19293-90006
Wire-lead seal
1981-07-01 ~ 1982-06-01; LD28; , |
19293-90006 |
— | ||
|
19294
|
19294
19221-W3300
Bush
1981-07-01 ~ 1982-06-01; LD28; , |
19221-W3300 |
— | ||
|
19300A
|
19300A
19283-W3300
Screw
1981-07-01 ~ 1982-06-01; LD28; , |
19283-W3300 |
— | ||
| replacement | |||||
|
19300A
|
19300A
16788-G5500
Bolt
1981-07-01 ~ 1982-06-01; LD28; , |
16788-G5500 |
— | ||
|
19302F
|
19302F
16794-W2500
Gasket
1981-07-01 ~ 1982-06-01; LD28; , |
16794-W2500 |
— | ||
| replacement | |||||
|
19302F
|
19302F
16794-43G00
Gasket
1981-07-01 ~ 1982-06-01; LD28; , |
16794-43G00 |
— | ||
|
19311
|
19311
19240-W2500
Cover-Governor
1980-07-01 ~ 1981-06-01; LD28; , |
19240-W2500 |
— | ||
|
19311
|
19311
19282-W3300
Cover-Governor
1981-07-01 ~ 1982-06-01; LD28; , |
19282-W3300 |
— | ||
|
19325
|
19325
19297-V0700
Nut
1981-07-01 ~ 1982-06-01; LD28; , |
19297-V0700 |
— | ||
|
19331B
|
19331B
16845W2500
Nut
1980-07-01 ~ 1981-06-01; LD28; , |
16845W2500 |
— | ||
|
19331B
|
19331B
19243-V0700
Nut
1981-07-01 ~ 1982-06-01; LD28; , |
19243-V0700 |
— | ||
|
19334B
|
19334B
19244-W3300
Screw
1981-07-01 ~ 1982-06-01; LD28; , |
19244-W3300 |
— | ||
|
19339
|
19339
16848-W2500
Spring
1981-07-01 ~ 1982-06-01; LD28; , |
16848-W2500 |
— | ||
|
19339
|
19339
19281-W3300
Spring
1982-07-01 ~ ; LD28; , |
19281-W3300 |
— | ||
|
19389
|
19389
19287-W3301
Gasket
1981-07-01 ~ 1982-06-01; LD28; , |
19287-W3301 |
— | ||
|
19600G
|
19600G
16713-W2501
Bracket
1981-07-01 ~ 1982-06-01; LD28; , |
16713-W2501 |
— | ||
|
19600G
|
19600G
16713-W4900
Bracket
1982-07-01 ~ ; LD28; , |
16713-W4900 |
— | ||
|
19819G
|
19819G
19284-W3300
Support-Box
1981-07-01 ~ 1982-06-01; LD28; , |
19284-W3300 |
— | ||
