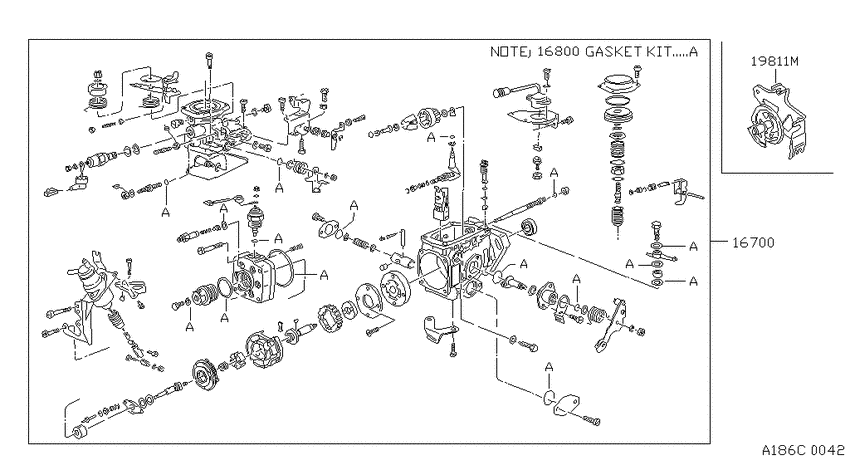

Fuel injection pump (1981-07-01 ~ 1982-06-01; ASSEMBLY; LD28) Diagram Nissan DATSUN 810
- Year
- 1980 - 2011
- Sales region
- U.S.A.
- Engine
- LD28
- transmission
- AT
- body
- W
- trim lvl
- SL
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16700
|
16700
16700-W2500
Pump Assy-Injection
1980-07-01 ~ 1981-03-01; LD28; , |
16700-W2500 |
— | ||
|
16700
|
16700
16700-W2501
Pump Assy-Injection
1981-04-01 ~ 1981-06-01; LD28; , |
16700-W2501 |
— | ||
|
16700
|
16700
16700-W3310
Pump Assy-Injection
1981-07-01 ~ 1982-01-01; LD28.AT; , |
16700-W3310 |
— | ||
|
16700
|
16700
16700-W3311
Pump Assy-Injection
1982-02-01 ~ 1982-06-01; LD28.AT; , |
16700-W3311 |
— | ||
|
16700
|
16700
16700-W4910
Pump Assy-Injection
1982-07-01 ~ ; LD28.AT; , |
16700-W4910 |
— | ||
|
16700
|
16700
16782-W2506
Bolt
1982-07-01 ~ ; LD28; , |
16782-W2506 |
— | ||
|
16700
|
16700
16845W2500
Nut
1981-07-01 ~ 1982-06-01; LD28; , |
16845W2500 |
— | ||
|
16700
|
16700
19242-V0700
Ring-Rubber
1982-07-01 ~ ; LD28; , |
19242-V0700 |
— | ||
| replacement | |||||
|
16700
|
16700
1924269T00
Ring-Rubber
1982-07-01 ~ ; LD28; , |
1924269T00 |
— | ||
|
16700
|
16700
16828-W2500
Screw
1981-07-01 ~ 1982-06-01; LD28; , |
16828-W2500 |
— | ||
|
16700
|
16700
16709-W2501
Plate
1980-07-01 ~ 1981-06-01; LD28; , |
16709-W2501 |
— | ||
|
16700
|
16700
16709-W3310
Plate
1981-07-01 ~ 1982-06-01; LD28.AT; , |
16709-W3310 |
— | ||
|
16700
|
16700
16709-W4910
Plate
1982-07-01 ~ ; LD28.AT; , |
16709-W4910 |
— | ||
|
16800
|
16800
16799-V0700 Gasket Kit-Injection Pump1980-07-01 ~ 1981-06-01; LD28; , |
16799-V0700 |
US $71.94 |
||
|
16800
|
16800
16799-W3300
Gasket Kit-Injection Pump
1983-07-01 ~ ; LD28; , |
16799-W3300 |
— | ||
|
19811M
|
19811M
16361-W2500
Terminal Assy-Accelerator Wire
1980-07-01 ~ 1981-06-01; LD28; , |
16361-W2500 |
— | ||
|
19811M
|
19811M
16361-W3300
Terminal Assy-Accelerator Wire
1981-07-01 ~ 1982-01-01; LD28; , |
16361-W3300 |
— | ||
