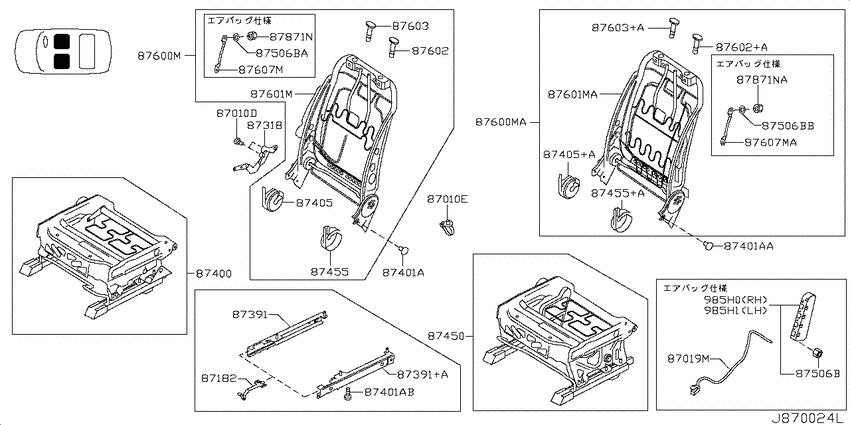

Front seat (2007-12-01 ~ ; フレーム ランバー無し; 5H/B) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 20S/4
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87010D
|
87010D
87183JD00A Screw0712--01 ~ ; 5H/B |
87183JD00A |
US $1.58 |
||
|
87019M
|
87019M
24168JD000 Harness-Front Seat0712--01 ~ ; *5H/B |
24168JD000 |
US $79.78 |
||
|
87318
|
87318
87346JD05B Lever-Lifter0712--01 ~ ; 5H/B |
87346JD05B |
US $25.09 |
||
|
87318
|
87318
87346JD00A
Knob-Lifter Lever
0712--01 ~ ; 5H/B |
87346JD00A |
— | ||
|
87318
|
87318
87318-JD00A Lever Assy-Front Seat Cushion, Rh0712--01 ~ ; 5H/B |
87318-JD00A |
US $18.86 |
||
|
87400
|
87400
87400JD40B Adjuster Assy-Front Seat, Rh0712--01 ~ ; 5H/B |
87400JD40B |
US $506.93 |
||
|
87401A
|
87401A
87615-JD00A Bolt0712--01 ~ ; 5H/B |
87615-JD00A |
US $5.33 |
||
|
87401A
|
87401A
87615-JD00A Bolt0712--01 ~ ; 5H/B |
87615-JD00A |
US $5.33 |
||
|
87401AA
|
87401AA
87615-JD00A Bolt0712--01 ~ ; 5H/B |
87615-JD00A |
US $5.33 |
||
|
87405
|
87405
87405JD00A Cover-Reclining Device, Rh0712--01 ~ ; 5H/B |
87405JD00A |
US $6.91 |
||
|
87405
|
87405
87405JD00A Cover-Reclining Device, Rh0712--01 ~ ; 5H/B |
87405JD00A |
US $6.91 |
||
|
87405+A
|
87405+A
87405JD00A Cover-Reclining Device, Rh0712--01 ~ ; 5H/B |
87405JD00A |
US $6.91 |
||
|
87450
|
87450
87450JD00B Adjuster Assy-Front Seat, Lh0712--01 ~ ; 5H/B |
87450JD00B |
US $427.63 |
||
|
87455
|
87455
87455JD00A Cover-Reclining Device, Lh0712--01 ~ ; 5H/B |
87455JD00A |
US $6.91 |
||
|
87455
|
87455
87455JD00A Cover-Reclining Device, Lh0712--01 ~ ; 5H/B |
87455JD00A |
US $6.91 |
||
|
87455+A
|
87455+A
87455JD00A Cover-Reclining Device, Lh0712--01 ~ ; 5H/B |
87455JD00A |
US $6.91 |
||
|
87506B
|
87506B
87857JD00A Nut0712--01 ~ ; *5H/B; ﾋﾀﾞﾘ |
87857JD00A |
US $1.73 |
||
|
87506B
|
87506B
87857-JD02A Nut0712--01 ~ ; 5H/B |
87857-JD02A |
US $1.73 |
||
|
87506B
|
87506B
87857-JD02A Nut0712--01 ~ ; 5H/B |
87857-JD02A |
US $1.73 |
||
|
87506BA
|
87506BA
87857-JD02A Nut0712--01 ~ ; 5H/B |
87857-JD02A |
US $1.73 |
||
|
87506BB
|
87506BB
87857-JD02A Nut0712--01 ~ ; 5H/B |
87857-JD02A |
US $1.73 |
||
|
87600M
|
87600M
87600-JD06C
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
0712--01 ~ ; 5H/B.20S/4 |
87600-JD06C |
— | ||
|
87600M
|
87600M
87600-JD07B
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
0712--01 ~ ; *5H/B.20S/4 |
87600-JD07B |
— | ||
|
87600M
|
87600M
87650JD06C
ﾊﾞﾂｸ ｱﾂｼｰ
0712--01 ~ ; 5H/B.20S/4 |
87650JD06C |
— | ||
|
87600M
|
87600M
87650-JD07B
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
0712--01 ~ ; *5H/B.20S/4 |
87650-JD07B |
— | ||
|
87600MA
|
87600MA
87650JD06C
ﾊﾞﾂｸ ｱﾂｼｰ
0712--01 ~ ; 5H/B.20S/4 |
87650JD06C |
— | ||
|
87600MA
|
87600MA
87650-JD07B
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
0712--01 ~ ; *5H/B.20S/4 |
87650-JD07B |
— | ||
|
87601M
|
87601M
87601JD00A Frame Assy-Front Seat Back0712--01 ~ ; *5H/B |
87601JD00A |
US $579.14 |
||
|
87601M
|
87601M
87601JD01A Frame Assy-Front Seat Back0712--01 ~ ; 5H/B |
87601JD01A |
US $579.14 |
||
|
87601M
|
87601M
87651-JD00A Frame Assy-Front Seat Back0712--01 ~ ; *5H/B |
87651-JD00A |
US $579.14 |
||
|
87601M
|
87601M
87651JD01A Frame Assy-Front Seat Back0712--01 ~ ; 5H/B |
87651JD01A |
US $579.14 |
||
|
87601MA
|
87601MA
87651-JD00A Frame Assy-Front Seat Back0712--01 ~ ; *5H/B |
87651-JD00A |
US $579.14 |
||
|
87601MA
|
87601MA
87651JD01A Frame Assy-Front Seat Back0712--01 ~ ; 5H/B |
87651JD01A |
US $579.14 |
||
|
87602
|
87602
87602JD00A Holder Assy-Headrest, Lock0712--01 ~ ; 5H/B |
87602JD00A |
US $4.18 |
||
|
87602
|
87602
87602JD00A Holder Assy-Headrest, Lock0712--01 ~ ; 5H/B |
87602JD00A |
US $4.18 |
||
|
87602+A
|
87602+A
87602JD00A Holder Assy-Headrest, Lock0712--01 ~ ; 5H/B |
87602JD00A |
US $4.18 |
||
|
87603
|
87603
87603JD00A Holder Assy-Headrest, Free0712--01 ~ ; 5H/B |
87603JD00A |
US $4.18 |
||
|
87603
|
87603
87603JD00A Holder Assy-Headrest, Free0712--01 ~ ; 5H/B |
87603JD00A |
US $4.18 |
||
|
87603+A
|
87603+A
87603JD00A Holder Assy-Headrest, Free0712--01 ~ ; 5H/B |
87603JD00A |
US $4.18 |
||
|
87607M
|
87607M
87607JD00A Rod-Air Bag, Front Seat0712--01 ~ ; *5H/B |
87607JD00A |
US $16.42 |
||
|
87607M
|
87607M
87607JD00A Rod-Air Bag, Front Seat0712--01 ~ ; *5H/B |
87607JD00A |
US $16.42 |
||
|
87607MA
|
87607MA
87607JD00A Rod-Air Bag, Front Seat0712--01 ~ ; *5H/B |
87607JD00A |
US $16.42 |
||
|
87871N
|
87871N
87872JD00A Cap-Bolt0712--01 ~ ; *5H/B |
87872JD00A |
US $2.30 |
||
|
87871N
|
87871N
87872JD00A Cap-Bolt0712--01 ~ ; *5H/B |
87872JD00A |
US $2.30 |
||
|
87871NA
|
87871NA
87872JD00A Cap-Bolt0712--01 ~ ; *5H/B |
87872JD00A |
US $2.30 |
||
|
985H0
|
985H0
K85H0-JD00A ﾓｼﾞﾕ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ｻｲﾄﾞ ｴｱ- ﾊﾞﾂｸ ﾌﾛﾝﾄ rh0712--01 ~ ; *5H/B |
K85H0-JD00A |
US $475.78 |
||
|
985H1
|
985H1
K85H1-JD00A ﾓｼﾞﾕ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ｻｲﾄﾞ ｴｱ- ﾊﾞﾂｸ ﾌﾛﾝﾄ lh0712--01 ~ ; *5H/B |
K85H1-JD00A |
US $475.78 |
