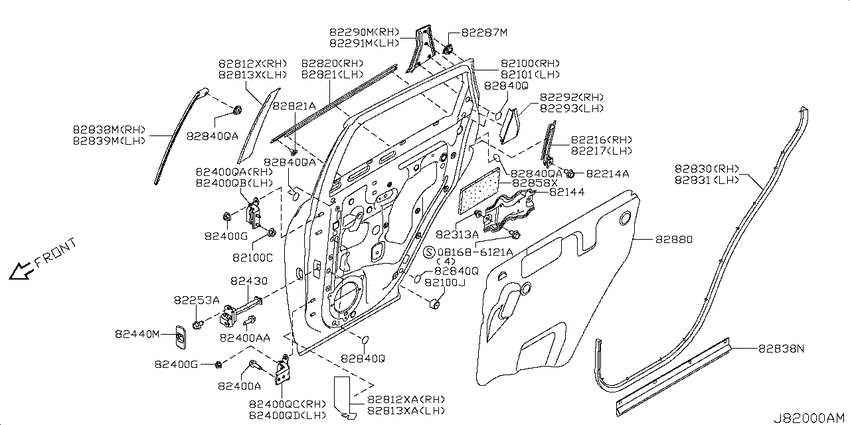

Rear door panel & fitting (2007-12-01 ~ ; 5H/B) Diagram Nissan DUALIS
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 20S/4
- body
- 5H/B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
82100
|
82100
H210M1YAMA Door-Rear, Rh0712--01 ~ ; 5H/B |
H210M1YAMA |
US $716.50 |
||
|
82100
|
82100
01221N8011 Nut0712--01 ~ ; 5H/B |
01221N8011 |
from US $0.83 |
||
|
82100
|
82100
80872D0101 Bumper Rubber-Door0712--01 ~ ; 5H/B |
80872D0101 |
US $4.85 |
||
|
82100C
|
82100C
01221N8011 Nut0712--01 ~ ; 5H/B |
01221N8011 |
from US $0.83 |
||
|
82100J
|
82100J
80872D0101 Bumper Rubber-Door0712--01 ~ ; 5H/B |
80872D0101 |
US $4.85 |
||
|
82101
|
82101
H210A1YAMA Door-Rear, Lh0712--01 ~ ; 5H/B |
H210A1YAMA |
US $716.50 |
||
|
82144
|
82144
82144JD00A Frame-Rear Door Inner, Rh0712--01 ~ ; 5H/B |
82144JD00A |
US $34.99 |
||
|
82214A
|
82214A
01121N6211 Screw0712--01 ~ ; 5H/B |
01121N6211 |
from US $1.17 |
||
|
82216
|
82216
82216JD000 Sash Assy-Rear Door, Rear Rh0712--01 ~ ; 5H/B |
82216JD000 |
US $40.32 |
||
|
82217
|
82217
82217-JD000 Sash Assy-Rear Door, Rear Lh0712--01 ~ ; 5H/B |
82217-JD000 |
US $40.32 |
||
|
82253A
|
82253A
01121-07261 BOLT0712--01 ~ ; 5H/B |
01121-07261 |
from US $0.11 |
||
|
82287M
|
82287M
80287JD00A Holder-Corner Cover0712--01 ~ ; 5H/B |
80287JD00A |
US $1.64 |
||
|
82290M
|
82290M
82290JD01A Cover-Rear Door Corner, Outer Rh0712--01 ~ ; 5H/B |
82290JD01A |
US $59.61 |
||
|
82291M
|
82291M
82291JD01A Cover-Rear Door Corner, Outer Lh0712--01 ~ ; 5H/B |
82291JD01A |
US $35.57 |
||
|
82292
|
82292
82292JD000 Cover-Rear Door Corner, Inner Rh0712--01 ~ ; 5H/B |
82292JD000 |
US $17.71 |
||
|
82293
|
82293
82293JD000 Cover-Rear Door Corner, Inner Lh0712--01 ~ ; 5H/B |
82293JD000 |
US $17.71 |
||
|
82313A
|
82313A
0128100441
GROMMET-SCREW
0712--01 ~ ; 5H/B |
0128100441 |
— | ||
| replacement | |||||
|
82313A
|
82313A
0128100801 GROMMET-SCREW0712--01 ~ ; 5H/B |
0128100801 |
from US $1.07 |
||
|
82400A
|
82400A
01121N8041 Bolt0712--01 ~ ; 5H/B |
01121N8041 |
from US $0.57 |
||
|
82400A
|
82400A
80498-40U0A Bolt0712--01 ~ ; 5H/B |
80498-40U0A |
US $2.45 |
||
|
82400AA
|
82400AA
80498-40U0A Bolt0712--01 ~ ; 5H/B |
80498-40U0A |
US $2.45 |
||
|
82400G
|
82400G
80497AX01A Nut0712--01 ~ ; 5H/B |
80497AX01A |
from US $0.70 |
||
|
82400G
|
82400G
80497AX01A Nut0712--01 ~ ; 5H/B |
80497AX01A |
from US $0.70 |
||
|
82400QA
|
82400QA
82400AV630 Hinge Assy-Rear Door0712--01 ~ ; 5H/B |
82400AV630 |
US $29.52 |
||
|
82400QB
|
82400QB
82401AV630 Hinge Assy-Rear Door0712--01 ~ ; 5H/B |
82401AV630 |
US $29.52 |
||
|
82400QC
|
82400QC
824202F030 Hinge Assy-Front Door0712--01 ~ ; 5H/B |
824202F030 |
US $37.57 |
||
|
82400QD
|
82400QD
824212F030 Hinge Assy-Front Door0712--01 ~ ; 5H/B |
824212F030 |
US $29.52 |
||
|
82430
|
82430
82430JD000 Link-Check, Rear Door0712--01 ~ ; 5H/B |
82430JD000 |
US $22.61 |
||
|
82440M
|
82440M
80440JD00A Cover-Check Link Rh0712--01 ~ ; 5H/B |
80440JD00A |
US $4.32 |
||
|
82812X
|
82812X
82812JD000 Tape-Rear Door Outside, Rh0712--01 ~ ; 5H/B |
82812JD000 |
US $20.45 |
||
|
82812X
|
82812X
82812JD02B Tape-Rear Door Outside, Rh0712--01 ~ ; 5H/B |
82812JD02B |
US $20.45 |
||
|
82812XA
|
82812XA
82812JD02B Tape-Rear Door Outside, Rh0712--01 ~ ; 5H/B |
82812JD02B |
US $20.45 |
||
|
82813X
|
82813X
82813JD000 Tape-Rear Door Outside, Lh0712--01 ~ ; 5H/B |
82813JD000 |
from US $17.93 |
||
|
82813X
|
82813X
82813JD02B Tape-Rear Door Outside, Lh0712--01 ~ ; 5H/B |
82813JD02B |
US $20.45 |
||
|
82813XA
|
82813XA
82813JD02B Tape-Rear Door Outside, Lh0712--01 ~ ; 5H/B |
82813JD02B |
US $20.45 |
||
|
82820
|
82820
82820JD00A Moulding-Rear Door Outside, Rh0712--01 ~ ; 5H/B |
82820JD00A |
US $75.12 |
||
|
82821
|
82821
82821JD00A Moulding-Rear Door Outside, Lh0712--01 ~ ; 5H/B |
82821JD00A |
US $75.12 |
||
|
82821
|
82821
63849AU00A Screw0712--01 ~ ; 5H/B |
63849AU00A |
US $2.02 |
||
|
82821A
|
82821A
63849AU00A Screw0712--01 ~ ; 5H/B |
63849AU00A |
US $2.02 |
||
|
82830
|
82830
82830JD000 Weatherstrip-Rear Door, Rh0712--01 ~ ; 5H/B |
82830JD000 |
US $78.91 |
||
|
82831
|
82831
82831JD000 Weatherstrip-Rear Door, Lh0712--01 ~ ; 5H/B |
82831JD000 |
US $78.91 |
||
|
82838M
|
82838M
82838JD01D Seal-Rear Door Partition, Rh0712--01 ~ ; 5H/B |
82838JD01D |
from US $29.23 |
||
|
82838N
|
82838N
82838JD000 Seal-Rear Door Parting0712--01 ~ ; 5H/B |
82838JD000 |
US $20.45 |
||
|
82839M
|
82839M
82839JD01D Seal-Rear Door Partition, Lh0712--01 ~ ; 5H/B |
82839JD01D |
US $29.23 |
||
|
82840Q
|
82840Q
64899-35F00
Cover-Hole
0712--01 ~ ; 5H/B |
64899-35F00 |
— | ||
| replacement | |||||
|
82840Q
|
82840Q
64891W5000 Plug-Rubber0712--01 ~ ; 5H/B |
64891W5000 |
from US $0.81 |
||
|
82840Q
|
82840Q
64892W5000 Unit Assy-Divider Tachometer0712--01 ~ ; 5H/B |
64892W5000 |
from US $0.96 |
||
|
82840Q
|
82840Q
64899-35F00
Cover-Hole
0712--01 ~ ; 5H/B |
64899-35F00 |
— | ||
| replacement | |||||
|
82840Q
|
82840Q
64891W5000 Plug-Rubber0712--01 ~ ; 5H/B |
64891W5000 |
from US $0.81 |
||
|
82840Q
|
82840Q
64892W5000 Unit Assy-Divider Tachometer0712--01 ~ ; 5H/B |
64892W5000 |
from US $0.96 |
||
|
82840Q
|
82840Q
64899-35F00
Cover-Hole
0712--01 ~ ; 5H/B |
64899-35F00 |
— | ||
| replacement | |||||
|
82840Q
|
82840Q
64891W5000 Plug-Rubber0712--01 ~ ; 5H/B |
64891W5000 |
from US $0.81 |
||
|
82840Q
|
82840Q
64892W5000 Unit Assy-Divider Tachometer0712--01 ~ ; 5H/B |
64892W5000 |
from US $0.96 |
||
|
82840QA
|
82840QA
64892W5000 Unit Assy-Divider Tachometer0712--01 ~ ; 5H/B |
64892W5000 |
from US $0.96 |
||
|
82840QA
|
82840QA
64892W5000 Unit Assy-Divider Tachometer0712--01 ~ ; 5H/B |
64892W5000 |
from US $0.96 |
||
|
82840QA
|
82840QA
64892W5000 Unit Assy-Divider Tachometer0712--01 ~ ; 5H/B |
64892W5000 |
from US $0.96 |
||
|
82858X
|
82858X
80946BU000 Pad Rear Doorouter, Rh0712--01 ~ ; 5H/B |
80946BU000 |
US $24.48 |
||
|
82880
|
82880
82860JD00B Screen-Sealing, Rear Door0712--01 ~ ; 5H/B |
82860JD00B |
US $16.13 |
||
