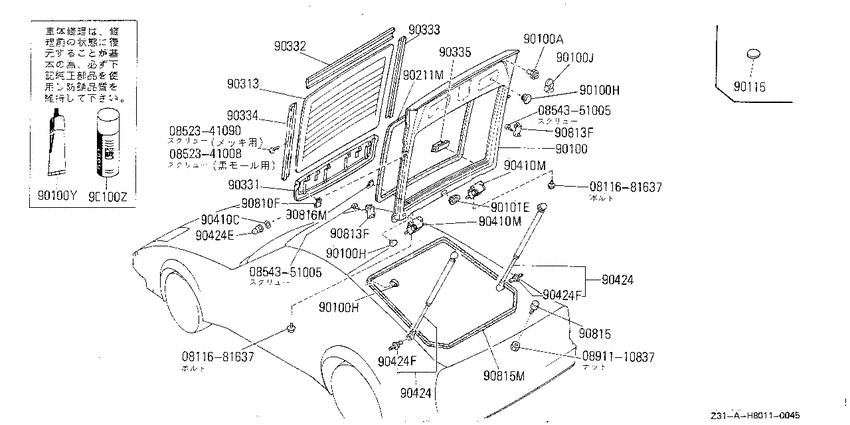

Back door panel & window (1983-09-01 ~ ; ALL) Diagram Nissan FAIRLADY Z
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- VG30D
- transmission
- AT
- grade
- ZR
- Roof
- KZ#
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811681637
|
0811681637
08116-81637
Bolt-hexagon
|
08116-81637 |
— | ||
|
0811681637
|
0811681637
08116-81637
Bolt-hexagon
|
08116-81637 |
— | ||
|
0852341008
|
0852341008
08523-41008
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08523-41008 |
— | ||
|
0852341090
|
0852341090
08523-41090
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08523-41090 |
— | ||
|
0854351005
|
0854351005
08543-51005
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51005 |
— | ||
|
0854351005
|
0854351005
08543-51005
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51005 |
— | ||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
90100
|
90100
90100-21P02
ﾄﾞｱ,ﾊﾞﾂｸ
8610--01 ~ ; 2S |
90100-21P02 |
— | ||
| replacement | |||||
|
90100
|
90100
K0100-21P27
Door-back
8610--01 ~ ; 2S |
K0100-21P27 |
— | ||
|
90100
|
90100
9059001P00
ﾗﾊﾞ-
8309--01 ~ ; ALL; ﾊﾞﾂｸ ﾄﾞｱ ﾖｳ |
9059001P00 |
— | ||
|
90100
|
90100
90906-01P00
ｸﾞﾛﾒﾂﾄ
8309--01 ~ ; ALL |
90906-01P00 |
— | ||
|
90100
|
90100
KA360-16570
Paint Sealer
8309--01 ~ ; ALL; [K504] |
KA360-16570 |
— | ||
|
90100
|
90100
KA390-18090
Metal Keep Wax
8309--01 ~ ; ALL; [K504] |
KA390-18090 |
— | ||
|
90100A
|
90100A
9059001P00
ﾗﾊﾞ-
8309--01 ~ ; ALL; ﾊﾞﾂｸ ﾄﾞｱ ﾖｳ |
9059001P00 |
— | ||
|
90100J
|
90100J
90906-01P00
ｸﾞﾛﾒﾂﾄ
8309--01 ~ ; ALL |
90906-01P00 |
— | ||
|
90100Y
|
90100Y
KA360-16570
Paint Sealer
8309--01 ~ ; ALL; [K504] |
KA360-16570 |
— | ||
|
90100Z
|
90100Z
KA390-18090
Metal Keep Wax
8309--01 ~ ; ALL; [K504] |
KA390-18090 |
— | ||
|
90101E
|
90101E
01658-01071 PLUG8610--01 ~ ; ALL |
01658-01071 |
US $2.91 |
||
|
90115
|
90115
01658-00521 PLUG-FRONT FLOOR8512--01 ~ 8610--01; ALL; ﾊﾞﾂｸ ﾄﾞｱ ｱﾂﾊﾟ- ﾋﾀﾞﾘ |
01658-00521 |
US $0.97 |
||
|
90115
|
90115
01658-00531
PLUG
8510--01 ~ 8512--01; ALL; ﾊﾞﾂｸ ﾄﾞｱ ｱﾂﾊﾟ- |
01658-00531 |
— | ||
| replacement | |||||
|
90115
|
90115
74816AL500 Plug8510--01 ~ 8512--01; ALL; ﾊﾞﾂｸ ﾄﾞｱ ｱﾂﾊﾟ- |
74816AL500 |
US $1.93 |
||
|
90115
|
90115
64891W5000 Plug-Rubber8309--01 ~ 8510--01; ALL; D=10 |
64891W5000 |
from US $0.80 |
||
|
90115
|
90115
82826-V0600 Plug8512--01 ~ 8610--01; ALL; ﾊﾞﾂｸ ﾄﾞｱ ｱﾂﾊﾟ- ﾐｷﾞ |
82826-V0600 |
US $0.86 |
||
|
90211M
|
90211M
90370-01P00
ｳｴﾙﾄ,ﾊﾞﾂｸ ﾄﾞｱ ｵ-ﾌﾟﾆﾝｸﾞ
8309--01 ~ ; 2S; ﾊﾞﾂｸ ﾄﾞｱ ﾖｳ |
90370-01P00 |
— | ||
|
90313
|
90313
90312-03P10
ｶﾞﾗｽ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ
8610--01 ~ ; 2S.(ZR2,300ZR,ZX); (BSHT3.5-HPﾌﾞﾛﾝｽﾞ160 ﾀﾞｲﾊﾞ- ｼﾃｲ ｼﾖｳ[D608] |
90312-03P10 |
— | ||
|
90331
|
90331
90351-11P00
ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ｱﾂﾊﾟ-
8610--01 ~ ; 2S.(ZR1,ZR2,300ZR); ｸﾛ ﾜｲﾊﾟ- ﾂｷ ﾖｳ ﾎﾞﾃﾞ- ｶﾗ- ｸﾛ ﾖｳ |
90351-11P00 |
— | ||
|
90331
|
90331
90352-22P10
ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ｱﾂﾊﾟ-
8610--01 ~ ; 2S.(ZR1,ZR2,300ZR); "ｸﾞﾚ- ﾜｲﾊﾟ- ﾂｷ ﾖｳ ﾎﾞﾃﾞ- ｶﾗ- ｸﾛ ｲｶﾞｲ |
90352-22P10 |
— | ||
|
90332
|
90332
90353-11P00
ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ﾛｱ
8309--01 ~ 8610--01; 2S; ｸﾛ |
90353-11P00 |
— | ||
|
90332
|
90332
90353-22P00
ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ﾛｱ
8610--01 ~ ; 2S.(ZR1,ZR2,300ZR); ｸﾞﾚ- ﾎﾞﾃﾞ- ｶﾗ- ｸﾛ ｲｶﾞｲ |
90353-22P00 |
— | ||
|
90333
|
90333
90354-11P00
ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ｻｲﾄﾞ rh
8309--01 ~ 8610--01; 2S; ｸﾛ |
90354-11P00 |
— | ||
|
90333
|
90333
90354-22P00
ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ｻｲﾄﾞ rh
8610--01 ~ ; 2S.(ZR1,ZR2,300ZR); ｸﾞﾚ- ﾎﾞﾃﾞ- ｶﾗ- ｸﾛ ｲｶﾞｲ |
90354-22P00 |
— | ||
|
90334
|
90334
90355-11P00
ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ｻｲﾄﾞ lh
8309--01 ~ 8610--01; 2S; ｸﾛ |
90355-11P00 |
— | ||
|
90334
|
90334
90355-22P00
ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾂｸ ﾄﾞｱ ｻｲﾄﾞ lh
8610--01 ~ ; 2S.(ZR1,ZR2,300ZR); ｸﾞﾚ- ﾎﾞﾃﾞ- ｶﾗ- ｸﾛ ｲｶﾞｲ |
90355-22P00 |
— | ||
|
90335
|
90335
90382-01P00
ｸﾘﾂﾌﾟ,ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂﾊﾟ-
8309--01 ~ 8510--01; ALL |
90382-01P00 |
— | ||
|
90335
|
90335
90382-01P10
ｽﾄﾂﾊﾟ- ﾗﾊﾞ-
8510--01 ~ ; ALL |
90382-01P10 |
— | ||
|
90410C
|
90410C
01311-00253
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
8508--01 ~ ; ALL; ｽﾃｲ ﾖｳ |
01311-00253 |
— | ||
|
90410M
|
90410M
90400-01P00
ﾋﾝｼﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ
8309--01 ~ ; ALL; ﾐｷﾞ & ﾋﾀﾞﾘ |
90400-01P00 |
— | ||
|
90410M
|
90410M
90400-01P00
ﾋﾝｼﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ
8309--01 ~ ; ALL; ﾐｷﾞ & ﾋﾀﾞﾘ |
90400-01P00 |
— | ||
|
90424
|
90424
90450-01P00
ｽﾃ- ｾﾂﾄ,ﾊﾞﾂｸ ﾄﾞｱ
8309--01 ~ ; 2S; ﾐｷﾞ & ﾋﾀﾞﾘ |
90450-01P00 |
— | ||
| replacement | |||||
|
90424
|
90424
9045201P00
ｽﾃｰ,ﾊﾞﾂｸ ﾄﾞｱ
8309--01 ~ ; 2S; ﾐｷﾞ & ﾋﾀﾞﾘ |
9045201P00 |
— | ||
|
90424
|
90424
9045817P00
STUDBALLBACK
8508--01 ~ ; ALL |
9045817P00 |
— | ||
|
90424
|
90424
90456-01P00 Stud-Ball, Back Door Stay8510--01 ~ ; ALL |
90456-01P00 |
US $7.35 |
||
|
90424
|
90424
90456-P7100
ﾎﾞﾙﾄ,ｽﾍﾟｼﾔﾙ
8309--01 ~ 8510--01; ALL |
90456-P7100 |
— | ||
| replacement | |||||
|
90424
|
90424
90456AD00A Stud-Ball, Gas Stay8309--01 ~ 8510--01; ALL |
90456AD00A |
from US $7.48 |
||
|
90424
|
90424
90450-01P00
ｽﾃ- ｾﾂﾄ,ﾊﾞﾂｸ ﾄﾞｱ
8309--01 ~ ; 2S; ﾐｷﾞ & ﾋﾀﾞﾘ |
90450-01P00 |
— | ||
| replacement | |||||
|
90424
|
90424
9045201P00
ｽﾃｰ,ﾊﾞﾂｸ ﾄﾞｱ
8309--01 ~ ; 2S; ﾐｷﾞ & ﾋﾀﾞﾘ |
9045201P00 |
— | ||
|
90424
|
90424
9045817P00
STUDBALLBACK
8508--01 ~ ; ALL |
9045817P00 |
— | ||
|
90424
|
90424
90456-01P00 Stud-Ball, Back Door Stay8510--01 ~ ; ALL |
90456-01P00 |
US $7.35 |
||
|
90424
|
90424
90456-P7100
ﾎﾞﾙﾄ,ｽﾍﾟｼﾔﾙ
8309--01 ~ 8510--01; ALL |
90456-P7100 |
— | ||
| replacement | |||||
|
90424
|
90424
90456AD00A Stud-Ball, Gas Stay8309--01 ~ 8510--01; ALL |
90456AD00A |
from US $7.48 |
||
|
90424E
|
90424E
9045817P00
STUDBALLBACK
8508--01 ~ ; ALL |
9045817P00 |
— | ||
|
90424F
|
90424F
90456-01P00 Stud-Ball, Back Door Stay8510--01 ~ ; ALL |
90456-01P00 |
US $7.35 |
||
|
90424F
|
90424F
90456-P7100
ﾎﾞﾙﾄ,ｽﾍﾟｼﾔﾙ
8309--01 ~ 8510--01; ALL |
90456-P7100 |
— | ||
| replacement | |||||
|
90424F
|
90424F
90456AD00A Stud-Ball, Gas Stay8309--01 ~ 8510--01; ALL |
90456AD00A |
from US $7.48 |
||
|
90424F
|
90424F
90456-01P00 Stud-Ball, Back Door Stay8510--01 ~ ; ALL |
90456-01P00 |
US $7.35 |
||
|
90424F
|
90424F
90456-P7100
ﾎﾞﾙﾄ,ｽﾍﾟｼﾔﾙ
8309--01 ~ 8510--01; ALL |
90456-P7100 |
— | ||
| replacement | |||||
|
90424F
|
90424F
90456AD00A Stud-Ball, Gas Stay8309--01 ~ 8510--01; ALL |
90456AD00A |
from US $7.48 |
||
|
90810F
|
90810F
9038001P00
ｸﾘﾂﾌﾟ
8309--01 ~ ; ALL |
9038001P00 |
— | ||
|
90813F
|
90813F
90384-01P00
ｸﾞﾛﾒﾂﾄ,ｽｸﾘﾕ-
8309--01 ~ ; ALL |
90384-01P00 |
— | ||
|
90813F
|
90813F
90384-01P00
ｸﾞﾛﾒﾂﾄ,ｽｸﾘﾕ-
8309--01 ~ ; ALL |
90384-01P00 |
— | ||
|
90815
|
90815
90595-01P00
ﾊﾞﾝﾊﾟ- ﾗﾊﾞ-
8309--01 ~ ; ALL; ﾌｴﾝﾀﾞ- ﾖｳ |
90595-01P00 |
— | ||
|
90815
|
90815
90830-01P10
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾊﾞﾂｸ ﾄﾞｱ
8309--01 ~ ; 2S |
90830-01P10 |
— | ||
| replacement | |||||
|
90815
|
90815
90830-D5525
Weatherstrip-back door
8309--01 ~ ; 2S |
90830-D5525 |
— | ||
|
90815M
|
90815M
90830-01P10
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾊﾞﾂｸ ﾄﾞｱ
8309--01 ~ ; 2S |
90830-01P10 |
— | ||
| replacement | |||||
|
90815M
|
90815M
90830-D5525
Weatherstrip-back door
8309--01 ~ ; 2S |
90830-D5525 |
— | ||
|
90816M
|
90816M
90382-01P10
ｽﾄﾂﾊﾟ- ﾗﾊﾞ-
8309--01 ~ 8610--01; ALL |
90382-01P10 |
— | ||
|
90816M
|
90816M
90382-21P00
ﾎﾙﾀﾞ-
8610--01 ~ ; ALL |
90382-21P00 |
— | ||
