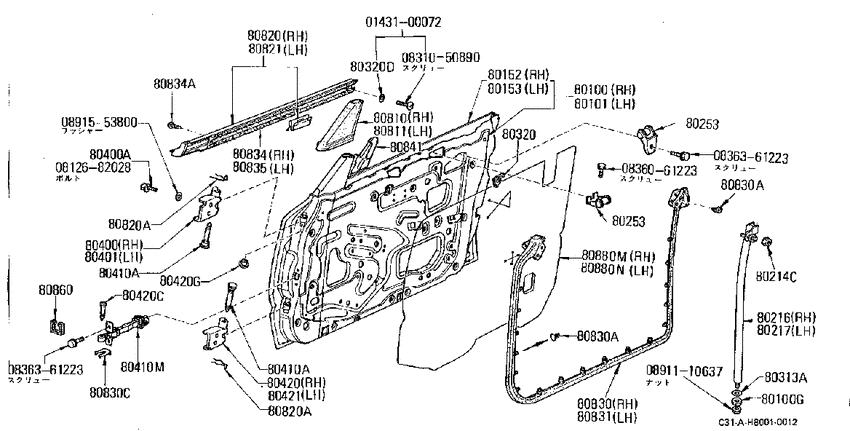

Front door panel (1980-11-01 ~ ; K) Diagram Nissan LAUREL
- Year
- 1980 - 2012
- Sales region
- Japan
- Engine
- Z20S
- transmission
- FA
- grade
- SGL
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0143100072
|
0143100072
01431-00072 SCREW |
01431-00072 |
US $2.45 |
||
|
0812682028
|
0812682028
08126-82028
Bolt-hexagon
|
08126-82028 |
— | ||
|
0831050890
|
0831050890
08310-50890
Болт
|
08310-50890 |
— | ||
|
0836061223
|
0836061223
08360-61223
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61223 |
— | ||
|
0836361223
|
0836361223
08363-61223
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61223 |
— | ||
|
0836361223
|
0836361223
08363-61223
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61223 |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.59 |
||
|
80100
|
80100
80100-31L50
ﾄﾞｱ,ﾌﾛﾝﾄ rh
8011--01 ~ 8106--01; K |
80100-31L50 |
— | ||
|
80100
|
80100
80100-31L52 ﾄﾞｱ,ﾌﾛﾝﾄ rh8107--01 ~ 8307--01; K |
80100-31L52 |
US $1,778 |
||
|
80100
|
80100
80100-31L53 ﾄﾞｱ,ﾌﾛﾝﾄ rh8307--01 ~ ; K |
80100-31L53 |
US $1,778 |
||
|
80100
|
80100
80239-W1800 Sealing Rubber-Door8011--01 ~ 8110--01; K |
80239-W1800 |
US $1.73 |
||
|
80100G
|
80100G
80239-W1800 Sealing Rubber-Door8011--01 ~ 8110--01; K |
80239-W1800 |
US $1.73 |
||
|
80101
|
80101
80101-31L50
ﾄﾞｱ,ﾌﾛﾝﾄ lh
8011--01 ~ 8106--01; K |
80101-31L50 |
— | ||
|
80101
|
80101
80101-31L52 ﾄﾞｱ,ﾌﾛﾝﾄ lh8107--01 ~ 8307--01; K |
80101-31L52 |
US $1,778 |
||
|
80101
|
80101
80101-31L53 ﾄﾞｱ,ﾌﾛﾝﾄ lh8307--01 ~ ; K |
80101-31L53 |
US $1,778 |
||
|
80152
|
80152
80152-01L00
ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀ- rh
8406--01 ~ ; ALL |
80152-01L00 |
— | ||
|
80152
|
80152
80152-01L01 ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀ- rh8310--01 ~ 8405--01; ALL |
80152-01L01 |
US $338.42 |
||
|
80152
|
80152
80152-01L02 ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀ- rh8406--01 ~ ; ALL |
80152-01L02 |
US $338.42 |
||
|
80153
|
80153
80153-01L00
ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀ- lh
8210--01 ~ 8405--01; ALL |
80153-01L00 |
— | ||
|
80153
|
80153
80153-01L01 ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀ- lh8406--01 ~ ; ALL |
80153-01L01 |
US $250.56 |
||
|
80153
|
80153
80153-01L02 ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀ- lh8406--01 ~ ; ALL |
80153-01L02 |
US $338.42 |
||
|
80214C
|
80214C
80252-S0600 Nut8011--01 ~ 8110--01; K |
80252-S0600 |
US $1.73 |
||
|
80216
|
80216
80240-31L00 ｻﾂｼﾕ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ﾘﾔ rh8011--01 ~ 8106--01; K; TUBE FRONT DOOR |
80240-31L00 |
US $49.82 |
||
|
80216
|
80216
80240-31L01 ｻﾂｼﾕ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ﾘﾔ rh8107--01 ~ ; K; TUBE FRONT DOOR |
80240-31L01 |
US $49.82 |
||
|
80217
|
80217
80241-31L00 ｻﾂｼﾕ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ﾘﾔ lh8011--01 ~ 8106--01; K |
80241-31L00 |
US $49.82 |
||
|
80217
|
80217
80241-31L01 ｻﾂｼﾕ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ﾘﾔ lh8107--01 ~ ; K |
80241-31L01 |
US $49.82 |
||
|
80253
|
80253
80322-31L00 Stab-Glass8011--01 ~ 8110--01; K; INR STAB |
80322-31L00 |
US $18.29 |
||
|
80253
|
80253
80324-31L00 Stab-Glass8011--01 ~ 8110--01; K; OUT STAB |
80324-31L00 |
US $20.30 |
||
|
80253
|
80253
80322-31L00 Stab-Glass8011--01 ~ 8110--01; K; INR STAB |
80322-31L00 |
US $18.29 |
||
|
80253
|
80253
80324-31L00 Stab-Glass8011--01 ~ 8110--01; K; OUT STAB |
80324-31L00 |
US $20.30 |
||
|
80313A
|
80313A
76105-0401P Washer-Plain8011--01 ~ ; K |
76105-0401P |
US $1.11 |
||
|
80320
|
80320
80722-31L01 Stopper-Door Window8011--01 ~ 8209--01; K |
80722-31L01 |
US $9.22 |
||
|
80320
|
80320
01311-00142
WASHER-PLAIN
8011--01 ~ ; ALL-Z18P |
01311-00142 |
— | ||
|
80320D
|
80320D
01311-00142
WASHER-PLAIN
8011--01 ~ ; ALL-Z18P |
01311-00142 |
— | ||
|
80400
|
80400
80402-01L00 Hinge Assy-Front Door, Upper Rh8011--01 ~ ; ALL |
80402-01L00 |
US $24.19 |
||
|
80400
|
80400
01121-00502 BOLT8011--01 ~ ; ALL-Z18P |
01121-00502 |
US $1.73 |
||
|
80400
|
80400
80402-01L00 Hinge Assy-Front Door, Upper Rh8011--01 ~ ; ALL |
80402-01L00 |
US $24.19 |
||
|
80400
|
80400
01121-00502 BOLT8011--01 ~ ; ALL-Z18P |
01121-00502 |
US $1.73 |
||
|
80401
|
80401
80422-01L00 Hinge Assy-Front Door, Upper Lh8011--01 ~ ; ALL |
80422-01L00 |
US $24.19 |
||
|
80410A
|
80410A
80406-01L00 Pin-Spring8011--01 ~ ; ALL; UPR&LWR |
80406-01L00 |
US $5.33 |
||
|
80410A
|
80410A
80406-01L00 Pin-Spring8011--01 ~ ; ALL; UPR&LWR |
80406-01L00 |
US $5.33 |
||
|
80410M
|
80410M
80430-01L00 ﾘﾝｸ,ﾄﾞｱ ｽﾄﾂﾊﾟ-8011--01 ~ 8112--01; ALL |
80430-01L00 |
US $33.55 |
||
|
80410M
|
80410M
80430-01S00 Link-Door Stopper8112--01 ~ ; ALL |
80430-01S00 |
US $42.05 |
||
|
80420
|
80420
80422-01L00 Hinge Assy-Front Door, Upper Lh8011--01 ~ ; ALL-Z18P |
80422-01L00 |
US $24.19 |
||
|
80420
|
80420
80431-01L00 ﾋﾟﾝ,ﾄﾞｱ ｽﾄﾂﾊﾟ-8011--01 ~ 8112--01; ALL |
80431-01L00 |
US $4.32 |
||
|
80420
|
80420
80431-01S00 Pin-Door Stopper8112--01 ~ ; ALL |
80431-01S00 |
US $7.35 |
||
|
80420
|
80420
8041001L00 Cap-Front Door Hinge8011--01 ~ ; ALL |
8041001L00 |
from US $3.48 |
||
|
80420C
|
80420C
80431-01L00 ﾋﾟﾝ,ﾄﾞｱ ｽﾄﾂﾊﾟ-8011--01 ~ 8112--01; ALL |
80431-01L00 |
US $4.32 |
||
|
80420C
|
80420C
80431-01S00 Pin-Door Stopper8112--01 ~ ; ALL |
80431-01S00 |
US $7.35 |
||
|
80420G
|
80420G
8041001L00 Cap-Front Door Hinge8011--01 ~ ; ALL |
8041001L00 |
from US $3.48 |
||
|
80421
|
80421
80402-01L00 Hinge Assy-Front Door, Upper Rh8011--01 ~ ; ALL |
80402-01L00 |
US $24.19 |
||
|
80810
|
80810
80290-31L00
ｶﾊﾞ-,ﾄﾞｱ ﾌﾛﾝﾄ rh
8011--01 ~ ; K; CORNER |
80290-31L00 |
— | ||
|
80811
|
80811
80291-31L00
ｶﾊﾞ-,ﾄﾞｱ ﾌﾛﾝﾄ lh
8011--01 ~ ; K |
80291-31L00 |
— | ||
|
80820
|
80820
80840-31L00 ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh8011--01 ~ 8110--01; K |
80840-31L00 |
US $94.32 |
||
|
80820
|
80820
80840-31L01 ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh8111--01 ~ ; K |
80840-31L01 |
US $87.41 |
||
|
80820
|
80820
0092250610 CLIP8011--01 ~ 8209--01; ALL-Z18P; UPR&LWR DOOR HINGE |
0092250610 |
from US $0.61 |
||
|
80820
|
80820
80836-01L00 Clip8011--01 ~ ; ALL-Z18P; DOOR INSIDE |
80836-01L00 |
US $3.60 |
||
|
80820A
|
80820A
0092250610 CLIP8011--01 ~ 8209--01; ALL-Z18P; UPR&LWR DOOR HINGE |
0092250610 |
from US $0.61 |
||
|
80820A
|
80820A
80836-01L00 Clip8011--01 ~ ; ALL-Z18P; DOOR INSIDE |
80836-01L00 |
US $3.60 |
||
|
80820A
|
80820A
0092250610 CLIP8011--01 ~ 8209--01; ALL-Z18P; UPR&LWR DOOR HINGE |
0092250610 |
from US $0.61 |
||
|
80820A
|
80820A
80836-01L00 Clip8011--01 ~ ; ALL-Z18P; DOOR INSIDE |
80836-01L00 |
US $3.60 |
||
|
80821
|
80821
80841-31L00 ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh8011--01 ~ 8110--01; K |
80841-31L00 |
US $94.32 |
||
|
80821
|
80821
80841-31L01 ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh8111--01 ~ ; K |
80841-31L01 |
US $87.41 |
||
|
80830
|
80830
80830-31L00 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ rh8011--01 ~ ; K |
80830-31L00 |
US $109.30 |
||
|
80830
|
80830
0155300401 PLUG-TERMINAL8011--01 ~ ; K |
0155300401 |
from US $1.04 |
||
|
80830
|
80830
80433-01L00 Clip-Canoe8011--01 ~ ; ALL |
80433-01L00 |
US $1.73 |
||
|
80830A
|
80830A
0155300401 PLUG-TERMINAL8011--01 ~ ; K |
0155300401 |
from US $1.04 |
||
|
80830A
|
80830A
0155300401 PLUG-TERMINAL8011--01 ~ ; K |
0155300401 |
from US $1.04 |
||
|
80830C
|
80830C
80433-01L00 Clip-Canoe8011--01 ~ ; ALL |
80433-01L00 |
US $1.73 |
||
|
80831
|
80831
80831-31L00 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ lh8011--01 ~ ; K |
80831-31L00 |
US $109.30 |
||
|
80834
|
80834
80834-31L00 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ rh8111--01 ~ ; K; RH INR SEAL |
80834-31L00 |
US $48.82 |
||
|
80834
|
80834
01431-00072 SCREW8011--01 ~ ; ALL |
01431-00072 |
US $2.45 |
||
|
80834
|
80834
80834-31L00 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ rh8011--01 ~ ; K |
80834-31L00 |
US $48.82 |
||
|
80834A
|
80834A
01431-00072 SCREW8011--01 ~ ; ALL |
01431-00072 |
US $2.45 |
||
|
80835
|
80835
80835-31L00 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ lh8111--01 ~ ; K; LH INR SEAL |
80835-31L00 |
US $48.82 |
||
|
80835
|
80835
80835-31L00 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ lh8011--01 ~ ; K |
80835-31L00 |
US $48.82 |
||
|
80841
|
80841
80334-31L00
ｶﾊﾞ-,ﾎ-ﾙ ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝｻｲﾄﾞ
8011--01 ~ ; K; CORNER PIECE |
80334-31L00 |
— | ||
|
80860
|
80860
80854-01L00
Sealing Rubber-Door Side
8111--01 ~ 8209--01; ALL |
80854-01L00 |
— | ||
|
80880M
|
80880M
80860-01L00
ｽｸﾘ-ﾝ,ｼ-ﾘﾝｸﾞ ﾌﾛﾝﾄ rh
8011--01 ~ 8110--01; SGL+SGX+MD; RH |
80860-01L00 |
— | ||
|
80880M
|
80880M
80860-09L00 ｽｸﾘ-ﾝ,ｼ-ﾘﾝｸﾞ ﾌﾛﾝﾄ rh8111--01 ~ ; ALL-MD; RH&LH |
80860-09L00 |
US $8.78 |
||
|
80880N
|
80880N
80861-01L00
ｽｸﾘ-ﾝ,ｼ-ﾘﾝｸﾞ ﾌﾛﾝﾄ lh
8011--01 ~ 8110--01; SGL+SGX+MD; LH |
80861-01L00 |
— |
