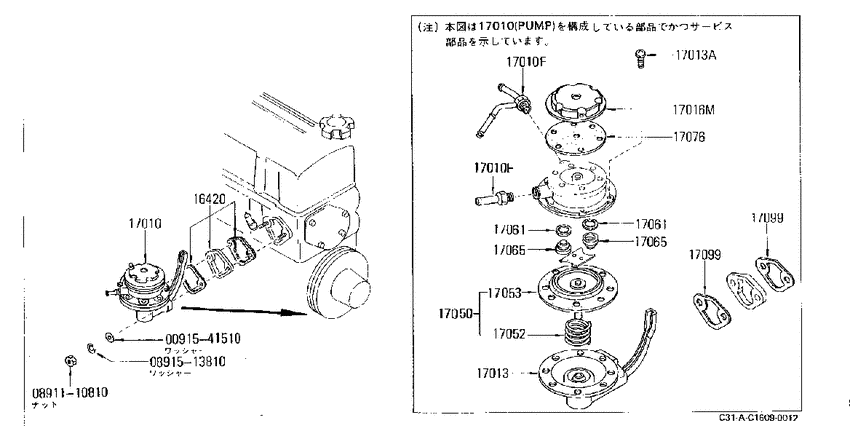

Fuel Pump (1982-10-01 ~ ; 標準; Z20S) Diagram Nissan LAUREL
- Year
- 1980 - 2012
- Sales region
- Japan
- Engine
- Z20S
- transmission
- FA
- grade
- SGL
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0091541510
|
0091541510
00915-41510 WASHER-PLAIN |
00915-41510 |
US $1.93 |
||
|
0891110810
|
0891110810
08911-10810
NUT
|
08911-10810 |
— | ||
| replacement | |||||
|
0891110810
|
0891110810
089111082A
NUTHEX
|
089111082A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
16420
|
16420
16420-A0600 Spacer-Fuel Pump8011--01 ~ 8209--01; Z18S+Z20S |
16420-A0600 |
US $4.18 |
||
| replacement | |||||
|
16420
|
16420
16420-85G00 Spacer-Fuel Pump8011--01 ~ 8209--01; Z18S+Z20S |
16420-85G00 |
US $4.18 |
||
|
17010
|
17010
17010-N8226 Pump Assy-Fuel8011--01 ~ ; Z20S |
17010-N8226 |
US $161.28 |
||
|
17010
|
17010
17020-01L00 Pump Assy-Fuel8111--01 ~ 8209--01; ((Z18S,Z20S).SGL *(Z18S,Z20S).(CST+GL; F/PSTG |
17020-01L00 |
US $580.56 |
||
|
17010
|
17010
17020-S3010 Pump Assy-Fuel8011--01 ~ 8110--01; (Z18S,Z20S).SGL+L20S*Z18S+Z20S; F/PSTG |
17020-S3010 |
US $597.55 |
||
|
17010
|
17010
17089-28531 Bolt8011--01 ~ 8209--01; (Z18S,Z20S).(GL, SGL)+L20S; F/PSTG |
17089-28531 |
US $2.02 |
||
|
17010
|
17010
17091-28531 Washer-Plain8011--01 ~ 8209--01; (Z18S,Z20S).(GL, SGL)+L20S; F/PSTG |
17091-28531 |
US $0.86 |
||
|
17010
|
17010
17103-H5300 Connector Assy8011--01 ~ 8209--01; Z18S+Z20S |
17103-H5300 |
US $10.37 |
||
|
17010
|
17010
17103-N8200 Connector Assy-Fuel, Outlet8011--01 ~ ; Z20S |
17103-N8200 |
US $7.92 |
||
|
17010E
|
17010E
17103-H5300 Connector Assy8011--01 ~ 8209--01; Z18S+Z20S |
17103-H5300 |
US $10.37 |
||
|
17010F
|
17010F
17103-N8200 Connector Assy-Fuel, Outlet8011--01 ~ ; Z20S |
17103-N8200 |
US $7.92 |
||
|
17013
|
17013
17013-N8200 Body Compl-Lower8011--01 ~ ; Z20S |
17013-N8200 |
US $51.84 |
||
|
17013
|
17013
17089-H7210 Screw8011--01 ~ 8110--01; Z20S |
17089-H7210 |
US $0.86 |
||
|
17013A
|
17013A
17089-H7210 Screw8011--01 ~ 8110--01; Z20S |
17089-H7210 |
US $0.86 |
||
|
17016M
|
17016M
17016-N5810 Cover-Fuel Pump Upper8011--01 ~ ; Z20S |
17016-N5810 |
US $11.38 |
||
|
17050
|
17050
17050-N8200 Diaphragm Compl8011--01 ~ ; Z20S |
17050-N8200 |
US $29.52 |
||
|
17052
|
17052
17052-N5810 Spring-Diaphragm8011--01 ~ ; Z20S |
17052-N5810 |
US $3.88 |
||
|
17053
|
17053
17053-N8200
Diaphragm Assy
8011--01 ~ ; Z20S |
17053-N8200 |
— | ||
|
17061
|
17061
17061-U6011 Gasket-Valve8011--01 ~ 8209--01; Z18S+Z20S |
17061-U6011 |
US $1.01 |
||
|
17061
|
17061
17061-U6011 Gasket-Valve8011--01 ~ 8209--01; Z18S+Z20S |
17061-U6011 |
US $1.01 |
||
|
17065
|
17065
17065U6010 Valve Assy8011--01 ~ 8209--01; Z18S+Z20S |
17065U6010 |
US $7.06 |
||
|
17065
|
17065
01461-00061 SCREW8210--01 ~ ; *Z20S |
01461-00061 |
US $2.21 |
||
|
17065
|
17065
17065U6010 Valve Assy8011--01 ~ 8209--01; Z18S+Z20S |
17065U6010 |
US $7.06 |
||
|
17065
|
17065
01461-00061 SCREW8210--01 ~ ; *Z20S |
01461-00061 |
US $2.21 |
||
|
17076
|
17076
16407-29900 Gasket-Body Cover8011--01 ~ 8209--01; (Z18S,Z20S).(GL, SGL)+L20S |
16407-29900 |
US $4.18 |
||
|
17076
|
17076
17076-N5811
Gasket-Body Cover
8011--01 ~ ; Z20S |
17076-N5811 |
— | ||
|
17099
|
17099
17099-A0600 Gasket-Fuel Pump8011--01 ~ 8209--01; Z18S+Z20S |
17099-A0600 |
US $1.73 |
||
|
17099
|
17099
17099-21002 Gasket-Fuel Pump8011--01 ~ 8209--01; *Z18S *Z20S; F/PSTG |
17099-21002 |
US $1.73 |
||
|
17099
|
17099
17099-A0600 Gasket-Fuel Pump8011--01 ~ 8209--01; Z18S+Z20S |
17099-A0600 |
US $1.73 |
||
|
17099
|
17099
17099-21002 Gasket-Fuel Pump8011--01 ~ 8209--01; *Z18S *Z20S; F/PSTG |
17099-21002 |
US $1.73 |
||
