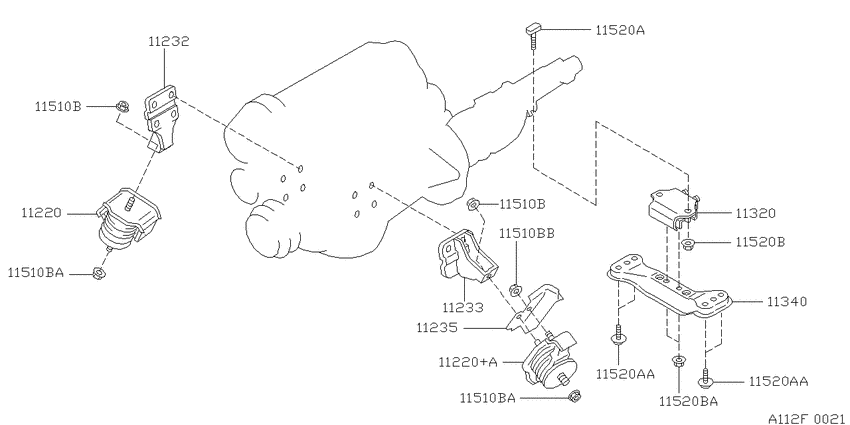

Engine & transmission mounting (1988-12-01 ~ 1991-01-01; RD28.MT) Diagram Nissan LAUREL
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- RD28
- transmission
- MT
- grade
- EXT
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11220
|
11220
1121097L00 Insulator-Engine Mounting, Front8812--01 ~ 9101--01; RD28.MT; ﾐｷﾞ ﾖｳ |
1121097L00 |
US $180 |
||
|
11220
|
11220
11220-97L00 Insulator-Engine Mounting, Front8812--01 ~ 9101--01; RD28.MT; ﾋﾀﾞﾘ ﾖｳ |
11220-97L00 |
US $149.76 |
||
|
11220+A
|
11220+A
11220-97L00 Insulator-Engine Mounting, Front8812--01 ~ 9101--01; RD28.MT; ﾋﾀﾞﾘ ﾖｳ |
11220-97L00 |
US $149.76 |
||
|
11232
|
11232
11232-97L00 Bracket-Engine Mounting, Rh8812--01 ~ 9101--01; RD28.MT |
11232-97L00 |
US $54.86 |
||
|
11233
|
11233
11233-97L00 Bracket-Engine Mounting, Lh8812--01 ~ 9101--01; RD28.MT |
11233-97L00 |
US $54.86 |
||
|
11235
|
11235
11284-35F01 Plate-Heat Shield8812--01 ~ 9101--01; RD28.MT |
11284-35F01 |
US $9.79 |
||
|
11320
|
11320
1132041L03 Insulator-Engine Mounting, Rear8812--01 ~ 9101--01; RD28.MT |
1132041L03 |
US $63.94 |
||
|
11340
|
11340
1133171L00
Member Assy-Engine Mounting, Rear
8812--01 ~ 9101--01; RD28.MT |
1133171L00 |
— | ||
|
11510B
|
11510B
0122500611 NUT8812--01 ~ 9101--01; RD28.MT |
0122500611 |
US $4.99 |
||
|
11510B
|
11510B
0122500611 NUT8812--01 ~ 9101--01; RD28.MT |
0122500611 |
US $4.99 |
||
|
11510B
|
11510B
0122500481
NUT
8812--01 ~ 9101--01; RD28.MT |
0122500481 |
— | ||
|
11510B
|
11510B
0122500611 NUT8812--01 ~ 9101--01; RD28.MT |
0122500611 |
US $4.99 |
||
|
11510B
|
11510B
0122500611 NUT8812--01 ~ 9101--01; RD28.MT |
0122500611 |
US $4.99 |
||
|
11510B
|
11510B
0122500481
NUT
8812--01 ~ 9101--01; RD28.MT |
0122500481 |
— | ||
|
11510BA
|
11510BA
0122500611 NUT8812--01 ~ 9101--01; RD28.MT |
0122500611 |
US $4.99 |
||
|
11510BA
|
11510BA
0122500611 NUT8812--01 ~ 9101--01; RD28.MT |
0122500611 |
US $4.99 |
||
|
11510BB
|
11510BB
0122500481
NUT
8812--01 ~ 9101--01; RD28.MT |
0122500481 |
— | ||
|
11520A
|
11520A
1139035F00 Bolt8812--01 ~ 9101--01; RD28.MT |
1139035F00 |
US $11.93 |
||
|
11520A
|
11520A
0112501411 BOLT8812--01 ~ 9101--01; RD28.MT |
0112501411 |
US $2.68 |
||
|
11520AA
|
11520AA
0112501411 BOLT8812--01 ~ 9101--01; RD28.MT |
0112501411 |
US $2.68 |
||
|
11520AA
|
11520AA
0112501411 BOLT8812--01 ~ 9101--01; RD28.MT |
0112501411 |
US $2.68 |
||
|
11520B
|
11520B
11258D0101 Nut8812--01 ~ 9101--01; RD28.MT |
11258D0101 |
from US $2.41 |
||
|
11520B
|
11520B
0122500481
NUT
8812--01 ~ 9101--01; RD28.MT |
0122500481 |
— | ||
|
11520BA
|
11520BA
0122500481
NUT
8812--01 ~ 9101--01; RD28.MT |
0122500481 |
— |
