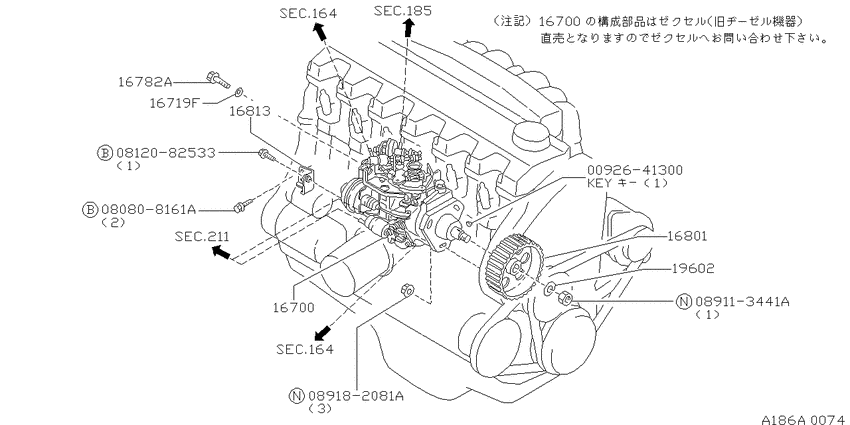

Fuel injection pump (1988-12-01 ~ 1991-01-01; RD28) Diagram Nissan LAUREL
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- RD28
- transmission
- MT
- grade
- EXT
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092641300
|
0092641300
00926-41300
ｷ-
|
00926-41300 |
— | ||
|
080808161A
|
080808161A
08080-8161A
Bolt-hexagon
|
08080-8161A |
— | ||
|
0812082533
|
0812082533
08120-82533
Bolt-hexagon
|
08120-82533 |
— | ||
|
089113441A
|
089113441A
08911-3441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-3441A |
— | ||
|
089182081A
|
089182081A
089182081A NUTHEX |
089182081A |
US $2.21 |
||
|
164
|
Fuel strainer & fuel hose
164
|
||||
|
164
|
Fuel strainer & fuel hose
164
|
||||
|
164
|
Fuel strainer & fuel hose
164
|
||||
|
164
|
Fuel strainer & fuel hose
164
|
||||
|
16700
|
16700
16700-97L10 Pump Assy-Injection8812--01 ~ 9101--01; RD28.MT |
16700-97L10 |
US $5,642 |
||
|
16700
|
16700
16700-97L10 Pump Assy-Injection8812--01 ~ 9101--01; RD28.MT |
16700-97L10 |
US $5,642 |
||
|
16719F
|
16719F
19253-V0700 Washer8812--01 ~ 9101--01; RD28; [B421] |
19253-V0700 |
US $0.81 |
||
|
16782A
|
16782A
16788V0700 Bolt8812--01 ~ 9101--01; RD28; [B421] |
16788V0700 |
US $4.18 |
||
|
16801
|
16801
16801-V7200 Pulley-Injection8812--01 ~ 9101--01; RD28 |
16801-V7200 |
US $73.58 |
||
|
16813
|
16813
16813-V7200 Bracket-Injection8812--01 ~ 9101--01; RD28 |
16813-V7200 |
US $11.81 |
||
|
185
|
Fuel supply system
185
|
||||
|
19602
|
19602
16739-V0700 Washer8812--01 ~ 9101--01; RD28; [B421] |
16739-V0700 |
US $1.58 |
||
|
211
|
Water hose & piping
211
|
||||
