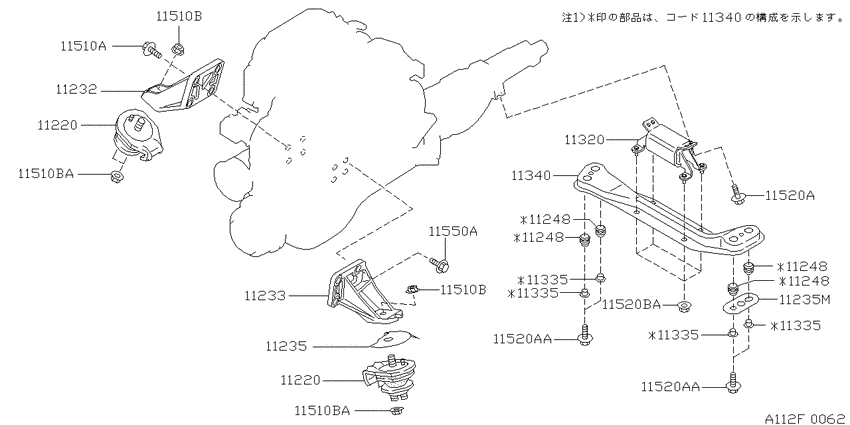

Engine & transmission mounting (1994-09-01 ~ 1996-05-01; RB25DE.AT.F4) Diagram Nissan LAUREL
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 4WD
- transmission
- AT.F4
- grade
- MED
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11220
|
11220
1122001U01 Insulator-Engine Mounting, Front9409--01 ~ 9605--01; RB25DE.AT.F4; ﾐｷﾞ & ﾋﾀﾞﾘ ﾖｳ |
1122001U01 |
from US $51.86 |
||
|
11220
|
11220
1122001U01 Insulator-Engine Mounting, Front9409--01 ~ 9605--01; RB25DE.AT.F4; ﾐｷﾞ & ﾋﾀﾞﾘ ﾖｳ |
1122001U01 |
from US $51.86 |
||
|
11232
|
11232
11232-01U00
Bracket-Engine Mounting, Rh
9409--01 ~ 9605--01; RB25DE.AT.F4 |
11232-01U00 |
— | ||
|
11233
|
11233
1123301U00
Bracket-Engine Mounting, Lh
9409--01 ~ 9605--01; RB25DE.AT.F4 |
1123301U00 |
— | ||
|
11235
|
11235
11284-01U00 Plate-Heat Shield9409--01 ~ 9411--01; RB25DE.AT.F4 |
11284-01U00 |
US $11.95 |
||
|
11235
|
11235
1128455S00 Plate-Heat Shield9411--01 ~ 9605--01; RB25DE.AT.F4 |
1128455S00 |
US $9.84 |
||
|
11235
|
11235
11384-01U00 Plate-Heat Shield9409--01 ~ 9605--01; RB25DE.AT.F4 |
11384-01U00 |
US $8.87 |
||
|
11235M
|
11235M
11384-01U00 Plate-Heat Shield9409--01 ~ 9605--01; RB25DE.AT.F4 |
11384-01U00 |
US $8.87 |
||
|
11248
|
11248
1124885E01 PAD-ENGINE MOUNTING MEMBER9409--01 ~ 9605--01; RB25DE.AT.F4 |
1124885E01 |
US $12.62 |
||
|
11248
|
11248
1124885E01 PAD-ENGINE MOUNTING MEMBER9409--01 ~ 9605--01; RB25DE.AT.F4 |
1124885E01 |
US $12.62 |
||
|
11248
|
11248
1124885E01 PAD-ENGINE MOUNTING MEMBER9409--01 ~ 9605--01; RB25DE.AT.F4 |
1124885E01 |
US $12.62 |
||
|
11248
|
11248
1124885E01 PAD-ENGINE MOUNTING MEMBER9409--01 ~ 9605--01; RB25DE.AT.F4 |
1124885E01 |
US $12.62 |
||
|
11320
|
11320
1132001U00 Insulator-Engine Mounting, Rear9409--01 ~ 9605--01; RB25DE.AT.F4 |
1132001U00 |
US $60.77 |
||
|
11320
|
11320
1132001U01 Insulator-Engine Mounting, Rear9707--01 ~ ; 4WD.RB25DE |
1132001U01 |
US $111.57 |
||
|
11335
|
11335
11394-01U00
Spacer
9409--01 ~ 9510--01; RB25DE.AT.F4 |
11394-01U00 |
— | ||
| replacement | |||||
|
11335
|
11335
11394-01U01 Spacer9409--01 ~ 9510--01; RB25DE.AT.F4 |
11394-01U01 |
US $11.51 |
||
|
11335
|
11335
11394-01U01 Spacer9510--01 ~ 9605--01; RB25DE.AT.F4 |
11394-01U01 |
US $11.51 |
||
|
11335
|
11335
11394-01U00
Spacer
9409--01 ~ 9510--01; RB25DE.AT.F4 |
11394-01U00 |
— | ||
| replacement | |||||
|
11335
|
11335
11394-01U01 Spacer9409--01 ~ 9510--01; RB25DE.AT.F4 |
11394-01U01 |
US $11.51 |
||
|
11335
|
11335
11394-01U01 Spacer9510--01 ~ 9605--01; RB25DE.AT.F4 |
11394-01U01 |
US $11.51 |
||
|
11335
|
11335
11394-01U00
Spacer
9409--01 ~ 9510--01; RB25DE.AT.F4 |
11394-01U00 |
— | ||
| replacement | |||||
|
11335
|
11335
11394-01U01 Spacer9409--01 ~ 9510--01; RB25DE.AT.F4 |
11394-01U01 |
US $11.51 |
||
|
11335
|
11335
11394-01U01 Spacer9510--01 ~ 9605--01; RB25DE.AT.F4 |
11394-01U01 |
US $11.51 |
||
|
11335
|
11335
11394-01U00
Spacer
9409--01 ~ 9510--01; RB25DE.AT.F4 |
11394-01U00 |
— | ||
| replacement | |||||
|
11335
|
11335
11394-01U01 Spacer9409--01 ~ 9510--01; RB25DE.AT.F4 |
11394-01U01 |
US $11.51 |
||
|
11335
|
11335
11394-01U01 Spacer9510--01 ~ 9605--01; RB25DE.AT.F4 |
11394-01U01 |
US $11.51 |
||
|
11340
|
11340
1131005U00 Member Assy-Engine Mounting, Rear9409--01 ~ 9605--01; RB25DE.AT.F4 |
1131005U00 |
US $224.64 |
||
|
11340
|
11340
1131005U00 Member Assy-Engine Mounting, Rear9409--01 ~ 9605--01; RB25DE.AT.F4 |
1131005U00 |
US $224.64 |
||
|
11510A
|
11510A
01125-02861 BOLT9409--01 ~ 9605--01; RB25DE.AT.F4 |
01125-02861 |
US $4.42 |
||
|
11510B
|
11510B
01225-00671 NUT9409--01 ~ 9605--01; RB25DE.AT.F4 |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
01225-00671 NUT9409--01 ~ 9605--01; RB25DE.AT.F4 |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
01225-00671 NUT9409--01 ~ 9605--01; RB25DE.AT.F4 |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
01225-00671 NUT9409--01 ~ 9605--01; RB25DE.AT.F4 |
01225-00671 |
US $5.42 |
||
|
11510BA
|
11510BA
01225-00671 NUT9409--01 ~ 9605--01; RB25DE.AT.F4 |
01225-00671 |
US $5.42 |
||
|
11510BA
|
11510BA
01225-00671 NUT9409--01 ~ 9605--01; RB25DE.AT.F4 |
01225-00671 |
US $5.42 |
||
|
11520A
|
11520A
01121-03441 BOLT9409--01 ~ 9605--01; RB25DE.AT.F4 |
01121-03441 |
US $9.36 |
||
|
11520A
|
11520A
0112105071 BOLT9409--01 ~ 9605--01; RB25DE.AT.F4 |
0112105071 |
US $2.91 |
||
|
11520AA
|
11520AA
0112105071 BOLT9409--01 ~ 9605--01; RB25DE.AT.F4 |
0112105071 |
US $2.91 |
||
|
11520AA
|
11520AA
0112105071 BOLT9409--01 ~ 9605--01; RB25DE.AT.F4 |
0112105071 |
US $2.91 |
||
|
11520BA
|
11520BA
0122500481
NUT
9409--01 ~ 9605--01; RB25DE.AT.F4 |
0122500481 |
— | ||
|
11550A
|
11550A
01125-02861 BOLT9409--01 ~ 9605--01; RB25DE.AT.F4 |
01125-02861 |
US $4.42 |
||
