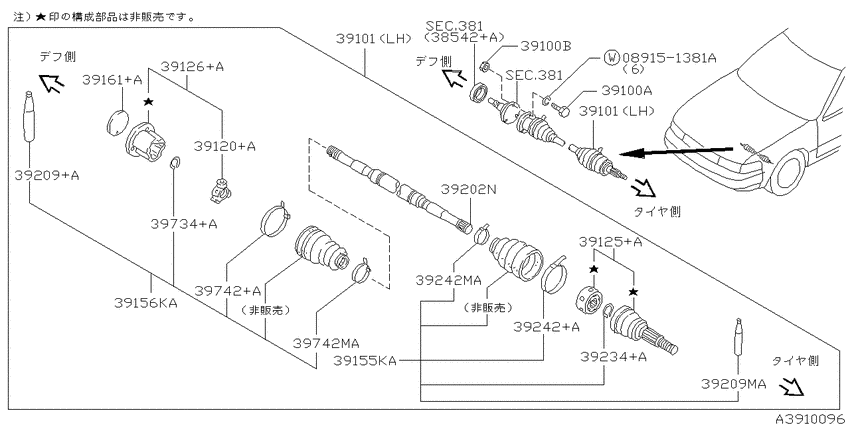

Front drive shaft (ff) (1994-09-01 ~ 1996-05-01; 左; RB25DE.AT.F4) Diagram Nissan LAUREL
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 4WD
- transmission
- AT.F4
- grade
- MED
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.54 |
||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
39100A
|
39100A
39606-56S00 Bolt9409--01 ~ 9605--01; RB25DE.AT.F4 |
39606-56S00 |
US $3.46 |
||
| replacement | |||||
|
39100A
|
39100A
39606-56S0A Bolt9409--01 ~ 9605--01; RB25DE.AT.F4 |
39606-56S0A |
US $3.46 |
||
|
39100B
|
39100B
0122300041 NUT9409--01 ~ 9605--01; RB25DE.AT.F4 |
0122300041 |
from US $1.37 |
||
|
39101
|
39101
39101-23U00 Shaft Assy-Front Drive, Lh9409--01 ~ 9605--01; RB25DE.AT.F4 |
39101-23U00 |
US $1,059.17 |
||
|
39101
|
39101
39101-23U00 Shaft Assy-Front Drive, Lh9409--01 ~ 9605--01; RB25DE.AT.F4 |
39101-23U00 |
US $1,059.17 |
||
|
39120+A
|
39120+A
39720-10V10 Spider Assy-Slide Joint9409--01 ~ 9605--01; RB25DE.AT.F4; ｺｸｲﾝ 00 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
39720-10V10 |
US $78.19 |
||
|
39120+A
|
39120+A
39720-10V11 Spider Assy-Slide Joint9409--01 ~ 9605--01; RB25DE.AT.F4; ｺｸｲﾝ 01 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
39720-10V11 |
US $76.46 |
||
|
39120+A
|
39120+A
39720-10V12 Spider Assy-Slide Joint9409--01 ~ 9605--01; RB25DE.AT.F4; ｺｸｲﾝ 02 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
39720-10V12 |
US $76.46 |
||
|
39125+A
|
39125+A
39211-23U00 Joint Assy-Outer9409--01 ~ 9605--01; RB25DE.AT.F4 |
39211-23U00 |
US $508.34 |
||
|
39126+A
|
39126+A
39711-35F10 Joint Assy-Inner9409--01 ~ 9605--01; RB25DE.AT.F4 |
39711-35F10 |
from US $164.32 |
||
|
39155KA
|
39155KA
3924105U86 Repair Kit-Dust Boot, Outer9409--01 ~ 9601--01; RB25DE.AT.F4 |
3924105U86 |
US $95.76 |
||
|
39155KA
|
39155KA
39241-50A90 Repair Kit-Dust Boot, Outer9601--01 ~ 9605--01; RB25DE.AT.F4 |
39241-50A90 |
US $80.50 |
||
|
39156KA
|
39156KA
3974105U28 Repair Kit-Dust B00T, Inner9409--01 ~ 9605--01; RB25DE.AT.F4 |
3974105U28 |
US $92.35 |
||
|
39161+A
|
39161+A
3971530C00 Plug9409--01 ~ 9605--01; RB25DE.AT.F4 |
3971530C00 |
US $6.91 |
||
|
39202N
|
39202N
39205-05U50 Shaft-Front Drive, Lh9409--01 ~ 9605--01; RB25DE.AT.F4 |
39205-05U50 |
US $218.88 |
||
|
39209+A
|
39209+A
39709-55E25 GREASE-INNER9409--01 ~ 9605--01; RB25DE.AT.F4; ﾃﾞﾌｶﾞﾜ |
39709-55E25 |
US $30.96 |
||
| replacement | |||||
|
39209+A
|
39209+A
C97092U618 Grease-Inner9409--01 ~ 9605--01; RB25DE.AT.F4; ﾃﾞﾌｶﾞﾜ |
C97092U618 |
US $23.33 |
||
|
39209MA
|
39209MA
39709-26E85 GREASE-OUTER9409--01 ~ 9605--01; RB25DE.AT.F4; ﾀｲﾔｶﾞﾜ |
39709-26E85 |
US $33.70 |
||
|
39234+A
|
39234+A
3923401A00 Circlip-Drive Shaft9409--01 ~ 9605--01; RB25DE.AT.F4 |
3923401A00 |
from US $0.61 |
||
|
39242+A
|
39242+A
39242-03A00 Band-Boot, Drive Shaft Outer9409--01 ~ 9605--01; RB25DE.AT.F4 |
39242-03A00 |
US $13.39 |
||
|
39242MA
|
39242MA
39242-03A05 Band-Boot, Drive Shaft9409--01 ~ 9605--01; RB25DE.AT.F4 |
39242-03A05 |
US $13.10 |
||
|
39734+A
|
39734+A
3970841W00 Ring-Snap, C9409--01 ~ 9605--01; RB25DE.AT.F4 |
3970841W00 |
US $0.92 |
||
|
39742+A
|
39742+A
3924201E00 BAND-BOOT,DRIVE SHAFT INNER9605--01 ~ ; 4WD.RB25DE |
3924201E00 |
US $4.25 |
||
|
39742+A
|
39742+A
39742-W1200 Band-Dust Cover, Inner9409--01 ~ 9605--01; RB25DE.AT.F4 |
39742-W1200 |
US $4.03 |
||
|
39742MA
|
39742MA
39742W1205 Band-Dust Cover, Shaft9409--01 ~ 9605--01; RB25DE.AT.F4 |
39742W1205 |
US $8.90 |
||
