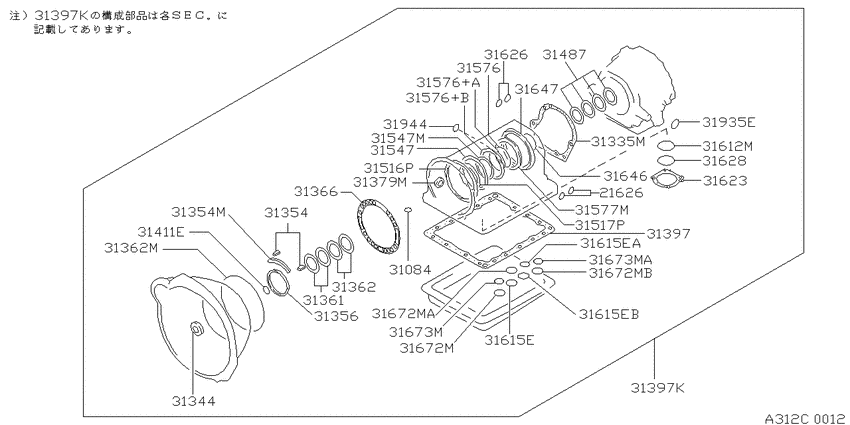

Gasket & seal kit (automatic) (1996-05-01 ~ ; 4WD.AT.F4) Diagram Nissan LAUREL
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 4WD
- transmission
- AT.F4
- grade
- MED
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21626
|
21626
2162632U00 Washer-Seal9602--01 ~ 9605--01; RB25DE.AT.F4 |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162664U00 Washer-Seal9409--01 ~ 9602--01; RB25DE.AT.F4 |
2162664U00 |
US $2.45 |
||
|
31084
|
31084
31084-20300 Seal-O Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
31084-20300 |
US $1.58 |
||
|
31084
|
31084
01466-00022 Bolt9409--01 ~ 9605--01; RB25DE.AT.F4 |
01466-00022 |
from US $0.93 |
||
|
31084
|
31084
0143601161
SCREW
9409--01 ~ 9605--01; RB25DE.AT.F4 |
0143601161 |
— | ||
| replacement | |||||
|
31084
|
31084
08368-6125G ｽｸﾘﾕ-9409--01 ~ 9605--01; RB25DE.AT.F4 |
08368-6125G |
US $2.21 |
||
|
31335M
|
31335M
31338-41X01
Gasket-Extension
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31338-41X01 |
— | ||
| replacement | |||||
|
31335M
|
31335M
31338-41X0A Gasket-Extension9409--01 ~ 9605--01; RB25DE.AT.F4 |
31338-41X0A |
US $7.76 |
||
|
31344
|
31344
31375-51X00
Seal-Oil Pump Housing
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31375-51X00 |
— | ||
| replacement | |||||
|
31344
|
31344
3137551X03 Seal-Oil Pump Housing9409--01 ~ 9605--01; RB25DE.AT.F4 |
3137551X03 |
from US $3.43 |
||
|
31344
|
31344
33111-30C00 Seal-Oil, Oil Pump9409--01 ~ 9605--01; RB25DE.AT.F4 |
33111-30C00 |
US $11.42 |
||
|
31354
|
31354
31354-41X00 Seal-Side, Control Piston9409--01 ~ 9605--01; RB25DE.AT.F4 |
31354-41X00 |
US $4.03 |
||
|
31354
|
31354
31355-41X00 Seal-Side, Control Piston9409--01 ~ 9605--01; RB25DE.AT.F4 |
31355-41X00 |
US $4.03 |
||
|
31354M
|
31354M
31355-41X00 Seal-Side, Control Piston9409--01 ~ 9605--01; RB25DE.AT.F4 |
31355-41X00 |
US $4.03 |
||
|
31356
|
31356
31362-21X04
Seal-O Ring
9409--01 ~ 9503--01; RB25DE.AT.F4 |
31362-21X04 |
— | ||
| replacement | |||||
|
31356
|
31356
C1362-21X04 O ring9409--01 ~ 9503--01; RB25DE.AT.F4 |
C1362-21X04 |
US $5.96 |
||
|
31356
|
31356
31526-41X10 Seal-O Ring9503--01 ~ 9605--01; RB25DE.AT.F4 |
31526-41X10 |
US $6.05 |
||
|
31361
|
31361
31361-21X00 Ring-Seal9409--01 ~ 9605--01; RB25DE.AT.F4 |
31361-21X00 |
US $10.80 |
||
|
31362
|
31362
31558-21X00 Ring-Seal9409--01 ~ 9605--01; RB25DE.AT.F4 |
31558-21X00 |
US $10.80 |
||
|
31362
|
31362
31526-41X01
Seal-O Ring
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31526-41X01 |
— | ||
| replacement | |||||
|
31362
|
31362
31526-41X12 Seal-O Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
31526-41X12 |
US $14.83 |
||
|
31362M
|
31362M
31526-41X01
Seal-O Ring
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31526-41X01 |
— | ||
| replacement | |||||
|
31362M
|
31362M
31526-41X12 Seal-O Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
31526-41X12 |
US $14.83 |
||
|
31366
|
31366
31366-41X02 Gasket-Oil Pump9409--01 ~ 9503--01; RB25DE.AT.F4 |
31366-41X02 |
US $9.50 |
||
|
31366
|
31366
31366-41X03 Gasket-Oil Pump9503--01 ~ 9605--01; RB25DE.AT.F4 |
31366-41X03 |
US $16.92 |
||
|
31366
|
31366
31363-41X00 Ring-Friction, Oil Pump9409--01 ~ 9605--01; RB25DE.AT.F4 |
31363-41X00 |
US $26.35 |
||
|
31379M
|
31379M
3137541X00 Seal-Oil9409--01 ~ 9605--01; RB25DE.AT.F4 |
3137541X00 |
from US $2.36 |
||
|
31397
|
31397
3139741X04 Gasket-Oil Pan9409--01 ~ 9605--01; RB25DE.AT.F4 |
3139741X04 |
from US $21.20 |
||
|
31397
|
31397
31397-41X94
Gasket & Seal Kit-Auto Transmission
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31397-41X94 |
— | ||
|
31397K
|
31397K
31397-41X94
Gasket & Seal Kit-Auto Transmission
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31397-41X94 |
— | ||
|
31397K
|
31397K
31397-41X94
Gasket & Seal Kit-Auto Transmission
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31397-41X94 |
— | ||
|
31411E
|
31411E
3115921X00 Seal-O Ring9409--01 ~ 9509--01; RB25DE.AT.F4 |
3115921X00 |
from US $3.11 |
||
|
31411E
|
31411E
31159-X6101 Seal-O Ring9509--01 ~ 9605--01; RB25DE.AT.F4 |
31159-X6101 |
US $3.31 |
||
|
31487
|
31487
31525-41X00 Ring-Seal9409--01 ~ 9605--01; RB25DE.AT.F4 |
31525-41X00 |
US $6.05 |
||
|
31516P
|
31516P
31516-21X01
Seal-Lip
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31516-21X01 |
— | ||
| replacement | |||||
|
31516P
|
31516P
C1516-21X01 Seal-lip9409--01 ~ 9605--01; RB25DE.AT.F4 |
C1516-21X01 |
US $11.79 |
||
|
31517P
|
31517P
31517-21X00 Seal-Lathe Cut Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
31517-21X00 |
US $6.77 |
||
|
31547
|
31547
31527-21X01
Seal-Lathe Cut Ring
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31527-21X01 |
— | ||
| replacement | |||||
|
31547
|
31547
C152721X01 ｼ-ﾙ,ﾘﾂﾌﾟ9409--01 ~ 9605--01; RB25DE.AT.F4 |
C152721X01 |
US $10.12 |
||
|
31547
|
31547
3154721X00 Seal-Lathe Cut Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
3154721X00 |
from US $5.76 |
||
|
31547M
|
31547M
3154721X00 Seal-Lathe Cut Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
3154721X00 |
from US $5.76 |
||
|
31576
|
31576
31527-41X06 Seal-Lathe Cut Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
31527-41X06 |
US $4.03 |
||
|
31576
|
31576
31527-41X05 Seal-Lathe Cut Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
31527-41X05 |
US $4.03 |
||
|
31576
|
31576
31527-51X05
Seal-Lathe Cut Ring
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31527-51X05 |
— | ||
|
31576+A
|
31576+A
31527-41X05 Seal-Lathe Cut Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
31527-41X05 |
US $4.03 |
||
|
31576+B
|
31576+B
31527-51X05
Seal-Lathe Cut Ring
9409--01 ~ 9605--01; RB25DE.AT.F4 |
31527-51X05 |
— | ||
|
31577M
|
31577M
31528-41X00 Seal-Lip9409--01 ~ 9605--01; RB25DE.AT.F4 |
31528-41X00 |
US $7.92 |
||
|
31612M
|
31612M
31612-X0300 Seal-Lathe Cut Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
31612-X0300 |
US $2.36 |
||
|
31615E
|
31615E
31526-41X02 Seal-O Ring9409--01 ~ 9605--01; RB25DE.AT.F4; 3R |
31526-41X02 |
US $2.36 |
||
|
31615E
|
31615E
31526-41X03 Seal-O Ring9409--01 ~ 9605--01; RB25DE.AT.F4; 3R |
31526-41X03 |
US $2.36 |
||
|
31615E
|
31615E
31526-41X02 Seal-O Ring9409--01 ~ 9605--01; RB25DE.AT.F4; 2A |
31526-41X02 |
US $2.36 |
||
|
31615EA
|
31615EA
31526-41X03 Seal-O Ring9409--01 ~ 9605--01; RB25DE.AT.F4; 3R |
31526-41X03 |
US $2.36 |
||
|
31615EB
|
31615EB
31526-41X02 Seal-O Ring9409--01 ~ 9605--01; RB25DE.AT.F4; 2A |
31526-41X02 |
US $2.36 |
||
|
31623
|
31623
31623-41X00 Gasket-Retainer, Servo9409--01 ~ 9605--01; RB25DE.AT.F4 |
31623-41X00 |
US $0.82 |
||
|
31628
|
31628
31628-X0100 Seal-O Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
31628-X0100 |
US $1.67 |
||
|
31646
|
31646
31527-41X05 Seal-Lathe Cut Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
31527-41X05 |
US $4.03 |
||
|
31646
|
31646
31527-41X13 Seal-Lathe Cut Ring9605--01 ~ ; 4WD.AT.F4 |
31527-41X13 |
US $4.03 |
||
|
31647
|
31647
31527-41X14 Seal-O Ring9605--01 ~ ; 4WD.AT.F4 |
31527-41X14 |
US $7.92 |
||
|
31647
|
31647
31528-41X00 Seal-Lip9409--01 ~ 9605--01; RB25DE.AT.F4 |
31528-41X00 |
US $7.92 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator9409--01 ~ 9605--01; RB25DE.AT.F4; 4A |
3167221X00 |
US $4.99 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator9409--01 ~ 9605--01; RB25DE.AT.F4; 2A |
3167221X00 |
US $4.99 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator9409--01 ~ 9605--01; RB25DE.AT.F4; N-D |
3167221X00 |
US $4.99 |
||
|
31672MA
|
31672MA
3167221X00 Seal-O Ring, Accumulator9409--01 ~ 9605--01; RB25DE.AT.F4; 2A |
3167221X00 |
US $4.99 |
||
|
31672MB
|
31672MB
3167221X00 Seal-O Ring, Accumulator9409--01 ~ 9605--01; RB25DE.AT.F4; N-D |
3167221X00 |
US $4.99 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator9409--01 ~ 9605--01; RB25DE.AT.F4; 4A |
3167321X00 |
US $4.85 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator9409--01 ~ 9605--01; RB25DE.AT.F4; N-D |
3167321X00 |
US $4.85 |
||
|
31673MA
|
31673MA
3167321X00 Seal-O Ring, Accumulator9409--01 ~ 9605--01; RB25DE.AT.F4; N-D |
3167321X00 |
US $4.85 |
||
|
31935E
|
31935E
3152641X05 Seal-O Ring9409--01 ~ 9605--01; RB25DE.AT.F4 |
3152641X05 |
US $4.03 |
||
|
31944
|
31944
3152641X04 Seal-O Ring, Terminal9409--01 ~ 9605--01; RB25DE.AT.F4 |
3152641X04 |
US $3.88 |
||
