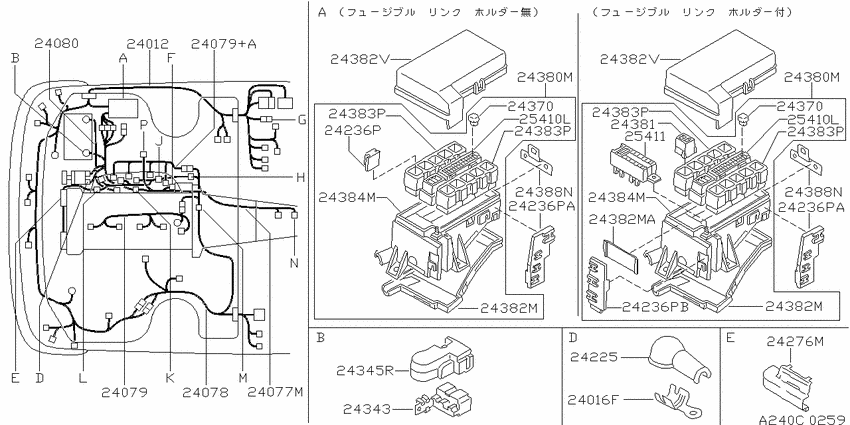

Wiring (1994-09-01 ~ 1996-05-01; エンジン ルーム; K.(RB25DE+RB25DET)) Diagram Nissan LAUREL
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 4WD
- transmission
- AT.F4
- grade
- MED
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-85T00 Harness Assy-Engine Room9409--01 ~ 9605--01; K.4WD |
24012-85T00 |
US $1,568 |
||
|
24012
|
24012
24012-87T00 Harness Assy-Engine Room9605--01 ~ ; K.4WD |
24012-87T00 |
US $1,568 |
||
|
24012
|
24012
01466-00022 Bolt9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
01466-00022 |
from US $0.68 |
||
|
24012
|
24012
0145600411 SCREW9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0143601161
SCREW
9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
0143601161 |
— | ||
| replacement | |||||
|
24012
|
24012
08368-6125G ｽｸﾘﾕ-9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
08368-6125G |
US $2.21 |
||
|
24012
|
24012
0145600031 SCREW9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
0145600031 |
from US $1.11 |
||
|
24012
|
24012
01436-01101 SCREW9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
01436-01101 |
US $1.73 |
||
|
24016F
|
24016F
24340-60U20 Connector Assy9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
24340-60U20 |
US $11.23 |
||
|
24077M
|
24077M
24077-85T00 Harness Assy-Engine9409--01 ~ 9605--01; K.4WD |
24077-85T00 |
US $669.77 |
||
|
24077M
|
24077M
24077-85T01 Harness Assy-Engine9409--01 ~ 9605--01; *K.4WD; ｶﾝﾚｲﾁ ｼﾖｳ |
24077-85T01 |
US $698.09 |
||
|
24077M
|
24077M
24077-87T00 Harness Assy-Engine9605--01 ~ ; K.4WD |
24077-87T00 |
US $669.77 |
||
|
24077M
|
24077M
24077-87T01 Harness Assy-Engine9605--01 ~ ; *K.4WD; ｶﾝﾚｲﾁ ｼﾖｳ |
24077-87T01 |
US $669.77 |
||
|
24078
|
24078
24011-85T03 Harness Assy-Egi9409--01 ~ 9605--01; K.4WD |
24011-85T03 |
US $969.96 |
||
|
24078
|
24078
24011-87T03 Harness Assy-Egi9605--01 ~ ; K.4WD |
24011-87T03 |
US $907.66 |
||
|
24078
|
24078
24011-87T04 Harness Assy-Egi9605--01 ~ ; *K.4WD; ｶﾝﾚｲﾁ ｼﾖｳ |
24011-87T04 |
US $969.96 |
||
|
24079
|
24079
24079-84T00 Harness Assy-Egi Sub9409--01 ~ 9605--01; K.(RB25DE+RB25DET); ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ ｻﾌﾞﾊ-ﾈｽ |
24079-84T00 |
US $223.20 |
||
|
24079
|
24079
24079-84T10 Harness Assy-Egi Sub9409--01 ~ 9605--01; K.(RB25DE+RB25DET); ｲﾝｼﾞｴｸｼﾖﾝ ｻﾌﾞ ﾊ-ﾈｽ |
24079-84T10 |
US $223.20 |
||
|
24079+A
|
24079+A
24079-84T10 Harness Assy-Egi Sub9409--01 ~ 9605--01; K.(RB25DE+RB25DET); ｲﾝｼﾞｴｸｼﾖﾝ ｻﾌﾞ ﾊ-ﾈｽ |
24079-84T10 |
US $223.20 |
||
|
24080
|
24080
24080-85T00 Cable Assy-Battery Earth9409--01 ~ 9605--01; K.4WD |
24080-85T00 |
US $97.63 |
||
|
24080
|
24080
24080-85T01 Cable Assy-Battery Earth9409--01 ~ 9605--01; *K.4WD; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-85T01 |
US $97.63 |
||
|
24080
|
24080
0122100381 NUT9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
0122100381 |
from US $5.85 |
||
|
24225
|
24225
2436060U00 Cap-Terminal9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
2436060U00 |
US $7.92 |
||
|
24225
|
24225
24360-D4000 Cap-Terminal9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
24360-D4000 |
US $12.38 |
||
|
24225
|
24225
24360-01U00 Cap-Terminal9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
24360-01U00 |
US $11.38 |
||
|
24236P
|
24236P
24346-85T10 Bracket-Connector9409--01 ~ ; K.4WD |
24346-85T10 |
US $8.93 |
||
|
24236P
|
24236P
24346-85T00 Bracket-Connector9409--01 ~ ; K.4WD |
24346-85T00 |
US $21.31 |
||
|
24236PA
|
24236PA
24346-85T10 Bracket-Connector9409--01 ~ ; K.4WD |
24346-85T10 |
US $8.93 |
||
|
24236PA
|
24236PA
24346-85T10 Bracket-Connector9409--01 ~ ; K.4WD |
24346-85T10 |
US $8.93 |
||
|
24236PB
|
24236PB
24346-85T00 Bracket-Connector9409--01 ~ ; K.4WD |
24346-85T00 |
US $21.31 |
||
|
24276M
|
24276M
24270-58S00 Protector-Harness9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
24270-58S00 |
US $5.23 |
||
|
24276M
|
24276M
24280-75T00 Protector-Harness9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
24280-75T00 |
US $5.47 |
||
|
24343
|
24343
2434740U05 Terminal-Fusible Link9409--01 ~ ; *K.4WD; ｶﾝﾚｲﾁ ｼﾖｳ |
2434740U05 |
US $4.42 |
||
|
24345R
|
24345R
2434540U05 Cover-Battery Terminak9409--01 ~ 9605--01; K.4WD +K.RB25DET |
2434540U05 |
US $13.26 |
||
|
24370
|
24370
2437079910 Connector Assy-Fusible Link9409--01 ~ 9605--01; K.(RB25DE+RB25DET); 100A |
2437079910 |
from US $13.10 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link9409--01 ~ 9605--01; K.(RB25DE+RB25DET); 25A |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link9409--01 ~ 9605--01; K.(RB25DE+RB25DET); 30A |
2437089905 |
from US $12.77 |
||
|
24370
|
24370
2437089920 Connector Assy-Fusible Link9409--01 ~ 9605--01; K.(RB25DE+RB25DET); 75A |
2437089920 |
from US $10.80 |
||
|
24370
|
24370
24370-89960 Conn Assy-Fusible Link9409--01 ~ 9605--01; K.(RB25DE+RB25DET); 45A |
24370-89960 |
US $12.20 |
||
|
24370
|
24370
2437079910 Connector Assy-Fusible Link9409--01 ~ 9605--01; K.(RB25DE+RB25DET); 100A |
2437079910 |
from US $13.10 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link9409--01 ~ 9605--01; K.(RB25DE+RB25DET); 25A |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link9409--01 ~ 9605--01; K.(RB25DE+RB25DET); 30A |
2437089905 |
from US $12.77 |
||
|
24370
|
24370
2437089920 Connector Assy-Fusible Link9409--01 ~ 9605--01; K.(RB25DE+RB25DET); 75A |
2437089920 |
from US $10.80 |
||
|
24370
|
24370
24370-89960 Conn Assy-Fusible Link9409--01 ~ 9605--01; K.(RB25DE+RB25DET); 45A |
24370-89960 |
US $12.20 |
||
|
24380M
|
24380M
24380-85T00 Box Assy-Relay9409--01 ~ ; K.4WD |
24380-85T00 |
US $194.40 |
||
|
24380M
|
24380M
24380-85T00 Box Assy-Relay9409--01 ~ ; K.4WD |
24380-85T00 |
US $194.40 |
||
|
24381
|
24381
24381-10Y00 Housing-Fusible Link Holder9409--01 ~ 9605--01; K.4WD |
24381-10Y00 |
US $29.95 |
||
|
24382M
|
24382M
24372-85T00 Cover-Relay Box9409--01 ~ ; K.4WD |
24372-85T00 |
US $28.66 |
||
|
24382M
|
24382M
24372-85T00 Cover-Relay Box9409--01 ~ ; K.4WD |
24372-85T00 |
US $28.66 |
||
|
24382V
|
24382V
24382-85T00 Cover-Relay Box9409--01 ~ ; K.4WD |
24382-85T00 |
US $29.95 |
||
|
24382V
|
24382V
24382-85T00 Cover-Relay Box9409--01 ~ ; K.4WD |
24382-85T00 |
US $29.95 |
||
|
24383P
|
24383P
2438351E00 HOUSING-RELAY BOX9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
2438351E00 |
from US $13.14 |
||
|
24383P
|
24383P
2438351E00 HOUSING-RELAY BOX9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
2438351E00 |
from US $13.14 |
||
|
24383P
|
24383P
2438351E00 HOUSING-RELAY BOX9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
2438351E00 |
from US $13.14 |
||
|
24383P
|
24383P
2438351E00 HOUSING-RELAY BOX9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
2438351E00 |
from US $13.14 |
||
|
24384M
|
24384M
24384-85T00 Frame-Relay Box9409--01 ~ ; K.4WD |
24384-85T00 |
US $60.91 |
||
|
24384M
|
24384M
24384-85T00 Frame-Relay Box9409--01 ~ ; K.4WD |
24384-85T00 |
US $60.91 |
||
|
24388N
|
24388N
24388-85T00 Bracket-Relay Box9409--01 ~ ; K.4WD |
24388-85T00 |
US $5.76 |
||
|
24388N
|
24388N
24388-85T00 Bracket-Relay Box9409--01 ~ ; K.4WD |
24388-85T00 |
US $5.76 |
||
|
25410L
|
25410L
24321-60U00 Block Assy-Fuse9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
24321-60U00 |
US $144 |
||
|
25410L
|
25410L
24321-60U00 Block Assy-Fuse9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
24321-60U00 |
US $144 |
||
|
25411
|
25411
24380-75T00 Holder-Fusible Link9409--01 ~ 9605--01; K.4WD |
24380-75T00 |
US $60.91 |
||
|
25411
|
25411
01121-05851 BOLT9605--01 ~ ; K.(RB25DE+RB25DET) |
01121-05851 |
US $3.75 |
||
