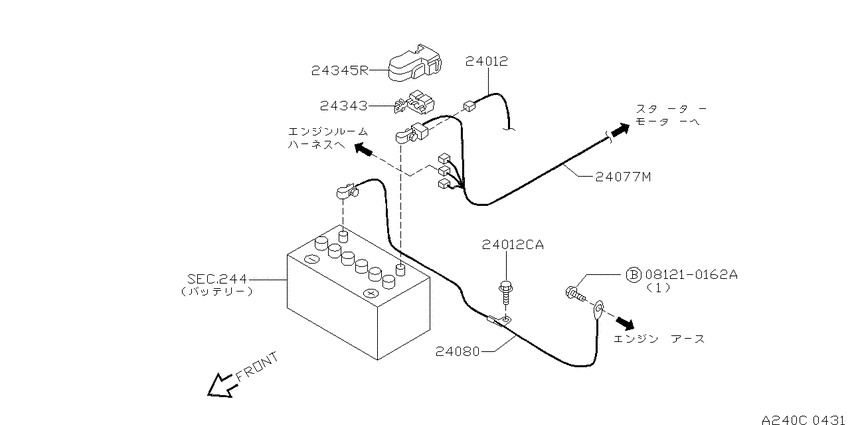

Wiring (1996-05-01 ~ ; バッテリー マワリ; K.(RB25DE+RB25DET)) Diagram Nissan LAUREL
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 4WD
- transmission
- AT.F4
- grade
- MED
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210162A
|
081210162A
081210162A
Bolt-hexagon
|
081210162A |
— | ||
|
24012
|
24012
24012-85T00 Harness Assy-Engine Room9409--01 ~ 9605--01; K.4WD |
24012-85T00 |
US $1,568 |
||
|
24012
|
24012
24012-87T00 Harness Assy-Engine Room9605--01 ~ ; K.4WD |
24012-87T00 |
US $1,568 |
||
|
24012
|
24012
01466-00022 Bolt9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
01466-00022 |
from US $0.74 |
||
|
24012
|
24012
0145600411 SCREW9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0143601161
SCREW
9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
0143601161 |
— | ||
| replacement | |||||
|
24012
|
24012
08368-6125G ｽｸﾘﾕ-9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
08368-6125G |
US $2.21 |
||
|
24012
|
24012
0145600031 SCREW9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
0145600031 |
from US $1.11 |
||
|
24012
|
24012
01436-01101 SCREW9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
01436-01101 |
US $1.73 |
||
|
24012CA
|
24012CA
0145600031 SCREW9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
0145600031 |
from US $1.11 |
||
|
24077M
|
24077M
24077-85T00 Harness Assy-Engine9409--01 ~ 9605--01; K.4WD |
24077-85T00 |
US $669.77 |
||
|
24077M
|
24077M
24077-85T01 Harness Assy-Engine9409--01 ~ 9605--01; *K.4WD; ｶﾝﾚｲﾁ ｼﾖｳ |
24077-85T01 |
US $698.09 |
||
|
24077M
|
24077M
24077-87T00 Harness Assy-Engine9605--01 ~ ; K.4WD |
24077-87T00 |
US $669.77 |
||
|
24077M
|
24077M
24077-87T01 Harness Assy-Engine9605--01 ~ ; *K.4WD; ｶﾝﾚｲﾁ ｼﾖｳ |
24077-87T01 |
US $669.77 |
||
|
24080
|
24080
24080-85T00 Cable Assy-Battery Earth9409--01 ~ 9605--01; K.4WD |
24080-85T00 |
US $97.63 |
||
|
24080
|
24080
24080-85T01 Cable Assy-Battery Earth9409--01 ~ 9605--01; *K.4WD; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-85T01 |
US $97.63 |
||
|
24080
|
24080
0122100381 NUT9409--01 ~ 9605--01; K.(RB25DE+RB25DET) |
0122100381 |
US $7.91 |
||
|
24343
|
24343
2434740U05 Terminal-Fusible Link9409--01 ~ ; *K.4WD; ｶﾝﾚｲﾁ ｼﾖｳ |
2434740U05 |
US $4.42 |
||
|
24345R
|
24345R
2434540U05 Cover-Battery Terminak9409--01 ~ 9605--01; K.4WD +K.RB25DET |
2434540U05 |
US $13.26 |
||
