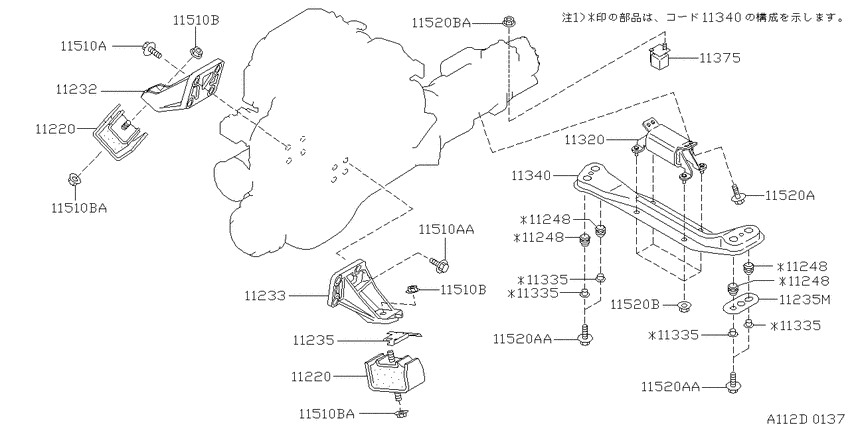

Engine & transmission mounting (1997-06-01 ~ ; 4WD.RB25DE) Diagram Nissan LAUREL
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 4WD
- transmission
- AT
- grade
- MEDJ
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11220
|
11220
1122001U01 Insulator-Engine Mounting, Front9706--01 ~ ; 4WD.RB25DE |
1122001U01 |
from US $51.82 |
||
|
11220
|
11220
1122001U01 Insulator-Engine Mounting, Front9706--01 ~ ; 4WD.RB25DE |
1122001U01 |
from US $51.82 |
||
|
11232
|
11232
11232-01U00
Bracket-Engine Mounting, Rh
9706--01 ~ ; 4WD.RB25DE |
11232-01U00 |
— | ||
|
11233
|
11233
1123301U00
Bracket-Engine Mounting, Lh
9706--01 ~ ; 4WD.RB25DE |
1123301U00 |
— | ||
|
11235
|
11235
1128455S00 Plate-Heat Shield9706--01 ~ ; 4WD.RB25DE |
1128455S00 |
US $9.84 |
||
|
11235
|
11235
11384-01U00 Plate-Heat Shield9706--01 ~ ; 4WD.RB25DE |
11384-01U00 |
US $8.87 |
||
|
11235M
|
11235M
11384-01U00 Plate-Heat Shield9706--01 ~ ; 4WD.RB25DE |
11384-01U00 |
US $8.87 |
||
|
11248
|
11248
11248-6L100 Pad-Engine Mounting Member9706--01 ~ ; 4WD.RB25DE |
11248-6L100 |
US $7.49 |
||
|
11248
|
11248
11248-6L100 Pad-Engine Mounting Member9706--01 ~ ; 4WD.RB25DE |
11248-6L100 |
US $7.49 |
||
|
11248
|
11248
11248-6L100 Pad-Engine Mounting Member9706--01 ~ ; 4WD.RB25DE |
11248-6L100 |
US $7.49 |
||
|
11248
|
11248
11248-6L100 Pad-Engine Mounting Member9706--01 ~ ; 4WD.RB25DE |
11248-6L100 |
US $7.49 |
||
|
11320
|
11320
1132001U01 Insulator-Engine Mounting, Rear9706--01 ~ ; 4WD.RB25DE |
1132001U01 |
US $111.57 |
||
|
11335
|
11335
11394-01U01 Spacer9706--01 ~ ; 4WD.RB25DE |
11394-01U01 |
US $11.51 |
||
|
11335
|
11335
11394-01U01 Spacer9706--01 ~ ; 4WD.RB25DE |
11394-01U01 |
US $11.51 |
||
|
11335
|
11335
11394-01U01 Spacer9706--01 ~ ; 4WD.RB25DE |
11394-01U01 |
US $11.51 |
||
|
11335
|
11335
11394-01U01 Spacer9706--01 ~ ; 4WD.RB25DE |
11394-01U01 |
US $11.51 |
||
|
11340
|
11340
11310-6L100 Member Assy-Engine Mounting, Rear9706--01 ~ ; 4WD.RB25DE |
11310-6L100 |
US $273.60 |
||
|
11340
|
11340
11310-6L100 Member Assy-Engine Mounting, Rear9706--01 ~ ; 4WD.RB25DE |
11310-6L100 |
US $273.60 |
||
|
11375
|
11375
11375-6L110 Damper Assy-Dynamic9706--01 ~ ; 4WD.RB25DE |
11375-6L110 |
US $167.04 |
||
|
11510A
|
11510A
01125-02861 BOLT9706--01 ~ ; 4WD.RB25DE |
01125-02861 |
US $4.42 |
||
|
11510A
|
11510A
01125-02861 BOLT9706--01 ~ ; 4WD.RB25DE |
01125-02861 |
US $4.42 |
||
|
11510AA
|
11510AA
01125-02861 BOLT9706--01 ~ ; 4WD.RB25DE |
01125-02861 |
US $4.42 |
||
|
11510B
|
11510B
01225-00671 NUT9706--01 ~ ; 4WD.RB25DE |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
01225-00671 NUT9706--01 ~ ; 4WD.RB25DE |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
01225-00671 NUT9706--01 ~ ; 4WD.RB25DE |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
01225-00671 NUT9706--01 ~ ; 4WD.RB25DE |
01225-00671 |
US $5.42 |
||
|
11510BA
|
11510BA
01225-00671 NUT9706--01 ~ ; 4WD.RB25DE |
01225-00671 |
US $5.42 |
||
|
11510BA
|
11510BA
01225-00671 NUT9706--01 ~ ; 4WD.RB25DE |
01225-00671 |
US $5.42 |
||
|
11520A
|
11520A
01121-03441 BOLT9706--01 ~ ; 4WD.RB25DE |
01121-03441 |
US $9.36 |
||
|
11520A
|
11520A
0112105071 BOLT9706--01 ~ ; 4WD.RB25DE |
0112105071 |
US $2.91 |
||
|
11520AA
|
11520AA
0112105071 BOLT9706--01 ~ ; 4WD.RB25DE |
0112105071 |
US $2.91 |
||
|
11520AA
|
11520AA
0112105071 BOLT9706--01 ~ ; 4WD.RB25DE |
0112105071 |
US $2.91 |
||
|
11520B
|
11520B
0122500481
NUT
9706--01 ~ ; 4WD.RB25DE |
0122500481 |
— | ||
|
11520B
|
11520B
0122500062 NUT9706--01 ~ ; 4WD.RB25DE |
0122500062 |
from US $1.67 |
||
|
11520BA
|
11520BA
0122500062 NUT9706--01 ~ ; 4WD.RB25DE |
0122500062 |
from US $1.67 |
