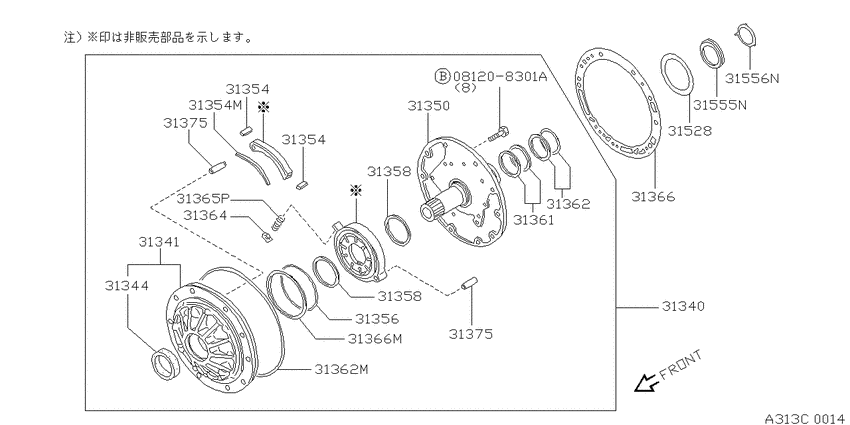

Oil pump (1997-06-01 ~ 1998-09-01; RE4R01A; 4WD.AT) Diagram Nissan LAUREL
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB25DE
- drive
- 4WD
- transmission
- AT
- grade
- MEDJ
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208301A
|
081208301A
081208301A
Bolt-hexagon
|
081208301A |
— | ||
|
31340
|
31340
31340-41X79 Pump Assy-Oil9706--01 ~ 9809--01; 4WD.AT |
31340-41X79 |
US $413.47 |
||
|
31340
|
31340
31340-4AX02 Pump Assy-Oil9809--01 ~ ; 4WD.AT |
31340-4AX02 |
US $421.97 |
||
|
31340
|
31340
31340-1P400 Pump Assy-Oil, Transfer9706--01 ~ ; 4WD.RB25DE |
31340-1P400 |
US $269.28 |
||
|
31341
|
31341
31341-4AX00 Housing Assy-Oil Pump9809--01 ~ 0303--01; 4WD.AT |
31341-4AX00 |
US $155.52 |
||
|
31341
|
31341
31341-4AX01 Housing Assy-Oil Pump0303--01 ~ ; 4WD.AT |
31341-4AX01 |
US $155.52 |
||
|
31341
|
31341
3134151X00 Housing Assy-Oil Pump9706--01 ~ 9809--01; 4WD.AT |
3134151X00 |
US $152.64 |
||
|
31344
|
31344
31375-4AX00 Seal-Oil Pump Housing9809--01 ~ 0303--01; 4WD.AT |
31375-4AX00 |
US $4.61 |
||
|
31344
|
31344
313754AX02 Seal-Oil Pump Housing0303--01 ~ ; 4WD.AT |
313754AX02 |
from US $3.43 |
||
|
31344
|
31344
31375-51X00
Seal-Oil Pump Housing
9706--01 ~ 9809--01; 4WD.AT |
31375-51X00 |
— | ||
| replacement | |||||
|
31344
|
31344
3137551X03 Seal-Oil Pump Housing9706--01 ~ 9809--01; 4WD.AT |
3137551X03 |
from US $3.43 |
||
|
31344
|
31344
33111-30C00 Seal-Oil, Oil Pump9706--01 ~ ; 4WD.RB25DE |
33111-30C00 |
US $11.42 |
||
|
31350
|
31350
31350-41X09 Cover Assy-Oil Pump9706--01 ~ 9809--01; 4WD.AT |
31350-41X09 |
US $178.56 |
||
|
31350
|
31350
31350-4AX02 Cover Assy-Oil Pump9809--01 ~ 0303--01; 4WD.AT |
31350-4AX02 |
US $181.44 |
||
|
31350
|
31350
31350-4AX06 Cover Assy-Oil Pump0303--01 ~ ; 4WD.AT |
31350-4AX06 |
US $275.04 |
||
|
31350
|
31350
31350-1P400 Cover Assy-Oil Pump9706--01 ~ ; 4WD.RB25DE |
31350-1P400 |
US $103.25 |
||
|
31354
|
31354
31354-41X00 Seal-Side, Control Piston9706--01 ~ 9809--01; 4WD.AT |
31354-41X00 |
US $4.03 |
||
|
31354
|
31354
31355-41X00 Seal-Side, Control Piston9706--01 ~ 9809--01; 4WD.AT |
31355-41X00 |
US $4.03 |
||
|
31354
|
31354
31354-41X00 Seal-Side, Control Piston9706--01 ~ 9809--01; 4WD.AT |
31354-41X00 |
US $4.03 |
||
|
31354
|
31354
31355-41X00 Seal-Side, Control Piston9706--01 ~ 9809--01; 4WD.AT |
31355-41X00 |
US $4.03 |
||
|
31354M
|
31354M
31355-41X00 Seal-Side, Control Piston9706--01 ~ 9809--01; 4WD.AT |
31355-41X00 |
US $4.03 |
||
|
31356
|
31356
31526-41X10 Seal-O Ring9706--01 ~ 9809--01; 4WD.AT |
31526-41X10 |
US $6.05 |
||
|
31358
|
31358
31358-21X01 Ring-Vane9706--01 ~ 9809--01; 4WD.AT |
31358-21X01 |
US $8.93 |
||
|
31358
|
31358
31358-21X01 Ring-Vane9706--01 ~ 9809--01; 4WD.AT |
31358-21X01 |
US $8.93 |
||
|
31361
|
31361
31361-21X00 Ring-Seal9706--01 ~ ; 4WD.AT |
31361-21X00 |
US $10.80 |
||
|
31362
|
31362
31558-21X00 Ring-Seal9706--01 ~ ; 4WD.AT |
31558-21X00 |
US $10.80 |
||
|
31362
|
31362
31526-41X01
Seal-O Ring
9706--01 ~ 0212--01; 4WD.AT |
31526-41X01 |
— | ||
| replacement | |||||
|
31362
|
31362
31526-41X12 Seal-O Ring9706--01 ~ 0212--01; 4WD.AT |
31526-41X12 |
US $14.83 |
||
|
31362
|
31362
31526-41X12 Seal-O Ring0212--01 ~ ; 4WD.AT |
31526-41X12 |
US $14.83 |
||
|
31362M
|
31362M
31526-41X01
Seal-O Ring
9706--01 ~ 0212--01; 4WD.AT |
31526-41X01 |
— | ||
| replacement | |||||
|
31362M
|
31362M
31526-41X12 Seal-O Ring9706--01 ~ 0212--01; 4WD.AT |
31526-41X12 |
US $14.83 |
||
|
31362M
|
31362M
31526-41X12 Seal-O Ring0212--01 ~ ; 4WD.AT |
31526-41X12 |
US $14.83 |
||
|
31364
|
31364
31364-41X00 Retainer-Spring, Oil Pump9706--01 ~ 9809--01; 4WD.AT |
31364-41X00 |
US $0.86 |
||
|
31365P
|
31365P
31905-41X02 Spring-Camring9706--01 ~ 9809--01; 4WD.AT |
31905-41X02 |
US $4.03 |
||
|
31366
|
31366
31366-41X03 Gasket-Oil Pump9706--01 ~ 0303--01; 4WD.AT |
31366-41X03 |
US $16.92 |
||
|
31366
|
31366
31366-41X04 Gasket-Oil Pump0303--01 ~ ; 4WD.AT |
31366-41X04 |
US $9.84 |
||
|
31366
|
31366
31363-41X00 Ring-Friction, Oil Pump9706--01 ~ 9809--01; 4WD.AT |
31363-41X00 |
US $26.35 |
||
|
31366M
|
31366M
31363-41X00 Ring-Friction, Oil Pump9706--01 ~ 9809--01; 4WD.AT |
31363-41X00 |
US $26.35 |
||
|
31375
|
31375
31349-41X00 Pin-Pivot, Oil Pump9706--01 ~ 9809--01; 4WD.AT |
31349-41X00 |
US $12.10 |
||
|
31375
|
31375
31349-41X00 Pin-Pivot, Oil Pump9706--01 ~ 9809--01; 4WD.AT |
31349-41X00 |
US $12.10 |
||
|
31528
|
31528
31528-21X01 Washer-Thrust9706--01 ~ 9809--01; 4WD.AT; ｾﾝﾀｸ T=0.7 |
31528-21X01 |
US $5.04 |
||
|
31528
|
31528
31528-21X02 Washer-Thrust9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=1.1 |
31528-21X02 |
US $5.04 |
||
|
31528
|
31528
31528-21X03 Washer-Thrust9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=1.3 |
31528-21X03 |
US $5.04 |
||
|
31528
|
31528
31528-21X04 Washer-Thrust9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=1.5 |
31528-21X04 |
US $4.85 |
||
|
31528
|
31528
31528-21X05 Washer-Thrust9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=1.7 |
31528-21X05 |
US $5.04 |
||
|
31528
|
31528
31528-21X06 Washer-Thrust9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=1.9 |
31528-21X06 |
US $5.04 |
||
|
31555N
|
31555N
31407-41X07 Bearing-Needle, Thrust9706--01 ~ ; 4WD.AT |
31407-41X07 |
US $4.03 |
||
|
31556N
|
31556N
31435-41X01 Race-Bearing9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=0.8 |
31435-41X01 |
US $5.18 |
||
|
31556N
|
31556N
31435-41X02 Race-Bearing9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=1.0 |
31435-41X02 |
US $5.18 |
||
|
31556N
|
31556N
31435-41X03 Race-Bearing9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=1.2 |
31435-41X03 |
US $5.18 |
||
|
31556N
|
31556N
31435-41X04 Race-Bearing9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=1.4 |
31435-41X04 |
US $5.18 |
||
|
31556N
|
31556N
31435-41X05 Race-Bearing9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=1.6 |
31435-41X05 |
US $5.18 |
||
|
31556N
|
31556N
31435-41X06 Race-Bearing9706--01 ~ 9908--01; 4WD.AT; ｾﾝﾀｸ T=1.8 |
31435-41X06 |
US $5.18 |
||
|
31556N
|
31556N
31435-41X07 Race-Bearing9706--01 ~ ; 4WD.AT; ｾﾝﾀｸ T=2.0 |
31435-41X07 |
US $5.18 |
||
