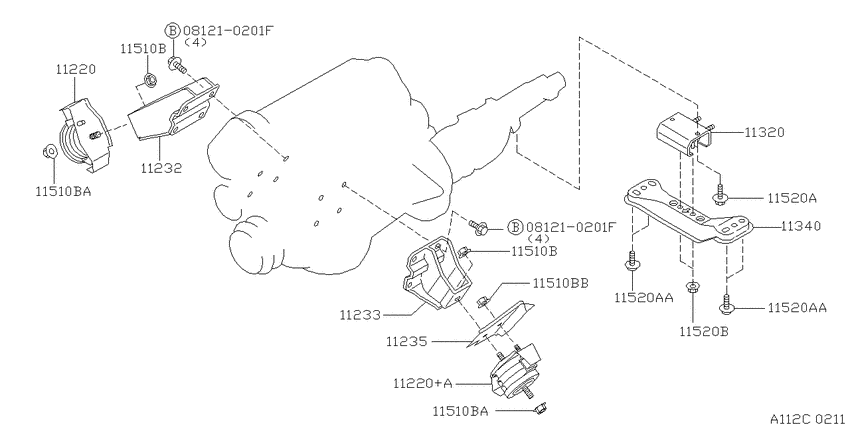

Engine & transmission mounting (1999-08-01 ~ ; RD28) Diagram Nissan LAUREL
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RD28
- drive
- 2WD
- transmission
- AT
- grade
- MED
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210201F
|
081210201F
08121-0201F
Bolt-hexagon
|
08121-0201F |
— | ||
|
081210201F
|
081210201F
08121-0201F
Bolt-hexagon
|
08121-0201F |
— | ||
|
11220
|
11220
11210-97L01 Insulator-Engine Mounting, Front9706--01 ~ 9908--01; RD28 |
11210-97L01 |
US $149.76 |
||
|
11220
|
11220
11220-97L01 Insulator-Engine Mounting, Front9706--01 ~ 9908--01; RD28 |
11220-97L01 |
US $149.76 |
||
|
11220+A
|
11220+A
11220-97L01 Insulator-Engine Mounting, Front9706--01 ~ 9908--01; RD28 |
11220-97L01 |
US $149.76 |
||
|
11232
|
11232
11232-97L00 Bracket-Engine Mounting, Rh9706--01 ~ 9908--01; RD28 |
11232-97L00 |
US $54.86 |
||
|
11233
|
11233
11233-97L00 Bracket-Engine Mounting, Lh9706--01 ~ 9908--01; RD28 |
11233-97L00 |
US $54.86 |
||
|
11235
|
11235
11284-35F01 Plate-Heat Shield9706--01 ~ 9908--01; RD28 |
11284-35F01 |
US $9.79 |
||
|
11320
|
11320
113201P101 Insulator-Engine Mounting, Rear9706--01 ~ 9908--01; RD28 |
113201P101 |
US $72.43 |
||
|
11340
|
11340
11330-0P600 Member Assy-Engine Mounting, Rear9706--01 ~ 9908--01; RD28 |
11330-0P600 |
US $104.69 |
||
|
11510B
|
11510B
01225-00671 NUT9706--01 ~ 9908--01; RD28 |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
01225-00671 NUT9706--01 ~ 9908--01; RD28 |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
0122500481
NUT
9706--01 ~ 9908--01; RD28 |
0122500481 |
— | ||
|
11510B
|
11510B
01225-00671 NUT9706--01 ~ 9908--01; RD28 |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
01225-00671 NUT9706--01 ~ 9908--01; RD28 |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
0122500481
NUT
9706--01 ~ 9908--01; RD28 |
0122500481 |
— | ||
|
11510BA
|
11510BA
01225-00671 NUT9706--01 ~ 9908--01; RD28 |
01225-00671 |
US $5.42 |
||
|
11510BA
|
11510BA
01225-00671 NUT9706--01 ~ 9908--01; RD28 |
01225-00671 |
US $5.42 |
||
|
11510BB
|
11510BB
0122500481
NUT
9706--01 ~ 9908--01; RD28 |
0122500481 |
— | ||
|
11520A
|
11520A
01125-02861 BOLT9706--01 ~ 9908--01; RD28 |
01125-02861 |
US $4.42 |
||
|
11520A
|
11520A
01125-00161 BOLT9706--01 ~ 9908--01; RD28 |
01125-00161 |
US $2.45 |
||
|
11520AA
|
11520AA
01125-00161 BOLT9706--01 ~ 9908--01; RD28 |
01125-00161 |
US $2.45 |
||
|
11520AA
|
11520AA
01125-00161 BOLT9706--01 ~ 9908--01; RD28 |
01125-00161 |
US $2.45 |
||
|
11520B
|
11520B
0122500481
NUT
9706--01 ~ 9908--01; RD28 |
0122500481 |
— |
