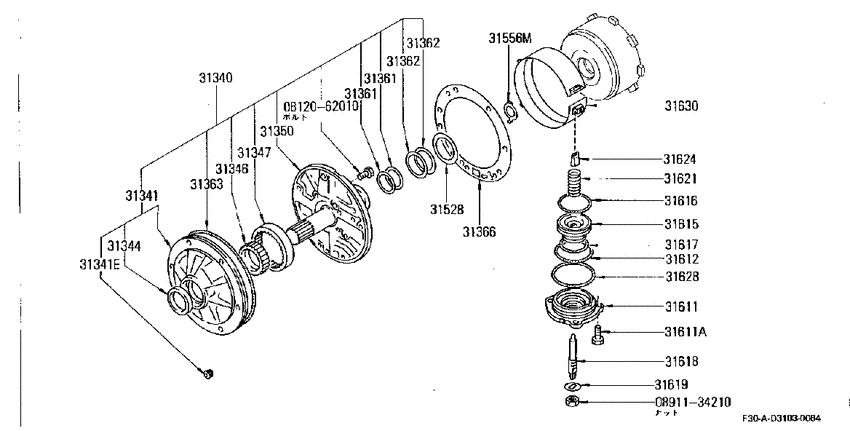

Oil pump & clutch (1981-08-01 ~ 1982-08-01; 3N71B(オイル ポンプ); L20T.AT) Diagram Nissan LEOPARD
- Year
- 1981 - 2012
- Sales region
- Japan
- Engine
- L20ET
- transmission
- AT
- grade
- SGX
- body
- 4K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812062010
|
0812062010
08120-62010
Bolt-hexagon
|
08120-62010 |
— | ||
|
0891134210
|
0891134210
08911-34210
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-34210 |
— | ||
|
31340
|
31340
31340-X6602
Pump Assy-Oil
8108--01 ~ 8209--01; L3N71B.L20ET |
31340-X6602 |
— | ||
|
31340
|
31340
31340-X8770
Pump Assy-Oil
8209--01 ~ 8406--01; E4N71B.L20ET |
31340-X8770 |
— | ||
|
31341
|
31341
31341-X8770 Housing Assy-Oil Pump8209--01 ~ 8406--01; E4N71B.L20ET |
31341-X8770 |
US $155.52 |
||
| replacement | |||||
|
31341
|
31341
31341-X8771 Housing Assy-Oil Pump8209--01 ~ 8406--01; E4N71B.L20ET |
31341-X8771 |
US $155.52 |
||
|
31341
|
31341
31345-X6101 Plug8009--01 ~ 8406--01; L3N71B.L20E# |
31345-X6101 |
US $2.45 |
||
|
31341E
|
31341E
31345-X6101 Plug8009--01 ~ 8406--01; L3N71B.L20E# |
31345-X6101 |
US $2.45 |
||
|
31344
|
31344
31344X0101 Seal-Oil Pump Housing8009--01 ~ 8503--01; AT |
31344X0101 |
US $5.62 |
||
|
31344
|
31344
31344-X0102 Seal-Oil Pump Housing8503--01 ~ ; AT |
31344-X0102 |
US $5.62 |
||
|
31346
|
31346
31346-X0100 Gear-Inner, Oil Pump8009--01 ~ ; AT; ｾﾝﾀｸ T=15.99-16.00 |
31346-X0100 |
US $12.96 |
||
|
31346
|
31346
31346-X0101 Gear-Inner, Oil Pump8009--01 ~ ; AT; ｾﾝﾀｸ T=15.98-15.99 1 |
31346-X0101 |
US $12.96 |
||
|
31346
|
31346
31346-X0102 Gear-Inner, Oil Pump8009--01 ~ ; AT; ｾﾝﾀｸ T=15.97-15.98 2 |
31346-X0102 |
US $12.96 |
||
|
31347
|
31347
31347-X0100 Gear-Outer, Oil Pump8009--01 ~ ; AT; ｾﾝﾀｸ T=15.99-16.00 |
31347-X0100 |
US $18.58 |
||
|
31347
|
31347
31347-X0101 Gear-Outer, Oil Pump8009--01 ~ ; AT; ｾﾝﾀｸ T=15.98-15.99 1 |
31347-X0101 |
US $18.58 |
||
|
31347
|
31347
31347-X0102 Gear-Outer, Oil Pump8009--01 ~ ; AT; ｾﾝﾀｸ T=15.97-15.98 2 |
31347-X0102 |
US $18.58 |
||
|
31350
|
31350
31350-X6602
Cover Assy-Oil Pump
8108--01 ~ 8209--01; L3N71B.L20ET |
31350-X6602 |
— | ||
|
31350
|
31350
31350-X8770
Cover Assy-Oil Pump
8209--01 ~ 8406--01; E4N71B.L20ET |
31350-X8770 |
— | ||
|
31361
|
31361
31361-X0100 Ring-Seal8009--01 ~ ; AT |
31361-X0100 |
US $5.18 |
||
|
31361
|
31361
31361-X0100 Ring-Seal8009--01 ~ ; AT |
31361-X0100 |
US $5.18 |
||
|
31362
|
31362
31362-X0100 Ring-Seal8009--01 ~ ; AT |
31362-X0100 |
US $5.18 |
||
|
31362
|
31362
31362-X0100 Ring-Seal8009--01 ~ ; AT |
31362-X0100 |
US $5.18 |
||
|
31363
|
31363
31363-X0100 Seal-Lathe Cut Ring8009--01 ~ ; AT |
31363-X0100 |
US $4.75 |
||
|
31366
|
31366
31366-X6100
Gasket-Oil Pump
8009--01 ~ 8406--01; L3N71B.L20E# |
31366-X6100 |
— | ||
|
31366
|
31366
31366-X8600 Gasket-Oil Pump8209--01 ~ ; E4N71B |
31366-X8600 |
US $4.18 |
||
| replacement | |||||
|
31366
|
31366
31366-X8601 Gasket-Oil Pump8209--01 ~ ; E4N71B |
31366-X8601 |
US $9.65 |
||
|
31528
|
31528
31528-X0100 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=1.9 |
31528-X0100 |
US $6.05 |
||
| replacement | |||||
|
31528
|
31528
31508-X0103 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=1.9 |
31508-X0103 |
US $6.05 |
||
|
31528
|
31528
31528-X0101 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=2.1 |
31528-X0101 |
US $6.05 |
||
| replacement | |||||
|
31528
|
31528
31508-X0104 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=2.1 |
31508-X0104 |
US $6.05 |
||
|
31528
|
31528
31528-X0102 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=2.3 |
31528-X0102 |
US $6.05 |
||
| replacement | |||||
|
31528
|
31528
31508-X0105 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=2.3 |
31508-X0105 |
US $6.05 |
||
|
31528
|
31528
31528-X0103 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=2.5 |
31528-X0103 |
US $6.05 |
||
| replacement | |||||
|
31528
|
31528
31508-X0106 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=2.5 |
31508-X0106 |
US $6.05 |
||
|
31528
|
31528
31528-X0104 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=2.7 |
31528-X0104 |
US $6.05 |
||
| replacement | |||||
|
31528
|
31528
31508-X0107 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=2.7 |
31508-X0107 |
US $6.05 |
||
|
31528
|
31528
31528-X0105 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=1,5 |
31528-X0105 |
US $6.05 |
||
| replacement | |||||
|
31528
|
31528
31508-X0101 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=1,5 |
31508-X0101 |
US $6.05 |
||
|
31528
|
31528
31528-X0106 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=1.7 |
31528-X0106 |
US $6.05 |
||
| replacement | |||||
|
31528
|
31528
31508-X0102 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=1.7 |
31508-X0102 |
US $6.05 |
||
|
31528
|
31528
31528-X0107 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=1.3 |
31528-X0107 |
US $6.05 |
||
| replacement | |||||
|
31528
|
31528
31508-X0100 Washer-Thrust8009--01 ~ ; 3N71B; SELECT T=1.3 |
31508-X0100 |
US $6.05 |
||
|
31556M
|
31556M
31556-X0100 Race-Bearing, Pump Cover8009--01 ~ ; AT; ｾﾝﾀｸ T=1.2 |
31556-X0100 |
US $2.45 |
||
|
31556M
|
31556M
31556-X0101 Race-Bearing, Pump Cover8009--01 ~ ; AT; ｾﾝﾀｸ T=1.4 |
31556-X0101 |
US $2.45 |
||
|
31556M
|
31556M
31556-X0102 Race-Bearing, Pump Cover8009--01 ~ ; AT; ｾﾝﾀｸ T=1.6 |
31556-X0102 |
US $2.45 |
||
|
31556M
|
31556M
31556-X0103 Race-Bearing, Pump Cover8009--01 ~ ; AT; ｾﾝﾀｸ T=1.8 |
31556-X0103 |
US $2.45 |
||
|
31556M
|
31556M
31556-X0104 Race-Bearing, Pump Cover8009--01 ~ ; AT; ｾﾝﾀｸ T=2.0 |
31556-X0104 |
US $2.45 |
||
|
31556M
|
31556M
31556-X0105 Race-Bearing, Pump Cover8009--01 ~ ; AT; ｾﾝﾀｸ T=2.2 |
31556-X0105 |
US $2.45 |
||
|
31611
|
31611
31611-X0401 Retainer-Servo Piston8209--01 ~ 8505--01; E4N71B.L20ET; 64-40 |
31611-X0401 |
US $30.38 |
||
|
31611
|
31611
31611-X0611 Retainer-Servo Piston8108--01 ~ 8209--01; L3N71B.L20ET; 60-36 |
31611-X0611 |
US $38.59 |
||
|
31611
|
31611
31611-X8500 Retainer-Servo Piston8505--01 ~ ; E4N71B.L20ET; 72-50 |
31611-X8500 |
US $30.24 |
||
|
31611
|
31611
01121-00391 BOLT8009--01 ~ ; AT |
01121-00391 |
US $2.45 |
||
|
31611A
|
31611A
01121-00391 BOLT8009--01 ~ ; AT |
01121-00391 |
US $2.45 |
||
|
31612
|
31612
31612-X0300 Seal-Lathe Cut Ring8009--01 ~ 8406--01; AT |
31612-X0300 |
US $2.36 |
||
|
31615
|
31615
31615-X0400 Piston-Band Servo8209--01 ~ 8505--01; E4N71B.L20ET; 64-40 |
31615-X0400 |
US $12.96 |
||
|
31615
|
31615
31615-X0611 Piston-Band Servo8108--01 ~ 8209--01; L3N71B.L20ET; 60-36 |
31615-X0611 |
US $15.70 |
||
|
31615
|
31615
31615-X8500 Piston-Band Servo8505--01 ~ ; E4N71B.L20ET; 72-50 |
31615-X8500 |
US $22.61 |
||
|
31615
|
31615
31615-X0120 Piston-Band Servo8209--01 ~ ; E4N71B.L20ET; 56-36 |
31615-X0120 |
US $15.55 |
||
|
31616
|
31616
31616-X0100 Seal-Lathe Cut Ring8209--01 ~ 8505--01; E4N71B.L20ET; 64 |
31616-X0100 |
US $2.88 |
||
|
31616
|
31616
31616-X0300 Seal-Lathe Cut Ring8505--01 ~ ; E4N71B.L20ET; 72 |
31616-X0300 |
US $2.88 |
||
|
31616
|
31616
31616X1000 Seal-Lathe Cut Ring8108--01 ~ 8209--01; L3N71B.L20ET; 60 |
31616X1000 |
US $2.45 |
||
|
31616
|
31616
31616-X0120 Seal-Lathe Cut Ring8505--01 ~ ; E4N71B.L20E#; 56 |
31616-X0120 |
US $3.60 |
||
|
31616
|
31616
31616-X1200
Seal-Ring, Overdrive Servo Piston
8209--01 ~ 8505--01; E4N71B.L20ET; 56 |
31616-X1200 |
— | ||
|
31617
|
31617
31617-X0300 Seal-Lathe Cut Ring8505--01 ~ ; E4N71B.L20ET; 50 |
31617-X0300 |
US $2.88 |
||
|
31617
|
31617
31617X0400 Seal-Lathe Cut Ring8209--01 ~ 8505--01; E4N71B.L20ET; 40 |
31617X0400 |
US $2.88 |
||
|
31617
|
31617
31617-X1200 Seal-Lathe Cut Ring8108--01 ~ 8209--01; L3N71B.L20ET; 36 |
31617-X1200 |
US $4.18 |
||
|
31617
|
31617
31617-X1200 Seal-Lathe Cut Ring8209--01 ~ 8505--01; E4N71B.L20ET; 36 |
31617-X1200 |
US $4.18 |
||
|
31618
|
31618
31618-X0101 Stem-Band Servo Piston8009--01 ~ 8505--01; AT |
31618-X0101 |
US $4.18 |
||
|
31618
|
31618
31618-X8500 Stem-Band Servo Piston8505--01 ~ ; E4N71B.L20ET |
31618-X8500 |
US $8.21 |
||
|
31619
|
31619
31619-X0100 Washer-Piston Stem8009--01 ~ 8505--01; AT |
31619-X0100 |
US $0.86 |
||
|
31619
|
31619
31619-X0100 Washer-Piston Stem8209--01 ~ ; E4N71B |
31619-X0100 |
US $0.86 |
||
|
31619
|
31619
31619-X8500 Spacer-Piston Stem8505--01 ~ ; E4N71B.L20ET; ｾﾝﾀｸ T=8.5 |
31619-X8500 |
US $6.05 |
||
|
31619
|
31619
31619-X8501 Spacer-Piston Stem8505--01 ~ ; E4N71B.L20ET; ｾﾝﾀｸ T=9.0 |
31619-X8501 |
US $6.05 |
||
|
31619
|
31619
31619-X8502 Spacer-Piston Stem8505--01 ~ ; E4N71B.L20ET; ｾﾝﾀｸ T=9.5 |
31619-X8502 |
US $6.05 |
||
|
31619
|
31619
31619-X8503 Spacer-Piston Stem8505--01 ~ ; E4N71B.L20ET; ｾﾝﾀｸ T=10.0 |
31619-X8503 |
US $6.05 |
||
|
31619
|
31619
31619-X8504 Spacer-Piston Stem8505--01 ~ ; E4N71B.L20ET; ｾﾝﾀｸ T=10.5 |
31619-X8504 |
US $6.05 |
||
|
31619
|
31619
31619-X8505 Spacer-Piston Stem8505--01 ~ ; E4N71B.L20ET; ｾﾝﾀｸ T=11.0 |
31619-X8505 |
US $6.05 |
||
|
31619
|
31619
31619-X8506 Spacer-Piston Stem8505--01 ~ ; E4N71B.L20ET; ｾﾝﾀｸ T=11.5 |
31619-X8506 |
US $6.05 |
||
|
31621
|
31621
31621-X0100 Spring-Piston Return8009--01 ~ 8209--01; L3N71B.L20E# |
31621-X0100 |
US $1.73 |
||
|
31621
|
31621
31621-X8601 Spring-Piston Return8209--01 ~ 8505--01; E4N71B.L20ET |
31621-X8601 |
US $4.18 |
||
|
31621
|
31621
31621-X8603 Spring-Piston Return8505--01 ~ ; E4N71B.L20ET |
31621-X8603 |
US $4.18 |
||
|
31621
|
31621
31621-X0100 Spring-Piston Return8209--01 ~ 8501--01; E4N71B |
31621-X0100 |
US $1.73 |
||
|
31621
|
31621
31621-X0101 Spring-Piston Return8505--01 ~ ; E4N71B.L20E# |
31621-X0101 |
US $4.18 |
||
|
31624
|
31624
31624-X0101 Strut-Band8009--01 ~ ; AT |
31624-X0101 |
US $4.18 |
||
|
31624
|
31624
31624-X0101 Strut-Band8209--01 ~ ; E4N71B |
31624-X0101 |
US $4.18 |
||
|
31628
|
31628
31628-X0100 Seal-O Ring8009--01 ~ ; AT |
31628-X0100 |
US $1.67 |
||
|
31630
|
31630
31630-X0103 Band Assy-Brake8009--01 ~ 8501--01; AT |
31630-X0103 |
US $62.78 |
||
| replacement | |||||
|
31630
|
31630
31630-X0106 Band Assy-Brake8009--01 ~ 8501--01; AT |
31630-X0106 |
US $49.25 |
||
|
31630
|
31630
31630-X0104 Band Assy-Brake8501--01 ~ ; AT |
31630-X0104 |
US $82.66 |
||
| replacement | |||||
|
31630
|
31630
31630-X0106 Band Assy-Brake8501--01 ~ ; AT |
31630-X0106 |
US $49.25 |
||
|
31630
|
31630
31630-X0104 Band Assy-Brake8209--01 ~ ; E4N71B |
31630-X0104 |
US $82.66 |
||
| replacement | |||||
|
31630
|
31630
31630-X0106 Band Assy-Brake8209--01 ~ ; E4N71B |
31630-X0106 |
US $49.25 |
||
