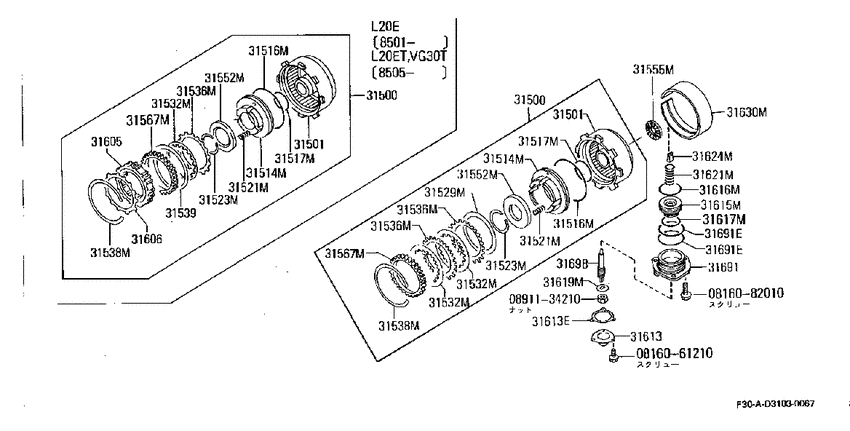

Oil pump & clutch (1982-09-01 ~ ; $E4N71B(ダイレクト クラッチ); L20T.AT) Diagram Nissan LEOPARD
- Year
- 1981 - 2012
- Sales region
- Japan
- Engine
- L20ET
- transmission
- AT
- grade
- SGX
- body
- 4K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0816061210
|
0816061210
08160-61210
Bolt-hexagon
|
08160-61210 |
— | ||
| replacement | |||||
|
0816061210
|
0816061210
08110-61225
Bolt-hexagon
|
08110-61225 |
— | ||
|
0816082010
|
0816082010
08160-82010
Bolt-hexagon
|
08160-82010 |
— | ||
|
0891134210
|
0891134210
08911-34210
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-34210 |
— | ||
|
31500
|
31500
31500-X8500 Clutch Assy-Direct8505--01 ~ ; E4N71B.L20E# |
31500-X8500 |
US $201.60 |
||
|
31500
|
31500
31500-X8670 Clutch Assy-Direct8209--01 ~ 8406--01; E4N71B.L20ET |
31500-X8670 |
US $201.60 |
||
|
31500
|
31500
31500-X8500 Clutch Assy-Direct8505--01 ~ ; E4N71B.L20E# |
31500-X8500 |
US $201.60 |
||
|
31500
|
31500
31500-X8670 Clutch Assy-Direct8209--01 ~ 8406--01; E4N71B.L20ET |
31500-X8670 |
US $201.60 |
||
|
31501
|
31501
31501-X8500 Drum Assy-Direct Clutch8505--01 ~ ; E4N71B.L20E# |
31501-X8500 |
US $71.28 |
||
|
31501
|
31501
31501-X8601 Drum Assy-Direct Clutch8209--01 ~ 8406--01; E4N71B.L20ET |
31501-X8601 |
US $73.01 |
||
|
31501
|
31501
31501-X8500 Drum Assy-Direct Clutch8505--01 ~ ; E4N71B.L20E# |
31501-X8500 |
US $71.28 |
||
|
31501
|
31501
31501-X8601 Drum Assy-Direct Clutch8209--01 ~ 8406--01; E4N71B.L20ET |
31501-X8601 |
US $73.01 |
||
|
31514M
|
31514M
31514-X0103 Piston Assy-Clutch8209--01 ~ ; E4N71B |
31514-X0103 |
US $26.50 |
||
|
31514M
|
31514M
31514-X0103 Piston Assy-Clutch8209--01 ~ ; E4N71B |
31514-X0103 |
US $26.50 |
||
|
31516M
|
31516M
31516-X0100 Seal-Lathe Cut Ring8209--01 ~ ; E4N71B |
31516-X0100 |
US $5.18 |
||
|
31516M
|
31516M
31516-X0100 Seal-Lathe Cut Ring8209--01 ~ ; E4N71B |
31516-X0100 |
US $5.18 |
||
|
31517M
|
31517M
31517-X0100 Seal-O Ring8209--01 ~ ; E4N71B |
31517-X0100 |
US $2.45 |
||
|
31517M
|
31517M
31517-X0100 Seal-O Ring8209--01 ~ ; E4N71B |
31517-X0100 |
US $2.45 |
||
|
31521M
|
31521M
31521-X0100 Spring-Piston Return8209--01 ~ ; E4N71B |
31521-X0100 |
US $6.48 |
||
|
31521M
|
31521M
31521-X0100 Spring-Piston Return8209--01 ~ ; E4N71B |
31521-X0100 |
US $6.48 |
||
|
31523M
|
31523M
31523-X0100 Ring-Snap8404--01 ~ ; E4N71B |
31523-X0100 |
US $2.45 |
||
|
31523M
|
31523M
31523-X0100 Ring-Snap8404--01 ~ ; E4N71B |
31523-X0100 |
US $2.45 |
||
|
31529M
|
31529M
31529-X0100 Plate-Dished8209--01 ~ ; E4N71B |
31529-X0100 |
US $10.51 |
||
|
31532
|
31532
31532-X0101 Plate Assy-Drive8108--01 ~ 8209--01; L3N71B.L20ET |
31532-X0101 |
US $18.14 |
||
|
31532
|
31532
31532-X0102
Plate Assy-Drive
8505--01 ~ ; E4N71B.L20E# |
31532-X0102 |
— | ||
|
31532
|
31532
31532-X0101 Plate Assy-Drive8209--01 ~ 8406--01; E4N71B.L20ET |
31532-X0101 |
US $18.14 |
||
|
31532
|
31532
31532-X0102
Plate Assy-Drive
8505--01 ~ ; E4N71B |
31532-X0102 |
— | ||
|
31532
|
31532
31532-X0100
Plate Assy-Drive
8009--01 ~ 8406--01; L3N71B.L20E# |
31532-X0100 |
— | ||
|
31532
|
31532
31532-X0101 Plate Assy-Drive8209--01 ~ 8505--01; E4N71B.L20ET |
31532-X0101 |
US $18.14 |
||
|
31532
|
31532
31532-X0102
Plate Assy-Drive
8505--01 ~ ; E4N71B |
31532-X0102 |
— | ||
|
31532M
|
31532M
31532-X0101 Plate Assy-Drive8209--01 ~ 8406--01; E4N71B.L20ET |
31532-X0101 |
US $18.14 |
||
|
31532M
|
31532M
31532-X0102
Plate Assy-Drive
8505--01 ~ ; E4N71B |
31532-X0102 |
— | ||
|
31532M
|
31532M
31532-X0101 Plate Assy-Drive8209--01 ~ 8406--01; E4N71B.L20ET |
31532-X0101 |
US $18.14 |
||
|
31532M
|
31532M
31532-X0102
Plate Assy-Drive
8505--01 ~ ; E4N71B |
31532-X0102 |
— | ||
|
31536M
|
31536M
31536-X0100 Plate-Driven8209--01 ~ 8501--01; E4N71B |
31536-X0100 |
US $5.55 |
||
|
31536M
|
31536M
31536-X5000 Plate-Driven8505--01 ~ ; E4N71B |
31536-X5000 |
US $5.55 |
||
|
31536M
|
31536M
31536-X0100 Plate-Driven8209--01 ~ 8501--01; E4N71B |
31536-X0100 |
US $5.55 |
||
|
31536M
|
31536M
31536-X5000 Plate-Driven8505--01 ~ ; E4N71B |
31536-X5000 |
US $5.55 |
||
|
31536M
|
31536M
31536-X0100 Plate-Driven8209--01 ~ 8501--01; E4N71B |
31536-X0100 |
US $5.55 |
||
|
31536M
|
31536M
31536-X5000 Plate-Driven8505--01 ~ ; E4N71B |
31536-X5000 |
US $5.55 |
||
|
31538M
|
31538M
31538-X0100 Ring-Snap8209--01 ~ ; E4N71B |
31538-X0100 |
US $6.48 |
||
|
31538M
|
31538M
31538-X0100 Ring-Snap8209--01 ~ ; E4N71B |
31538-X0100 |
US $6.48 |
||
|
31539
|
31539
31539-X8500 Ring-Snap, Direct Clutch8505--01 ~ ; E4N71B |
31539-X8500 |
US $2.45 |
||
|
31552M
|
31552M
31552-X0103 Retainer-Spring8209--01 ~ ; E4N71B |
31552-X0103 |
US $2.45 |
||
|
31552M
|
31552M
31552-X0103 Retainer-Spring8209--01 ~ ; E4N71B |
31552-X0103 |
US $2.45 |
||
|
31555M
|
31555M
31555-X0100 Bearing-Needle, Thrust8209--01 ~ ; E4N71B |
31555-X0100 |
US $6.19 |
||
|
31567M
|
31567M
31507-X8600 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=6.4 |
31507-X8600 |
US $24.19 |
||
|
31567M
|
31567M
31507-X8601 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=6.6 |
31507-X8601 |
US $24.19 |
||
|
31567M
|
31567M
31537-X2800 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=6.8 |
31537-X2800 |
US $12.96 |
||
|
31567M
|
31567M
31537-X2801 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=7.0 |
31537-X2801 |
US $12.96 |
||
|
31567M
|
31567M
31537-X8500 Plate-Retaining, Direct Clutch8505--01 ~ ; E4N71B |
31537-X8500 |
US $19.01 |
||
|
31567M
|
31567M
31567-X2903 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=5.6 |
31567-X2903 |
US $12.96 |
||
|
31567M
|
31567M
31567-X2904 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=5.8 |
31567-X2904 |
US $12.96 |
||
|
31567M
|
31567M
31567-X2905 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=6.0 |
31567-X2905 |
US $12.96 |
||
|
31567M
|
31567M
31567-X2906 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=6.2 |
31567-X2906 |
US $12.96 |
||
|
31567M
|
31567M
31507-X8600 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=6.4 |
31507-X8600 |
US $24.19 |
||
|
31567M
|
31567M
31507-X8601 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=6.6 |
31507-X8601 |
US $24.19 |
||
|
31567M
|
31567M
31537-X2800 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=6.8 |
31537-X2800 |
US $12.96 |
||
|
31567M
|
31567M
31537-X2801 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=7.0 |
31537-X2801 |
US $12.96 |
||
|
31567M
|
31567M
31537-X8500 Plate-Retaining, Direct Clutch8505--01 ~ ; E4N71B |
31537-X8500 |
US $19.01 |
||
|
31567M
|
31567M
31567-X2903 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=5.6 |
31567-X2903 |
US $12.96 |
||
|
31567M
|
31567M
31567-X2904 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=5.8 |
31567-X2904 |
US $12.96 |
||
|
31567M
|
31567M
31567-X2905 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=6.0 |
31567-X2905 |
US $12.96 |
||
|
31567M
|
31567M
31567-X2906 Plate-Retaining8209--01 ~ 8501--01; E4N71B; ｾﾝﾀｸ T=6.2 |
31567-X2906 |
US $12.96 |
||
|
31605
|
31605
31607-X8500 Clutch-One Way, Direct Clutch8505--01 ~ ; E4N71B |
31607-X8500 |
US $143.57 |
||
|
31606
|
31606
31606-X8500 Race-Side Direct Clutch8505--01 ~ ; E4N71B; ｾﾝﾀｸ T=0.8 |
31606-X8500 |
US $7.20 |
||
|
31606
|
31606
31606-X8501 Race-Side Direct Clutch8505--01 ~ ; E4N71B; ｾﾝﾀｸ T=0.4 |
31606-X8501 |
US $7.20 |
||
|
31606
|
31606
31606-X8502 Race-Side Direct Clutch8505--01 ~ ; E4N71B; ｾﾝﾀｸ T=0.6 |
31606-X8502 |
US $7.20 |
||
|
31606
|
31606
31606-X8503 Race-Side Direct Clutch8505--01 ~ ; E4N71B; ｾﾝﾀｸ T=1.0 |
31606-X8503 |
US $7.20 |
||
|
31606
|
31606
31606-X8504 Race-Side Direct Clutch8505--01 ~ ; E4N71B; ｾﾝﾀｸ T=1.2 |
31606-X8504 |
US $7.20 |
||
|
31613
|
31613
31613-X3101 Cover-Overdrive Servo Retainer8209--01 ~ ; E4N71B |
31613-X3101 |
US $7.20 |
||
|
31613
|
31613
31612-X3101 Gasket-Overdrive Servo Retainer Cover8209--01 ~ ; E4N71B |
31612-X3101 |
US $1.73 |
||
| replacement | |||||
|
31613
|
31613
31623-X3100 Gasket-Retainer, Servo8209--01 ~ ; E4N71B |
31623-X3100 |
US $1.73 |
||
|
31613E
|
31613E
31612-X3101 Gasket-Overdrive Servo Retainer Cover8209--01 ~ ; E4N71B |
31612-X3101 |
US $1.73 |
||
| replacement | |||||
|
31613E
|
31613E
31623-X3100 Gasket-Retainer, Servo8209--01 ~ ; E4N71B |
31623-X3100 |
US $1.73 |
||
|
31615M
|
31615M
31615-X0120 Piston-Band Servo8209--01 ~ ; E4N71B.L20ET; 56-36 |
31615-X0120 |
US $15.55 |
||
|
31616M
|
31616M
31616-X0120 Seal-Lathe Cut Ring8505--01 ~ ; E4N71B.L20E#; 56 |
31616-X0120 |
US $3.60 |
||
|
31616M
|
31616M
31616-X1200
Seal-Ring, Overdrive Servo Piston
8209--01 ~ 8505--01; E4N71B.L20ET; 56 |
31616-X1200 |
— | ||
|
31617M
|
31617M
31617-X1200 Seal-Lathe Cut Ring8209--01 ~ 8505--01; E4N71B.L20ET; 36 |
31617-X1200 |
US $4.18 |
||
|
31619M
|
31619M
31619-X0100 Washer-Piston Stem8209--01 ~ ; E4N71B |
31619-X0100 |
US $0.86 |
||
|
31621M
|
31621M
31621-X0100 Spring-Piston Return8209--01 ~ 8501--01; E4N71B |
31621-X0100 |
US $1.73 |
||
|
31621M
|
31621M
31621-X0101 Spring-Piston Return8505--01 ~ ; E4N71B.L20E# |
31621-X0101 |
US $4.18 |
||
|
31624M
|
31624M
31624-X0101 Strut-Band8209--01 ~ ; E4N71B |
31624-X0101 |
US $4.18 |
||
|
31630M
|
31630M
31630-X0104 Band Assy-Brake8209--01 ~ ; E4N71B |
31630-X0104 |
US $82.66 |
||
| replacement | |||||
|
31630M
|
31630M
31630-X0106 Band Assy-Brake8209--01 ~ ; E4N71B |
31630-X0106 |
US $49.25 |
||
|
31691
|
31691
31691-X8605 Retainer-Piston, Overdrive Servo8209--01 ~ 8505--01; E4N71B.L20ET; 56-36 |
31691-X8605 |
US $36.58 |
||
|
31691
|
31691
31692X8600 Seal-O Ring, Overdrive Servo Piston Retai8209--01 ~ ; E4N71B |
31692X8600 |
US $6.19 |
||
|
31691E
|
31691E
31692X8600 Seal-O Ring, Overdrive Servo Piston Retai8209--01 ~ ; E4N71B |
31692X8600 |
US $6.19 |
||
|
31691E
|
31691E
31692X8600 Seal-O Ring, Overdrive Servo Piston Retai8209--01 ~ ; E4N71B |
31692X8600 |
US $6.19 |
||
|
31698
|
31698
31698-X8600 Stem-Overdrive Servo Piston8209--01 ~ ; E4N71B |
31698-X8600 |
US $12.53 |
||
