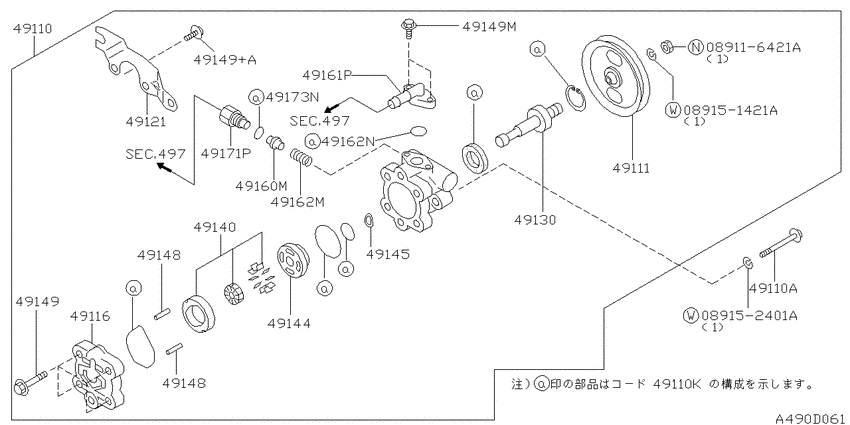

Power steering pump (1997-10-01 ~ ; RB25DET) Diagram Nissan LEOPARD
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB25DET
- drive
- 4WD
- transmission
- AT
- grade
- XJ
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089116421A
|
089116421A
089116421A Nut |
089116421A |
US $3.06 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
US $2.21 |
||
|
49110
|
49110
491105P500 Pump Assy-Power Steering9710--01 ~ ; RB25DET |
491105P500 |
US $1,414.58 |
||
|
49110
|
49110
48361-55S00 Bolt9710--01 ~ ; RB25DET |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110
|
49110
4836155S0A Bolt9710--01 ~ ; RB25DET |
4836155S0A |
from US $2.02 |
||
|
49110
|
49110
495915P525 Seal Kit-Power Steering Pump9710--01 ~ ; RB25DET |
495915P525 |
US $19.73 |
||
|
49110A
|
49110A
48361-55S00 Bolt9710--01 ~ ; RB25DET |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110A
|
49110A
4836155S0A Bolt9710--01 ~ ; RB25DET |
4836155S0A |
from US $2.02 |
||
|
49110K
|
49110K
495915P525 Seal Kit-Power Steering Pump9710--01 ~ ; RB25DET |
495915P525 |
US $19.73 |
||
|
49111
|
49111
49132-5P500 Pulley-Power Steering Pump9710--01 ~ ; RB25DET |
49132-5P500 |
US $72 |
||
|
49116
|
49116
49116-15V01 Cover-Rear, Power Steering Pump9710--01 ~ ; RB25DET |
49116-15V01 |
US $34.70 |
||
|
49121
|
49121
49121-86L00 Bracket Assy-Power Steering Pump9710--01 ~ ; RB25DET |
49121-86L00 |
US $33.55 |
||
|
49130
|
49130
491300M800 Shaft-Drive, Power Steering Pump9710--01 ~ ; RB25DET |
491300M800 |
US $61.34 |
||
|
49140
|
49140
49140-28N00 Rotor & Camring Set-Power Steering Pump9710--01 ~ ; RB25DET |
49140-28N00 |
US $158.40 |
||
|
49144
|
49144
49144-63U10 Plate-Side, Power Steering Pump9710--01 ~ ; RB25DET |
49144-63U10 |
US $46.08 |
||
|
49145
|
49145
49145-15V00 Spring-Side Plate9710--01 ~ ; RB25DET |
49145-15V00 |
US $0.86 |
||
|
49148
|
49148
49148-28N00 Pin-Camring, Power Steering Pump9710--01 ~ ; RB25DET |
49148-28N00 |
US $3.74 |
||
|
49148
|
49148
49148-28N00 Pin-Camring, Power Steering Pump9710--01 ~ ; RB25DET |
49148-28N00 |
US $3.74 |
||
|
49149
|
49149
49149-F6601 Bolt-Bracket, Power Steering Pump9710--01 ~ ; RB25DET |
49149-F6601 |
US $4.32 |
||
|
49149
|
49149
49149-15V00 Bolt-Bracket, Power Steering Pump9710--01 ~ ; RB25DET |
49149-15V00 |
US $6.19 |
||
|
49149
|
49149
49164-F6600 Bolt9710--01 ~ ; RB25DET |
49164-F6600 |
US $2.45 |
||
|
49149+A
|
49149+A
49149-15V00 Bolt-Bracket, Power Steering Pump9710--01 ~ ; RB25DET |
49149-15V00 |
US $6.19 |
||
|
49149M
|
49149M
49164-F6600 Bolt9710--01 ~ ; RB25DET |
49164-F6600 |
US $2.45 |
||
|
49160M
|
49160M
49165-5P500 Valve Assy-Flow Control9710--01 ~ ; RB25DET |
49165-5P500 |
US $76.03 |
||
|
49161P
|
49161P
49580-55S00 Pipe Kit-Suction, Power Steering Pump9710--01 ~ ; RB25DET |
49580-55S00 |
US $18.02 |
||
| replacement | |||||
|
49161P
|
49161P
D9580-55S00
Pipe kit-suction,power steering pump
9710--01 ~ ; RB25DET |
D9580-55S00 |
— | ||
|
49162M
|
49162M
49167-63U00 Spring-Flow Control Valve9710--01 ~ ; RB25DET |
49167-63U00 |
US $6.34 |
||
|
49162N
|
49162N
4916226E00 SEAL-INLET CONNECTOR9710--01 ~ ; RB25DET |
4916226E00 |
from US $1.65 |
||
|
49171P
|
49171P
49171-86L00 Connector-Outlet9710--01 ~ ; RB25DET |
49171-86L00 |
US $100.22 |
||
|
49173N
|
49173N
49173-50L00 Seal-Outlet Connector9710--01 ~ ; RB25DET |
49173-50L00 |
US $5.04 |
||
|
