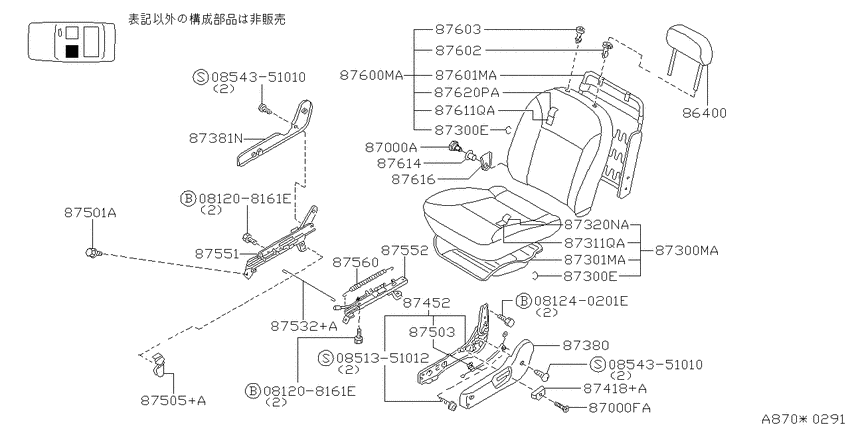

Front seat (1997-05-01 ~ ; LH シート; C) Diagram Nissan MARCH
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- CG13DE
- transmission
- MT.F5
- grade
- CABRIOLE
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
0851351012
|
0851351012
08513-51012
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-51012 |
— | ||
|
0854351010
|
0854351010
08543-51010
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51010 |
— | ||
|
0854351010
|
0854351010
08543-51010
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51010 |
— | ||
|
86400
|
86400
86400-77B00
ﾍﾂﾄﾞ ﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
9705--01 ~ ; C |
86400-77B00 |
— | ||
|
87000A
|
87000A
87615-41B00 Bolt-Special9705--01 ~ ; C |
87615-41B00 |
US $3.46 |
||
|
87000FA
|
87000FA
0141200041 SCREW9705--01 ~ ; C |
0141200041 |
US $0.97 |
||
|
87300E
|
87300E
8690132200 Clip9705--01 ~ ; C |
8690132200 |
from US $0.22 |
||
|
87300E
|
87300E
8690132200 Clip9705--01 ~ ; C |
8690132200 |
from US $0.22 |
||
|
87300MA
|
87300MA
87350-77B00
ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
9705--01 ~ ; C; ﾋﾀﾞﾘ[D410] |
87350-77B00 |
— | ||
|
87301MA
|
87301MA
87351-41B00 Frame Assy-Front Seat Cushion9705--01 ~ ; C; ﾋﾀﾞﾘ |
87351-41B00 |
US $320.02 |
||
|
87311QA
|
87311QA
87361-0U000 Pad-Front Seat Cushion9705--01 ~ ; C |
87361-0U000 |
US $210.24 |
||
|
87320NA
|
87320NA
87370-77B00
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ
9705--01 ~ ; C; [D410] |
87370-77B00 |
— | ||
|
87380
|
87380
87380-0U060 Finisher Assy-Cushion, Front Seat Lh9705--01 ~ ; C |
87380-0U060 |
US $28.37 |
||
|
87381N
|
87381N
87381-0U060 Finisher-Cushion, Front Seat Inner Lh9705--01 ~ ; C |
87381-0U060 |
US $15.70 |
||
|
87418+A
|
87418+A
87468-0U060 Knob-Reclining Device9705--01 ~ ; C |
87468-0U060 |
US $5.76 |
||
|
87452
|
87452
87451-43B10 Device-Reclining, Lh Seat Outside9705--01 ~ ; C |
87451-43B10 |
US $208.80 |
||
|
87501A
|
87501A
86899-50J00 Bolt9705--01 ~ ; C |
86899-50J00 |
US $3.06 |
||
|
87503
|
87503
87503-43B10 Wire-Flexible, Seat9705--01 ~ ; C |
87503-43B10 |
US $19.44 |
||
|
87505+A
|
87505+A
87558-41B00 Cover-Seat Slide9705--01 ~ ; C |
87558-41B00 |
US $5.76 |
||
|
87532+A
|
87532+A
87532-43B00 Wire-Release9705--01 ~ ; C; ﾋﾀﾞﾘ(ｷｲﾛ) |
87532-43B00 |
US $8.35 |
||
|
87532+A
|
87532+A
87532-46B00 Wire-Release9705--01 ~ ; C; ﾋﾀﾞﾘ(ｱｵ) |
87532-46B00 |
US $8.35 |
||
|
87551
|
87551
87552-41B65 Slide-Lh Seat, Inside9705--01 ~ ; C |
87552-41B65 |
US $88.56 |
||
|
87552
|
87552
87551-43B65
ｽﾗｲﾄﾞ,lh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ
9705--01 ~ ; C |
87551-43B65 |
— | ||
|
87560
|
87560
87560-43B00 Spring-Helper9705--01 ~ ; C |
87560-43B00 |
US $8.35 |
||
|
87600MA
|
87600MA
87650-77B00
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
9705--01 ~ ; C; ﾋﾀﾞﾘ[D410] |
87650-77B00 |
— | ||
|
87601MA
|
87601MA
87651-41B10 Frame Assy-Front Seat Back9705--01 ~ ; C; ﾋﾀﾞﾘ |
87651-41B10 |
US $294.53 |
||
|
87602
|
87602
87602-0U560 Holder Assy-Headrest, Lock9705--01 ~ ; C |
87602-0U560 |
US $5.76 |
||
|
87603
|
87603
87603-0U560 Holder Assy-Headrest, Free9705--01 ~ ; C |
87603-0U560 |
US $5.76 |
||
|
87611QA
|
87611QA
87611-0U000 Pad-Front Seat Back9705--01 ~ ; C |
87611-0U000 |
US $249.12 |
||
|
87614
|
87614
87614-73L00 Bush-Front Seat9705--01 ~ ; C |
87614-73L00 |
US $1.73 |
||
|
87616
|
87616
87616-41B00 Cover-Front Seat Hinge9705--01 ~ ; C |
87616-41B00 |
US $10.08 |
||
|
87620PA
|
87620PA
87670-77B00
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ
9705--01 ~ ; C; [D410] |
87670-77B00 |
— |
