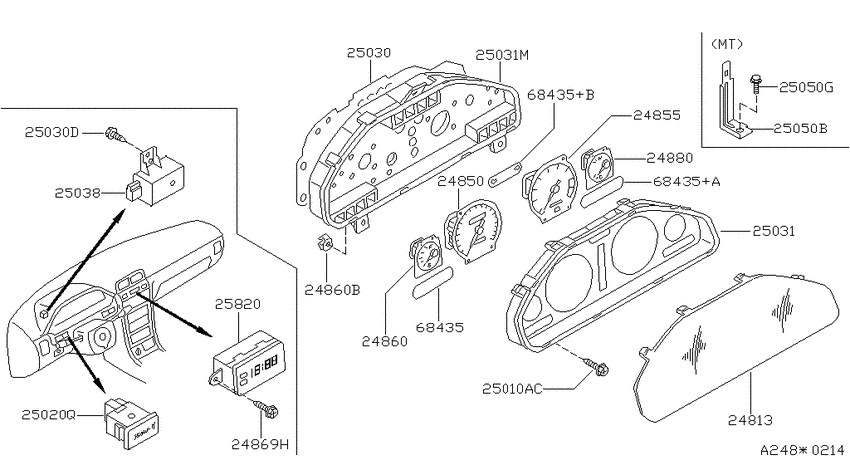

Instrument meter & gauge (1996-07-01 ~ ; FRONT VIEW; FED.S +CAL.S) Diagram Nissan MAXIMA
- Year
- 1994 - 2011
- Sales region
- U.S.A.
- Engine
- VQ30DE
- transmission
- AT
- body
- FED.S
- trim lvl
- GXE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24813
|
24813
24813-1L100 Cover-Front Meter1998-06-01 ~ ; FED.S +CAL.S; , |
24813-1L100 |
US $37.44 |
||
|
24813
|
24813
24813-40U00 Cover-Front Meter1997-06-01 ~ 1998-06-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24813-40U00 |
US $44.78 |
||
|
24850
|
24850
24820-0L700
Speedometer Assy
1996-07-01 ~ 1997-06-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24820-0L700 |
— | ||
|
24850
|
24850
24820-3L000
Speedometer Assy
1997-06-01 ~ 1998-06-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24820-3L000 |
— | ||
| replacement | |||||
|
24850
|
24850
24820-3L001
Speedometer assy
1997-06-01 ~ 1998-06-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24820-3L001 |
— | ||
|
24850
|
24850
24820-40U00
Speedometer Assy
1994-02-01 ~ 1996-07-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24820-40U00 |
— | ||
|
24850
|
24850
24820-4L800
Speedometer Assy
1998-06-01 ~ ; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24820-4L800 |
— | ||
| replacement | |||||
|
24850
|
24850
24820-4L801
Speedometer assy
1998-06-01 ~ ; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24820-4L801 |
— | ||
|
24855
|
24855
24825-3L000
Tachometer Assy
1997-06-01 ~ ; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24825-3L000 |
— | ||
|
24855
|
24855
24825-40U00
Tachometer Assy
1994-02-01 ~ 1995-05-01; *FED.S.GXE.AT +*CAL.S.GXE.AT; F/GXEL |
24825-40U00 |
— | ||
|
24855
|
24855
24825-4L800
Tachometer Assy
1998-06-01 ~ ; 4*FED.S.GXE.AT +*FED.S.GLE +*CAL.S.GXE.AT +*CAL.S.GLE; F/TCS |
24825-4L800 |
— | ||
|
24855
|
24855
2486035F00 Socket & Bulb Assy1996-07-01 ~ 1998-06-01; FED.S +CAL.S; , |
2486035F00 |
from US $5.25 |
||
|
24860
|
24860
24830-1L100 Meter Assy-Fuel1997-06-01 ~ ; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24830-1L100 |
US $161.28 |
||
|
24860
|
24860
24830-40U00 Meter Assy-Fuel1994-02-01 ~ 1995-05-01; *FED.S.GXE.AT +*CAL.S.GXE.AT; F/GXEL |
24830-40U00 |
US $211.68 |
||
|
24860
|
24860
68191-51E00
NUT
1996-07-01 ~ ; FED.S +CAL.S; , |
68191-51E00 |
— | ||
| replacement | |||||
|
24860
|
24860
6819151E0A Nut1996-07-01 ~ ; FED.S +CAL.S; , |
6819151E0A |
US $1.39 |
||
|
24860
|
24860
248600M000 Socket & Bulb1994-02-01 ~ 1995-05-01; FED.S.(GXE+SE) +CAL.S.(GXE+SE); , |
248600M000 |
US $14.98 |
||
|
24860
|
24860
2486040F01 Socket & Bulb Assy1998-06-01 ~ ; >*FED.S.(GXE+SE).AT +*FED.S.GLE +*CAL.S.(GXE+SE).AT +*CAL.S.GLE; F/TCS |
2486040F01 |
from US $5.68 |
||
|
24860
|
24860
2626201P40 Socket & Bulb Assy1996-07-01 ~ 1998-06-01; FED.S +CAL.S; , |
2626201P40 |
from US $3.81 |
||
|
24860
|
24860
24860-04Y01 Socket & Bulb Assy1996-07-01 ~ 1998-06-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24860-04Y01 |
US $54 |
||
| replacement | |||||
|
24860
|
24860
24860-95R43 Led-Warning1996-07-01 ~ 1998-06-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24860-95R43 |
US $72.29 |
||
|
24860
|
24860
2486040F02 Socket & Bulb Assy1998-06-01 ~ ; FED.S +CAL.S; , |
2486040F02 |
US $5.68 |
||
|
24860B
|
24860B
68191-51E00
NUT
1996-07-01 ~ ; FED.S +CAL.S; , |
68191-51E00 |
— | ||
| replacement | |||||
|
24860B
|
24860B
6819151E0A Nut1996-07-01 ~ ; FED.S +CAL.S; , |
6819151E0A |
US $1.39 |
||
|
24869H
|
24869H
0145100581 SCREW1996-07-01 ~ ; FED.S +CAL.S; , |
0145100581 |
from US $1.67 |
||
|
24880
|
24880
24835-1L100 Meter Assy-Water Temperature1998-06-01 ~ ; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24835-1L100 |
US $105.98 |
||
|
24880
|
24880
24835-40U00 Meter Assy-Water Temperature1994-02-01 ~ 1995-05-01; *FED.S.GXE.AT +*CAL.S.GXE.AT; F/GXEL |
24835-40U00 |
US $138.96 |
||
|
25010AC
|
25010AC
0145100581 SCREW1996-07-01 ~ ; FED.S +CAL.S; , |
0145100581 |
from US $1.67 |
||
|
25020Q
|
25020Q
25020-40U00
Warning Assy-Instrument
1994-02-01 ~ 1998-06-01; *FED.S.GXE.AT +*CAL.S.GXE.AT; F/GXEL |
25020-40U00 |
— | ||
|
25030
|
25030
24814-3L000
Plate Assy-Printed Circuit
1997-06-01 ~ 1998-06-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24814-3L000 |
— | ||
|
25030
|
25030
24814-40U00
Plate Assy-Printed Circuit
1996-07-01 ~ 1997-06-01; FED.S +CAL.S; , |
24814-40U00 |
— | ||
|
25030
|
25030
0145100581 SCREW1996-07-01 ~ ; FED.S +CAL.S; , |
0145100581 |
from US $1.67 |
||
|
25030D
|
25030D
0145100581 SCREW1996-07-01 ~ ; FED.S +CAL.S; , |
0145100581 |
from US $1.67 |
||
|
25031
|
25031
24812-1L100 Housing-Meter Comb, Upper1997-06-01 ~ 1998-06-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24812-1L100 |
US $47.81 |
||
|
25031
|
25031
24812-40U00 Housing-Meter Comb, Upper1996-07-01 ~ 1997-06-01; FED.S +CAL.S; , |
24812-40U00 |
US $47.81 |
||
|
25031
|
25031
24811-1L100 Housing-Meter Comb, Lower1997-06-01 ~ 1998-06-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24811-1L100 |
US $36.45 |
||
|
25031
|
25031
24811-40U00 Housing-Meter Comb, Lower1996-07-01 ~ 1997-06-01; FED.S +CAL.S; , |
24811-40U00 |
US $41.04 |
||
|
25031M
|
25031M
24811-1L100 Housing-Meter Comb, Lower1997-06-01 ~ 1998-06-01; FED.S.(GXE+GLE) +CAL.S.(GXE+GLE); , |
24811-1L100 |
US $36.45 |
||
|
25031M
|
25031M
24811-40U00 Housing-Meter Comb, Lower1996-07-01 ~ 1997-06-01; FED.S +CAL.S; , |
24811-40U00 |
US $41.04 |
||
|
25038
|
25038
26350-89919 Buzzer Assy1996-07-01 ~ ; FED.S +CAL.S; , |
26350-89919 |
US $30.24 |
||
|
25820
|
25820
25820-40U00
Clock Assy-Digital
1996-07-01 ~ ; FED.S +CAL.S; , |
25820-40U00 |
— | ||
|
68435
|
68435
24880-3L000
Lens-warning lamp
1998-06-01 ~ ; FED.S +CAL.S; , |
24880-3L000 |
— | ||
|
68435
|
68435
24880-40U00
Lens-warning lamp
1996-07-01 ~ 1997-06-01; FED.S +CAL.S; , |
24880-40U00 |
— | ||
|
68435
|
68435
24885-3L000
Lens-warning lamp
1998-06-01 ~ ; FED.S +CAL.S; , |
24885-3L000 |
— | ||
|
68435
|
68435
24885-40U00
Lens-warning lamp
1996-07-01 ~ 1996-09-01; FED.S +CAL.S; , |
24885-40U00 |
— | ||
|
68435
|
68435
24885-40U60
Lens-warning lamp
1996-09-01 ~ 1997-06-01; FED.S +CAL.S; , |
24885-40U60 |
— | ||
|
68435
|
68435
24890-1L100 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ1998-06-01 ~ ; FED.S +CAL.S; , |
24890-1L100 |
US $21.17 |
||
|
68435
|
68435
24890-40U00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ1996-07-01 ~ 1997-06-01; FED.S +CAL.S; , |
24890-40U00 |
US $28.22 |
||
|
68435+A
|
68435+A
24885-3L000
Lens-warning lamp
1998-06-01 ~ ; FED.S +CAL.S; , |
24885-3L000 |
— | ||
|
68435+A
|
68435+A
24885-40U00
Lens-warning lamp
1996-07-01 ~ 1996-09-01; FED.S +CAL.S; , |
24885-40U00 |
— | ||
|
68435+A
|
68435+A
24885-40U60
Lens-warning lamp
1996-09-01 ~ 1997-06-01; FED.S +CAL.S; , |
24885-40U60 |
— | ||
|
68435+B
|
68435+B
24890-1L100 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ1998-06-01 ~ ; FED.S +CAL.S; , |
24890-1L100 |
US $21.17 |
||
|
68435+B
|
68435+B
24890-40U00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ1996-07-01 ~ 1997-06-01; FED.S +CAL.S; , |
24890-40U00 |
US $28.22 |
||
