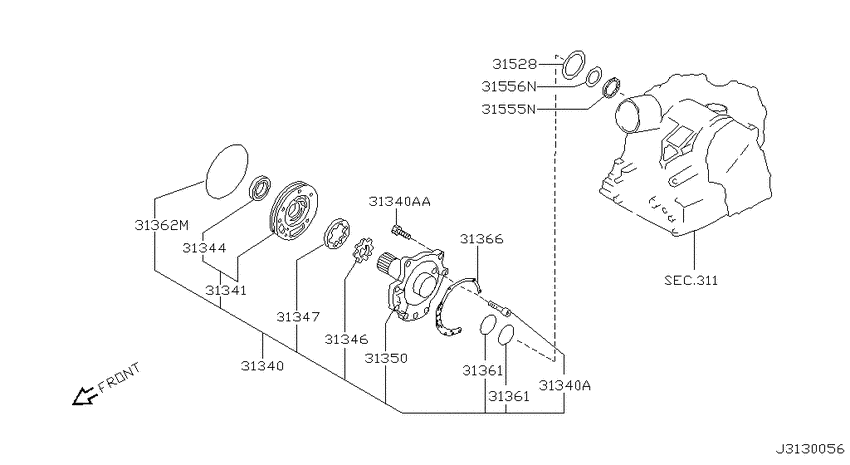

Oil pump (2003-01-01 ~ 2005-08-01; 4AT) Diagram Nissan MAXIMA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 4AT
- body
- 4S
- seat
- 5 SEAT
- trim lvl
- SL
- trim mtl
- LEATHER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31340
|
31340
31340-80X01 Pump Assy-Oil2003-01-01 ~ 2005-08-01; 4AT; , |
31340-80X01 |
US $502.68 |
||
|
31340
|
31340
31377-31X00 Bolt2003-01-01 ~ 2005-08-01; 4AT; NML |
31377-31X00 |
US $2.45 |
||
|
31340
|
31340
31377-31X07 Bolt2003-01-01 ~ 2005-08-01; 4AT; , |
31377-31X07 |
US $3.46 |
||
|
31340A
|
31340A
31377-31X00 Bolt2003-01-01 ~ 2005-08-01; 4AT; NML |
31377-31X00 |
US $2.45 |
||
|
31340A
|
31340A
31377-31X07 Bolt2003-01-01 ~ 2005-08-01; 4AT; , |
31377-31X07 |
US $3.46 |
||
|
31340AA
|
31340AA
31377-31X07 Bolt2003-01-01 ~ 2005-08-01; 4AT; , |
31377-31X07 |
US $3.46 |
||
|
31341
|
31341
31341-80X00 Housing Assy-Oil Pump2003-01-01 ~ 2005-08-01; 4AT; , |
31341-80X00 |
US $155.52 |
||
|
31344
|
31344
3137580X01 Seal-Oil Pump Housing2003-01-01 ~ 2005-08-01; 4AT; , |
3137580X01 |
from US $4.92 |
||
|
31346
|
31346
31346-80X00 Gear-Inner, Oil Pump2003-01-01 ~ 2005-08-01; 4AT; SELECT T=11.99-12.00 |
31346-80X00 |
US $90.58 |
||
|
31346
|
31346
31346-80X01 Gear-Inner, Oil Pump2003-01-01 ~ 2005-08-01; 4AT; SELECT T=11.98-11.99 |
31346-80X01 |
US $90.58 |
||
|
31346
|
31346
31346-80X02 Gear-Inner, Oil Pump2003-01-01 ~ 2005-08-01; 4AT; SELECT T=11.97-11.98 |
31346-80X02 |
US $90.58 |
||
|
31347
|
31347
31347-80X00 Gear-Outer, Oil Pump2003-01-01 ~ 2005-08-01; 4AT; SELECT T=11.99-12.00 |
31347-80X00 |
US $26.93 |
||
|
31347
|
31347
31347-80X01 Gear-Outer, Oil Pump2003-01-01 ~ 2005-08-01; 4AT; SELECT T=11.98-11.99 |
31347-80X01 |
US $26.93 |
||
|
31347
|
31347
31347-80X02 Gear-Outer, Oil Pump2003-01-01 ~ 2005-08-01; 4AT; SELECT T=11.97-11.98 |
31347-80X02 |
US $26.93 |
||
|
31350
|
31350
31350-80X04 Cover Assy-Oil Pump2003-01-01 ~ 2005-08-01; 4AT; , |
31350-80X04 |
US $226.08 |
||
| replacement | |||||
|
31350
|
31350
31350-80X08
Cover assy-oil pump
2003-01-01 ~ 2005-08-01; 4AT; , |
31350-80X08 |
— | ||
|
31361
|
31361
31525-80X08 Ring-Seal2003-01-01 ~ 2005-08-01; 4AT; NML |
31525-80X08 |
US $10.39 |
||
|
31361
|
31361
31525-80X08 Ring-Seal2003-01-01 ~ 2005-08-01; 4AT; NML |
31525-80X08 |
US $10.39 |
||
|
31362M
|
31362M
31526-80X00 Seal-O Ring2003-01-01 ~ 2005-08-01; 4AT; , |
31526-80X00 |
US $5.96 |
||
|
31366
|
31366
31366-80X01 Gasket-Oil Pump2003-01-01 ~ 2005-08-01; 4AT; , |
31366-80X01 |
US $9.65 |
||
|
31528
|
31528
31508-80X13 Washer-Thrust2003-01-01 ~ 2005-08-01; 4AT; SELECT T=0.80 |
31508-80X13 |
US $6.19 |
||
|
31528
|
31528
31508-80X14 Washer-Thrust2003-01-01 ~ 2005-08-01; 4AT; SELECT T=0.95 |
31508-80X14 |
US $2.45 |
||
|
31528
|
31528
31508-80X15 Washer-Thrust2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.10 |
31508-80X15 |
US $2.45 |
||
|
31528
|
31528
31508-80X16 Washer-Thrust2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.25 |
31508-80X16 |
US $2.45 |
||
|
31528
|
31528
31508-80X17 Washer-Thrust2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.40 |
31508-80X17 |
US $2.45 |
||
|
31528
|
31528
31508-80X18 Washer-Thrust2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.55 |
31508-80X18 |
US $2.45 |
||
|
31528
|
31528
31508-80X19 Washer-Thrust2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.70 |
31508-80X19 |
US $2.45 |
||
|
31528
|
31528
31508-80X20 Washer-Thrust2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.85 |
31508-80X20 |
US $2.45 |
||
|
31555N
|
31555N
31407-80X60 Bearing-Needle, Thrust2003-01-01 ~ 2005-08-01; 4AT; , |
31407-80X60 |
US $9.07 |
||
|
31556N
|
31556N
31435-80X00 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=0.8 |
31435-80X00 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X01 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.0 |
31435-80X01 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X02 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.2 |
31435-80X02 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X03 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.4 |
31435-80X03 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X04 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.6 |
31435-80X04 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X05 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.8 |
31435-80X05 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X06 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=2.0 |
31435-80X06 |
from US $5.33 |
||
|
31556N
|
31556N
31435-80X09 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=0.9 |
31435-80X09 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X10 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.1 |
31435-80X10 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X11 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.3 |
31435-80X11 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X12 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.5 |
31435-80X12 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X13 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.7 |
31435-80X13 |
US $5.33 |
||
|
31556N
|
31556N
31435-80X14 Race-Bearing2003-01-01 ~ 2005-08-01; 4AT; SELECT T=1.9 |
31435-80X14 |
US $5.33 |
||
