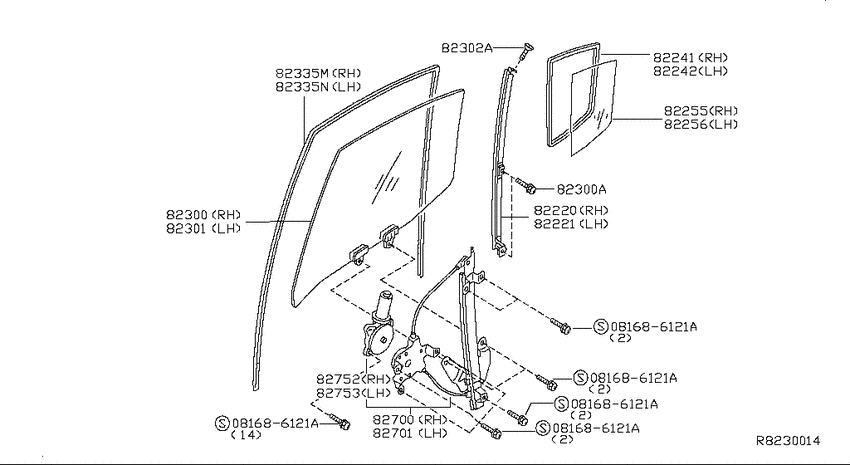

Rear door window & regulator (2006-06-01 ~ ; 4S) Diagram Nissan MAXIMA
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- CVT
- body
- 4S
- seat
- 5 SEAT
- trim lvl
- SE
- trim mtl
- STD SEAT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
82220
|
82220
82222-ZK00A
Sash assy-rear door,center rh
2006-06-01 ~ ; 4S; , |
82222-ZK00A |
— | ||
|
82221
|
82221
82223-ZK00A
Sash assy-rear door,center lh
2006-06-01 ~ ; 4S; , |
82223-ZK00A |
— | ||
|
82241
|
82241
82272-7Y000
Weatherstrip-rear corner,rh
2006-06-01 ~ ; 4S; , |
82272-7Y000 |
— | ||
|
82242
|
82242
82273-7Y000
Weatherstrip-rear corner,lh
2006-06-01 ~ ; 4S; , |
82273-7Y000 |
— | ||
|
82255
|
82255
82262-7Y000
Glass-rear door corner,rh
2006-06-01 ~ ; 4S; , |
82262-7Y000 |
— | ||
|
82256
|
82256
82263-7Y000
Glass-rear door corner,lh
2006-06-01 ~ ; 4S; , |
82263-7Y000 |
— | ||
|
82300
|
82300
82300-7Y000
Glass assy-rear door window,rh
2006-06-01 ~ ; 4S; , |
82300-7Y000 |
— | ||
|
82300
|
82300
01121N6011 Bolt2007-07-01 ~ ; 4S; , |
01121N6011 |
from US $0.72 |
||
|
82300
|
82300
01125-0023U
Bolt
2006-06-01 ~ 2007-07-01; 4S; , |
01125-0023U |
— | ||
|
82300A
|
82300A
01121N6011 Bolt2007-07-01 ~ ; 4S; , |
01121N6011 |
from US $0.72 |
||
|
82300A
|
82300A
01125-0023U
Bolt
2006-06-01 ~ 2007-07-01; 4S; , |
01125-0023U |
— | ||
|
82301
|
82301
82301-7Y000
Glass assy-rear door window,lh
2006-06-01 ~ ; 4S; , |
82301-7Y000 |
— | ||
|
82302A
|
82302A
01141N5041 Screw2006-06-01 ~ ; 4S; , |
01141N5041 |
US $1.73 |
||
|
82335M
|
82335M
82330-7Y000
Glass run-rear door window,rh
2006-06-01 ~ ; 4S; , |
82330-7Y000 |
— | ||
|
82335N
|
82335N
82331-7Y000
Glass run-rear door window,lh
2006-06-01 ~ ; 4S; , |
82331-7Y000 |
— | ||
|
82700
|
82700
82720-7Y000
Regulator assy-door window,rh
2006-06-01 ~ ; 4S; , |
82720-7Y000 |
— | ||
|
82701
|
82701
82721-7Y000
Regulator assy-door window,lh
2006-06-01 ~ ; 4S; , |
82721-7Y000 |
— | ||
|
82752
|
82752
82730-7Y000
Motor assy-regulator,rh
2006-06-01 ~ ; 4S.5; , |
82730-7Y000 |
— | ||
|
82753
|
82753
82731-7Y000
Motor assy-regulator,lh
2006-06-01 ~ ; 4S.5; , |
82731-7Y000 |
— |
