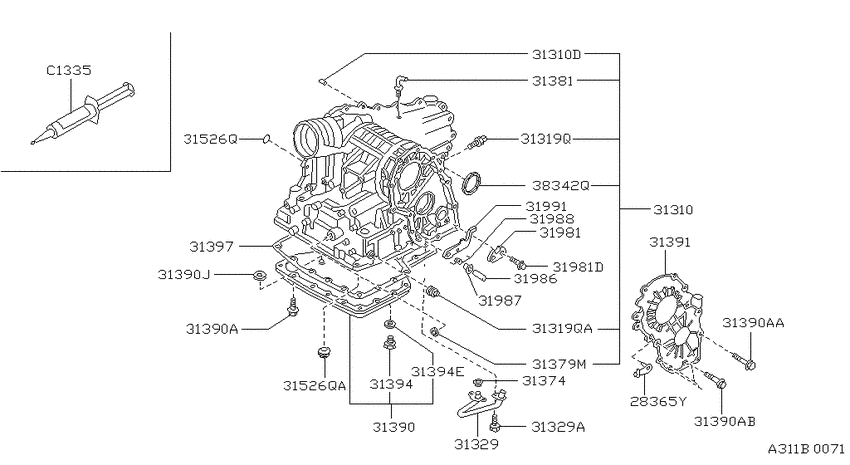

Torque converter,housing & case (1991-07-01 ~ ; CASE(RE4F04A/V); VE30DE.AT) Diagram Nissan MAXIMA
- Year
- 1991 - 2011
- Sales region
- U.S.A.
- Engine
- VE30DE
- transmission
- AT
- body
- FED.S
- trim lvl
- SE/BOSE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28365Y
|
28365Y
28365-96E00 TERMINAL-EARTH1991-07-01 ~ ; VE30DE.AT; , |
28365-96E00 |
US $3.46 |
||
|
31310
|
31310
31310-80X00 Case Assy-Automatic Transmission1991-07-01 ~ 1991-11-01; VE30DE.AT; , |
31310-80X00 |
US $549.41 |
||
|
31310
|
31310
31310-80X01 Case Assy-Automatic Transmission1991-07-01 ~ 1991-11-01; *VE30DE.AT; F/DIFF-NON SLIP F/HI SPD |
31310-80X01 |
US $549.41 |
||
| replacement | |||||
|
31310
|
31310
31310-80X08 Case Assy-Automatic Transmission1991-07-01 ~ 1991-11-01; *VE30DE.AT; F/DIFF-NON SLIP F/HI SPD |
31310-80X08 |
US $549.41 |
||
|
31310
|
31310
31310-80X03 Case Assy-Automatic Transmission1991-11-01 ~ ; VE30DE.AT; , |
31310-80X03 |
US $549.41 |
||
|
31310
|
31310
31310-80X04 Case Assy-Automatic Transmission1991-11-01 ~ 1992-07-01; *VE30DE.AT; F/DIFF-NON SLIP F/HI SPD |
31310-80X04 |
US $549.41 |
||
| replacement | |||||
|
31310
|
31310
31310-80X08 Case Assy-Automatic Transmission1991-11-01 ~ 1992-07-01; *VE30DE.AT; F/DIFF-NON SLIP F/HI SPD |
31310-80X08 |
US $549.41 |
||
|
31310
|
31310
32105-C6900 Pin1991-07-01 ~ ; VE30DE.AT; , |
32105-C6900 |
US $4.18 |
||
|
31310D
|
31310D
32105-C6900 Pin1991-07-01 ~ ; VE30DE.AT; , |
32105-C6900 |
US $4.18 |
||
|
31319Q
|
31319Q
31305-31X01 Plug-Thread1991-07-01 ~ ; VE30DE.AT; , |
31305-31X01 |
US $2.45 |
||
|
31319Q
|
31319Q
31305-31X00 Plug-Thread1991-07-01 ~ 1994-04-01; VE30DE.AT; , |
31305-31X00 |
US $1.73 |
||
|
31319Q
|
31319Q
33312-33G00 Plug-Thread1994-04-01 ~ ; VE30DE.AT; , |
33312-33G00 |
US $2.45 |
||
|
31319QA
|
31319QA
31305-31X00 Plug-Thread1991-07-01 ~ 1994-04-01; VE30DE.AT; , |
31305-31X00 |
US $1.73 |
||
|
31319QA
|
31319QA
33312-33G00 Plug-Thread1994-04-01 ~ ; VE30DE.AT; , |
33312-33G00 |
US $2.45 |
||
|
31329
|
31329
31329-80X00 Tube-Low & Reverse Brake1991-07-01 ~ ; VE30DE.AT; , |
31329-80X00 |
US $5.33 |
||
|
31329
|
31329
31377-80X04 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-80X04 |
US $1.73 |
||
|
31329A
|
31329A
31377-80X04 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-80X04 |
US $1.73 |
||
|
31374
|
31374
31374-80X00 Sleeve-Oil Distributor1991-07-01 ~ ; VE30DE.AT; , |
31374-80X00 |
US $4.18 |
||
|
31379M
|
31379M
3137531X01 Seal-Oil1991-07-01 ~ ; VE30DE.AT; , |
3137531X01 |
from US $2.36 |
||
|
31381
|
31381
38352G5100 Breather-Air1991-07-01 ~ ; VE30DE.AT; , |
38352G5100 |
US $4.18 |
||
|
31390
|
31390
31390-80X01 Pan Assy-Oil1991-07-01 ~ 1992-05-01; VE30DE.AT; , |
31390-80X01 |
US $26.06 |
||
|
31390
|
31390
31390-80X05 Pan Assy-Oil1992-05-01 ~ ; VE30DE.AT; , |
31390-80X05 |
US $26.06 |
||
|
31390
|
31390
31377-80X09 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-80X09 |
US $1.73 |
||
|
31390
|
31390
31377-31X07 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-31X07 |
US $3.46 |
||
|
31390
|
31390
31377-31X10 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-31X10 |
US $1.73 |
||
|
31390
|
31390
31379-01X01 Magnet1991-07-01 ~ ; VE30DE.AT; , |
31379-01X01 |
US $7.20 |
||
|
31390A
|
31390A
31377-80X09 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-80X09 |
US $1.73 |
||
|
31390A
|
31390A
31377-31X07 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-31X07 |
US $3.46 |
||
|
31390A
|
31390A
31377-31X10 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-31X10 |
US $1.73 |
||
|
31390AA
|
31390AA
31377-31X07 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-31X07 |
US $3.46 |
||
|
31390AB
|
31390AB
31377-31X10 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-31X10 |
US $1.73 |
||
|
31390J
|
31390J
31379-01X01 Magnet1991-07-01 ~ ; VE30DE.AT; , |
31379-01X01 |
US $7.20 |
||
|
31391
|
31391
31395-80X00 Cover-Side, Transmission Case1991-07-01 ~ 1992-05-01; VE30DE.AT; , |
31395-80X00 |
US $104.69 |
||
|
31391
|
31391
31395-80X01 Cover-Side, Transmission Case1992-05-01 ~ ; VE30DE.AT; , |
31395-80X01 |
US $104.69 |
||
|
31394
|
31394
3137731X06 Plug-Drain1991-07-01 ~ ; VE30DE.AT; , |
3137731X06 |
from US $4.13 |
||
|
31394
|
31394
1102601M02 Washer-Drain Plug1991-07-01 ~ ; VE30DE.AT; , |
1102601M02 |
from US $0.81 |
||
|
31394E
|
31394E
1102601M02 Washer-Drain Plug1991-07-01 ~ ; VE30DE.AT; , |
1102601M02 |
from US $0.81 |
||
|
31397
|
31397
3139780X01 Gasket-Oil Pan1991-07-01 ~ ; VE30DE.AT; , |
3139780X01 |
from US $22.91 |
||
|
31397
|
31397
31397-80X25 Gasket & Seal Kit-Auto Transmission1991-07-01 ~ ; VE30DE.AT; , |
31397-80X25 |
US $254.88 |
||
| replacement | |||||
|
31397
|
31397
31397-81X25
Gasket & seal kit-auto transmission
1991-07-01 ~ ; VE30DE.AT; , |
31397-81X25 |
— | ||
|
31397
|
31397
31397-80X26
Gasket & Seal Kit-Auto Transmission
1991-07-01 ~ 1992-07-01; *VE30DE.AT; F/DIFF-NON SLIP F/HI SPD |
31397-80X26 |
— | ||
| replacement | |||||
|
31397
|
31397
31397-80X86 Gasket & Seal Kit-Auto Transmission1991-07-01 ~ 1992-07-01; *VE30DE.AT; F/DIFF-NON SLIP F/HI SPD |
31397-80X86 |
US $254.88 |
||
|
31526Q
|
31526Q
3152631X07 Seal-O Ring1991-07-01 ~ ; VE30DE.AT; , |
3152631X07 |
US $2.45 |
||
|
31526Q
|
31526Q
3152831X06 Seal-O Ring1991-07-01 ~ ; VE30DE.AT; , |
3152831X06 |
US $2.36 |
||
|
31526QA
|
31526QA
3152831X06 Seal-O Ring1991-07-01 ~ ; VE30DE.AT; , |
3152831X06 |
US $2.36 |
||
|
31981
|
31981
31981-80X00 Support-Parking Actuator1991-07-01 ~ ; VE30DE.AT; , |
31981-80X00 |
US $37.58 |
||
|
31981
|
31981
31377-80X05 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-80X05 |
US $2.45 |
||
|
31981D
|
31981D
31377-80X05 Bolt1991-07-01 ~ ; VE30DE.AT; , |
31377-80X05 |
US $2.45 |
||
|
31986
|
31986
31986-80X00 Shaft-Parking Pawl1991-07-01 ~ ; VE30DE.AT; , |
31986-80X00 |
US $4.18 |
||
|
31987
|
31987
31437-41X00 Spacer-Parking Pawl1991-07-01 ~ ; VE30DE.AT; , |
31437-41X00 |
US $0.86 |
||
|
31988
|
31988
31988-80X00 Spring-Return Pawl1991-07-01 ~ ; VE30DE.AT; , |
31988-80X00 |
US $8.06 |
||
|
31991
|
31991
31991-80X00 Pawl-Parking1991-07-01 ~ 1995-12-01; VE30DE.AT; , |
31991-80X00 |
US $33.84 |
||
|
31991
|
31991
31991-80X01 Pawl-Parking1995-12-01 ~ 1996-04-01; VE30DE.AT; , |
31991-80X01 |
US $33.84 |
||
|
31991
|
31991
31991-80X02 Pawl-Parking1996-04-01 ~ ; VE30DE.AT; , |
31991-80X02 |
US $33.84 |
||
|
38342Q
|
38342Q
3834203E00 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE1991-07-01 ~ ; VE30DE.AT; , |
3834203E00 |
US $10.04 |
||
|
38342Q
|
38342Q
3834280X00 Seal-Oil, Differential Transmission Case1991-07-01 ~ 1992-07-01; *VE30DE.AT; F/DIFF-NON SLIP F/HI SPD |
3834280X00 |
from US $8.35 |
||
|
C1335
|
C1335
C133531X25 Sealant-Fluid1991-07-01 ~ 1992-07-01; VE30DE.AT; , |
C133531X25 |
US $30.64 |
||
