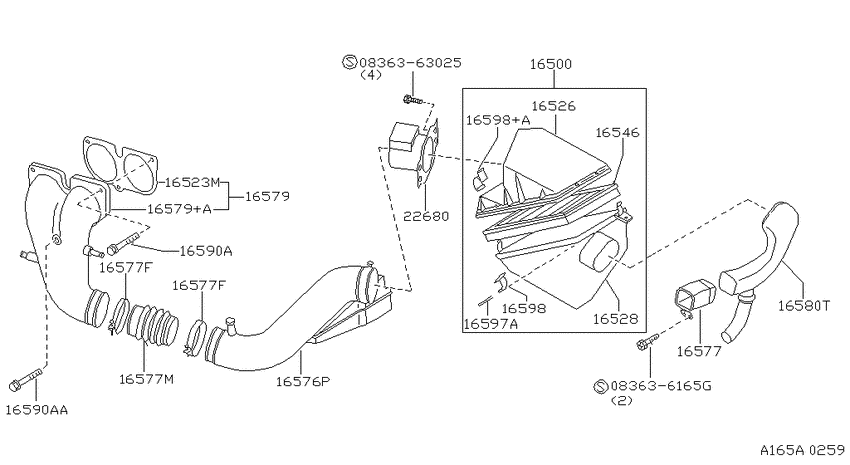

Air cleaner (1988-08-01 ~ 1991-07-01; VG30E) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- MT
- body
- FED.S
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
0836363025
|
0836363025
08363-63025
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-63025 |
— | ||
|
16500
|
16500
16500-85E00
AIR CLEANER
1988-08-01 ~ 1990-05-01; VG30E; , |
16500-85E00 |
— | ||
|
16500
|
16500
16500-85E01
AIR CLEANER
1990-05-01 ~ 1991-07-01; VG30E; , |
16500-85E01 |
— | ||
|
16523M
|
16523M
16175-15V00 Gasket1988-08-01 ~ 1990-02-01; VG30E; , |
16175-15V00 |
US $14.83 |
||
|
16523M
|
16523M
1617589E10 GASKET1990-02-01 ~ 1991-07-01; VG30E; , |
1617589E10 |
US $22.46 |
||
|
16526
|
16526
16526-85E00
AIR CLEANER HOUSING COVER
1988-08-01 ~ 1990-09-01; VG30E; , |
16526-85E00 |
— | ||
|
16526
|
16526
16526-85E01
AIR CLEANER HOUSING COVER
1990-09-01 ~ 1991-07-01; VG30E; , |
16526-85E01 |
— | ||
|
16528
|
16528
16528-85E00 BODY ASSY-AIR CLEANER1988-08-01 ~ 1991-07-01; VG30E; , |
16528-85E00 |
US $159.84 |
||
|
16546
|
16546
16546-V0100 Air Cleaner Element1988-08-01 ~ 1991-07-01; VG30E; , |
16546-V0100 |
from US $24.74 |
||
|
16576P
|
16576P
16576-85E00 DUCT ASSY-AIR1988-08-01 ~ 1991-07-01; VG30E; , |
16576-85E00 |
US $171.36 |
||
|
16577
|
16577
16554-85E02
AIR DUCT
1988-08-01 ~ 1991-07-01; VG30E; , |
16554-85E02 |
— | ||
|
16577
|
16577
14464-85E00 CLAMP-HOSE1988-08-01 ~ 1991-07-01; VG30E; , |
14464-85E00 |
US $6.05 |
||
| replacement | |||||
|
16577
|
16577
14464-45V12 Clamp-Hose1988-08-01 ~ 1991-07-01; VG30E; , |
14464-45V12 |
US $7.49 |
||
|
16577
|
16577
16577-10V00 Hose Assy-Air Duct1988-08-01 ~ 1991-07-01; VG30E; , |
16577-10V00 |
US $111.89 |
||
|
16577F
|
16577F
14464-85E00 CLAMP-HOSE1988-08-01 ~ 1991-07-01; VG30E; , |
14464-85E00 |
US $6.05 |
||
| replacement | |||||
|
16577F
|
16577F
14464-45V12 Clamp-Hose1988-08-01 ~ 1991-07-01; VG30E; , |
14464-45V12 |
US $7.49 |
||
|
16577F
|
16577F
14464-85E00 CLAMP-HOSE1988-08-01 ~ 1991-07-01; VG30E; , |
14464-85E00 |
US $6.05 |
||
| replacement | |||||
|
16577F
|
16577F
14464-45V12 Clamp-Hose1988-08-01 ~ 1991-07-01; VG30E; , |
14464-45V12 |
US $7.49 |
||
|
16577M
|
16577M
16577-10V00 Hose Assy-Air Duct1988-08-01 ~ 1991-07-01; VG30E; , |
16577-10V00 |
US $111.89 |
||
|
16579
|
16579
16579-85E00 PIPE-BLOW BY1988-08-01 ~ 1991-07-01; VG30E; , |
16579-85E00 |
US $164.16 |
||
|
16579
|
16579
16579-85E10 PIPE-BLOW BY1988-08-01 ~ 1991-07-01; VG30E; , |
16579-85E10 |
US $164.16 |
||
|
16579+A
|
16579+A
16579-85E10 PIPE-BLOW BY1988-08-01 ~ 1991-07-01; VG30E; , |
16579-85E10 |
US $164.16 |
||
|
16580T
|
16580T
16585-85E00 RESONATOR ASSY1988-08-01 ~ 1991-07-01; VG30E; , |
16585-85E00 |
US $129.02 |
||
|
16590A
|
16590A
01121-03861 BOLT1988-08-01 ~ 1991-07-01; VG30E; , |
01121-03861 |
US $9.36 |
||
|
16590A
|
16590A
01121-03851 BOLT1988-08-01 ~ 1991-07-01; VG30E; , |
01121-03851 |
US $9.50 |
||
|
16590AA
|
16590AA
01121-03851 BOLT1988-08-01 ~ 1991-07-01; VG30E; , |
01121-03851 |
US $9.50 |
||
|
16597A
|
16597A
1653585E00 PIN1988-08-01 ~ 1991-07-01; VG30E; , |
1653585E00 |
US $1.44 |
||
|
16598
|
16598
16598-W1500 Clip1988-08-01 ~ 1989-07-01; VG30E; , |
16598-W1500 |
US $5.04 |
||
| replacement | |||||
|
16598
|
16598
16598-W1501
Clip
1988-08-01 ~ 1989-07-01; VG30E; , |
16598-W1501 |
— | ||
|
16598
|
16598
16598-97E00 CLIP1988-08-01 ~ 1991-07-01; VG30E; , |
16598-97E00 |
US $7.20 |
||
|
16598+A
|
16598+A
16598-97E00 CLIP1988-08-01 ~ 1991-07-01; VG30E; , |
16598-97E00 |
US $7.20 |
||
|
22680
|
22680
2268016V00 Mass Air Flow1988-08-01 ~ 1991-07-01; VG30E; W/CAT |
2268016V00 |
US $627.29 |
||
