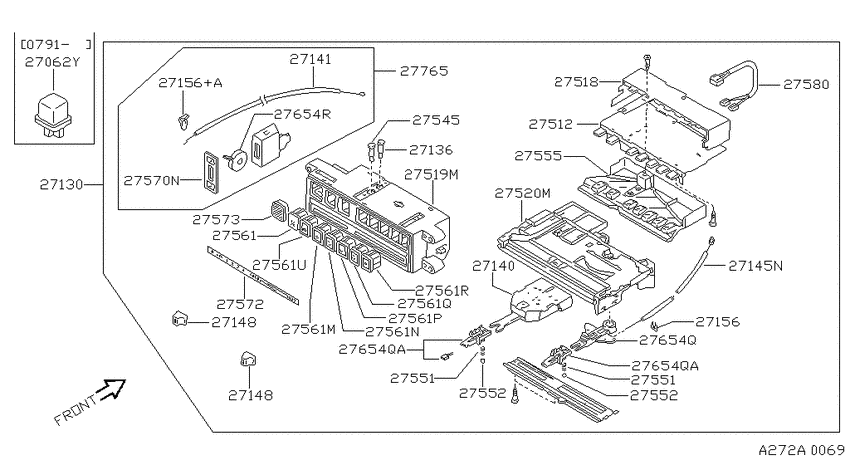

Control unit (1988-08-01 ~ 1991-07-01; MANUAL AIR CON; FED.S +CAL.S) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- MT
- body
- FED.S
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27130
|
27130
27500-85E00
CONTROLLER ASSY-AIR CONDITINER
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27500-85E00 |
— | ||
|
27136
|
27136
2762555S60 Bulb Assy-Control1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
2762555S60 |
from US $12.89 |
||
|
27140
|
27140
2766055S60 Switch-Fan1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
2766055S60 |
US $32.54 |
||
|
27141
|
27141
27543-85E00
CABLE-CONTROL,VENTILATION DOOR
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27543-85E00 |
— | ||
|
27145N
|
27145N
27542-85E00
CABLE-TEMPERATURE CONTROL
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27542-85E00 |
— | ||
|
27148
|
27148
27560-55S60 Knob-Control1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27560-55S60 |
US $13.50 |
||
|
27148
|
27148
27560-55S60 Knob-Control1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27560-55S60 |
US $13.50 |
||
|
27156
|
27156
27550-51E00 CLAMP-CABLE1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27550-51E00 |
US $1.83 |
||
|
27156
|
27156
27156-S0100 Clamp-Cable1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27156-S0100 |
US $0.98 |
||
|
27156
|
27156
27156-40F00
Lever-Air Mix Door
1990-09-01 ~ 1991-07-01; FED.S +CAL.S; , |
27156-40F00 |
— | ||
|
27156
|
27156
27156-S0100 Clamp-Cable1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27156-S0100 |
US $0.98 |
||
|
27156+A
|
27156+A
27156-S0100 Clamp-Cable1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27156-S0100 |
US $0.98 |
||
|
27512
|
27512
27512-40F00
Amplifier-Control
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27512-40F00 |
— | ||
|
27518
|
27518
27518-40F00 Case-Control1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27518-40F00 |
US $4.32 |
||
|
27519M
|
27519M
27519-85E00 CASE-CONTROL1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27519-85E00 |
US $23.33 |
||
|
27520M
|
27520M
27520-85E00 BASE-CONTROL1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27520-85E00 |
US $12.38 |
||
|
27545
|
27545
2754553E00 BULB ASSY-CONTROL1989-07-01 ~ 1991-07-01; FED.S +CAL.S; , |
2754553E00 |
US $14.76 |
||
|
27551
|
27551
27551-53E00 SPRING1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27551-53E00 |
US $1.30 |
||
|
27551
|
27551
27551-53E00 SPRING1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27551-53E00 |
US $1.30 |
||
|
27552
|
27552
2755251E00 BALL1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
2755251E00 |
US $1.01 |
||
|
27552
|
27552
2755251E00 BALL1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
2755251E00 |
US $1.01 |
||
|
27555
|
27555
27555-40F00
Lens-Heater Controller
1988-07-01 ~ 1991-07-01; FED.S +CAL.S; , |
27555-40F00 |
— | ||
|
27561
|
27561
27568-85E00
BUTTON-AIR CONDITIONER
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27568-85E00 |
— | ||
|
27561
|
27561
27562-85E00
BUTTON-VENTILATOR
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27562-85E00 |
— | ||
|
27561
|
27561
27563-85E00
BUTTON-BI LEVEL
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27563-85E00 |
— | ||
|
27561
|
27561
27564-85E00
BUTTON-FOOT
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27564-85E00 |
— | ||
|
27561
|
27561
27565-85E00
BUTTON-DEFROSTER FOOT
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27565-85E00 |
— | ||
|
27561
|
27561
27566-85E00
BUTTON-DEFROSTER
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27566-85E00 |
— | ||
|
27561
|
27561
27567-85E00
BUTTON-RECIRCULATION
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27567-85E00 |
— | ||
|
27561M
|
27561M
27562-85E00
BUTTON-VENTILATOR
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27562-85E00 |
— | ||
|
27561N
|
27561N
27563-85E00
BUTTON-BI LEVEL
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27563-85E00 |
— | ||
|
27561P
|
27561P
27564-85E00
BUTTON-FOOT
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27564-85E00 |
— | ||
|
27561Q
|
27561Q
27565-85E00
BUTTON-DEFROSTER FOOT
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27565-85E00 |
— | ||
|
27561R
|
27561R
27566-85E00
BUTTON-DEFROSTER
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27566-85E00 |
— | ||
|
27561U
|
27561U
27567-85E00
BUTTON-RECIRCULATION
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27567-85E00 |
— | ||
|
27570N
|
27570N
27573-85E00
FINISHER ASSY-CONTROLLER
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27573-85E00 |
— | ||
|
27572
|
27572
27572-85E00
PANEL-FINISHER
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27572-85E00 |
— | ||
|
27573
|
27573
27573-55S60 Grille-Sensor1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27573-55S60 |
US $1.30 |
||
|
27580
|
27580
27580-85E00
HARNESS-REAR AIR CONDITIONER CONTROLLER
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27580-85E00 |
— | ||
|
27654Q
|
27654Q
27527-55S60 Lever-Temp Control1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27527-55S60 |
US $6.47 |
||
|
27654Q
|
27654Q
27527-53E00 LEVER-CONTROL1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27527-53E00 |
US $13.68 |
||
|
27654QA
|
27654QA
27527-53E00 LEVER-CONTROL1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27527-53E00 |
US $13.68 |
||
|
27654QA
|
27654QA
27527-53E00 LEVER-CONTROL1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27527-53E00 |
US $13.68 |
||
|
27654R
|
27654R
27528-85E00
LEVER-CONTROL
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27528-85E00 |
— | ||
|
27765
|
27765
27513-85E00
CONTROLLER ASSY
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
27513-85E00 |
— |
