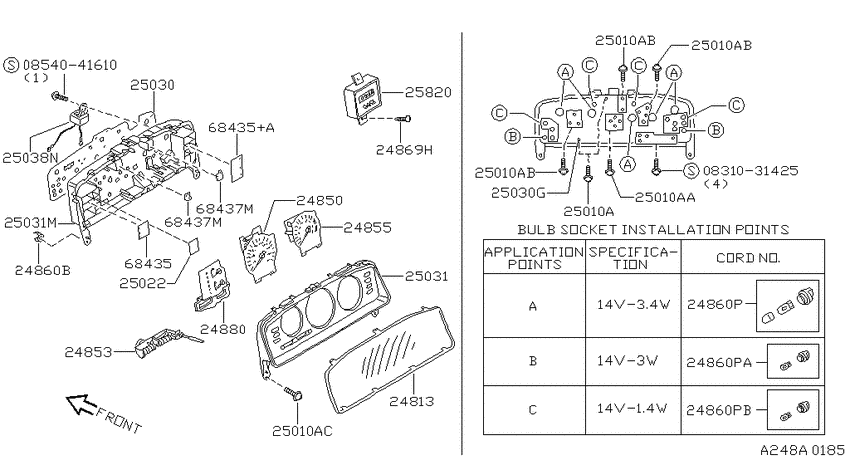

Instrument meter & gauge (1988-08-01 ~ 1991-07-01; ANALDG; FED.S +CAL.S) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- MT
- body
- FED.S
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831031425
|
0831031425
08310-31425
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-31425 |
— | ||
|
0854041610
|
0854041610
0854041610 SCREW |
0854041610 |
US $1.73 |
||
|
24813
|
24813
24813-85E00
COVER-LID FOR SPEEDOMETER
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24813-85E00 |
— | ||
|
24850
|
24850
24820-85E00
SPEEDOMETER ASSY
1989-07-01 ~ 1991-07-01; (*FED.S.(SE+SE/BOSE) +*CAL.S.(SE+SE/BOSE); 0F/GREEN ILLUMINATION F/SPD MTR-MILE,ROUND W/TRIP |
24820-85E00 |
— | ||
|
24850
|
24850
24820-86E00
SPEEDOMETER ASSY
1989-07-01 ~ 1991-07-01; &FED.S.(SE+SE/BOSE) +CAL.S.(SE+SE/BOSE); F/WHITE ILLUMINATION |
24820-86E00 |
— | ||
|
24853
|
24853
24875-85E00
ODOMETER & TRIP METER ASSY
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24875-85E00 |
— | ||
|
24855
|
24855
24825-85E00 TACHOMETER ASSY1989-07-01 ~ 1991-07-01; (*FED.S.(SE+SE/BOSE) +*CAL.S.(SE+SE/BOSE); F/SPD MTR-MILE,ROUND W/TRIP |
24825-85E00 |
US $747.65 |
||
|
24855
|
24855
24825-86E00
TACHOMETER ASSY
1990-09-01 ~ 1991-07-01; &FED.S.(SE+SE/BOSE) +CAL.S.(SE+SE/BOSE); , |
24825-86E00 |
— | ||
|
24860B
|
24860B
68191-51E00
NUT
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
68191-51E00 |
— | ||
| replacement | |||||
|
24860B
|
24860B
6819151E0A Nut1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
6819151E0A |
US $1.39 |
||
|
24860P
|
24860P
24860-18V10
Socket & Bulb Assy
1989-07-01 ~ 1991-07-01; (*FED.S.(SE+SE/BOSE) +*CAL.S.(SE+SE/BOSE); F/SPD MTR-MILE,ROUND W/TRIP |
24860-18V10 |
— | ||
|
24860P
|
24860P
2486035F00 Socket & Bulb Assy1988-08-01 ~ 1989-07-01; &FED.S.(SE+SE/BOSE) +CAL.S.(SE+SE/BOSE); 14V-3.4W F/MONO TONE METER |
2486035F00 |
from US $5.25 |
||
|
24860P
|
24860P
24860-87E06
SOCKET & BULB ASSY
1989-07-01 ~ 1991-07-01; &FED.S.(SE+SE/BOSE) +CAL.S.(SE+SE/BOSE); , |
24860-87E06 |
— | ||
|
24860P
|
24860P
2486071L00 Socket & Bulb Assy1990-09-01 ~ 1991-07-01; FED.S +CAL.S; , |
2486071L00 |
US $2.99 |
||
|
24860P
|
24860P
2486040F01 Socket & Bulb Assy1990-09-01 ~ 1991-07-01; FED.S +CAL.S; , |
2486040F01 |
from US $5.68 |
||
|
24860PA
|
24860PA
2486071L00 Socket & Bulb Assy1990-09-01 ~ 1991-07-01; FED.S +CAL.S; , |
2486071L00 |
US $2.99 |
||
|
24860PB
|
24860PB
2486040F01 Socket & Bulb Assy1990-09-01 ~ 1991-07-01; FED.S +CAL.S; , |
2486040F01 |
from US $5.68 |
||
|
24869H
|
24869H
0145100581 SCREW1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
0145100581 |
from US $0.80 |
||
|
24880
|
24880
24835-85E00
METER ASSY-WATER TEMPERATURE
1989-07-01 ~ 1991-07-01; (*FED.S.(SE+SE/BOSE) +*CAL.S.(SE+SE/BOSE); F/SPD MTR-MILE,ROUND W/TRIP |
24835-85E00 |
— | ||
|
24880
|
24880
24835-86E00
METER ASSY-WATER TEMPERATURE
1990-09-01 ~ 1991-07-01; &FED.S.(SE+SE/BOSE) +CAL.S.(SE+SE/BOSE); , |
24835-86E00 |
— | ||
|
25010A
|
25010A
2487209B01 Bolt1990-09-01 ~ 1991-07-01; FED.S +CAL.S; , |
2487209B01 |
US $3.31 |
||
|
25010A
|
25010A
24869-13V00 Bolt1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24869-13V00 |
US $3.31 |
||
|
25010A
|
25010A
24869-04J00 Screw1988-08-01 ~ 1989-07-01; FED.S +CAL.S; , |
24869-04J00 |
US $3.62 |
||
|
25010A
|
25010A
0145100581 SCREW1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
0145100581 |
from US $0.80 |
||
|
25010AA
|
25010AA
24869-13V00 Bolt1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24869-13V00 |
US $3.31 |
||
|
25010AB
|
25010AB
24869-04J00 Screw1988-08-01 ~ 1989-07-01; FED.S +CAL.S; , |
24869-04J00 |
US $3.62 |
||
|
25010AB
|
25010AB
24869-04J00 Screw1988-08-01 ~ 1989-07-01; FED.S +CAL.S; , |
24869-04J00 |
US $3.62 |
||
|
25010AB
|
25010AB
24869-04J00 Screw1988-08-01 ~ 1989-07-01; FED.S +CAL.S; , |
24869-04J00 |
US $3.62 |
||
|
25010AC
|
25010AC
0145100581 SCREW1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
0145100581 |
from US $0.80 |
||
|
25030
|
25030
24814-85E00 PLATE ASSY-PRINTED CIRCUIT1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24814-85E00 |
US $62.35 |
||
|
25031
|
25031
24812-85E00 HOUSING-METER COMB,UPPER1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24812-85E00 |
US $55.87 |
||
|
25031
|
25031
24811-85E00 HOUSING-METER COMB,LOWER1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24811-85E00 |
US $43.63 |
||
|
25031M
|
25031M
24811-85E00 HOUSING-METER COMB,LOWER1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24811-85E00 |
US $43.63 |
||
|
25038N
|
25038N
25065-32R00 Chime Assy-Warning1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
25065-32R00 |
US $46.66 |
||
|
25820
|
25820
25820-85E00 CLOCK ASSY-DIGITAL1988-08-01 ~ 1989-07-01; FED.S +CAL.S; , |
25820-85E00 |
US $326.25 |
||
|
25820
|
25820
2582085E01 CLOCK ASSY-DIGITAL1989-07-01 ~ 1991-07-01; FED.S +CAL.S; , |
2582085E01 |
US $230.40 |
||
|
68435
|
68435
24880-85E00
Lens-warning lamp
1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24880-85E00 |
— | ||
|
68435
|
68435
24880-86E01 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ1988-08-01 ~ 1990-09-01; :*FED.S.SE +*FED.S.SE/BOSE.MT +*CAL.S.SE +*CAL.S.SE/BOSE.MT; F/SPD MTR-MILE,ROUND W/TRIP |
24880-86E01 |
US $12.10 |
||
|
68435
|
68435
24885-86E11
Lens-warning lamp
1988-08-01 ~ 1991-07-01; 6FED.S.SE +FED.S.SE/BOSE.MT +CAL.S.SE +CAL.S.SE/BOSE.MT; , |
24885-86E11 |
— | ||
|
68435+A
|
68435+A
24885-86E11
Lens-warning lamp
1988-08-01 ~ 1991-07-01; 6FED.S.SE +FED.S.SE/BOSE.MT +CAL.S.SE +CAL.S.SE/BOSE.MT; , |
24885-86E11 |
— | ||
|
68437M
|
68437M
24816-85E00 LENS-WARNING TURN SIGNAL1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24816-85E00 |
US $10.22 |
||
|
68437M
|
68437M
24816-85E00 LENS-WARNING TURN SIGNAL1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24816-85E00 |
US $10.22 |
||
