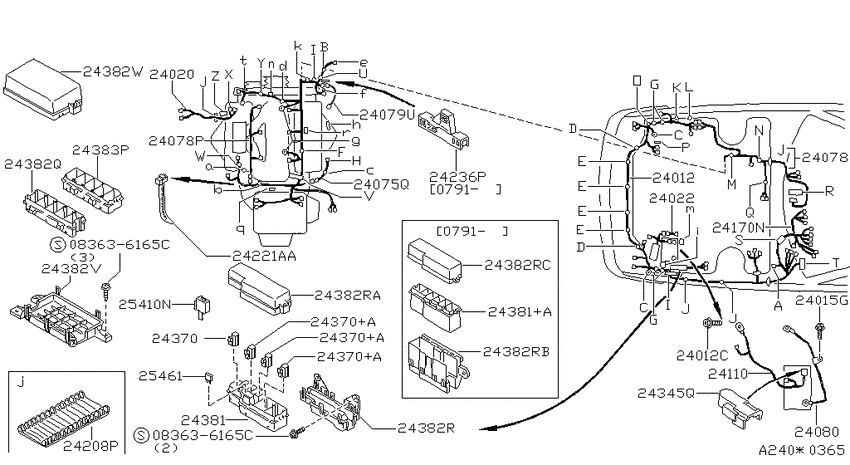

Wiring (1988-08-01 ~ 1991-07-01; ENGINE ROOM; FED.S +CAL.S) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- MT
- body
- FED.S
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636165C
|
083636165C
08363-6165C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6165C |
— | ||
| replacement | |||||
|
083636165C
|
083636165C
08360-6165C ｽｸﾘﾕ-,ﾏｼﾝ |
08360-6165C |
US $2.36 |
||
|
083636165C
|
083636165C
08363-6165C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6165C |
— | ||
| replacement | |||||
|
083636165C
|
083636165C
08360-6165C ｽｸﾘﾕ-,ﾏｼﾝ |
08360-6165C |
US $2.36 |
||
|
24012
|
24012
24012-85E00
HARNESS-ENGINE ROOM
1988-08-01 ~ 1991-07-01; 6FED.S.SE +FED.S.SE/BOSE.MT +CAL.S.SE +CAL.S.SE/BOSE.MT; , |
24012-85E00 |
— | ||
| replacement | |||||
|
24012
|
24012
B4012-85E01
Harness assy-engine room
1988-08-01 ~ 1991-07-01; 6FED.S.SE +FED.S.SE/BOSE.MT +CAL.S.SE +CAL.S.SE/BOSE.MT; , |
B4012-85E01 |
— | ||
|
24012
|
24012
0145600411 SCREW1990-10-01 ~ 1991-07-01; FED.S +CAL.S; , |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
0145600411 SCREW1990-10-01 ~ 1991-07-01; FED.S +CAL.S; , |
0145600411 |
US $1.67 |
||
|
24015G
|
24015G
0145600031 SCREW1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
0145600031 |
from US $1.11 |
||
|
24020
|
24020
24076-85E01 HARNESS ASSY-ALTERNATOR1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24076-85E01 |
US $118.08 |
||
|
24022
|
24022
24022F6100 Link-Fusible1990-09-01 ~ 1991-07-01; FED.S +CAL.S; , |
24022F6100 |
US $40.76 |
||
|
24075Q
|
24075Q
24075-85E00 HARNESS-ENGINE,SUB1988-08-01 ~ 1991-07-01; FED.S +CAL.S; OIL PRESSURE SUB |
24075-85E00 |
US $205.92 |
||
|
24078
|
24078
24011-85E00
HARNESS-EGI
1988-08-01 ~ 1989-07-01; (FED+CAL).S.MT; , |
24011-85E00 |
— | ||
|
24078
|
24078
24011-85E10
HARNESS-EGI
1989-07-01 ~ 1991-07-01; 6FED.S.SE +FED.S.SE/BOSE.MT +CAL.S.SE +CAL.S.SE/BOSE.MT; , |
24011-85E10 |
— | ||
|
24078
|
24078
B4111-U7600 Spring-Harness, Egi1988-08-01 ~ 1991-07-01; S; F/2P |
B4111-U7600 |
US $3.32 |
||
|
24078
|
24078
B4111-U7601 Spring-Harness, Egi1988-08-01 ~ 1991-07-01; S; F/7P |
B4111-U7601 |
US $2.45 |
||
|
24078
|
24078
B4111-U7602 Spring-Harness, Egi1988-08-01 ~ 1991-07-01; S; F/3P |
B4111-U7602 |
from US $3.31 |
||
|
24078
|
24078
B4111-U7603 Spring-Harness, Egi1988-08-01 ~ 1991-07-01; S; F/6P |
B4111-U7603 |
US $5.47 |
||
|
24078
|
24078
B4111-U7604 Spring-Harness, Egi1988-08-01 ~ 1991-07-01; S; F/4P |
B4111-U7604 |
US $4.46 |
||
|
24078
|
24078
24078-85E01 HARNESS-ENGINE CONTROL1990-09-01 ~ 1991-07-01; FED.S +CAL.S; F/INJECTOR NO.2.4.6 |
24078-85E01 |
US $103.10 |
||
|
24078P
|
24078P
24078-85E01 HARNESS-ENGINE CONTROL1990-09-01 ~ 1991-07-01; FED.S +CAL.S; F/INJECTOR NO.2.4.6 |
24078-85E01 |
US $103.10 |
||
|
24079U
|
24079U
24079-85E00 HARNESS ASSY-EGI SUB1988-08-01 ~ 1991-07-01; FED.S +CAL.S; F/KNOCK SENSOR |
24079-85E00 |
US $67.68 |
||
|
24080
|
24080
24080-85E00 CABLE ASSY-BATTERY EARTH1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24080-85E00 |
US $103.10 |
||
|
24110
|
24110
24110-85E00 CABLE ASSY-BATTERY TO STARTER MOTOR1988-08-01 ~ 1989-10-01; FED.S +CAL.S; , |
24110-85E00 |
US $159.84 |
||
|
24110
|
24110
24110-85E01 CABLE ASSY-BATTERY TO STARTER MOTOR1989-10-01 ~ 1991-07-01; FED.S +CAL.S; , |
24110-85E01 |
US $159.84 |
||
|
24208P
|
24208P
24208-89900 Guide-Clip1989-09-01 ~ 1991-07-01; FED.S +CAL.S; , |
24208-89900 |
US $4.18 |
||
|
24370
|
24370
24370-89960 Conn Assy-Fusible Link1988-08-01 ~ 1991-07-01; FED.S +CAL.S; RED(45A) |
24370-89960 |
US $12.20 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link1988-08-01 ~ 1991-07-01; FED.S +CAL.S; BROWN(25A) |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link1988-08-01 ~ 1991-07-01; FED.S +CAL.S; GREEN(30A) |
2437089905 |
from US $12.77 |
||
|
24370+A
|
24370+A
2437089900 Connector Assy-Fusible Link1988-08-01 ~ 1991-07-01; FED.S +CAL.S; BROWN(25A) |
2437089900 |
US $10.80 |
||
|
24370+A
|
24370+A
2437089905 Connector Assy-Fusible Link1988-08-01 ~ 1991-07-01; FED.S +CAL.S; GREEN(30A) |
2437089905 |
from US $12.77 |
||
|
24370+A
|
24370+A
2437089900 Connector Assy-Fusible Link1988-08-01 ~ 1991-07-01; FED.S +CAL.S; BROWN(25A) |
2437089900 |
US $10.80 |
||
|
24370+A
|
24370+A
2437089905 Connector Assy-Fusible Link1988-08-01 ~ 1991-07-01; FED.S +CAL.S; GREEN(30A) |
2437089905 |
from US $12.77 |
||
|
24370+A
|
24370+A
2437089900 Connector Assy-Fusible Link1988-08-01 ~ 1991-07-01; FED.S +CAL.S; BROWN(25A) |
2437089900 |
US $10.80 |
||
|
24370+A
|
24370+A
2437089905 Connector Assy-Fusible Link1988-08-01 ~ 1991-07-01; FED.S +CAL.S; GREEN(30A) |
2437089905 |
from US $12.77 |
||
|
24381
|
24381
24381-51E00 HOUSING-FUSIBLE LINK HOLDER1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24381-51E00 |
US $11.38 |
||
|
24382Q
|
24382Q
2438351E00 HOUSING-RELAY BOX1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
2438351E00 |
from US $13.14 |
||
|
24382R
|
24382R
24382-51E15 COVER-FUSIBLE LINK HOLDER1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24382-51E15 |
US $19.15 |
||
|
24382R
|
24382R
24382-85E05 COVER-FUSIBLE LINK HOLDER1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24382-85E05 |
US $27.65 |
||
|
24382RA
|
24382RA
24382-85E05 COVER-FUSIBLE LINK HOLDER1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24382-85E05 |
US $27.65 |
||
|
24382V
|
24382V
24382-85E10 COVER-RELAY BOX1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24382-85E10 |
US $16.13 |
||
|
24382W
|
24382W
24382-85E00 COVER-RELAY BOX1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24382-85E00 |
US $12.82 |
||
|
24383P
|
24383P
2438351E00 HOUSING-RELAY BOX1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
2438351E00 |
from US $13.14 |
||
|
25410N
|
25410N
24321-V0300 Block Assy-Fuse1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
24321-V0300 |
US $0.86 |
||
|
25461
|
25461
0894121000 FUSE-10A1988-08-01 ~ 1991-07-01; FED.S +CAL.S; , |
0894121000 |
US $0.59 |
||
