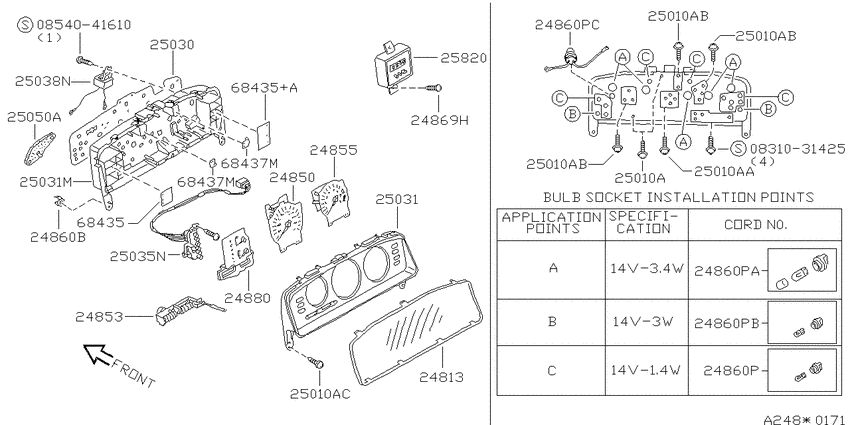

meter & gauge (1988-10-01 ~ 1991-08-01; S) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831031425
|
0831031425
08310-31425
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-31425 |
— | ||
|
0854041610
|
0854041610
0854041610 SCREW |
0854041610 |
US $1.73 |
||
|
24813
|
24813
24813-85E00
COVER-LID FOR SPEEDOMETER
8810--01 ~ 9108--01; S |
24813-85E00 |
— | ||
|
24850
|
24850
2482088E00 SPEEDOMETER ASSY8810--01 ~ 9108--01; S |
2482088E00 |
US $512.59 |
||
|
24853
|
24853
24875-87E00 ODO & TRIPMETER ASSY8810--01 ~ 9108--01; S |
24875-87E00 |
US $149.76 |
||
|
24855
|
24855
24825-85E00 TACHOMETER ASSY8810--01 ~ 9108--01; S |
24825-85E00 |
US $747.65 |
||
|
24860B
|
24860B
68191-51E00
NUT
8810--01 ~ 9108--01; S |
68191-51E00 |
— | ||
| replacement | |||||
|
24860B
|
24860B
6819151E0A Nut8810--01 ~ 9108--01; S |
6819151E0A |
US $1.39 |
||
|
24860P
|
24860P
2486040F01 Socket & Bulb Assy8810--01 ~ 9108--01; *S; 14V-1,4W ASCD ｼﾖｳ |
2486040F01 |
from US $5.68 |
||
|
24860P
|
24860P
2486086E10 SOCKET & BULB ASSY8810--01 ~ 9108--01; S; 14V-1.4W |
2486086E10 |
US $5.90 |
||
|
24860P
|
24860P
24860-10V00 Socket Assy-Bulb8810--01 ~ 9108--01; S; 14V-3.4W |
24860-10V00 |
US $7.92 |
||
|
24860P
|
24860P
2486071L00 Socket & Bulb Assy8810--01 ~ 9108--01; S; 14V-3W |
2486071L00 |
US $2.99 |
||
|
24860PA
|
24860PA
24860-10V00 Socket Assy-Bulb8810--01 ~ 9108--01; S; 14V-3.4W |
24860-10V00 |
US $7.92 |
||
|
24860PB
|
24860PB
2486071L00 Socket & Bulb Assy8810--01 ~ 9108--01; S; 14V-3W |
2486071L00 |
US $2.99 |
||
|
24869H
|
24869H
0145100581 SCREW8810--01 ~ 9108--01; S |
0145100581 |
from US $0.80 |
||
|
24880
|
24880
2483588E00 METER ASSY-WATER TEMPERATURE8810--01 ~ 9108--01; S |
2483588E00 |
US $195.84 |
||
|
25010A
|
25010A
2487209B01 Bolt8810--01 ~ 9108--01; S |
2487209B01 |
US $3.31 |
||
|
25010A
|
25010A
24869-13V00 Bolt8810--01 ~ 9108--01; S |
24869-13V00 |
US $3.31 |
||
|
25010A
|
25010A
24869-04J00 Screw8810--01 ~ 9108--01; S |
24869-04J00 |
US $3.62 |
||
|
25010A
|
25010A
0145100581 SCREW8810--01 ~ 9108--01; S |
0145100581 |
from US $0.80 |
||
|
25010AA
|
25010AA
24869-13V00 Bolt8810--01 ~ 9108--01; S |
24869-13V00 |
US $3.31 |
||
|
25010AB
|
25010AB
24869-04J00 Screw8810--01 ~ 9108--01; S |
24869-04J00 |
US $3.62 |
||
|
25010AB
|
25010AB
24869-04J00 Screw8810--01 ~ 9108--01; S |
24869-04J00 |
US $3.62 |
||
|
25010AB
|
25010AB
24869-04J00 Screw8810--01 ~ 9108--01; S |
24869-04J00 |
US $3.62 |
||
|
25010AC
|
25010AC
0145100581 SCREW8810--01 ~ 9108--01; S |
0145100581 |
from US $0.80 |
||
|
25030
|
25030
24814-85E00 PLATE ASSY-PRINTED CIRCUIT8810--01 ~ 9108--01; *S; ASCD ｼﾖｳ |
24814-85E00 |
US $62.35 |
||
|
25030
|
25030
24814-88E00 PLATE ASSY-PRINTED CIRCUIT8810--01 ~ 9108--01; S |
24814-88E00 |
US $62.35 |
||
|
25031
|
25031
24812-85E00 HOUSING-METER COMB,UPPER8810--01 ~ 9108--01; S |
24812-85E00 |
US $55.87 |
||
|
25031
|
25031
24811-85E00 HOUSING-METER COMB,LOWER8810--01 ~ 9108--01; S |
24811-85E00 |
US $43.63 |
||
|
25031M
|
25031M
24811-85E00 HOUSING-METER COMB,LOWER8810--01 ~ 9108--01; S |
24811-85E00 |
US $43.63 |
||
|
25035N
|
25035N
2489888E00 PLATE ASSY-PRINTED CIRCUIT8810--01 ~ 9108--01; S |
2489888E00 |
US $66.10 |
||
|
25038N
|
25038N
25065-32R00 Chime Assy-Warning8810--01 ~ 9108--01; S |
25065-32R00 |
US $46.66 |
||
|
25050A
|
25050A
25051-85E00 GROMMET8810--01 ~ 9108--01; S |
25051-85E00 |
US $14.69 |
||
|
25820
|
25820
25820-85E00 CLOCK ASSY-DIGITAL8810--01 ~ 8909--01; S |
25820-85E00 |
US $326.25 |
||
|
25820
|
25820
2582085E01 CLOCK ASSY-DIGITAL8909--01 ~ 9108--01; S |
2582085E01 |
US $230.40 |
||
|
68435
|
68435
24880-86E01 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8810--01 ~ 9108--01; *S; ASCD ｼﾖｳ |
24880-86E01 |
US $12.10 |
||
|
68435
|
68435
24880-88E00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8810--01 ~ 9108--01; S |
24880-88E00 |
US $12.10 |
||
|
68435
|
68435
24885-88E00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8810--01 ~ 9108--01; S |
24885-88E00 |
US $28.37 |
||
|
68435+A
|
68435+A
24885-88E00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8810--01 ~ 9108--01; S |
24885-88E00 |
US $28.37 |
||
|
68437M
|
68437M
24816-85E00 LENS-WARNING TURN SIGNAL8810--01 ~ 9108--01; S |
24816-85E00 |
US $10.22 |
||
|
68437M
|
68437M
24816-85E00 LENS-WARNING TURN SIGNAL8810--01 ~ 9108--01; S |
24816-85E00 |
US $10.22 |
||
