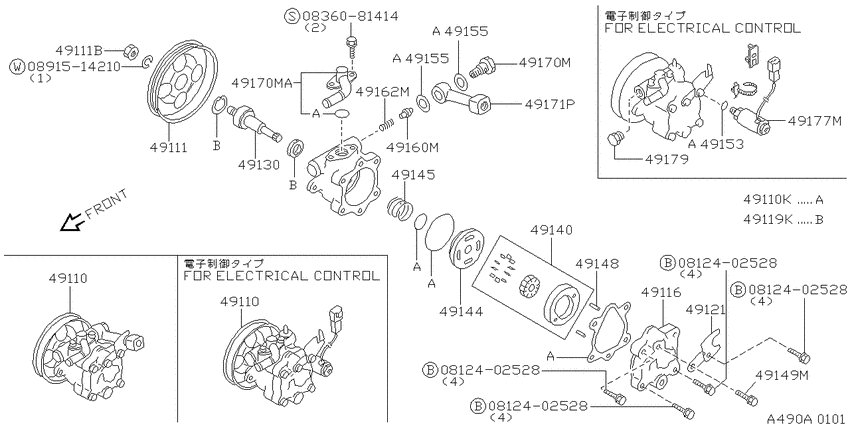

Power steering pump (1988-10-01 ~ 1991-08-01; *電子制御仕様; VG30E) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812402528
|
0812402528
08124-02528
Bolt-hexagon
|
08124-02528 |
— | ||
|
0812402528
|
0812402528
08124-02528
Bolt-hexagon
|
08124-02528 |
— | ||
|
0812402528
|
0812402528
08124-02528
Bolt-hexagon
|
08124-02528 |
— | ||
|
0812402528
|
0812402528
08124-02528
Bolt-hexagon
|
08124-02528 |
— | ||
|
0836081414
|
0836081414
08360-81414
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81414 |
— | ||
|
0891514210
|
0891514210
08915-14210 WASHER-LOCK |
08915-14210 |
US $1.73 |
||
|
49110
|
49110
49110-85E00 ﾎﾟﾝﾌﾟ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49110-85E00 |
US $1,988 |
||
|
49110
|
49110
49110-86E00 PUMP ASSY-POWER STEERING8810--01 ~ 9108--01; VG30E |
49110-86E00 |
US $1,988 |
||
|
49110
|
49110
4959150L27 Seal Kit-Power Steering Pump8810--01 ~ 9108--01; VG30E |
4959150L27 |
US $15.25 |
||
|
49110
|
49110
49591-50L29
Seal Kit-Power Steering Pump
8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49591-50L29 |
— | ||
| replacement | |||||
|
49110
|
49110
49591-50L88 Seal Kit-Power Steering Pump8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49591-50L88 |
US $14.55 |
||
|
49110
|
49110
49110-85E00 ﾎﾟﾝﾌﾟ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49110-85E00 |
US $1,988 |
||
|
49110
|
49110
49110-86E00 PUMP ASSY-POWER STEERING8810--01 ~ 9108--01; VG30E |
49110-86E00 |
US $1,988 |
||
|
49110
|
49110
4959150L27 Seal Kit-Power Steering Pump8810--01 ~ 9108--01; VG30E |
4959150L27 |
US $15.25 |
||
|
49110
|
49110
49591-50L29
Seal Kit-Power Steering Pump
8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49591-50L29 |
— | ||
| replacement | |||||
|
49110
|
49110
49591-50L88 Seal Kit-Power Steering Pump8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49591-50L88 |
US $14.55 |
||
|
49110K
|
49110K
4959150L27 Seal Kit-Power Steering Pump8810--01 ~ 9108--01; VG30E |
4959150L27 |
US $15.25 |
||
|
49110K
|
49110K
49591-50L29
Seal Kit-Power Steering Pump
8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49591-50L29 |
— | ||
| replacement | |||||
|
49110K
|
49110K
49591-50L88 Seal Kit-Power Steering Pump8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49591-50L88 |
US $14.55 |
||
|
49111
|
49111
49132-86E00 PULLEY-POWER STEERING PUMP8810--01 ~ 9108--01; VG30E |
49132-86E00 |
US $93.74 |
||
|
49111
|
49111
49133-50L00 Nut-Pulley, Power Steering Pump8810--01 ~ 9108--01; VG30E |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111
|
49111
4913350L0A Nut-Pulley, Power Steering Pump8810--01 ~ 9108--01; VG30E |
4913350L0A |
US $1.73 |
||
|
49111B
|
49111B
49133-50L00 Nut-Pulley, Power Steering Pump8810--01 ~ 9108--01; VG30E |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111B
|
49111B
4913350L0A Nut-Pulley, Power Steering Pump8810--01 ~ 9108--01; VG30E |
4913350L0A |
US $1.73 |
||
|
49116
|
49116
49116-51E00 COVER-REAR,POWER STEERING PUMP8810--01 ~ 9108--01; VG30E |
49116-51E00 |
US $33.70 |
||
|
49119K
|
49119K
4911950L25 Seal Set-Drive Shaft8810--01 ~ 9108--01; VG30E |
4911950L25 |
from US $10.69 |
||
|
49121
|
49121
49125-85E00 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49125-85E00 |
US $43.34 |
||
|
49121
|
49121
49125-86E00 BRACKET ASSY-POWER STEERING PUMP8810--01 ~ 9108--01; VG30E |
49125-86E00 |
US $27.94 |
||
|
49130
|
49130
49130-19V00 Shaft-Drive, Power Steering Pump8810--01 ~ 8908--01; VG30E |
49130-19V00 |
US $40.75 |
||
|
49130
|
49130
49130-29C00 Shaft-Drive, Power Steering Pump8908--01 ~ 9108--01; VG30E |
49130-29C00 |
US $45.05 |
||
|
49140
|
49140
49140-15V00 Rotor & Camring Set-Power Steering Pump8810--01 ~ 9108--01; VG30E |
49140-15V00 |
from US $116.21 |
||
|
49144
|
49144
49144-15V00 Plate-Side, Power Steering Pump8810--01 ~ 9108--01; VG30E |
49144-15V00 |
US $31.68 |
||
|
49145
|
49145
49145-15V00 Spring-Side Plate8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49145-15V00 |
US $0.86 |
||
|
49145
|
49145
49145-19V00 Spring-Side Plate8810--01 ~ 9108--01; VG30E |
49145-19V00 |
US $11.09 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump8810--01 ~ 9108--01; VG30E |
49148-15V00 |
US $2.49 |
||
|
49149M
|
49149M
49164-16V00 Bolt-Power Steering Pump8810--01 ~ 9108--01; VG30E |
49164-16V00 |
US $4.90 |
||
|
49153
|
49153
49176-15V00
Seal-Oil
8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49176-15V00 |
— | ||
|
49155
|
49155
4958926E00 WASHER-COPPER8810--01 ~ 9108--01; VG30E |
4958926E00 |
from US $5.03 |
||
|
49155
|
49155
4958926E00 WASHER-COPPER8810--01 ~ 9108--01; VG30E |
4958926E00 |
from US $5.03 |
||
|
49160M
|
49160M
49165-15V00 Valve Assy-Flow Control8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49165-15V00 |
US $42.19 |
||
|
49160M
|
49160M
49165-86E00 VALVE ASSY-FLOW CONTROL8810--01 ~ 9108--01; VG30E |
49165-86E00 |
US $86.54 |
||
|
49162M
|
49162M
49167-15V00 Spring-Flow Control Valve8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49167-15V00 |
US $9.07 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve8810--01 ~ 9108--01; VG30E |
4916719V00 |
US $10.94 |
||
|
49170M
|
49170M
49170-86E00 CONNECTOR-OUTLET8810--01 ~ 9108--01; VG30E |
49170-86E00 |
US $45.79 |
||
|
49170M
|
49170M
49160-55M00 Connector8810--01 ~ 9108--01; VG30E |
49160-55M00 |
US $19.58 |
||
|
49170MA
|
49170MA
49160-55M00 Connector8810--01 ~ 9108--01; VG30E |
49160-55M00 |
US $19.58 |
||
|
49171P
|
49171P
4917186E00 CONNECTOR-OUTLET8810--01 ~ 9108--01; VG30E |
4917186E00 |
US $86.54 |
||
|
49177M
|
49177M
49177-85E00 ｿﾚﾉｲﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49177-85E00 |
US $426.22 |
||
|
49179
|
49179
49179-15V00 Plug-Power Steering Pump8810--01 ~ 9108--01; *VG30E; ﾀｲﾌﾟ2 ﾃﾞﾝｼｾｲｷﾞﾖ |
49179-15V00 |
US $3.31 |
||
