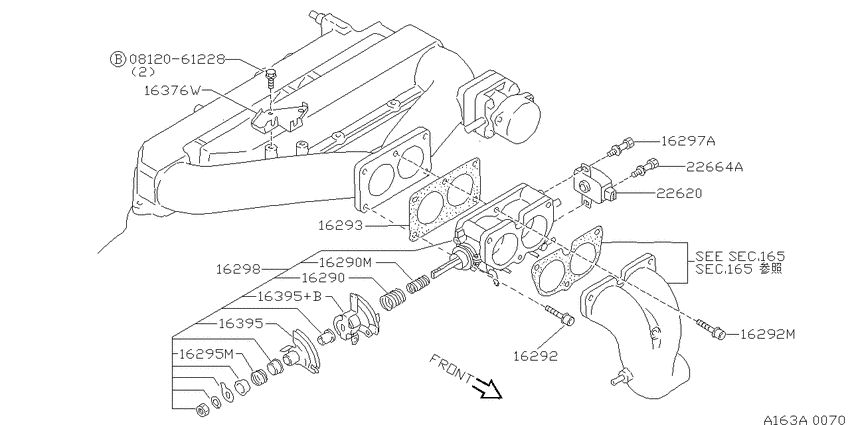

Throttle chamber (1988-10-01 ~ 1991-08-01; VG30E) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
16290
|
16290
16160-02F00 Spring-Throttle Return9106--01 ~ 9108--01; *VG30E; ASCD ｼﾖｳ |
16160-02F00 |
US $8.93 |
||
|
16290
|
16290
16160-10V00 Spring-Throttle Return8810--01 ~ 9108--01; VG30E |
16160-10V00 |
US $7.20 |
||
|
16290
|
16290
16160-02F01 Spring-Throttle Return8810--01 ~ 9108--01; VG30E |
16160-02F01 |
US $11.23 |
||
|
16290M
|
16290M
16160-02F01 Spring-Throttle Return8810--01 ~ 9108--01; VG30E |
16160-02F01 |
US $11.23 |
||
|
16292
|
16292
16122V5200 Bolt-Chamber8810--01 ~ 9108--01; VG30E |
16122V5200 |
US $3.46 |
||
|
16292
|
16292
16122-N1401 Bolt-Chamber8810--01 ~ 9108--01; VG30E |
16122-N1401 |
US $6.05 |
||
| replacement | |||||
|
16292
|
16292
16122-N140A
Bolt-chamber
8810--01 ~ 9108--01; VG30E |
16122-N140A |
— | ||
|
16292M
|
16292M
16122-N1401 Bolt-Chamber8810--01 ~ 9108--01; VG30E |
16122-N1401 |
US $6.05 |
||
| replacement | |||||
|
16292M
|
16292M
16122-N140A
Bolt-chamber
8810--01 ~ 9108--01; VG30E |
16122-N140A |
— | ||
|
16293
|
16293
16175-10V00 Gasket-Throttle Chamber8810--01 ~ 9001--01; VG30E |
16175-10V00 |
US $12.75 |
||
| replacement | |||||
|
16293
|
16293
16175-10V70
Gasket-throttle chamber
8810--01 ~ 9001--01; VG30E |
16175-10V70 |
— | ||
|
16293
|
16293
16175-89E00 GASKET-THROTTLE CHAMBER9001--01 ~ 9108--01; VG30E |
16175-89E00 |
US $6.34 |
||
| replacement | |||||
|
16293
|
16293
1617589E01 GASKET-THROTTLE CHAMBER9001--01 ~ 9108--01; VG30E |
1617589E01 |
US $6.34 |
||
|
16295M
|
16295M
16160-17F05 Spring-Throttle Return8810--01 ~ 9108--01; *VG30E; ASCD ｼﾖｳ |
16160-17F05 |
US $7.78 |
||
|
16297A
|
16297A
16129-10V00 Screw-Adjusting8810--01 ~ 9108--01; VG30E |
16129-10V00 |
US $5.04 |
||
|
16298
|
16298
16118-88E10 THROTTLE BODY8810--01 ~ 9108--01; VG30E |
16118-88E10 |
US $1,456 |
||
|
16298
|
16298
16118-91E10 THROTTLE BODY8810--01 ~ 9108--01; *VG30E; ASCD ｼﾖｳ |
16118-91E10 |
US $1,456 |
||
|
16376W
|
16376W
16167-10V00 Bracket-Accelerator Cable8810--01 ~ 9108--01; VG30E |
16167-10V00 |
US $13.54 |
||
|
16395
|
16395
16134-10V01 Lever-Ascd8810--01 ~ 9108--01; *VG30E; ASCD ｼﾖｳ |
16134-10V01 |
US $15.98 |
||
|
16395
|
16395
16134-85E10 LEVER-THROTTLE8810--01 ~ 9108--01; VG30E |
16134-85E10 |
US $32.40 |
||
|
16395+B
|
16395+B
16134-85E10 LEVER-THROTTLE8810--01 ~ 9108--01; VG30E |
16134-85E10 |
US $32.40 |
||
|
22620
|
22620
22620-12G10 Throttle Position Switch8810--01 ~ 9108--01; VG30E |
22620-12G10 |
US $72.58 |
||
|
22664A
|
22664A
01436-00501 SCREW8810--01 ~ 9108--01; VG30E |
01436-00501 |
US $1.73 |
||
