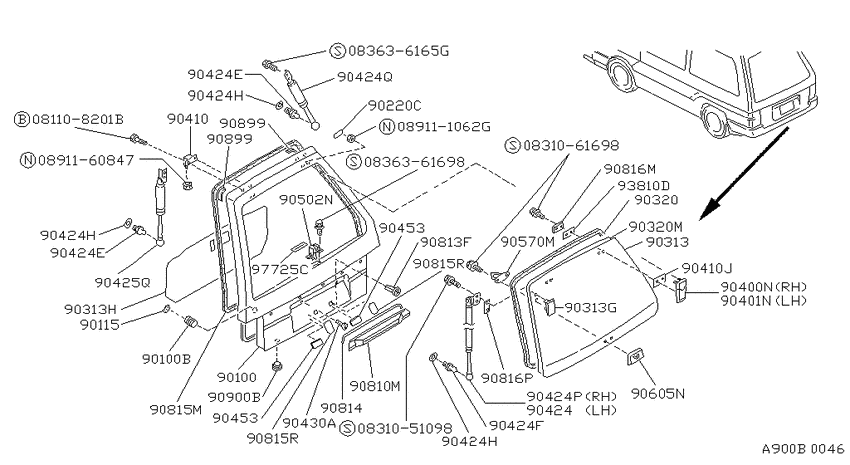

Back door panel & fitting (1986-05-01 ~ ; HATCH GLASS TYPE; STANDARD ROOF) Diagram Nissan NISSAN VAN
- Year
- 1986 - 2011
- Sales region
- U.S.A.
- Engine
- Z24I
- transmission
- MT
- Number of doors
- 4D
- body
- PV
- trim lvl
- E
- emission
- CAL
- style
- STD/R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081108201B
|
081108201B
081108201B
Bolt-hexagon
|
081108201B |
— | ||
|
0831051098
|
0831051098
08310-51098
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51098 |
— | ||
|
0831061698
|
0831061698
0831061698
ｽｸﾘﾕ-,ﾏｼﾝ
|
0831061698 |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
0836361698
|
0836361698
0836361698
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836361698 |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
0891160847
|
0891160847
08911-60847
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-60847 |
— | ||
|
90100
|
90100
90100-23C30
Door-back
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90100-23C30 |
— | ||
|
90100
|
90100
62840D0100
Bumper-Hood
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
62840D0100 |
— | ||
| replacement | |||||
|
90100
|
90100
90878-2L700 BUMPER BDOOR1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90878-2L700 |
from US $4.03 |
||
|
90100B
|
90100B
62840D0100
Bumper-Hood
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
62840D0100 |
— | ||
| replacement | |||||
|
90100B
|
90100B
90878-2L700 BUMPER BDOOR1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90878-2L700 |
from US $4.03 |
||
|
90115
|
90115
26320-11C00 Protector-Stopper1986-07-01 ~ 1988-09-01; "FED.W.AT +FED.PV +CAL.W.AT +CAL.PV; PLASTIC TAPE D=30 |
26320-11C00 |
US $4.57 |
||
|
90115
|
90115
90880-11C00 Protector-Bumper Rubber1988-09-01 ~ 1989-03-01; "FED.W.AT +FED.PV +CAL.W.AT +CAL.PV; PLASTIC TAPE 32X27 |
90880-11C00 |
US $3.74 |
||
|
90313
|
90313
90312-17C00
Glass-back door window
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; BLUE T=3.5 |
90312-17C00 |
— | ||
| replacement | |||||
|
90313
|
90313
K0312-17C00
Glass-back door window
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; BLUE T=3.5 |
K0312-17C00 |
— | ||
|
90313
|
90313
90860-11C00
ｽｸﾘ-ﾝ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90860-11C00 |
— | ||
|
90313H
|
90313H
90860-11C00
ｽｸﾘ-ﾝ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90860-11C00 |
— | ||
|
90320
|
90320
90310-17C00
Weatherstrip-back door window
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90310-17C00 |
— | ||
|
90410
|
90410
90400-17C00
Hinge assy-back door,rh
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90400-17C00 |
— | ||
|
90424
|
90424
90452-11C00
ﾎﾞﾙﾄ
1986-07-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90452-11C00 |
— | ||
|
90424
|
90424
18153-71800 Washer1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; NYLON |
18153-71800 |
US $9.94 |
||
|
90424
|
90424
90450-17C00
Stay assy-back door,rh
1986-07-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90450-17C00 |
— | ||
|
90424
|
90424
90450-17C25
Stay assy-back door,rh
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90450-17C25 |
— | ||
|
90424E
|
90424E
90452-11C00
ﾎﾞﾙﾄ
1986-07-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90452-11C00 |
— | ||
|
90424E
|
90424E
90452-11C00
ﾎﾞﾙﾄ
1986-07-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90452-11C00 |
— | ||
|
90424H
|
90424H
18153-71800 Washer1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; NYLON |
18153-71800 |
US $9.94 |
||
|
90424H
|
90424H
18153-71800 Washer1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; NYLON |
18153-71800 |
US $9.94 |
||
|
90424H
|
90424H
18153-71800 Washer1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; NYLON |
18153-71800 |
US $9.94 |
||
|
90424Q
|
90424Q
90450-17C00
Stay assy-back door,rh
1986-07-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90450-17C00 |
— | ||
|
90424Q
|
90424Q
90450-17C25
Stay assy-back door,rh
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90450-17C25 |
— | ||
|
90425Q
|
90425Q
90451-17C00
Stay assy-back door,lh
1986-07-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90451-17C00 |
— | ||
|
90425Q
|
90425Q
90451-17C25
Stay assy-back door,lh
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90451-17C25 |
— | ||
|
90430A
|
90430A
90468-11C00
ﾎﾞﾙﾄ,ｽﾍﾟｼﾔﾙ
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90468-11C00 |
— | ||
|
90453
|
90453
90880-17C00
Moulding
1987-09-01 ~ 1989-03-01; FED.PV +CAL.PV; F/LIC PLATE |
90880-17C00 |
— | ||
|
90453
|
90453
90880-21R01 ﾊﾟﾂｷﾝ1986-09-01 ~ 1987-09-01; FED.PV +CAL.PV; F/LIC PLATE |
90880-21R01 |
US $6.19 |
||
|
90453
|
90453
90880-17C00
Moulding
1987-09-01 ~ 1989-03-01; FED.PV +CAL.PV; F/LIC PLATE |
90880-17C00 |
— | ||
|
90453
|
90453
90880-21R01 ﾊﾟﾂｷﾝ1986-09-01 ~ 1987-09-01; FED.PV +CAL.PV; F/LIC PLATE |
90880-21R01 |
US $6.19 |
||
|
90810M
|
90810M
90810-11C00
ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90810-11C00 |
— | ||
|
90813F
|
90813F
01651-00491 GROMMET-SCREW1986-11-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
01651-00491 |
US $1.73 |
||
|
90814
|
90814
90814-11C00
ｽﾍﾟ-ｻ-,ﾊﾞﾂｸ ﾄﾞｱ ﾌｲﾆﾂｼﾔ-
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90814-11C00 |
— | ||
|
90815M
|
90815M
90830-17C00
Weatherstrip-back door
1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; F/BODY |
90830-17C00 |
— | ||
|
90815R
|
90815R
90879-17C00
Seal-lower,back door
1986-11-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90879-17C00 |
— | ||
|
90815R
|
90815R
90879-17C00
Seal-lower,back door
1986-11-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
90879-17C00 |
— | ||
|
90899
|
90899
82828-17C00
Protector-back door outer
1989-01-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
82828-17C00 |
— | ||
|
90899
|
90899
82828-17C00
Protector-back door outer
1989-01-01 ~ 1989-03-01; FED.PV +CAL.PV; , |
82828-17C00 |
— | ||
|
90900B
|
90900B
01658-00035 PLUG-REAR FENDER1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; D=25 |
01658-00035 |
US $3.02 |
||
| replacement | |||||
|
90900B
|
90900B
0165800155 PLUG-DOOR INNER PANEL1986-09-01 ~ 1989-03-01; FED.PV +CAL.PV; D=25 |
0165800155 |
US $3.75 |
||
