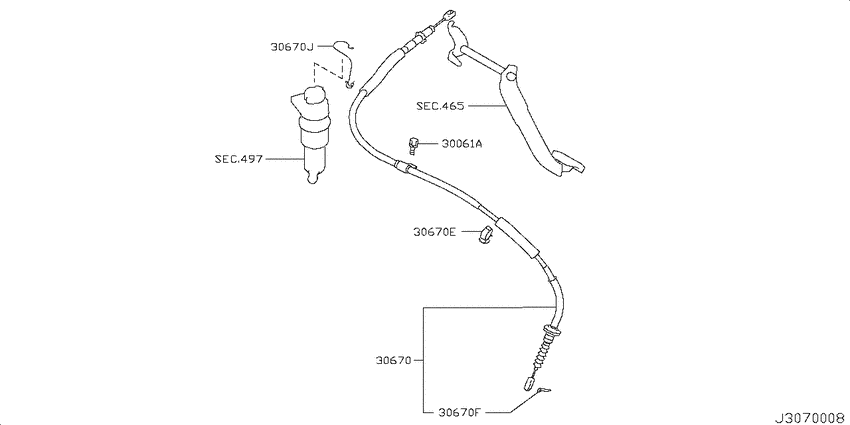

Clutch control (2005-06-01 ~ ; 3G83.5MT) Diagram Nissan OTTI
- Year
- 2005 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 2WD
- transmission
- 5MT
- grade
- S
- body
- W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30061A
|
30061A
01121-6A0J2
ﾎﾞﾙﾄ
0506--01 ~ ; 3G83.5MT; ﾜｯｼｬ ﾂｷ,8X12 |
01121-6A0J2 |
— | ||
|
30670
|
30670
306706A0A1
ｹ-ﾌﾞﾙ
0506--01 ~ ; 3G83.5MT |
306706A0A1 |
— | ||
|
30670
|
30670
01552-6A0C4
ｸﾘﾂﾌﾟ
0506--01 ~ ; 3G83.5MT; A=17.5 B=6 |
01552-6A0C4 |
— | ||
|
30670
|
30670
18022-6A0A0
ﾋﾟﾝ
0506--01 ~ ; 3G83.5MT |
18022-6A0A0 |
— | ||
|
30670
|
30670
30785-6A0A0
ｸﾘﾂﾌﾟ,ｸﾗﾂﾁ ｹ-ﾌﾞﾙ
0506--01 ~ ; 3G83.5MT |
30785-6A0A0 |
— | ||
|
30670E
|
30670E
01552-6A0C4
ｸﾘﾂﾌﾟ
0506--01 ~ ; 3G83.5MT; A=17.5 B=6 |
01552-6A0C4 |
— | ||
|
30670F
|
30670F
18022-6A0A0
ﾋﾟﾝ
0506--01 ~ ; 3G83.5MT |
18022-6A0A0 |
— | ||
|
30670J
|
30670J
30785-6A0A0
ｸﾘﾂﾌﾟ,ｸﾗﾂﾁ ｹ-ﾌﾞﾙ
0506--01 ~ ; 3G83.5MT |
30785-6A0A0 |
— | ||
|
465
|
Brake & clutch pedal
465
|
||||
|
497
|
Power steering piping
497
|
||||
