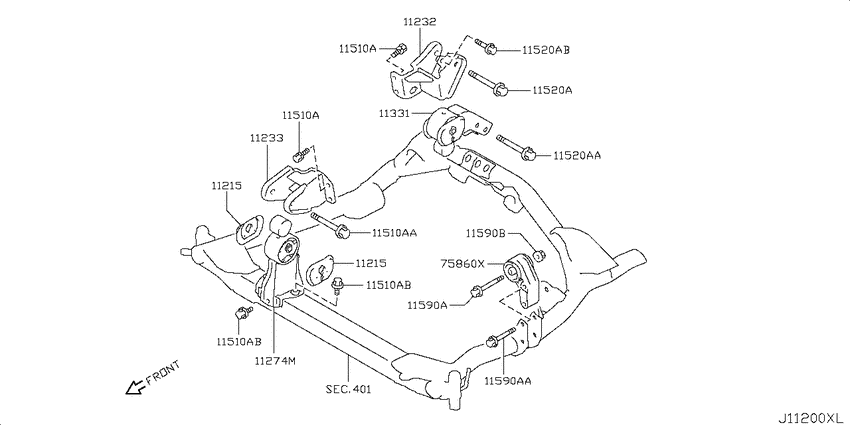

Engine & transmission mounting (2006-06-01 ~ ; 3G83.5MT) Diagram Nissan OTTI
- Year
- 2005 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 2WD
- transmission
- 5MT
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11215
|
11215
11215-6A0A1
ｽﾄﾂﾊﾟ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ
0506--01 ~ ; 3G83.5MT |
11215-6A0A1 |
— | ||
|
11215
|
11215
11215-6A0A1
ｽﾄﾂﾊﾟ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ
0506--01 ~ ; 3G83.5MT |
11215-6A0A1 |
— | ||
|
11232
|
11232
11232-6A0A2
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ rh
0506--01 ~ ; 3G83.5MT |
11232-6A0A2 |
— | ||
|
11233
|
11233
11233-6A0A0
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ lh
0506--01 ~ ; 3G83.5MT |
11233-6A0A0 |
— | ||
|
11274M
|
11274M
11274-6A0A2
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾌﾛﾝﾄ
0506--01 ~ ; 3G83.5MT |
11274-6A0A2 |
— | ||
|
11331
|
11331
11331-6A0A3
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0506--01 ~ ; 3G83.5MT |
11331-6A0A3 |
— | ||
|
11510A
|
11510A
01121-6A0J3
ﾎﾞﾙﾄ
0506--01 ~ ; 3G83.5MT; ﾜｯｼｬ ﾂｷ,10X22 |
01121-6A0J3 |
— | ||
|
11510A
|
11510A
01121-6A0G3 Bolt0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,12X90 |
01121-6A0G3 |
US $6.05 |
||
|
11510A
|
11510A
01121-6A0K9
ﾎﾞﾙﾄ
0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,10X25 |
01121-6A0K9 |
— | ||
|
11510A
|
11510A
01121-6A0J3
ﾎﾞﾙﾄ
0506--01 ~ ; 3G83.5MT; ﾜｯｼｬ ﾂｷ,10X22 |
01121-6A0J3 |
— | ||
|
11510A
|
11510A
01121-6A0G3 Bolt0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,12X90 |
01121-6A0G3 |
US $6.05 |
||
|
11510A
|
11510A
01121-6A0K9
ﾎﾞﾙﾄ
0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,10X25 |
01121-6A0K9 |
— | ||
|
11510AA
|
11510AA
01121-6A0G3 Bolt0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,12X90 |
01121-6A0G3 |
US $6.05 |
||
|
11510AB
|
11510AB
01121-6A0K9
ﾎﾞﾙﾄ
0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,10X25 |
01121-6A0K9 |
— | ||
|
11510AB
|
11510AB
01121-6A0K9
ﾎﾞﾙﾄ
0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,10X25 |
01121-6A0K9 |
— | ||
|
11520A
|
11520A
01121-6A0G3 Bolt0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,12X90 |
01121-6A0G3 |
US $6.05 |
||
|
11520A
|
11520A
113356A00A
ﾎﾞﾙﾄ
0606--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,12X65 |
113356A00A |
— | ||
|
11520A
|
11520A
11335-6A0A3
ﾎﾞﾙﾄ
0506--01 ~ 0606--01; 3G83.5MT; 12X66.5 |
11335-6A0A3 |
— | ||
|
11520A
|
11520A
11335-6A0A4 Bolt0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,10X55 |
11335-6A0A4 |
US $3.89 |
||
|
11520AA
|
11520AA
113356A00A
ﾎﾞﾙﾄ
0606--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,12X65 |
113356A00A |
— | ||
|
11520AA
|
11520AA
11335-6A0A3
ﾎﾞﾙﾄ
0506--01 ~ 0606--01; 3G83.5MT; 12X66.5 |
11335-6A0A3 |
— | ||
|
11520AB
|
11520AB
11335-6A0A4 Bolt0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,10X55 |
11335-6A0A4 |
US $3.89 |
||
|
11590A
|
11590A
01121-6A0K8
ﾎﾞﾙﾄ
0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,10X76 |
01121-6A0K8 |
— | ||
|
11590A
|
11590A
01121-6A0K7
ﾎﾞﾙﾄ
0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,10X60 |
01121-6A0K7 |
— | ||
|
11590AA
|
11590AA
01121-6A0K7
ﾎﾞﾙﾄ
0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ,10X60 |
01121-6A0K7 |
— | ||
|
11590B
|
11590B
01225-6A0A0 Nut0506--01 ~ ; 3G83.5MT; ﾌﾗﾝｼﾞ 10 |
01225-6A0A0 |
US $4.03 |
||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
75860X
|
75860X
75860-6A0A1
ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾏｳﾝﾃｲﾝｸﾞ
0506--01 ~ ; 3G83.5MT |
75860-6A0A1 |
— | ||
