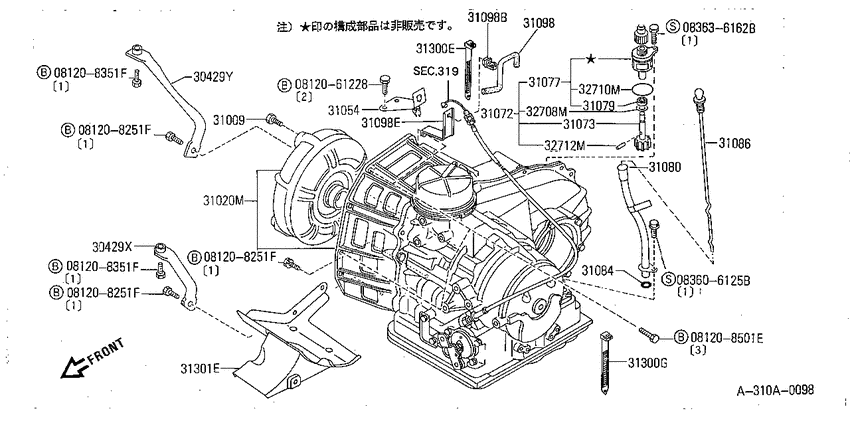

Auto transmission,transaxle & fitting (1989-01-01 ~ ; ﾕﾆｯﾄ ｱｯｾﾝﾌﾞﾘ-&ﾌｨｯﾃｨﾝｸﾞ; AT) Diagram Nissan PAO
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208351F
|
081208351F
08120-8351F
Bolt-hexagon
|
08120-8351F |
— | ||
|
081208351F
|
081208351F
08120-8351F
Bolt-hexagon
|
08120-8351F |
— | ||
|
081208501E
|
081208501E
08120-8501E
Bolt-hexagon
|
08120-8501E |
— | ||
|
083606125B
|
083606125B
083606125B Screw |
083606125B |
US $1.73 |
||
|
083636162B
|
083636162B
083636162B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636162B |
— | ||
|
30429X
|
30429X
31087-01B00 Gusset-Transmission To Engine8901--01 ~ ; AT; ﾌﾛﾝﾄ ﾖｳ |
31087-01B00 |
US $31.68 |
||
|
30429Y
|
30429Y
31075-01B00 Gusset-Transmission To Engine8901--01 ~ ; AT; ﾘﾔ ﾖｳ |
31075-01B00 |
US $21.17 |
||
|
31009
|
31009
31009-01X00 Bolt-Self Lock8901--01 ~ ; AT |
31009-01X00 |
US $4.18 |
||
|
31020M
|
31020M
31020-05X06
Transaxle Assy-Automatic
8901--01 ~ ; AT; RN3F01A |
31020-05X06 |
— | ||
|
31054
|
31054
31054-35B00
Bracket-Auto Transmission Throttle Wire
8901--01 ~ ; AT |
31054-35B00 |
— | ||
|
31072
|
31072
32702-83M18 Pinion Assy-Speedometer8901--01 ~ ; AT; 38T |
32702-83M18 |
US $27.65 |
||
|
31073
|
31073
32703M8038 Pinion-Speedometer8901--01 ~ ; AT; 38T |
32703M8038 |
US $9.22 |
||
|
31077
|
31077
32707-83M01 Sleeve-Speedometer Pinion8901--01 ~ ; AT |
32707-83M01 |
US $15.70 |
||
|
31079
|
31079
3270958S00 Seal-Oil, Speedometer Pinion8901--01 ~ ; AT |
3270958S00 |
US $0.91 |
||
|
31080
|
31080
31080-01B03 Pipe Assy-Oil Charging8901--01 ~ ; AT |
31080-01B03 |
US $56.30 |
||
|
31084
|
31084
31084M7500 Seal-O Ring8901--01 ~ ; AT |
31084M7500 |
US $1.15 |
||
|
31086
|
31086
31086-01B00 Gauge Assy-Oil Level8901--01 ~ ; AT |
31086-01B00 |
US $28.08 |
||
|
31098
|
31098
31098-21B00
Hose-Breather
8901--01 ~ ; AT |
31098-21B00 |
— | ||
|
31098
|
31098
31376-54A00 Clip-Breather Hose8901--01 ~ ; AT |
31376-54A00 |
US $7.49 |
||
|
31098
|
31098
31099-21B00 Bracket-Breather Hose8901--01 ~ ; AT |
31099-21B00 |
US $30.82 |
||
|
31098B
|
31098B
31376-54A00 Clip-Breather Hose8901--01 ~ ; AT |
31376-54A00 |
US $7.49 |
||
|
31098E
|
31098E
31099-21B00 Bracket-Breather Hose8901--01 ~ ; AT |
31099-21B00 |
US $30.82 |
||
|
31300E
|
31300E
01552-00481
CLAMP
8901--01 ~ ; AT |
01552-00481 |
— | ||
|
31300G
|
31300G
01552-00481
CLAMP
8901--01 ~ ; AT |
01552-00481 |
— | ||
|
31301E
|
31301E
31095-01B10 Guard-Converter Housing8901--01 ~ ; AT |
31095-01B10 |
US $55.58 |
||
|
32708M
|
32708M
32713-M8001 Washer-Speedometer Pinion8901--01 ~ ; AT; ｾﾝﾀｸ T=0.61 |
32713-M8001 |
US $0.82 |
||
|
32708M
|
32708M
32713-M8002 Washer-Speedometer Pinion8901--01 ~ ; AT; ｾﾝﾀｸ T=0.67 |
32713-M8002 |
US $0.86 |
||
|
32708M
|
32708M
32713-M8003 Washer-Speedometer Pinion8901--01 ~ ; AT; ｾﾝﾀｸ T=0.73 |
32713-M8003 |
US $0.86 |
||
|
32708M
|
32708M
32713-M8004 Washer-Speedometer Pinion8901--01 ~ ; AT; ｾﾝﾀｸ T=0.79 |
32713-M8004 |
US $0.86 |
||
|
32708M
|
32708M
32713-M8005 Washer-Speedometer Pinion8901--01 ~ ; AT; ｾﾝﾀｸ T=0.85 |
32713-M8005 |
US $0.86 |
||
|
32708M
|
32708M
32713-M8006 Washer-Speedometer Pinion8901--01 ~ ; AT; ｾﾝﾀｸ T=0.91 |
32713-M8006 |
US $0.86 |
||
|
32708M
|
32708M
32713-M8007 Washer-Speedometer Pinion8901--01 ~ ; AT; ｾﾝﾀｸ T=0.97 |
32713-M8007 |
US $0.86 |
||
|
32708M
|
32708M
32713-M8008 Washer-Speedometer Pinion8901--01 ~ ; AT; ｾﾝﾀｸ T=1.03 |
32713-M8008 |
US $0.86 |
||
|
32708M
|
32708M
32713-M8009 Washer-Speedometer Pinion8901--01 ~ ; AT; ｾﾝﾀｸ T=1.09 |
32713-M8009 |
US $0.86 |
||
|
32708M
|
32708M
32713-M8010 Washer-Speedometer Pinion8901--01 ~ ; AT; ｾﾝﾀｸ T=1.15 |
32713-M8010 |
US $0.86 |
||
|
32710M
|
32710M
32710M8000 Seal-O Ring, Speedometer Pinion8901--01 ~ ; AT |
32710M8000 |
US $2.78 |
||
|
32712M
|
32712M
3287314600 Pin-Retainer, Speedometer Pinion8901--01 ~ ; AT |
3287314600 |
US $2.21 |
