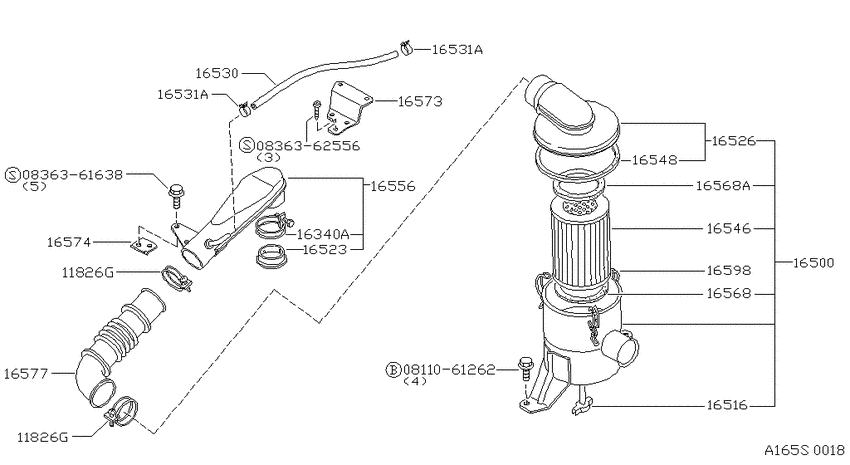

Air cleaner (1979-06-01 ~ ; SD22) Diagram Nissan PICKUP
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Engine
- SD22
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0836361638
|
0836361638
08363-61638
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61638 |
— | ||
| replacement | |||||
|
0836361638
|
0836361638
083636161G Bolt |
083636161G |
US $2.36 |
||
|
0836362556
|
0836362556
08363-62556
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62556 |
— | ||
|
11826G
|
11826G
01555-00073 CLAMP-HOSE1979-06-01 ~ 1982-10-01; SD22; , |
01555-00073 |
US $4.03 |
||
|
11826G
|
11826G
08723-17300 CLAMP-HOSE1979-06-01 ~ 1982-10-01; SD22; , |
08723-17300 |
US $3.46 |
||
|
11826G
|
11826G
21383-90018
Clamp-Hose
1979-06-01 ~ 1982-10-01; SD22; , |
21383-90018 |
— | ||
|
11826G
|
11826G
01555-00073 CLAMP-HOSE1979-06-01 ~ 1982-10-01; SD22; , |
01555-00073 |
US $4.03 |
||
|
11826G
|
11826G
08723-17300 CLAMP-HOSE1979-06-01 ~ 1982-10-01; SD22; , |
08723-17300 |
US $3.46 |
||
|
11826G
|
11826G
21383-90018
Clamp-Hose
1979-06-01 ~ 1982-10-01; SD22; , |
21383-90018 |
— | ||
|
16340A
|
16340A
21383-90003
Clamp
1979-06-01 ~ 1982-10-01; SD22; , |
21383-90003 |
— | ||
|
16500
|
16500
16500-36W01
Air Cleaner
1979-06-01 ~ 1982-10-01; SD22; VISCOUS |
16500-36W01 |
— | ||
|
16516
|
16516
16516-L1100 Bolt-Center1979-06-01 ~ 1982-10-01; SD22; , |
16516-L1100 |
US $10.08 |
||
| replacement | |||||
|
16516
|
16516
16516-G2760 Bolt-Center1979-06-01 ~ 1982-10-01; SD22; , |
16516-G2760 |
US $10.08 |
||
|
16523
|
16523
16548-37501 Insulator1979-06-01 ~ 1982-10-01; SD22; , |
16548-37501 |
US $5.27 |
||
|
16526
|
16526
16526-36W00
Air Cleaner Housing Cover
1979-06-01 ~ 1982-10-01; SD22; VISCOUS |
16526-36W00 |
— | ||
|
16530
|
16530
11032-36W00
Intake Air Duct
1979-06-01 ~ 1982-10-01; SD22; TO GOVERNOR |
11032-36W00 |
— | ||
|
16531A
|
16531A
01558-00044 CLAMP-HOSE1979-06-01 ~ 1982-10-01; SD22; , |
01558-00044 |
US $2.45 |
||
|
16531A
|
16531A
21383-Z5000 Band1979-06-01 ~ 1982-10-01; SD22; , |
21383-Z5000 |
US $2.45 |
||
|
16531A
|
16531A
01558-00044 CLAMP-HOSE1979-06-01 ~ 1982-10-01; SD22; , |
01558-00044 |
US $2.45 |
||
|
16531A
|
16531A
21383-Z5000 Band1979-06-01 ~ 1982-10-01; SD22; , |
21383-Z5000 |
US $2.45 |
||
|
16546
|
16546
16546-76000
Air Cleaner Element
1979-06-01 ~ 1982-10-01; SD22; VISCOUS |
16546-76000 |
— | ||
|
16546
|
16546
16546-R9000
Air Cleaner Element
1979-06-01 ~ 1982-10-01; SD22; VISCOUS |
16546-R9000 |
— | ||
|
16548
|
16548
16548-R9000 Packing1979-06-01 ~ 1982-10-01; SD22; , |
16548-R9000 |
US $10.80 |
||
|
16556
|
16556
16530-36W00
Air Duct
1979-06-01 ~ 1982-10-01; SD22; , |
16530-36W00 |
— | ||
|
16556
|
16556
16530-36W01
Air Duct
1979-06-01 ~ 1982-10-01; *SD22; FOR AIR CON |
16530-36W01 |
— | ||
|
16568
|
16568
16518-99003 Packing1979-06-01 ~ 1982-10-01; SD22; , |
16518-99003 |
US $3.60 |
||
|
16568
|
16568
16547-19900 Packing1979-06-01 ~ 1982-10-01; SD22; , |
16547-19900 |
US $4.18 |
||
|
16568
|
16568
16547-47000 Packing1979-06-01 ~ 1982-10-01; SD22; , |
16547-47000 |
US $5.76 |
||
|
16568A
|
16568A
16547-19900 Packing1979-06-01 ~ 1982-10-01; SD22; , |
16547-19900 |
US $4.18 |
||
|
16568A
|
16568A
16547-47000 Packing1979-06-01 ~ 1982-10-01; SD22; , |
16547-47000 |
US $5.76 |
||
|
16573
|
16573
16573-31W00 Air Cleaner Support1979-06-01 ~ 1982-10-01; SD22; , |
16573-31W00 |
US $19.15 |
||
|
16574
|
16574
16258-36W00
Air Cleaner Support
1979-06-01 ~ 1982-10-01; SD22; , |
16258-36W00 |
— | ||
|
16577
|
16577
16267-36W00
Air Duct
1979-06-01 ~ 1982-10-01; SD22; , |
16267-36W00 |
— | ||
|
16577
|
16577
16267-36W01
Air Duct
1979-06-01 ~ 1982-10-01; *SD22; FOR AIR CON |
16267-36W01 |
— | ||
|
16598
|
16598
16509-99009 Clip1979-09-01 ~ 1982-10-01; SD22; , |
16509-99009 |
US $3.75 |
||
|
16598
|
16598
16598-73600 Clip1979-06-01 ~ 1982-10-01; SD22; , |
16598-73600 |
US $2.45 |
||
