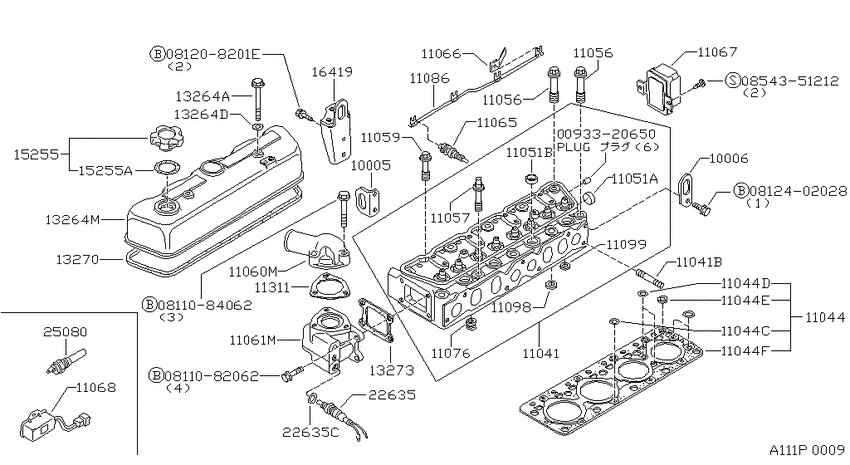

Cylinder head & rocker cover (1979-06-01 ~ ; SD22) Diagram Nissan PICKUP
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Engine
- SD22
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093320650
|
0093320650
00933-20650 PLUG |
00933-20650 |
US $1.73 |
||
|
0811082062
|
0811082062
08110-82062
Bolt-hexagon
|
08110-82062 |
— | ||
| replacement | |||||
|
0811082062
|
0811082062
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0811084062
|
0811084062
08110-84062
Bolt-hexagon
|
08110-84062 |
— | ||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0812402028
|
0812402028
08124-02028
Bolt-hexagon
|
08124-02028 |
— | ||
|
0854351212
|
0854351212
08543-51212 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ |
08543-51212 |
US $1.73 |
||
|
10005
|
10005
10005-37500 Slinger-Engine1979-09-01 ~ 1982-10-01; SD22; , |
10005-37500 |
US $5.18 |
||
|
10006
|
10006
10006-37500 Slinger-Engine1979-06-01 ~ 1983-03-01; FED.SD22; , |
10006-37500 |
US $6.05 |
||
|
11041
|
11041
11041-L2000
Head Assy-Cylinder
1982-11-01 ~ ; *SD25; FOR AIR CON |
11041-L2000 |
— | ||
| replacement | |||||
|
11041
|
11041
11041-L2002
Head assy-cylinder
1982-11-01 ~ ; *SD25; FOR AIR CON |
11041-L2002 |
— | ||
|
11041
|
11041
11041-Q4000 Head Assy-Cylinder1979-06-01 ~ 1982-10-01; SD22; , |
11041-Q4000 |
US $1,414 |
||
|
11041
|
11041
01151-01014 STUD1979-06-01 ~ 1982-10-01; SD22; L=35 |
01151-01014 |
US $2.45 |
||
|
11041B
|
11041B
01151-01014 STUD1979-06-01 ~ 1982-10-01; SD22; L=35 |
01151-01014 |
US $2.45 |
||
|
11044
|
11044
11044-L2000
Gasket-Cylinder Head
1982-11-01 ~ ; *SD25; FOR AIR CON |
11044-L2000 |
— | ||
|
11044
|
11044
11044-V1700 Gasket-Cylinder Head1982-01-01 ~ 1982-10-01; SD22; , |
11044-V1700 |
US $127.01 |
||
| replacement | |||||
|
11044
|
11044
11044-V1703
Gasket-cylinder head
1982-01-01 ~ 1982-10-01; SD22; , |
11044-V1703 |
— | ||
|
11044
|
11044
11044-Y1401 Gasket-Cylinder Head1979-06-01 ~ 1981-12-01; SD22; , |
11044-Y1401 |
US $127.01 |
||
| replacement | |||||
|
11044
|
11044
11044-V1703
Gasket-cylinder head
1979-06-01 ~ 1981-12-01; SD22; , |
11044-V1703 |
— | ||
|
11044
|
11044
11048-76220 Ring-Rubber, Head Gasket1982-11-01 ~ ; *SD25; FOR AIR CON |
11048-76220 |
US $12.82 |
||
|
11044
|
11044
11049-76220 Ring-Rubber, Head Gasket1979-06-01 ~ 1982-10-01; SD22; , |
11049-76220 |
US $9.94 |
||
|
11044
|
11044
15296-37501
Ring-Rubber, Head Gasket
1979-06-01 ~ 1982-10-01; SD22; , |
15296-37501 |
— | ||
|
11044
|
11044
11047-Y1400 Ring-Rubber1982-11-01 ~ ; *SD25; FOR AIR CON |
11047-Y1400 |
US $8.50 |
||
|
11044C
|
11044C
11048-76220 Ring-Rubber, Head Gasket1982-11-01 ~ ; *SD25; FOR AIR CON |
11048-76220 |
US $12.82 |
||
|
11044D
|
11044D
11049-76220 Ring-Rubber, Head Gasket1979-06-01 ~ 1982-10-01; SD22; , |
11049-76220 |
US $9.94 |
||
|
11044E
|
11044E
15296-37501
Ring-Rubber, Head Gasket
1979-06-01 ~ 1982-10-01; SD22; , |
15296-37501 |
— | ||
|
11044F
|
11044F
11047-Y1400 Ring-Rubber1982-11-01 ~ ; *SD25; FOR AIR CON |
11047-Y1400 |
US $8.50 |
||
|
11051A
|
11051A
01648-00084 Plug-Taper1979-06-01 ~ 1982-10-01; SD22; , |
01648-00084 |
US $4.96 |
||
|
11051B
|
11051B
11019-76200 Plug-Welch1979-06-01 ~ 1982-10-01; SD22; , |
11019-76200 |
US $3.46 |
||
|
11056
|
11056
11056-37502 Bolt-Cylinder Head1979-06-01 ~ 1982-10-01; SD22; , |
11056-37502 |
US $12.24 |
||
|
11056
|
11056
11056-37502 Bolt-Cylinder Head1979-06-01 ~ 1982-10-01; SD22; , |
11056-37502 |
US $12.24 |
||
|
11057
|
11057
11056-T3400 Bolt-Cylinder Head1979-06-01 ~ 1982-10-01; SD22; , |
11056-T3400 |
US $19.58 |
||
|
11059
|
11059
11059-76201 Bolt-Cylinder Head1979-06-01 ~ 1982-10-01; SD22; , |
11059-76201 |
US $5.47 |
||
|
11060M
|
11060M
11060-36W00
Outlet-Water
1981-07-01 ~ 1982-10-01; SD22; , |
11060-36W00 |
— | ||
|
11060M
|
11060M
11060-73500 Outlet-Water1979-06-01 ~ 1981-06-01; SD22; , |
11060-73500 |
US $59.47 |
||
|
11061M
|
11061M
21202-G7000 Housing-Thermostat1979-06-01 ~ 1982-10-01; SD22; , |
21202-G7000 |
US $131.18 |
||
|
11061M
|
11061M
21202-T3470 Housing-Thermostat1982-11-01 ~ ; *SD25; FOR AIR CON |
21202-T3470 |
US $70.26 |
||
|
11065
|
11065
11065-31W02
Glow Plug
1979-06-01 ~ 1982-10-01; SD22; , |
11065-31W02 |
— | ||
|
11066
|
11066
11066-31W01 Connector-Glow1979-06-01 ~ 1982-10-01; SD22; , |
11066-31W01 |
US $11.81 |
||
|
11067
|
11067
11067-36W00
Timer Assy-Glow Plug
1979-06-01 ~ 1982-10-01; SD22; , |
11067-36W00 |
— | ||
|
11068
|
11068
11068-T8200 Resistor-Q.g.s1979-09-01 ~ 1982-10-01; SD22; , |
11068-T8200 |
US $137.52 |
||
|
11068
|
11068
11068-T8201 Resistor-Q.g.s1979-09-01 ~ 1982-10-01; SD22; , |
11068-T8201 |
US $136.08 |
||
|
11076
|
11076
11076-76203 Chamber Assy-Combustion1979-06-01 ~ 1982-10-01; SD22; , |
11076-76203 |
US $167.04 |
||
|
11086
|
11086
11086-37502 Cable Assy1979-06-01 ~ 1982-10-01; SD22; , |
11086-37502 |
US $14.98 |
||
|
11098
|
11098
13214-Y5200 Seat-Valve, Intake1979-06-01 ~ 1982-10-01; SD22; , |
13214-Y5200 |
US $26.78 |
||
| replacement | |||||
|
11098
|
11098
11098-Y5200
Seat-valve,intake
1979-06-01 ~ 1982-10-01; SD22; , |
11098-Y5200 |
— | ||
|
11099
|
11099
13215-Y5200 Seat-Valve, Exhaust1979-06-01 ~ 1982-10-01; SD22; STD |
13215-Y5200 |
US $44.35 |
||
| replacement | |||||
|
11099
|
11099
11099-Y5200
Seat-valve,exhaust
1979-06-01 ~ 1982-10-01; SD22; STD |
11099-Y5200 |
— | ||
|
11099
|
11099
13215-Y5201 Seat-Valve, Exhaust1979-06-01 ~ 1982-10-01; SD22; OS=0.2 |
13215-Y5201 |
US $39.74 |
||
| replacement | |||||
|
11099
|
11099
11099-Y5210
Seat-valve,exhaust
1979-06-01 ~ 1982-10-01; SD22; OS=0.2 |
11099-Y5210 |
— | ||
|
11099
|
11099
13215-Y5202 Seat-Valve, Exhaust1979-06-01 ~ 1982-10-01; SD22; OS=0.4 |
13215-Y5202 |
US $39.74 |
||
| replacement | |||||
|
11099
|
11099
11099-Y5211
Seat-valve,exhaust
1979-06-01 ~ 1982-10-01; SD22; OS=0.4 |
11099-Y5211 |
— | ||
|
11311
|
11311
11062-76200 Gasket-Water Outlet1979-06-01 ~ 1982-10-01; SD22; , |
11062-76200 |
US $5.62 |
||
| replacement | |||||
|
11311
|
11311
11062-76201
Gasket
1979-06-01 ~ 1982-10-01; SD22; , |
11062-76201 |
— | ||
|
13264A
|
13264A
13240-37502 Bolt-Rocker Cover1979-06-01 ~ 1982-10-01; SD22; , |
13240-37502 |
US $3.46 |
||
|
13264D
|
13264D
15266-V0600 Washer1979-06-01 ~ 1982-10-01; SD22; , |
15266-V0600 |
US $4.18 |
||
|
13264M
|
13264M
13265-31W00 Cover Assy-Valve Rocker1979-06-01 ~ 1982-10-01; SD22; , |
13265-31W00 |
US $205.92 |
||
|
13270
|
13270
13270-R8800 Gasket-Rocker Cover1979-06-01 ~ 1982-10-01; SD22; , |
13270-R8800 |
US $23.76 |
||
| replacement | |||||
|
13270
|
13270
13270-R8810 Gasket-Rocker Cover1979-06-01 ~ 1982-10-01; SD22; , |
13270-R8810 |
US $23.76 |
||
|
13270
|
13270
13270-V0600
Gasket-Rocker Cover
1979-06-01 ~ 1982-10-01; SD22; , |
13270-V0600 |
— | ||
|
13273
|
13273
11045-76201
Gasket-Thermostat Housing
1979-06-01 ~ 1982-10-01; SD22; , |
11045-76201 |
— | ||
| replacements | |||||
|
13273
|
13273
11045-Z7000
Gasket
1979-06-01 ~ 1982-10-01; SD22; , |
11045-Z7000 |
— | ||
|
13273
|
13273
11045NA000 ｶﾞｽｹﾂﾄ1979-06-01 ~ 1982-10-01; SD22; , |
11045NA000 |
US $8.32 |
||
|
15255
|
15255
15255-W1100
Cap Assy-Oil Filler
1979-06-01 ~ 1982-10-01; SD22; , |
15255-W1100 |
— | ||
| replacement | |||||
|
15255
|
15255
1525521B00 Cap Assy-Oil Filler1979-06-01 ~ 1982-10-01; SD22; , |
1525521B00 |
US $12.62 |
||
|
15255
|
15255
1527078500 Packing-Oil Filler Cap1979-06-01 ~ 1982-10-01; SD22; , |
1527078500 |
US $4.85 |
||
|
15255A
|
15255A
1527078500 Packing-Oil Filler Cap1979-06-01 ~ 1982-10-01; SD22; , |
1527078500 |
US $4.85 |
||
|
16419
|
16419
16419-31W01 Bracket-Strainer1982-11-01 ~ ; *SD25; FOR POWER STEERING |
16419-31W01 |
US $39.74 |
||
|
16419
|
16419
64840-34W00
Bracket Assy-Fuel Strainer
1981-07-01 ~ 1982-12-01; #T.(REG+LONG).SD22.DX +K/CAB.SD22.DX; , |
64840-34W00 |
— | ||
|
16419
|
16419
64840-36W00
Bracket Assy-Fuel Strainer
1979-06-01 ~ 1981-06-01; #T.(REG+LONG).SD22.DX +K/CAB.SD22.DX; , |
64840-36W00 |
— | ||
|
16419
|
16419
16418-01W02
Bracket-Strainer
1979-06-01 ~ 1980-06-01; T.LONG +HD/T; , |
16418-01W02 |
— | ||
|
16419
|
16419
16418-46W00 Bracket-Strainer1980-07-01 ~ 1982-10-01; T.LONG +HD/T; F/FUEL STRAINER |
16418-46W00 |
US $12.67 |
||
|
16419
|
16419
16419-36W00
Bracket Assy-Fuel Strainer
1981-07-01 ~ 1982-10-01; #T.(REG+LONG).SD22.DX +K/CAB.SD22.DX; , |
16419-36W00 |
— | ||
|
22635
|
22635
11023G7000 Switch Assy-Thermo Time1979-06-01 ~ 1982-10-01; SD22; , |
11023G7000 |
US $71.14 |
||
|
22635
|
22635
01351-10124 GASKET-SENSOR1979-06-01 ~ 1982-10-01; SD22; , |
01351-10124 |
US $2.45 |
||
| replacement | |||||
|
22635
|
22635
1679410G00 Gasket-Sensor1979-06-01 ~ 1982-10-01; SD22; , |
1679410G00 |
from US $1.02 |
||
|
22635C
|
22635C
01351-10124 GASKET-SENSOR1979-06-01 ~ 1982-10-01; SD22; , |
01351-10124 |
US $2.45 |
||
| replacement | |||||
|
22635C
|
22635C
1679410G00 Gasket-Sensor1979-06-01 ~ 1982-10-01; SD22; , |
1679410G00 |
from US $1.02 |
||
|
25080
|
25080
2508089900 Gauge Assy-Water Temperature1979-06-01 ~ 1982-02-01; T +K/CAB +HD/T; , |
2508089900 |
US $56.28 |
||
|
25080
|
25080
25080-89902 Gauge Assy-Water Temperature1982-02-01 ~ ; T +K/CAB +HD/T; , |
25080-89902 |
from US $30.53 |
||
