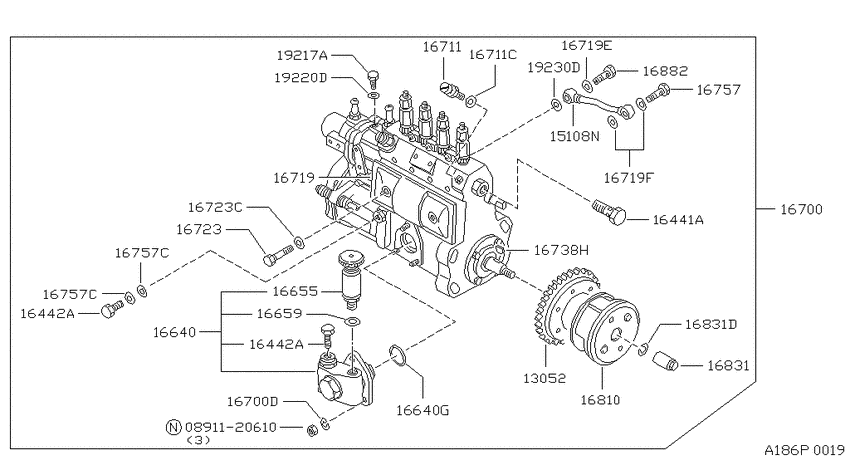

Fuel injection pump (1979-06-01 ~ 1981-07-01; ASSEMBLY; SD22) Diagram Nissan PICKUP
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Engine
- SD22
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
13052
|
13052
13052-36W00 Gear-Drive, Injection Pump1979-06-01 ~ ; SD22; , |
13052-36W00 |
US $77.90 |
||
|
15108N
|
15108N
16884-36W00
Tube Assy-Oil
1979-06-01 ~ ; SD22; , |
16884-36W00 |
— | ||
|
15108N
|
15108N
19820-36W00
Tube Assy-Oil
1979-06-01 ~ ; %(FED.T.REG+FED.K/CAB+FED.T.LONG).SD22; , |
19820-36W00 |
— | ||
|
16441A
|
16441A
1675737501
Eyebolt
1979-06-01 ~ ; SD22; , |
1675737501 |
— | ||
|
16442A
|
16442A
16753-37500 Bolt-Pipe Joint1979-06-01 ~ ; SD22; , |
16753-37500 |
US $6.91 |
||
|
16442A
|
16442A
16753-37500 Bolt-Pipe Joint1979-06-01 ~ ; SD22; , |
16753-37500 |
US $6.91 |
||
|
16640
|
16640
16640-Y8402 Pump Assy-Feed1979-06-01 ~ ; SD22; , |
16640-Y8402 |
US $210.24 |
||
| replacement | |||||
|
16640
|
16640
16640-31W01
Pump Assy-Feed
1979-06-01 ~ ; SD22; , |
16640-31W01 |
— | ||
|
16640
|
16640
19278-99014 Seal-O Ring1979-06-01 ~ ; SD22; , |
19278-99014 |
US $8.64 |
||
|
16640
|
16640
16640-Y8402 Pump Assy-Feed1979-06-01 ~ 1982-10-01; SD22; , |
16640-Y8402 |
US $210.24 |
||
| replacement | |||||
|
16640
|
16640
16640-31W01
Pump Assy-Feed
1979-06-01 ~ 1982-10-01; SD22; , |
16640-31W01 |
— | ||
|
16640G
|
16640G
19278-99014 Seal-O Ring1979-06-01 ~ ; SD22; , |
19278-99014 |
US $8.64 |
||
|
16655
|
16655
16655-37501
Pump Assy-Hand
1979-06-01 ~ ; SD22; , |
16655-37501 |
— | ||
| replacement | |||||
|
16655
|
16655
16655-34W00
Pump Assy-Hand
1979-06-01 ~ ; SD22; , |
16655-34W00 |
— | ||
|
16655
|
16655
16655-37501
Pump Assy-Hand
1979-06-01 ~ 1982-10-01; SD22; , |
16655-37501 |
— | ||
| replacement | |||||
|
16655
|
16655
16655-34W00
Pump Assy-Hand
1979-06-01 ~ 1982-10-01; SD22; , |
16655-34W00 |
— | ||
|
16659
|
16659
1665937500 Washer1979-06-01 ~ ; SD22; , |
1665937500 |
US $1.87 |
||
|
16659
|
16659
1665937500 Washer1979-06-01 ~ 1982-10-01; SD22; , |
1665937500 |
US $1.87 |
||
|
16659
|
16659
19278-99010 O Ring1979-06-01 ~ 1982-10-01; SD22; , |
19278-99010 |
US $2.68 |
||
|
16700
|
16700
16700-36W01
Pump Assy-Injection
1979-06-01 ~ 1981-06-01; SD22; , |
16700-36W01 |
— | ||
|
16700
|
16700
16700-36W03
Pump Assy-Injection
1981-07-01 ~ ; %(FED.T.REG+FED.K/CAB+FED.T.LONG).SD22; , |
16700-36W03 |
— | ||
|
16700
|
16700
16825-90004 Washer-Lock1979-06-01 ~ ; SD22; , |
16825-90004 |
US $0.86 |
||
|
16700
|
16700
16701-37504 Gasket-Injection Pump1979-06-01 ~ ; SD22; , |
16701-37504 |
US $4.46 |
||
|
16700
|
16700
16952-36W00
Plate
1979-06-01 ~ 1981-06-01; *SD22; , |
16952-36W00 |
— | ||
|
16700D
|
16700D
16825-90004 Washer-Lock1979-06-01 ~ ; SD22; , |
16825-90004 |
US $0.86 |
||
|
16711
|
16711
16711-99000 Plug-Air Bleed1979-06-01 ~ ; SD22; , |
16711-99000 |
US $18.29 |
||
|
16711
|
16711
16778-99002 Washer1979-06-01 ~ ; SD22; , |
16778-99002 |
US $2.45 |
||
|
16711C
|
16711C
16778-99002 Washer1979-06-01 ~ ; SD22; , |
16778-99002 |
US $2.45 |
||
|
16719
|
16719
16720-99009 Cover1979-06-01 ~ ; SD22; , |
16720-99009 |
US $89.57 |
||
| replacement | |||||
|
16719
|
16719
16720-C6800 Cover1979-06-01 ~ ; SD22; , |
16720-C6800 |
US $89.14 |
||
|
16719
|
16719
16778-90000
Gasket
1979-06-01 ~ ; SD22; , |
16778-90000 |
— | ||
|
16719
|
16719
16778-99001 Packing1979-06-01 ~ ; SD22; , |
16778-99001 |
US $2.02 |
||
|
16719
|
16719
16778-99005
Gasket
1979-06-01 ~ ; SD22; , |
16778-99005 |
— | ||
|
16719E
|
16719E
16778-90000
Gasket
1979-06-01 ~ ; SD22; , |
16778-90000 |
— | ||
|
16719F
|
16719F
16778-99001 Packing1979-06-01 ~ ; SD22; , |
16778-99001 |
US $2.02 |
||
|
16719F
|
16719F
16778-99005
Gasket
1979-06-01 ~ ; SD22; , |
16778-99005 |
— | ||
|
16723
|
16723
16723-37503 Screw-Cover1979-06-01 ~ ; SD22; , |
16723-37503 |
US $4.61 |
||
|
16723
|
16723
16716-37500 Packing1979-06-01 ~ ; SD22; , |
16716-37500 |
US $2.08 |
||
|
16723C
|
16723C
16716-37500 Packing1979-06-01 ~ ; SD22; , |
16716-37500 |
US $2.08 |
||
|
16738H
|
16738H
1674237501 Key-Woodruff1979-06-01 ~ ; SD22; , |
1674237501 |
from US $0.97 |
||
|
16757
|
16757
16757-76200
Bolt-Pipe Joint
1979-06-01 ~ ; SD22; , |
16757-76200 |
— | ||
|
16757
|
16757
16778-99001 Packing1979-06-01 ~ ; SD22; , |
16778-99001 |
US $2.02 |
||
|
16757C
|
16757C
16778-99001 Packing1979-06-01 ~ ; SD22; , |
16778-99001 |
US $2.02 |
||
|
16757C
|
16757C
16778-99001 Packing1979-06-01 ~ ; SD22; , |
16778-99001 |
US $2.02 |
||
|
16810
|
16810
16810-36W00
Timer Assy-Automatic
1979-06-01 ~ ; %(FED.T.REG+FED.K/CAB+FED.T.LONG).SD22; , |
16810-36W00 |
— | ||
|
16831
|
16831
16831-37500 Nut-Round1979-06-01 ~ ; SD22; , |
16831-37500 |
US $6.19 |
||
|
16831
|
16831
16830-37500 Washer-Lock1979-06-01 ~ ; SD22; , |
16830-37500 |
US $2.02 |
||
|
16831D
|
16831D
16830-37500 Washer-Lock1979-06-01 ~ ; SD22; , |
16830-37500 |
US $2.02 |
||
|
16882
|
16882
16882-36W00
Valve-Oil Drain
1979-06-01 ~ ; SD22; , |
16882-36W00 |
— | ||
|
19217A
|
19217A
19220-37500
Bolt
1979-06-01 ~ ; SD22; , |
19220-37500 |
— | ||
|
19217A
|
19217A
19379-90001
Bolt
1979-06-01 ~ ; SD22; , |
19379-90001 |
— | ||
|
19220D
|
19220D
19211-37500 Gasket1979-06-01 ~ ; SD22; , |
19211-37500 |
US $1.58 |
||
| replacement | |||||
|
19220D
|
19220D
16758-R8100 Gasket1979-06-01 ~ ; SD22; , |
16758-R8100 |
US $1.58 |
||
|
19230D
|
19230D
19211-37500 Gasket1979-06-01 ~ ; SD22; , |
19211-37500 |
US $1.58 |
||
| replacement | |||||
|
19230D
|
19230D
16758-R8100 Gasket1979-06-01 ~ ; SD22; , |
16758-R8100 |
US $1.58 |
||
