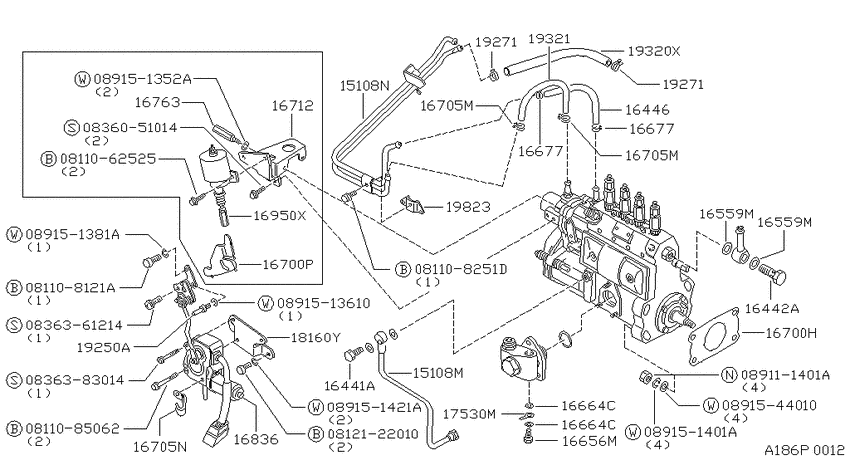

Fuel injection pump (1979-06-01 ~ ; FITTING PARTS; SD22) Diagram Nissan PICKUP
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Engine
- SD22
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811062525
|
0811062525
08110-62525
Bolt-hexagon
|
08110-62525 |
— | ||
|
081108121A
|
081108121A
08110-8121A
Bolt-hexagon
|
08110-8121A |
— | ||
|
0811085062
|
0811085062
08110-85062
Bolt-hexagon
|
08110-85062 |
— | ||
|
0812122010
|
0812122010
08121-22010
Bolt-hexagon
|
08121-22010 |
— | ||
|
0836051014
|
0836051014
0836051014 SCREW |
0836051014 |
US $1.73 |
||
|
0836361214
|
0836361214
08363-61214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61214 |
— | ||
|
0836383014
|
0836383014
08363-83014
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-83014 |
— | ||
|
089111401A
|
089111401A
089111401A
NUTHEX
|
089111401A |
— | ||
|
089151352A
|
089151352A
089151352A
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
089151352A |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
0891544010
|
0891544010
08915-44010
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-44010 |
— | ||
|
15108M
|
15108M
15108-T5600
Tube Assy-Oil
1979-06-01 ~ ; SD22; , |
15108-T5600 |
— | ||
|
15108N
|
15108N
16884-36W00
Tube Assy-Oil
1979-06-01 ~ ; SD22; , |
16884-36W00 |
— | ||
|
15108N
|
15108N
19820-36W00
Tube Assy-Oil
1979-06-01 ~ ; %(FED.T.REG+FED.K/CAB+FED.T.LONG).SD22; , |
19820-36W00 |
— | ||
|
16441A
|
16441A
1675737501
Eyebolt
1979-06-01 ~ ; SD22; , |
1675737501 |
— | ||
|
16442A
|
16442A
16753-37500 Bolt-Pipe Joint1979-06-01 ~ ; SD22; , |
16753-37500 |
US $6.91 |
||
|
16446
|
16446
19836-Y7500 Hose-Rubber1979-06-01 ~ ; SD22; , |
19836-Y7500 |
US $12.67 |
||
|
16446
|
16446
16697-96000 Support-Injection Tube1979-06-01 ~ 1982-10-01; SD22; , |
16697-96000 |
US $5.76 |
||
| replacement | |||||
|
16446
|
16446
16697-Z5501 Support1979-06-01 ~ 1982-10-01; SD22; , |
16697-Z5501 |
US $6.48 |
||
|
16559M
|
16559M
01351-11144 PACKING1979-06-01 ~ ; SD22; , |
01351-11144 |
US $2.45 |
||
| replacement | |||||
|
16559M
|
16559M
1679410G01 Gasket1979-06-01 ~ ; SD22; , |
1679410G01 |
US $8.18 |
||
|
16559M
|
16559M
01351-11144 PACKING1979-06-01 ~ ; SD22; , |
01351-11144 |
US $2.45 |
||
| replacement | |||||
|
16559M
|
16559M
1679410G01 Gasket1979-06-01 ~ ; SD22; , |
1679410G01 |
US $8.18 |
||
|
16656M
|
16656M
16656-37501 Joint Assy-Pipe1979-06-01 ~ ; SD22; , |
16656-37501 |
US $5.76 |
||
|
16664C
|
16664C
01351-11144 PACKING1979-06-01 ~ ; SD22; , |
01351-11144 |
US $2.45 |
||
| replacement | |||||
|
16664C
|
16664C
1679410G01 Gasket1979-06-01 ~ ; SD22; , |
1679410G01 |
US $8.18 |
||
|
16664C
|
16664C
01351-11144 PACKING1979-06-01 ~ ; SD22; , |
01351-11144 |
US $2.45 |
||
| replacement | |||||
|
16664C
|
16664C
1679410G01 Gasket1979-06-01 ~ ; SD22; , |
1679410G01 |
US $8.18 |
||
|
16677
|
16677
01558-00044 CLAMP-HOSE1979-06-01 ~ ; SD22; , |
01558-00044 |
US $2.45 |
||
|
16677
|
16677
01558-00044 CLAMP-HOSE1979-06-01 ~ ; SD22; , |
01558-00044 |
US $2.45 |
||
|
16700H
|
16700H
16701-37504 Gasket-Injection Pump1979-06-01 ~ ; SD22; , |
16701-37504 |
US $4.46 |
||
|
16700P
|
16700P
16952-36W00
Plate
1979-06-01 ~ 1981-06-01; *SD22; , |
16952-36W00 |
— | ||
|
16705M
|
16705M
21383-Z5002 Clamp-Fuel Tube1979-06-01 ~ ; SD22; , |
21383-Z5002 |
US $2.45 |
||
|
16705M
|
16705M
21383-Z5002 Clamp-Fuel Tube1979-06-01 ~ ; SD22; , |
21383-Z5002 |
US $2.45 |
||
|
16705N
|
16705N
24210-07P00 Clip-Harness1979-06-01 ~ ; SD22; , |
24210-07P00 |
US $2.45 |
||
|
16705N
|
16705N
24210-89944 Clamp1979-06-01 ~ ; SD22; , |
24210-89944 |
US $3.46 |
||
|
16712
|
16712
16951-36W00
Screw-Air Bleed
1979-06-01 ~ 1981-06-01; *SD22; , |
16951-36W00 |
— | ||
|
16763
|
16763
16953-36W00
Bolt
1979-06-01 ~ 1981-06-01; *SD22; , |
16953-36W00 |
— | ||
|
16836
|
16836
19811-31W02 Controller1979-06-01 ~ 1981-02-01; SD22; , |
19811-31W02 |
US $392.23 |
||
| replacement | |||||
|
16836
|
16836
A9811-31W02
Controller assy-start advance
1979-06-01 ~ 1981-02-01; SD22; , |
A9811-31W02 |
— | ||
|
16836
|
16836
19811-36W01
Controller Assy-Start Advance
1981-03-01 ~ ; SD22; , |
19811-36W01 |
— | ||
| replacement | |||||
|
16836
|
16836
A9811-36W02
Controller assy-start advance
1981-03-01 ~ ; SD22; , |
A9811-36W02 |
— | ||
|
16836
|
16836
19811-36W02
Controller Assy-Start Advance
1979-06-01 ~ ; SD22; , |
19811-36W02 |
— | ||
| replacement | |||||
|
16836
|
16836
A9811-36W02
Controller assy-start advance
1979-06-01 ~ ; SD22; , |
A9811-36W02 |
— | ||
|
16950X
|
16950X
16950-36W00
Compensator-Aneroid
1979-06-01 ~ 1981-06-01; *SD22; , |
16950-36W00 |
— | ||
|
17530M
|
17530M
17518-G7010 Connector1979-06-01 ~ ; SD22; , |
17518-G7010 |
US $19.44 |
||
|
18160Y
|
18160Y
19816-31W01
Bracket-Controller
1979-06-01 ~ ; SD22; , |
19816-31W01 |
— | ||
|
18160Y
|
18160Y
19816-31W02 Bracket-Controller1979-06-01 ~ ; SD22; , |
19816-31W02 |
US $61.78 |
||
|
19250A
|
19250A
19813-31W01 Bolt-Connector1979-06-01 ~ 1981-06-01; SD22; , |
19813-31W01 |
US $12.96 |
||
|
19271
|
19271
01555-00341 CLAMP1979-06-01 ~ ; SD22; , |
01555-00341 |
US $4.32 |
||
| replacement | |||||
|
19271
|
19271
01555-00781 CLAMP1979-06-01 ~ ; SD22; , |
01555-00781 |
US $4.32 |
||
|
19271
|
19271
01555-00341 CLAMP1979-06-01 ~ ; SD22; , |
01555-00341 |
US $4.32 |
||
| replacement | |||||
|
19271
|
19271
01555-00781 CLAMP1979-06-01 ~ ; SD22; , |
01555-00781 |
US $4.32 |
||
|
19320X
|
19320X
11032-31W00 Hose-Fuel1979-06-01 ~ ; SD22; , |
11032-31W00 |
US $5.04 |
||
| replacement | |||||
|
19320X
|
19320X
11032-V6600
Hose-Rubber
1979-06-01 ~ ; SD22; , |
11032-V6600 |
— | ||
|
19321
|
19321
11032-C0300 Hose-Rubber1979-06-01 ~ ; SD22; , |
11032-C0300 |
US $7.92 |
||
| replacement | |||||
|
19321
|
19321
A1032-37701
Tube Assy
1979-06-01 ~ ; SD22; , |
A1032-37701 |
— | ||
|
19823
|
19823
19823-Y7500 Bracket-Governor Tube1979-06-01 ~ ; SD22; , |
19823-Y7500 |
US $14.40 |
||
