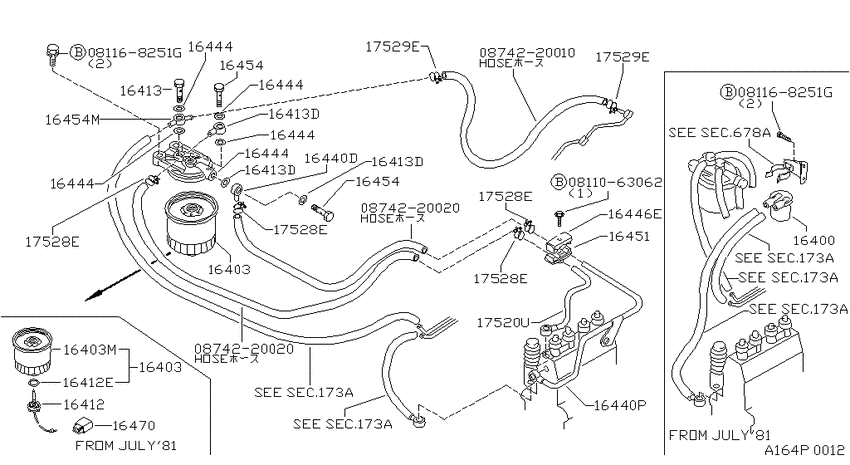

Fuel strainer & fuel hose (1979-06-01 ~ ; SD22) Diagram Nissan PICKUP
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Engine
- SD22
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811063062
|
0811063062
08110-63062
Bolt-hexagon
|
08110-63062 |
— | ||
|
081168251G
|
081168251G
081168251G
Bolt-hexagon
|
081168251G |
— | ||
|
081168251G
|
081168251G
081168251G
Bolt-hexagon
|
081168251G |
— | ||
|
0874220010
|
0874220010
08742-20010 HOSE-RETURN |
08742-20010 |
US $51.26 |
||
|
0874220020
|
0874220020
08742-20020 HOSE-FUEL |
08742-20020 |
US $87.55 |
||
| replacement | |||||
|
0874220020
|
0874220020
A6440J0100 Hose-Fuel |
A6440J0100 |
US $217.61 |
||
|
0874220020
|
0874220020
08742-20020 HOSE-FUEL |
08742-20020 |
US $87.55 |
||
| replacement | |||||
|
0874220020
|
0874220020
A6440J0100 Hose-Fuel |
A6440J0100 |
US $217.61 |
||
|
16400
|
16400
16401-36W01
Strainer Assy-Fuel
1981-07-01 ~ 1982-10-01; SD22; , |
16401-36W01 |
— | ||
|
16403
|
16403
16403-Z7000
Element Assy-Paper
1979-06-01 ~ 1981-06-01; SD22; , |
16403-Z7000 |
— | ||
| replacement | |||||
|
16403
|
16403
16403J5500
Cartridge Assy-Fuel Filter
1979-06-01 ~ 1981-06-01; SD22; , |
16403J5500 |
— | ||
|
16403
|
16403
16405-34W25
Element Assy-Paper
1981-07-01 ~ 1982-10-01; SD22; , |
16405-34W25 |
— | ||
|
16403
|
16403
16405-34W00
Cartridge Assy-Fuel Filter
1981-07-01 ~ 1982-10-01; SD22; , |
16405-34W00 |
— | ||
|
16403
|
16403
16403-Z7000
Element Assy-Paper
1979-06-01 ~ 1981-06-01; SD22; , |
16403-Z7000 |
— | ||
| replacement | |||||
|
16403
|
16403
16403J5500
Cartridge Assy-Fuel Filter
1979-06-01 ~ 1981-06-01; SD22; , |
16403J5500 |
— | ||
|
16403
|
16403
16405-34W25
Element Assy-Paper
1981-07-01 ~ 1982-10-01; SD22; , |
16405-34W25 |
— | ||
|
16403
|
16403
16405-34W00
Cartridge Assy-Fuel Filter
1981-07-01 ~ 1982-10-01; SD22; , |
16405-34W00 |
— | ||
|
16403M
|
16403M
16405-34W00
Cartridge Assy-Fuel Filter
1981-07-01 ~ 1982-10-01; SD22; , |
16405-34W00 |
— | ||
|
16412
|
16412
16412-V0700 Sensor Assy1981-07-01 ~ 1982-10-01; SD22; , |
16412-V0700 |
US $17.14 |
||
|
16412
|
16412
16406-V0701
Seal-O Ring
1981-07-01 ~ 1982-10-01; SD22; , |
16406-V0701 |
— | ||
|
16412E
|
16412E
16406-V0701
Seal-O Ring
1981-07-01 ~ 1982-10-01; SD22; , |
16406-V0701 |
— | ||
|
16413
|
16413
16413-G7000
Valve Assy-Over Flow
1979-06-01 ~ 1982-10-01; SD22; , |
16413-G7000 |
— | ||
|
16413
|
16413
01351-11144 PACKING1979-06-01 ~ 1982-10-01; SD22; , |
01351-11144 |
US $2.45 |
||
| replacement | |||||
|
16413
|
16413
1679410G01 Gasket1979-06-01 ~ 1982-10-01; SD22; , |
1679410G01 |
US $8.18 |
||
|
16413D
|
16413D
01351-11144 PACKING1979-06-01 ~ 1982-10-01; SD22; , |
01351-11144 |
US $2.45 |
||
| replacement | |||||
|
16413D
|
16413D
1679410G01 Gasket1979-06-01 ~ 1982-10-01; SD22; , |
1679410G01 |
US $8.18 |
||
|
16413D
|
16413D
01351-11144 PACKING1979-06-01 ~ 1982-10-01; SD22; , |
01351-11144 |
US $2.45 |
||
| replacement | |||||
|
16413D
|
16413D
1679410G01 Gasket1979-06-01 ~ 1982-10-01; SD22; , |
1679410G01 |
US $8.18 |
||
|
16413D
|
16413D
01351-11144 PACKING1979-06-01 ~ 1982-10-01; SD22; , |
01351-11144 |
US $2.45 |
||
| replacement | |||||
|
16413D
|
16413D
1679410G01 Gasket1979-06-01 ~ 1982-10-01; SD22; , |
1679410G01 |
US $8.18 |
||
|
16440D
|
16440D
17518-34W00
Connector-Fuel Feed Piping
1981-07-01 ~ 1982-10-01; SD22; , |
17518-34W00 |
— | ||
|
16440D
|
16440D
17518-G7010 Connector1979-06-01 ~ 1981-06-01; SD22; , |
17518-G7010 |
US $19.44 |
||
|
16440P
|
16440P
16818-36W00
Tube Assy-Fuel
1979-06-01 ~ 1982-10-01; SD22; , |
16818-36W00 |
— | ||
|
16444
|
16444
16442-31W01 Cover-Upper1979-06-01 ~ 1982-10-01; SD22; , |
16442-31W01 |
US $35.17 |
||
|
16444
|
16444
16442-31W01 Cover-Upper1979-06-01 ~ 1982-10-01; SD22; , |
16442-31W01 |
US $35.17 |
||
|
16444
|
16444
16442-31W01 Cover-Upper1979-06-01 ~ 1982-10-01; SD22; , |
16442-31W01 |
US $35.17 |
||
|
16444
|
16444
16442-31W01 Cover-Upper1979-06-01 ~ 1982-10-01; SD22; , |
16442-31W01 |
US $35.17 |
||
|
16444
|
16444
16442-31W01 Cover-Upper1979-06-01 ~ 1982-10-01; SD22; , |
16442-31W01 |
US $35.17 |
||
|
16446E
|
16446E
16697-96000 Support-Injection Tube1979-06-01 ~ 1982-10-01; SD22; , |
16697-96000 |
US $5.76 |
||
| replacement | |||||
|
16446E
|
16446E
16697-Z5501 Support1979-06-01 ~ 1982-10-01; SD22; , |
16697-Z5501 |
US $6.48 |
||
|
16451
|
16451
16698-96000 Support-Injection Tube1979-06-01 ~ 1982-10-01; SD22; , |
16698-96000 |
US $4.32 |
||
| replacement | |||||
|
16451
|
16451
16698-Z5501 Support-Injection Tube1979-06-01 ~ 1982-10-01; SD22; , |
16698-Z5501 |
US $7.20 |
||
|
16454
|
16454
16454-99002 Connector1979-06-01 ~ 1982-10-01; SD22; , |
16454-99002 |
US $5.18 |
||
|
16454
|
16454
16678-34W00
Connector
1981-07-01 ~ 1982-10-01; SD22; , |
16678-34W00 |
— | ||
|
16454
|
16454
16678-36W00
Plate-Connector
1979-06-01 ~ 1981-06-01; SD22; , |
16678-36W00 |
— | ||
|
16454
|
16454
16454-99002 Connector1979-06-01 ~ 1982-10-01; SD22; , |
16454-99002 |
US $5.18 |
||
|
16454
|
16454
16678-34W00
Connector
1981-07-01 ~ 1982-10-01; SD22; , |
16678-34W00 |
— | ||
|
16454
|
16454
16678-36W00
Plate-Connector
1979-06-01 ~ 1981-06-01; SD22; , |
16678-36W00 |
— | ||
|
16454M
|
16454M
16678-34W00
Connector
1981-07-01 ~ 1982-10-01; SD22; , |
16678-34W00 |
— | ||
|
16454M
|
16454M
16678-36W00
Plate-Connector
1979-06-01 ~ 1981-06-01; SD22; , |
16678-36W00 |
— | ||
|
16470
|
16470
16470-36W00
Detector-Fuel
1981-07-01 ~ 1982-10-01; SD22; , |
16470-36W00 |
— | ||
|
17520U
|
17520U
16817-29W02
Tube Assy-Oil
1979-06-01 ~ 1982-10-01; SD22; , |
16817-29W02 |
— | ||
|
17520U
|
17520U
16817-36W00
Pipe Assy-Fuel
1979-06-01 ~ 1982-10-01; SD22; , |
16817-36W00 |
— | ||
|
17528E
|
17528E
01555-00181
CLIP
1979-06-01 ~ 1982-10-01; SD22; , |
01555-00181 |
— | ||
| replacement | |||||
|
17528E
|
17528E
01555-00791 CLAMP1979-06-01 ~ 1982-10-01; SD22; , |
01555-00791 |
from US $3.24 |
||
|
17528E
|
17528E
01555-00181
CLIP
1979-06-01 ~ 1982-10-01; SD22; , |
01555-00181 |
— | ||
| replacement | |||||
|
17528E
|
17528E
01555-00791 CLAMP1979-06-01 ~ 1982-10-01; SD22; , |
01555-00791 |
from US $3.24 |
||
|
17528E
|
17528E
01555-00181
CLIP
1979-06-01 ~ 1982-10-01; SD22; , |
01555-00181 |
— | ||
| replacement | |||||
|
17528E
|
17528E
01555-00791 CLAMP1979-06-01 ~ 1982-10-01; SD22; , |
01555-00791 |
from US $3.24 |
||
|
17528E
|
17528E
01555-00181
CLIP
1979-06-01 ~ 1982-10-01; SD22; , |
01555-00181 |
— | ||
| replacement | |||||
|
17528E
|
17528E
01555-00791 CLAMP1979-06-01 ~ 1982-10-01; SD22; , |
01555-00791 |
from US $3.24 |
||
|
17529E
|
17529E
01555-00411
CLAMP-HOSE
1979-06-01 ~ 1982-10-01; SD22; , |
01555-00411 |
— | ||
| replacement | |||||
|
17529E
|
17529E
0155500771 CLIP1979-06-01 ~ 1982-10-01; SD22; , |
0155500771 |
US $2.78 |
||
|
17529E
|
17529E
01555-00411
CLAMP-HOSE
1979-06-01 ~ 1982-10-01; SD22; , |
01555-00411 |
— | ||
| replacement | |||||
|
17529E
|
17529E
0155500771 CLIP1979-06-01 ~ 1982-10-01; SD22; , |
0155500771 |
US $2.78 |
||
