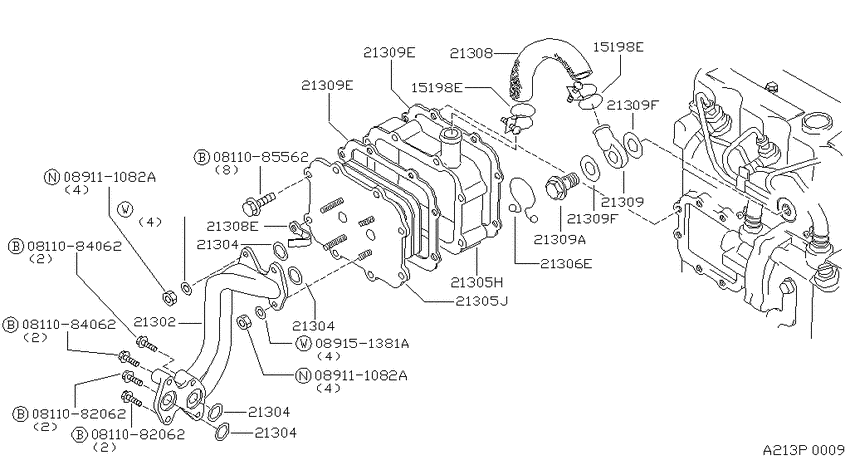

Oil cooler (1979-06-01 ~ ; SD22) Diagram Nissan PICKUP
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Engine
- SD22
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082062
|
0811082062
08110-82062
Bolt-hexagon
|
08110-82062 |
— | ||
| replacement | |||||
|
0811082062
|
0811082062
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0811082062
|
0811082062
08110-82062
Bolt-hexagon
|
08110-82062 |
— | ||
| replacement | |||||
|
0811082062
|
0811082062
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0811084062
|
0811084062
08110-84062
Bolt-hexagon
|
08110-84062 |
— | ||
|
0811084062
|
0811084062
08110-84062
Bolt-hexagon
|
08110-84062 |
— | ||
|
0811085562
|
0811085562
08110-85562
Bolt-hexagon
|
08110-85562 |
— | ||
|
089111082A
|
089111082A
089111082A NUTHEX |
089111082A |
US $0.50 |
||
|
089111082A
|
089111082A
089111082A NUTHEX |
089111082A |
US $0.50 |
||
|
15198E
|
15198E
21383-90009 Clamp-Hose1979-06-01 ~ 1982-10-01; SD22; , |
21383-90009 |
from US $15.11 |
||
|
15198E
|
15198E
21383-90009 Clamp-Hose1979-06-01 ~ 1982-10-01; SD22; , |
21383-90009 |
from US $15.11 |
||
|
21302
|
21302
21304-31W00 Pipe Assy-Oil Cooler, Inlet1979-06-01 ~ 1982-10-01; SD22; , |
21304-31W00 |
US $207.36 |
||
|
21304
|
21304
21306-61520 Ring-Rubber1979-06-01 ~ 1982-10-01; SD22; , |
21306-61520 |
US $7.77 |
||
|
21304
|
21304
21306-61520 Ring-Rubber1979-06-01 ~ 1982-10-01; SD22; , |
21306-61520 |
US $7.77 |
||
|
21304
|
21304
21306-61520 Ring-Rubber1979-06-01 ~ 1982-10-01; SD22; , |
21306-61520 |
US $7.77 |
||
|
21304
|
21304
21306-61520 Ring-Rubber1979-06-01 ~ 1982-10-01; SD22; , |
21306-61520 |
US $7.77 |
||
|
21305H
|
21305H
21302-31W00 Housing-Oil Cooler1979-06-01 ~ 1982-10-01; SD22; , |
21302-31W00 |
US $146.88 |
||
|
21305J
|
21305J
21301-31W00
Element-Oil Cooler
1979-06-01 ~ 1982-10-01; SD22; , |
21301-31W00 |
— | ||
|
21306E
|
21306E
11079-90002 Clamp1982-10-01 ~ ; SD22; , |
11079-90002 |
US $18.86 |
||
|
21308
|
21308
21308-90003
Hose-Water
1979-06-01 ~ 1982-10-01; SD22; OIL COOLER |
21308-90003 |
— | ||
| replacement | |||||
|
21308
|
21308
21308-10G10 Hose water1979-06-01 ~ 1982-10-01; SD22; OIL COOLER |
21308-10G10 |
US $22.46 |
||
|
21308
|
21308
24210-07P00 Clip-Harness1979-06-01 ~ 1982-10-01; SD22; L=20,45,30 |
24210-07P00 |
US $2.45 |
||
|
21308
|
21308
24210-89944 Clamp1979-06-01 ~ 1982-10-01; SD22; L=20,36,24 |
24210-89944 |
US $3.46 |
||
|
21308E
|
21308E
24210-07P00 Clip-Harness1979-06-01 ~ 1982-10-01; SD22; L=20,45,30 |
24210-07P00 |
US $2.45 |
||
|
21308E
|
21308E
24210-89944 Clamp1979-06-01 ~ 1982-10-01; SD22; L=20,36,24 |
24210-89944 |
US $3.46 |
||
|
21309
|
21309
21309-90005 Ring-Connector1979-06-01 ~ 1982-10-01; SD22; , |
21309-90005 |
US $72 |
||
|
21309
|
21309
21320-90002 Bolt1979-06-01 ~ 1982-10-01; SD22; , |
21320-90002 |
US $100.08 |
||
|
21309
|
21309
21307-76200 Gasket1979-06-01 ~ 1982-10-01; SD22; , |
21307-76200 |
US $7.49 |
||
| replacement | |||||
|
21309
|
21309
2130410G00
ｶﾞｽｹﾂﾄ
1979-06-01 ~ 1982-10-01; SD22; , |
2130410G00 |
— | ||
|
21309
|
21309
21331-76201
Gasket
1979-06-01 ~ 1982-10-01; SD22; , |
21331-76201 |
— | ||
| replacement | |||||
|
21309
|
21309
16794-10G02 Gasket1979-06-01 ~ 1982-10-01; SD22; , |
16794-10G02 |
US $4.27 |
||
|
21309A
|
21309A
21320-90002 Bolt1979-06-01 ~ 1982-10-01; SD22; , |
21320-90002 |
US $100.08 |
||
|
21309E
|
21309E
21307-76200 Gasket1979-06-01 ~ 1982-10-01; SD22; , |
21307-76200 |
US $7.49 |
||
| replacement | |||||
|
21309E
|
21309E
2130410G00
ｶﾞｽｹﾂﾄ
1979-06-01 ~ 1982-10-01; SD22; , |
2130410G00 |
— | ||
|
21309E
|
21309E
21307-76200 Gasket1979-06-01 ~ 1982-10-01; SD22; , |
21307-76200 |
US $7.49 |
||
| replacement | |||||
|
21309E
|
21309E
2130410G00
ｶﾞｽｹﾂﾄ
1979-06-01 ~ 1982-10-01; SD22; , |
2130410G00 |
— | ||
|
21309F
|
21309F
21331-76201
Gasket
1979-06-01 ~ 1982-10-01; SD22; , |
21331-76201 |
— | ||
| replacement | |||||
|
21309F
|
21309F
16794-10G02 Gasket1979-06-01 ~ 1982-10-01; SD22; , |
16794-10G02 |
US $4.27 |
||
|
21309F
|
21309F
21331-76201
Gasket
1979-06-01 ~ 1982-10-01; SD22; , |
21331-76201 |
— | ||
| replacement | |||||
|
21309F
|
21309F
16794-10G02 Gasket1979-06-01 ~ 1982-10-01; SD22; , |
16794-10G02 |
US $4.27 |
||
